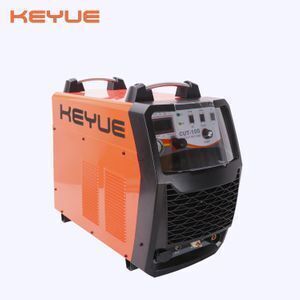

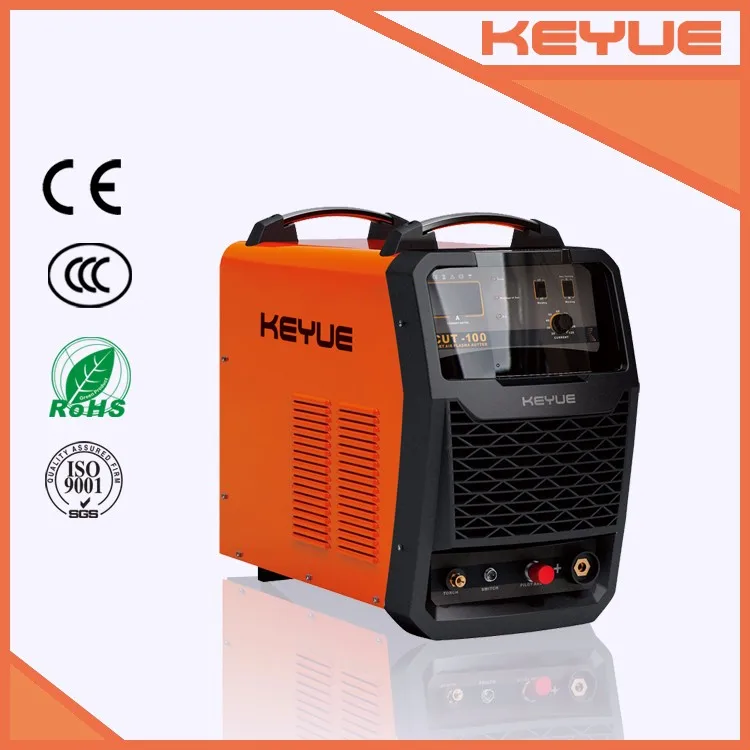

Three phase IGBT Inverter DC small smooth seam plasma cutter and welder for both hand cutter and CNC auto cutting CUT-100

Supplier: Keyue Welding Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Richard Pan
Price: $370.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China (Mainland);	Package Type:	Packing: 1 pcs / Carton, Gross Weight: 41.6kg/ pcs Package size: 740400630 mm;
Input Voltage:	380V;	After-sales Service Provided:	Free spare parts;
Selling Units:	Single item;	Usage:	Cutting;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE,CCC,ROHS;
Condition:	New;	Single gross weight:	39.3 KG;
Power(W):	15KVA;	Dimensions:	740400630;
Brand Name:	KEYUE;	Type:	IGBT;
Warranty:	1 Year;	Color:	Orange;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Construction works ;	Rated Current:	100;
Single package size:	74X40X63 cm;	Panel:	iron or plastic;

Product description

Product feature

Non-contact start with pilot arc
Maximum cutting: 30mm
Cutting type: manual and automatic(CNC)
Material: mild steel, brass, stainless steel, copper, aluminum

Model	CUT-100
Input voltage(V)	3PH AC380V±15%
Input power(KVA)	15
Input current (A)	23
Rated output	120V/100A
Output current(A)	30-100
No-load voltage (V)	380
Duty Cycle% (40℃ 10min)	100A 60%
Duty Cycle% (40℃ 10min)	77A 100%
Efficiency (%)	80
Protection grade	IP21
Insulation grade	F
Method of arc start	un contact
Net weight (KG)	35.7
Gross weight (KG)	41.6
Dimension of machine (mm)	650340590
Dimension of package (mm)	740400630

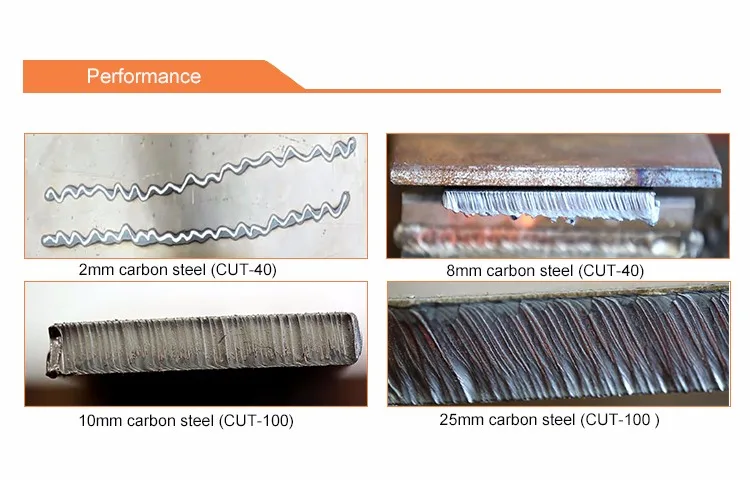

Performance

Material	Sheet thickness (mm)	Arc start	Current range(A)	Model
Carbon steel, stainless steel, low alloy steel	0.3-16.0	Contact	20-40A	CUT-40
	1.0-25.0	Contact	20-60A	CUT-60
	1.0-30.0	Uncontact	20-100A	CUT-100
	1.0-35.0	Uncontact	20-120A	CUT-120
	1.0-40.0	Uncontact	20-160A	CUT-160
	1.0-50.0	Uncontact	20-200A	CUT-200
Copper, Copper alloy, Aluminum, Aluminum-alloy	0.3-8.0	Contact	20-40A	CUT-40
	1.0-13.0	Contact	20-60A	CUT-60
	1.0-15.0	Uncontact	20-100A	CUT-100
	1.0-18.0	Uncontact	20-120A	CUT-120
	1.0-20.0	Uncontact	20-160A	CUT-160
	1.0-25.0	Uncontact	20-200A	CUT-200

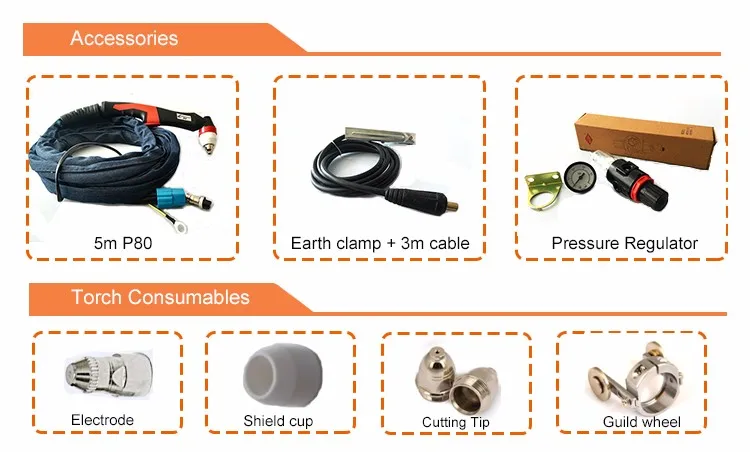

Accessories

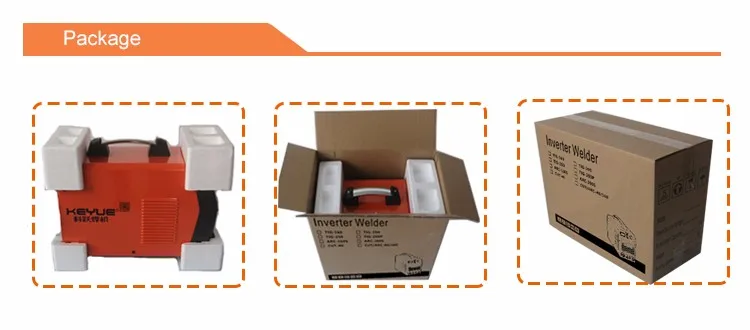

Package

Company info

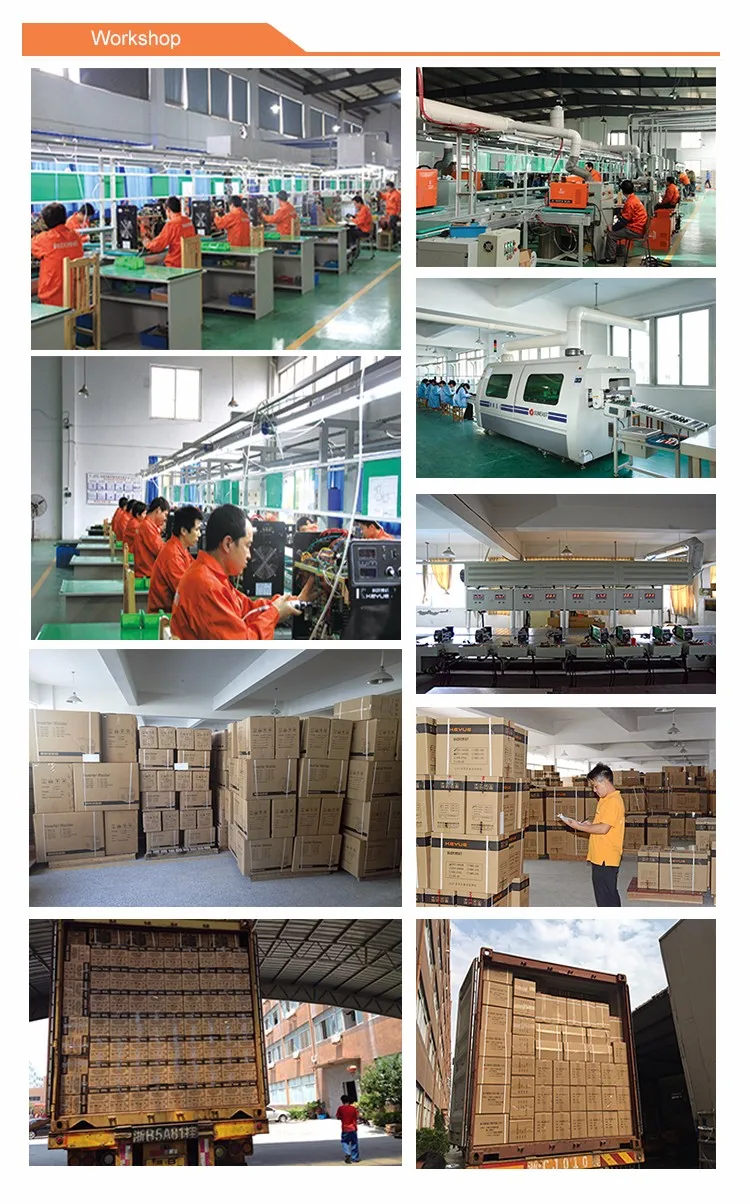

Workshop

Certificate
