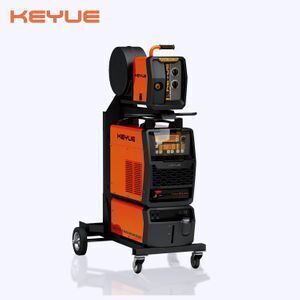

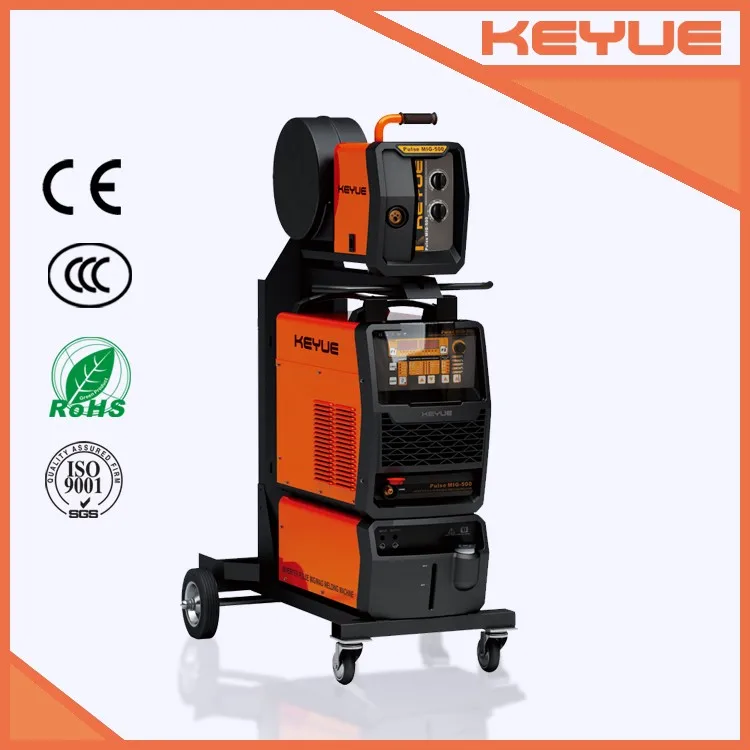

3phase 380V 500A Digital/synergic double pulse 3days delivery MMA/MIG/MAG/CO2 IGBT DC inverter aluminium welder MIG-500H

Product details
Rated Output Current (MIG):500A;Place of Origin:Zhejiang China (Mainland);
Package Type:Packing: 3 Wooden boxes / set Gross weight: 102 kgs Package size: 720*390*900mm 730*350*670mm 1000*500*320mm;Dimensions:650*340*890;
Voltage:3PH AC380V±15%;Rated Output Voltage (MIG):39V;
After-sales Service Provided:Online support,Free spare parts,Video technical support;Rated Duty Cycle @40°C (MIG):60%;
Material / Metal Processed:Aluminium Alloy;Wire Melting Type:Short Circuit Transfer;
Rated Input Voltage:380V;Warranty:1 Year;
Usage:Welding Steel, Aluminum;Weight:48KG;
Power(W):24.3KVA;Welding Current/Voltage Range:25-500A;
Single gross weight:68 KG;Panel:iron or plastic;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ;Certification:CCC/CE/ROHS;
Color:orange,yellow,red and blue is optional;Single package size:78X43.5X81 cm;
Wire Feeding Speed:2.5-16 M/min;Brand Name:KEYUE;
Max. Load Power Capacity:24.3KVA;Selling Units:Single item;
After-sales Service Provided:Engineers available to service machinery overseas;Type:IGBT;
Condition:New;
Product description



Product feature

  • Supporting: MIG/MAG, Pulse MIG(single&double), Lift TIG, MMA, Gouging

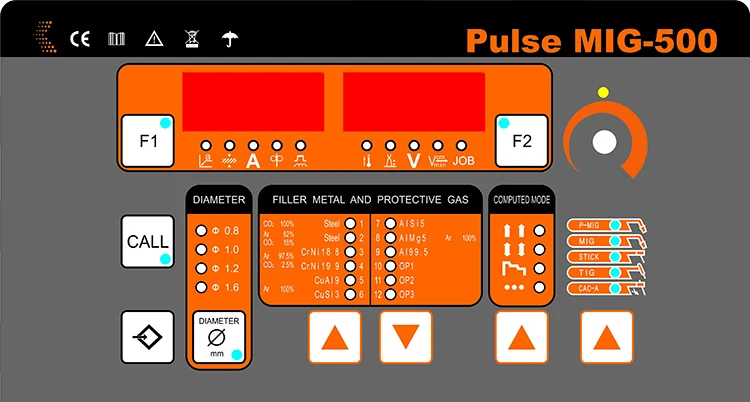

  • Controlling: Synergic with over 100 programs
  • Protection: Over current, over voltage, under voltage, over heat and wire blocked
  • Assembling: Source, Wire feeder, Water tank and trolley combined in one
  • Material: Mild steel, Stainless steel, aluminum and aluminum alloy(special)



ModelMIG-500H
Input voltage(V)3PH AC380V±15%
Input power(KVA)24.3
Input current(A)37
Rated output39V/500A
Output current(A)25-500A
No-load voltage (V)98±5
Duty Cycle% (40℃ 10min)500A   60%
387A 100%
Efficiency (%)80
Protection gradeIP21
Insulation gradeF
Net weight (KG)48
Gross weight (KG)51.5
Gross weight of WF(KG)43.5
Gross weight of trolley (KG)47
Dimension of trolley package (mm)1020*520*360
Dimension of WF package (mm)690*370*460
Dimension of machine (mm)650*340*890
Dimension of package (mm)740*400*910

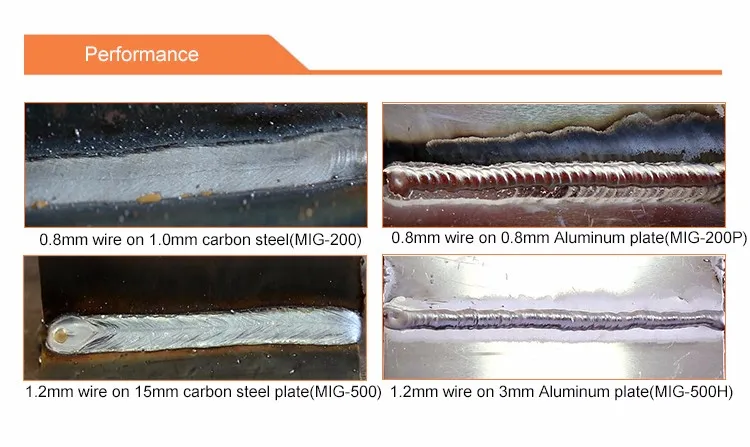

Performance

Material

Sheet thickness   (mm)

Stick diameter    (mm)

Current range(A)

Model









Carbon steel

Stainless steel

Low alloy steel























≥0.8

0.8/1.0

50-200

MIG-200

≥0.8

0.8/1.0

60-250

MIG-250

≥0.8

1.0/1.2

60-350

MIG-350

≥0.8

1.0/1.2/1.6

60-500

MIG-500



Carbon steel

Stainless steel

Low alloy steel

Aluminum



≥0.8

 0.8/1.0 30-185A MIG-200P

≥0.8

2.5/3.2/4.0/5.0

25-350

MIG-350H

≥0.8

5.0/6.0/8.0

25-500

MIG-500H

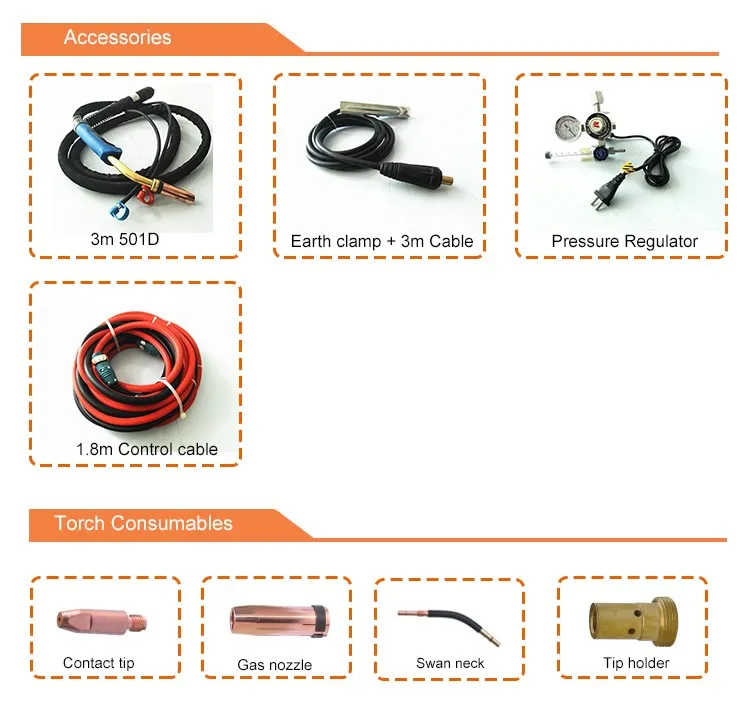

Accessories

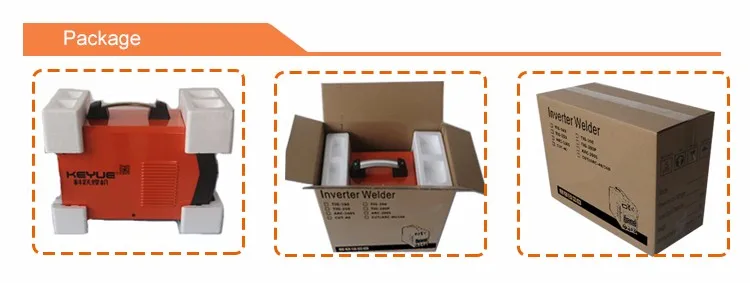

Package
