Supply capacity: | 3000pcs/month solar deep well pump | application: | to pump water |
port: | Shenzhen | brand: | Invalid |
model: | solar water pump | Inverter type: | MPPT |
fuel: | solar energy | powered by: | Solar/mains/generator |
Warranty: | 2 years | payment terms: | L/C, Western Union, T/T, MoneyGram, RMB |
product name: | Solar deep well pump | pressure: | low pressure, low pressure |
Certification: | ISO9001 ISO14001 CE | Pump size: | 4-10 inches |
usage: | water | frequency: | 50 /60 Hz |
Voltage: | 110v/220v/380v | Packaging Details: | Solar deep well pump carton/wooden box packaging |
horsepower: | Solar/mains/generator | Material: | stainless steel 304 |
Origin: | China |
As a professional manufacturer of solar water pump system solutions and solar water pump inverters, SINCR provides practical, professional and reliable AC/DC solar water pump systems for agricultural irrigation and industrial applications.

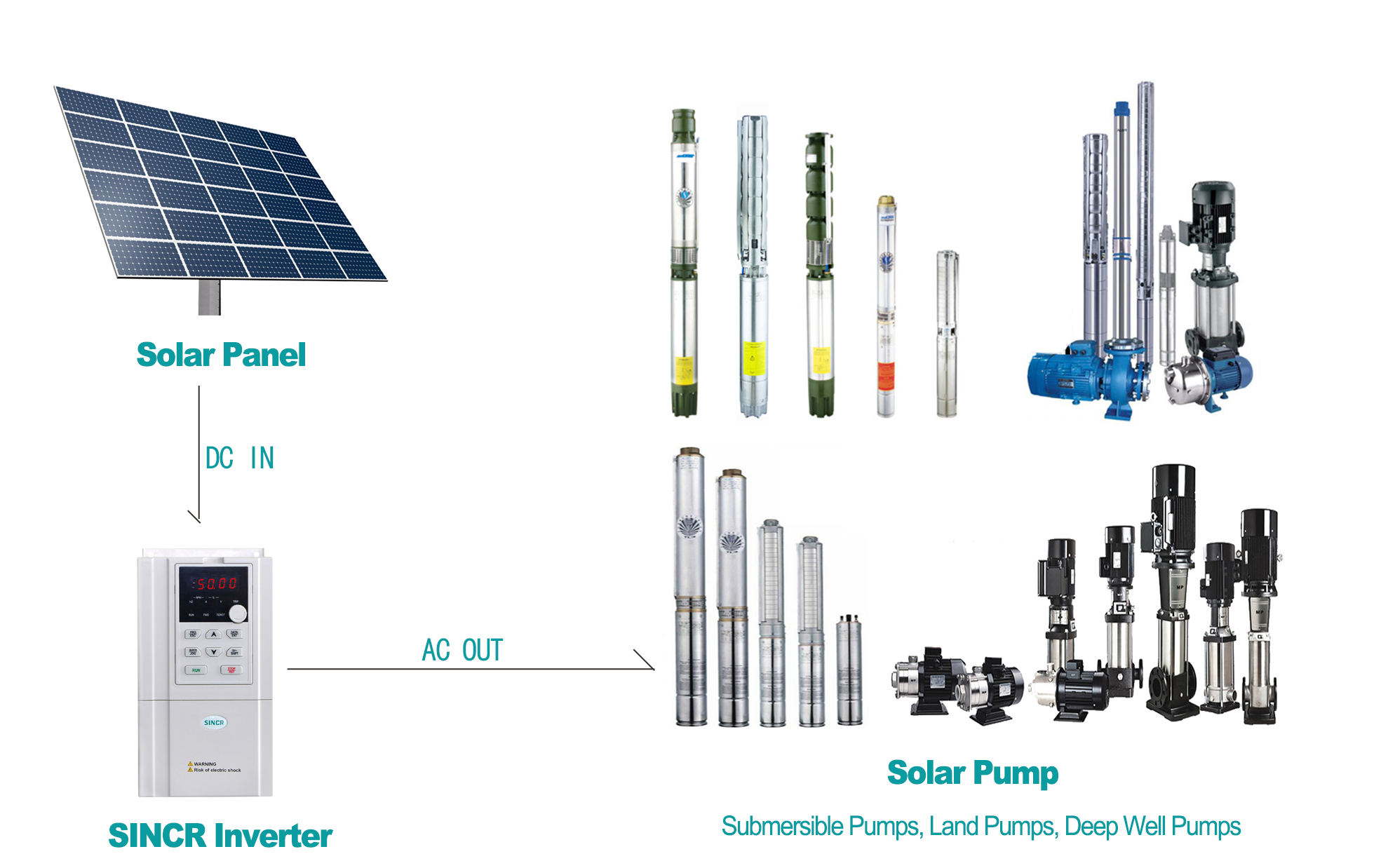

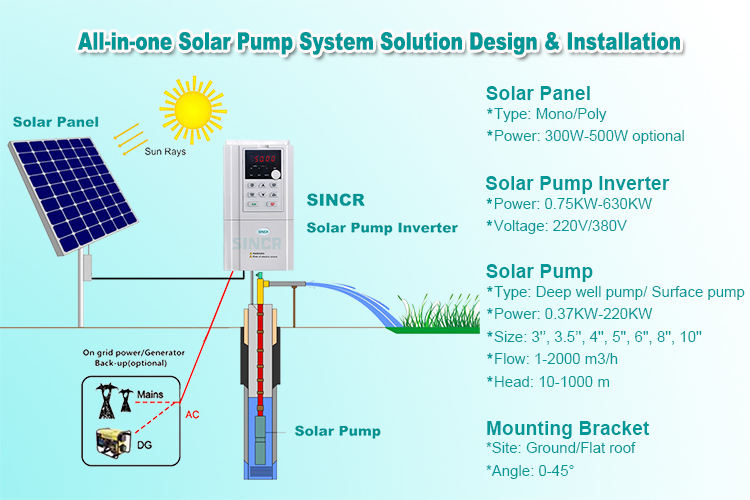

SINCR solar water pump system is mainly composed of solar panels, solar water pump inverter and solar water pump.
In the solar water pump system, the water pump is very important because it affects the economy and stability of the whole system. The submersible pump is the most commonly used in the solar water pump system. It has a wide range of applications and a wide range of speed regulation.
Used in conjunction with the inverter, the daily working hours and water output of the system can be increased. Users with low head and large flow can choose multi-stage impeller submersible pumps; users with high head and small flow can choose submersible screw pumps.
product specification | ||||
model. | 4SP2-06 | 4SP3-12 | 4SP5-12 | 4SP8-10 |
strength | 0.5HP/0.37KW | 1HP/0.75KW | 1.5HP/1.1KW | 2HP/1.5KW |
water head | 37-2 meters | 74-9 meters | 76-25 meters | 62-19 meters |
water flow per hour | 0-4.2 cubic meters | 0-6 cubic meters | 0-6.6 cubic meters | 0-12 cubic meters |
outlet diameter | 4" | 4" | 4" | 4" |
respected MPP voltage |
250-350VDC | 250-350VDC | 250-350VDC | 250-350VDC |
model. | 4SP14-07 | 5SP10-6* | 5SP15-07* | 5SP20-08 |
strength | 3HP/2.2KW | 4HP/3KW | 3HP/4KW | 3HP/5.5KW |
water head | 48-6 meters | 66-24 meters | 77-18 meters | 84-29 meters |
water flow per hour | 0-21 cubic meters | 0-20 cubic meters | 0-25 cubic meters | 0-30 cubic meters |
outlet diameter | 4" | 5" | 5" | 5" |
respected MPP voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
model. | 5SP25-10 | 5SP30-10 | 6SP17-18 | 6SP20-19 |
strength | 10HP/7.5KW | 12.5HP/9.2KW | 15HP/11KW | 17.5HP/13KW |
water head | 110-36 meters | 110-30m | 198-57 meters | 209-61 meters |
water flow per hour | 0-35 cubic meters | 0-40 cubic meters | 0-27 cubic meters | 0-30 cubic meters |
outlet diameter | 5" | 5" | 6" | 6" |
respected MPP voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
model. | 6SP30-16 | 6SP40-12 | 6SP46-14 | 6SP60-16 |
strength | 20HP/15KW | 25HP/18.5KW | 30HP/22KW | 40HP/30KW |
water head | 212-57 meters | 161-80 meters | 194-56 meters | 226-98 meters |
water flow per hour | 0-42 cubic meters | 0-50 cubic meters | 0-66 cubic meters | 0-72 cubic meters |
outlet diameter | 6" | 6" | 6" | 6" |
respected MPP voltage |
500-700VDC | 500-700VDC | 500-700VDC | 500-700VDC |
Note: This is one of the product specifications of each series. If you need a suitable head and flow, please let us know the details.
Advantages of solar water pumps
1. VFD, MPPT solar water pump inverter, the highest utilization rate of solar energy.
2. Outdoor IP65 customization, good protection, long life and reliable operation.
3. Easy to install and use.
4. Automatic start and stop, unattended.
5. High/low voltage protection, overcurrent/overload protection.
application
For pumping clean water for domestic, domestic and industrial applications including water supply, irrigation, flushing systems and pressurization.
Why choose us?
♦ Good product quality
♦ Excellent pre-sales and after-sales solution customization
♦ 24 hours technical support
Sincr is not just a factory, but also a problem-solving service provider. From providing solutions to production to installation of solar water pump inverter systems, we prove our strength with professional knowledge.
