structure: | Diaphragm pump | Packaging Details: | Strong export carton |
Sales unit: | single product | engine: | permanent magnet, thermal protection |
Single package size: | 40X14X14 cm | brand: | Jets |
Certificate: | CE certificate | Voltage: | 12V |
Gross weight per piece: | 4.500 kg | Origin: | Fujian China |
horsepower: | 120W | product name: | Solar submersible pump |
Export material: | Barb Fitting/1'' Stainless Steel Thread Fitting | Warranty: | 12 months, 1 year |
Egress port: | 1'' | model: | YM1260-30 |
ampere: | 5A/10A | Maximum submersion: | Up to 100 feet (30m) |
application: | Diving, Agriculture | Material: | Stainless steel |

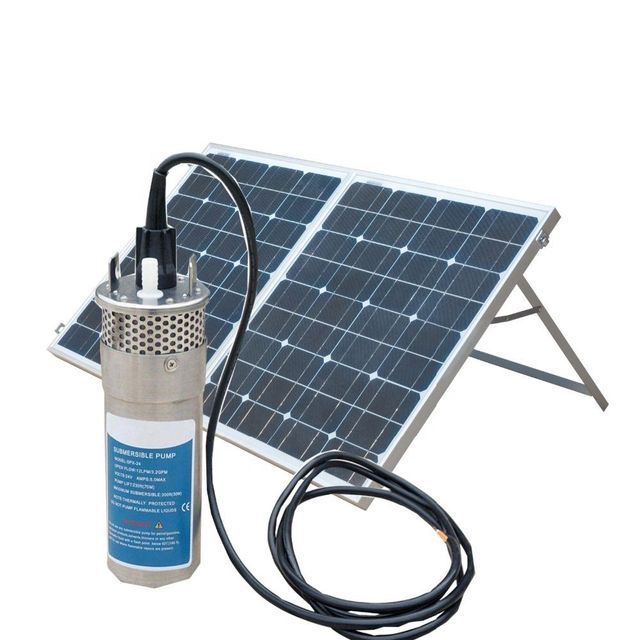

Product Description
The solar submersible pump can solve your troubles of long-distance water fetching. It is a durable water pump that can continuously provide you with a water flow of 3 to 6 liters per minute at a depth of up to 70 meters. It is generally used for outdoor long-distance water operation .
* Solar submersible pumps are suitable for wells 4 inches in diameter or larger.
* Designed to be strong yet lightweight.
* Wide variety of parts and kits for easy rebuilding and repairing.
Advantages
Pump:
*Sturdy structure and light weight.
*Dry run capability without pump damage.
*Internal bypass function for pump protection.
* Long life, 24VDC operation.
*Easy to repair in the field.
* State-of-the-art solid diaphragm.
Power connector:
* Unique waterproof gland connector.
* Stops water absorption and prevents potential condensation.
*Quick disconnect - no splicing required.
*Accepts a variety of jacketed cables.

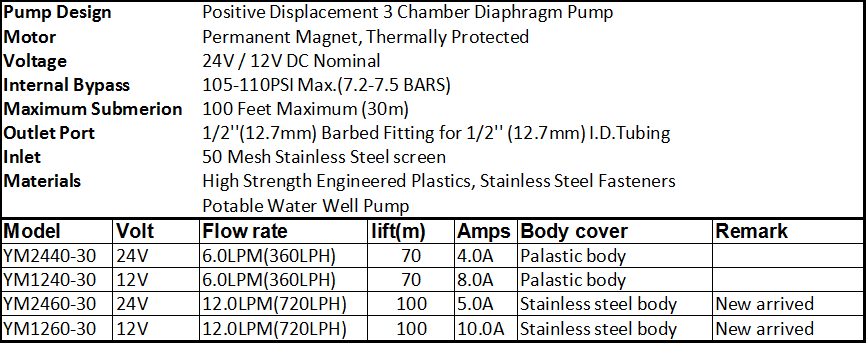

Technical data

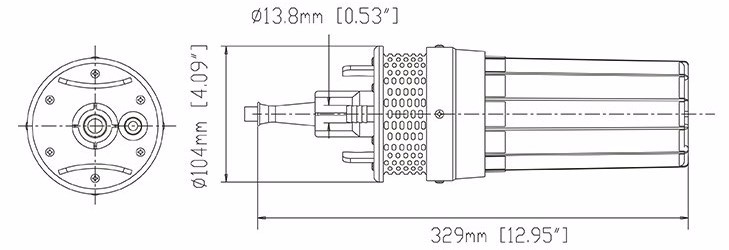

detailed drawing

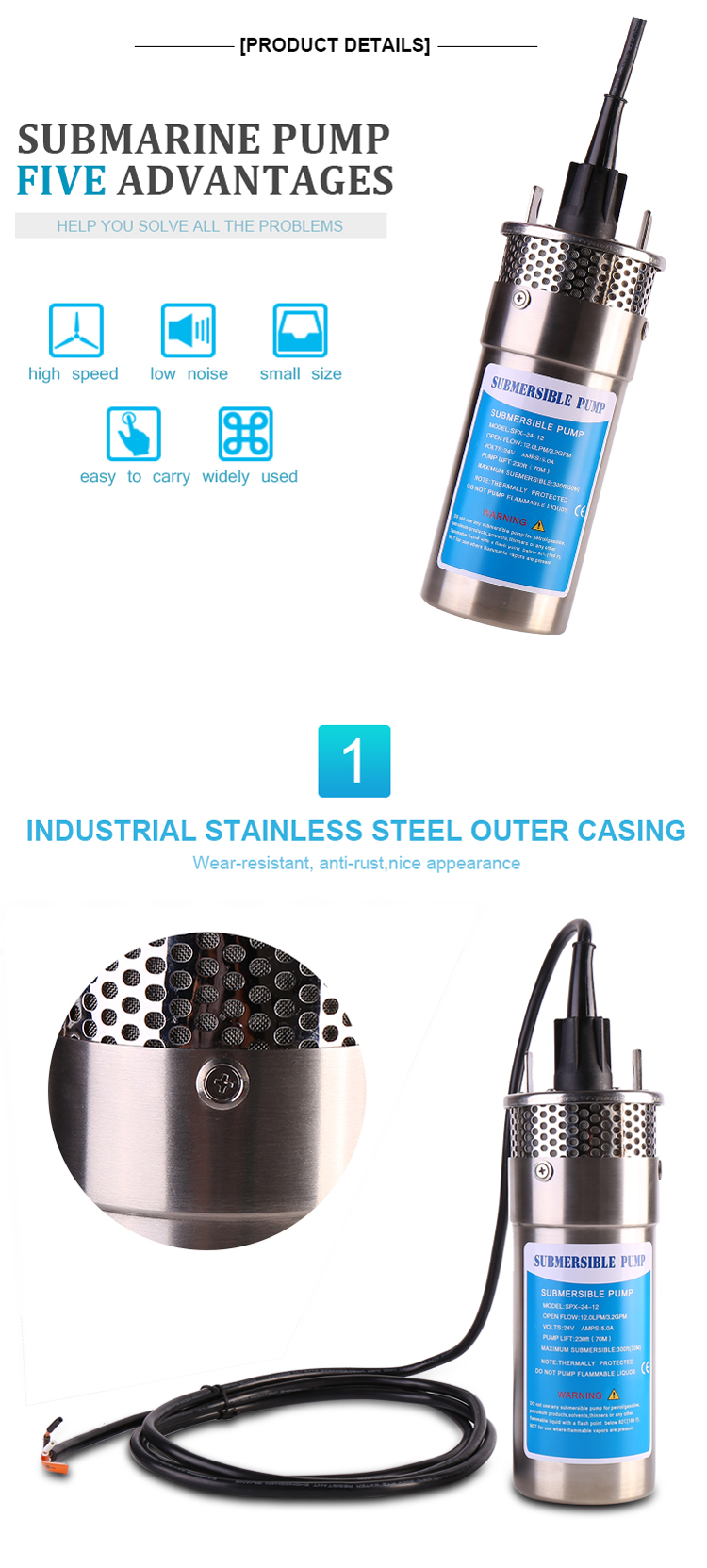

Product Details
Product Usage
application
*drinking water supply
*Solar micro-irrigation (small home gardens, small rural areas or green roof systems)
*Water supply for remote household use
*Solar thermal installation for water supply
* Irrigate fields and greenhouses
* Water supply for animals
*Pond management
* Game park and game farm
*Livestock drinking water
*irrigation
*Pond water changes
*Water supply for remote homes and log cabins
