New Arrival GRBW Custom Shape Clear/Diffuse 6000-7000K Addressable Spot Control LED 5mm Diode

Supplier: Demo Photoelectric Technology (Wuxi) Co., Ltd.
Region: Jiangsu, China
Contact: Mr Harold Wei
Price: $0.25 / 1000 - 99999 pieces
$0.20 / >=100000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Refresh frequency:	800kbps	port:	Shanghai, Shenzhen, Yiwu, Ningbo
brand:	demo	Origin:	Jiangsu, China
model:	GRBW	maximum. Reverse voltage:	5V
maximum. Forward Voltage:	5V	maximum. Forward current:	100mA
strength:	0.2W	shape:	can be customized
lens:	can be customized	Supply capacity:	2,000,000 pieces per day
Diode Type:	through hole	Packing Quantity:	1000pcs/bag
maximum. reverse current:	10uA	application:	LED light string, LED screen
type:	Through-hole LED, LED	type of packaging:	through hole
size:	5mm	color:	GRBW
Supplier type:	Original factory, ODM	Media available:	data sheet, photo
Package preview:		White color temperature optional:	W: warm white 2700-3000K, natural white 4000-4500K, white 6000-7000K
Packaging Details:	Moisture-proof bag packaging in the outer shipping package	describe:	Immersion GRBW
payment terms:	Western Union, T/T, Paypal

Product Description

New Arrival GRBW Custom Shape Transparent/Diffuse 2700K/4000K/6000K Addressable Point Control LED 5mm

High quality and long life! Low light decay! Custom made!

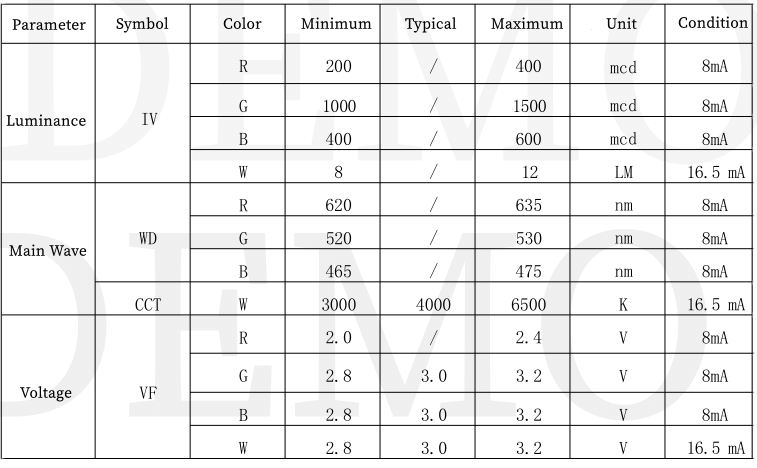

Product Details

type	LED diode
refresh rate	800kbps
color	GRBW, full color rendering
mixed color	RGB

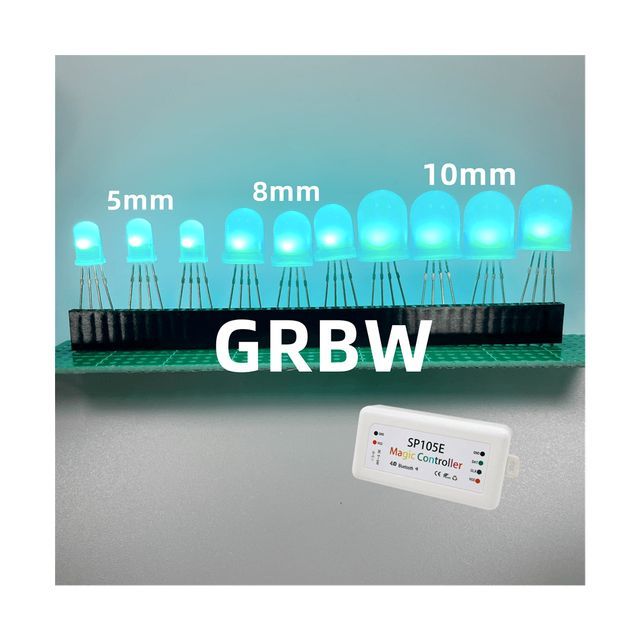

LED size	5mm/8mm/10mm are available
shape	Various LED shapes are available
LED lens	Available in clear and diffused lenses.
controller	SP105E ; SP108E
preface current	30mA
Viewing angle	30 degrees
range of working temperature	-30 to +85 °C
life	50,000 hours

Product advantages

1. Good thermal performance, wide thermal channel.

2. The light spot is uniform.

3. Energy saving and environmental protection, high light efficiency.

4. High brightness, low light decay, polished.

5. Easy to use and easy to install.

6. Strong antistatic ability.

7. Different launch angles for your reference.

if you want to know more

detail

Click here to contact a supplier

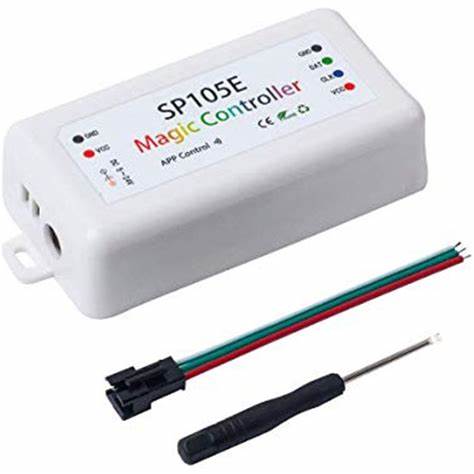

Controller:

describe

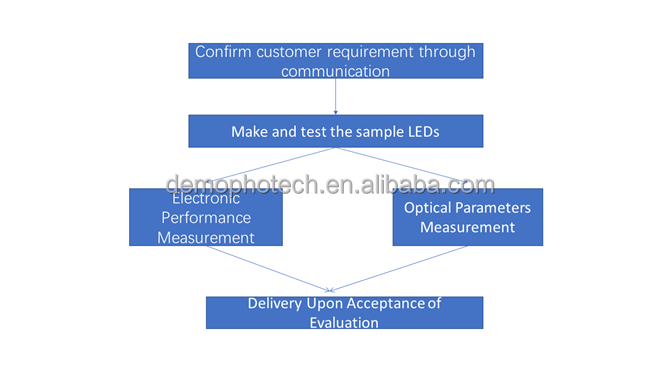

How to make customized LED?

customized

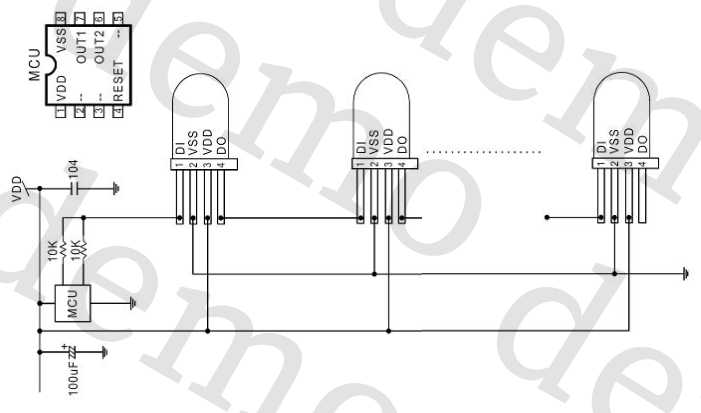

Custom LED Pinout Service

our service

LED manufacturer with more than 10 years experience!

High quality long life LED!

our service

1) Custom viewing angles are acceptable!10 degrees, 15 degrees, 30 degrees, 45 degrees, 60 degrees, 90 degrees, 120 degrees, 160 degreesWait for options!

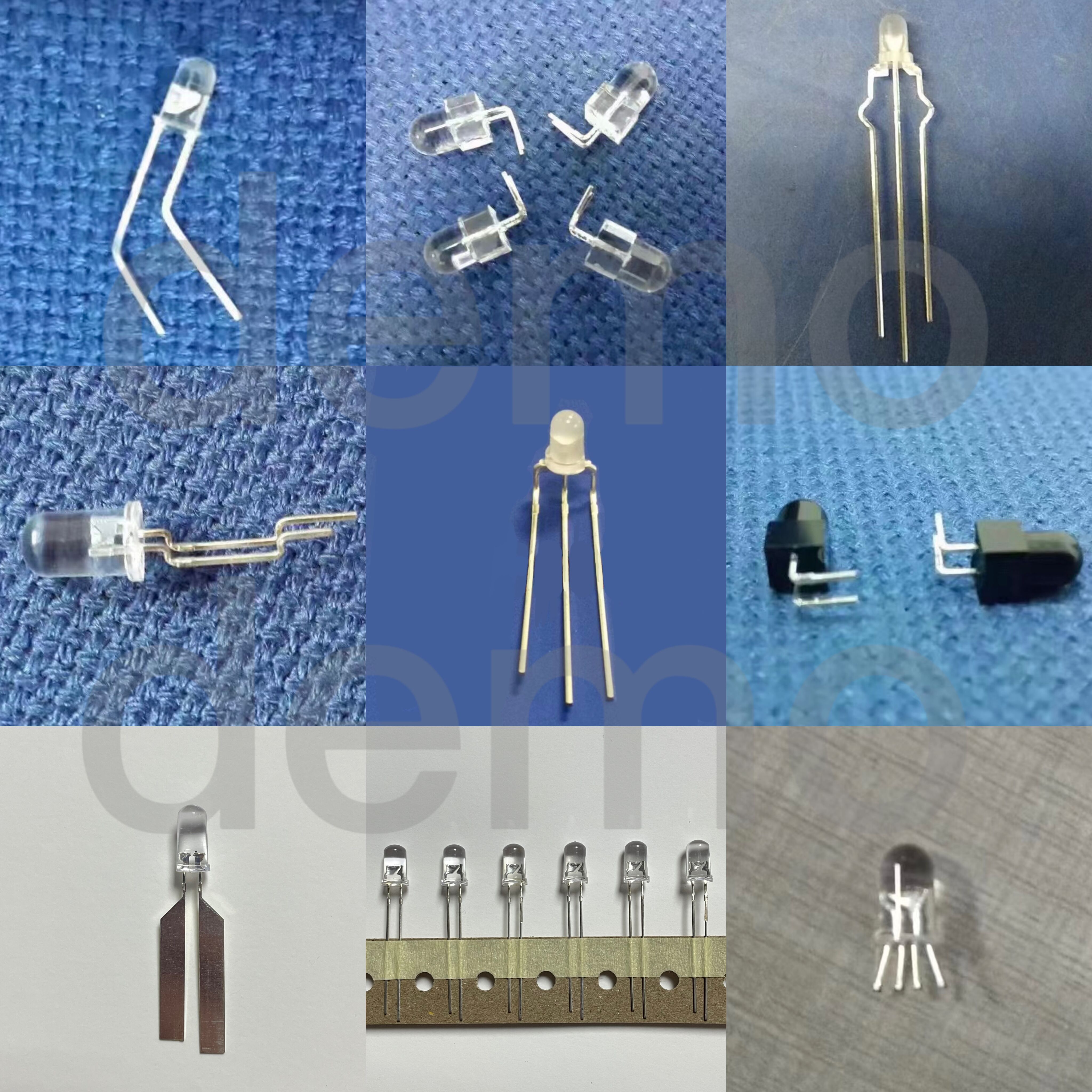

2) Customized LED shapes are available, such as round head, bullet head, flat head, rectangle, oval, concave, straw hat, etc.

3) A variety of LED sizes are available, 2mm/3mm/4mm/5mm/8mm/10mm

LED Handling Considerations

1) During the entire use process, all personnel who directly touch the LED should take anti-ESD measures. Do not touch the LED directly with your hands

2) When welding, the operator needs to pay attention to the welding time and temperature, and the positive and negative poles of the LED should be clearly distinguished.

3) Electrical parameters such as current and voltage should not exceed the rated value.
