2CL70 2CL71 2CL72 2CL73 2CL74 2CL75 2CL76 2CL77 High voltage diode

Product details
Package preview:Origin:Shandong Province, China
type of packaging:through holeDiode Type:High voltage diode
brand:TRSupply capacity:600000000 pieces per month
Available media:Data Sheets, Photos, EDA/CAD Models, OthersCurrent - average rectified (Io) (per diode):10mA
Current - average rectified (Io):10mAmaximum. reverse current:2 microamps
port:Qingdao port or choose the port according to customer requirementstechnology:High reliability silicon wafer welding
Reverse recovery time (trr):80 nanosecondsdescribe:2CL70 2CL71 2CL72 2CL73 2CL74 2CL75 2CL76 2CL77
maximum. Forward Voltage:24--60Vmaximum. Forward current:0.5A
Voltage - Reverse Peak (Max):22KVpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
maximum. Reverse voltage:6--20KVPackaging Details:Regular packaging or customized packaging according to customized requirements
Supplier type:Original manufacturer, ODMPacking/Carton:Epoxy molding
application:High voltage power rectificationOperating temperature:-40 to 120°C
Installation type:through holemodel:2CL70 2CL71 2CL72 2CL73 2CL74 2CL75 2CL76 2CL77
type:High voltage diode
Product Description

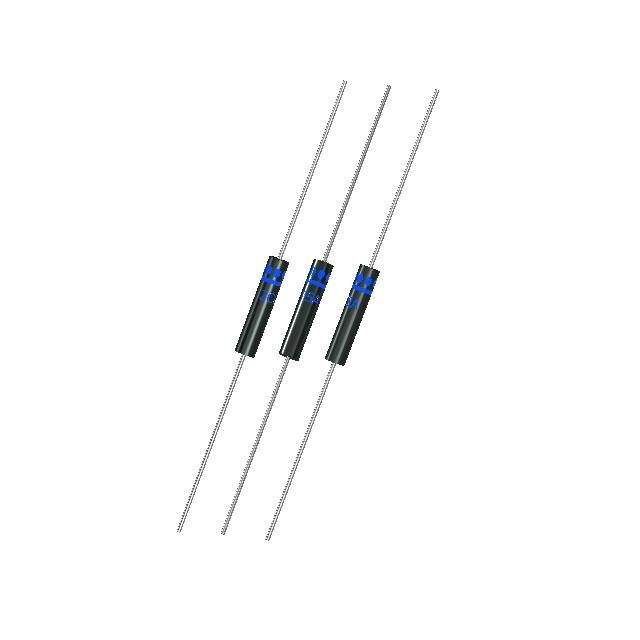

▼Fast recovery high voltage diode
2CL70 2CL71 2CL72 2CL73 2CL74 2CL75 2CL76 2CL77

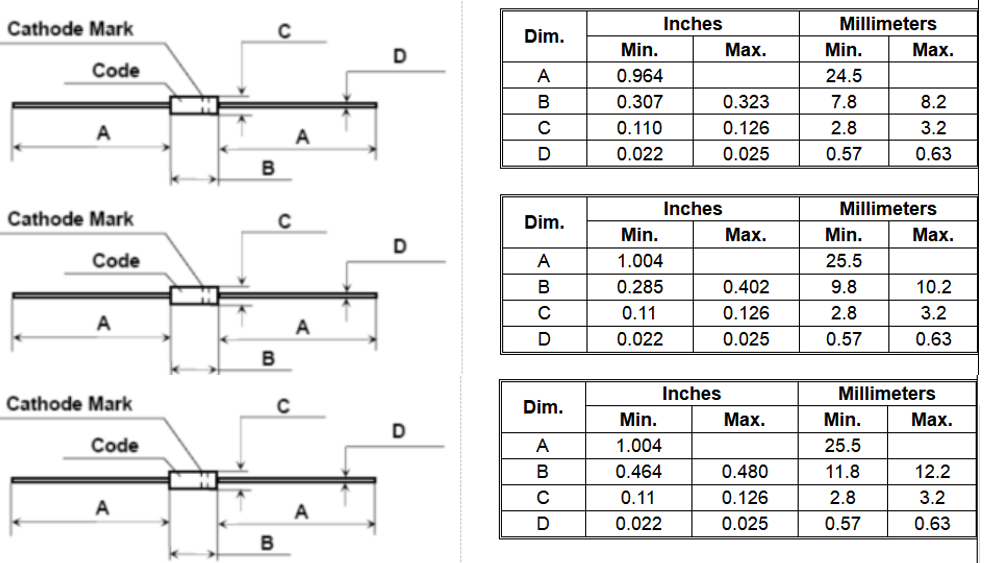

Package Dimensions
▼Features
● High reliability
● High-speed switching
● Surface corrosion resistance
▼Application field
● Color TV high voltage power supply rectification
● Rectification of high voltage power supply for CRT display
