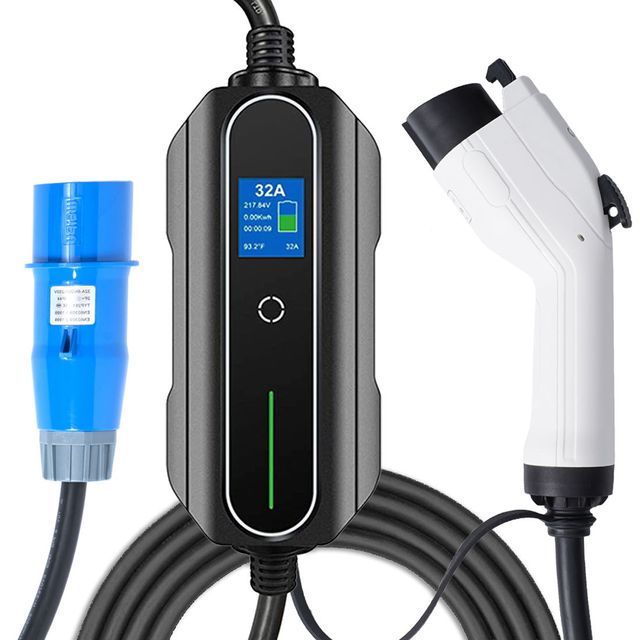

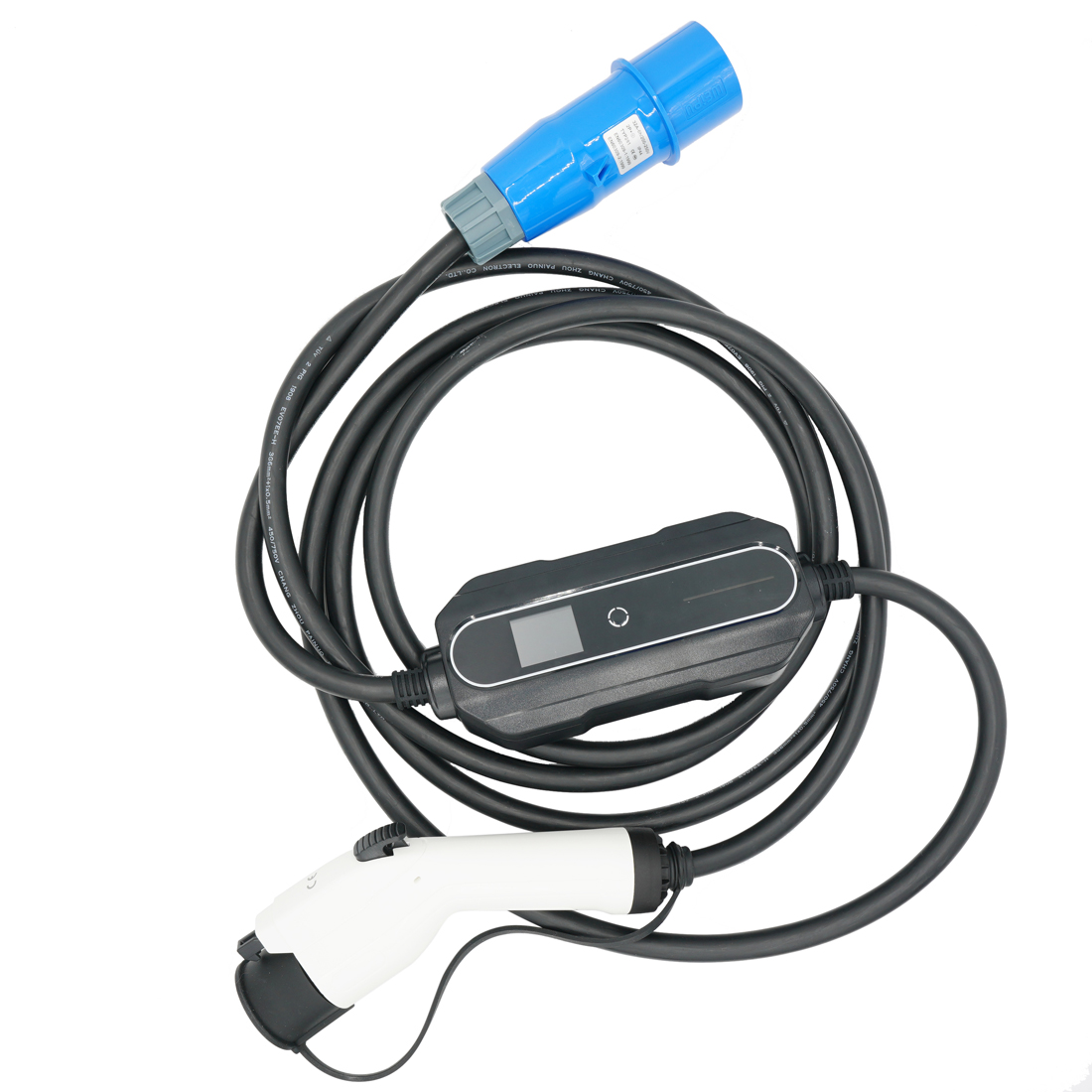

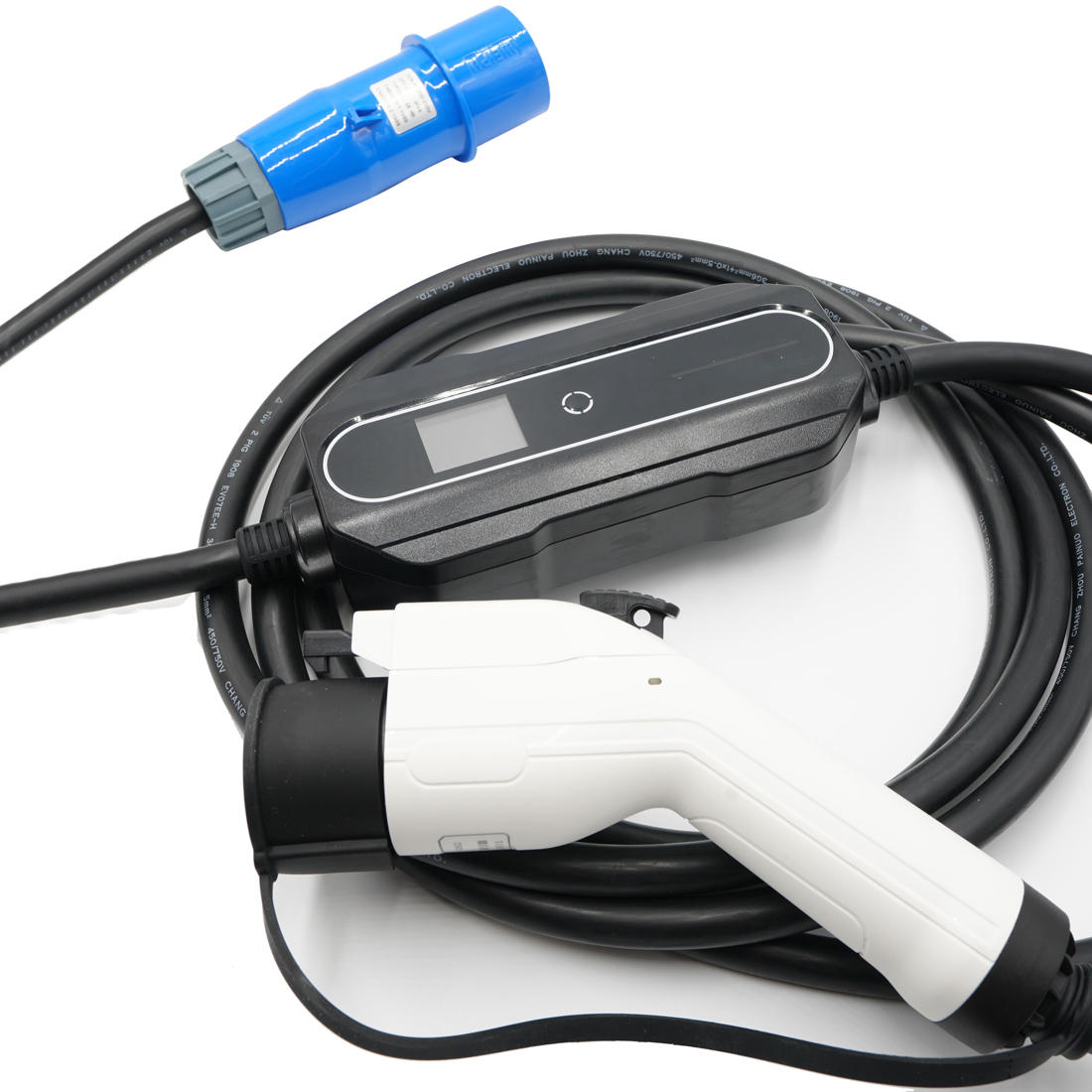

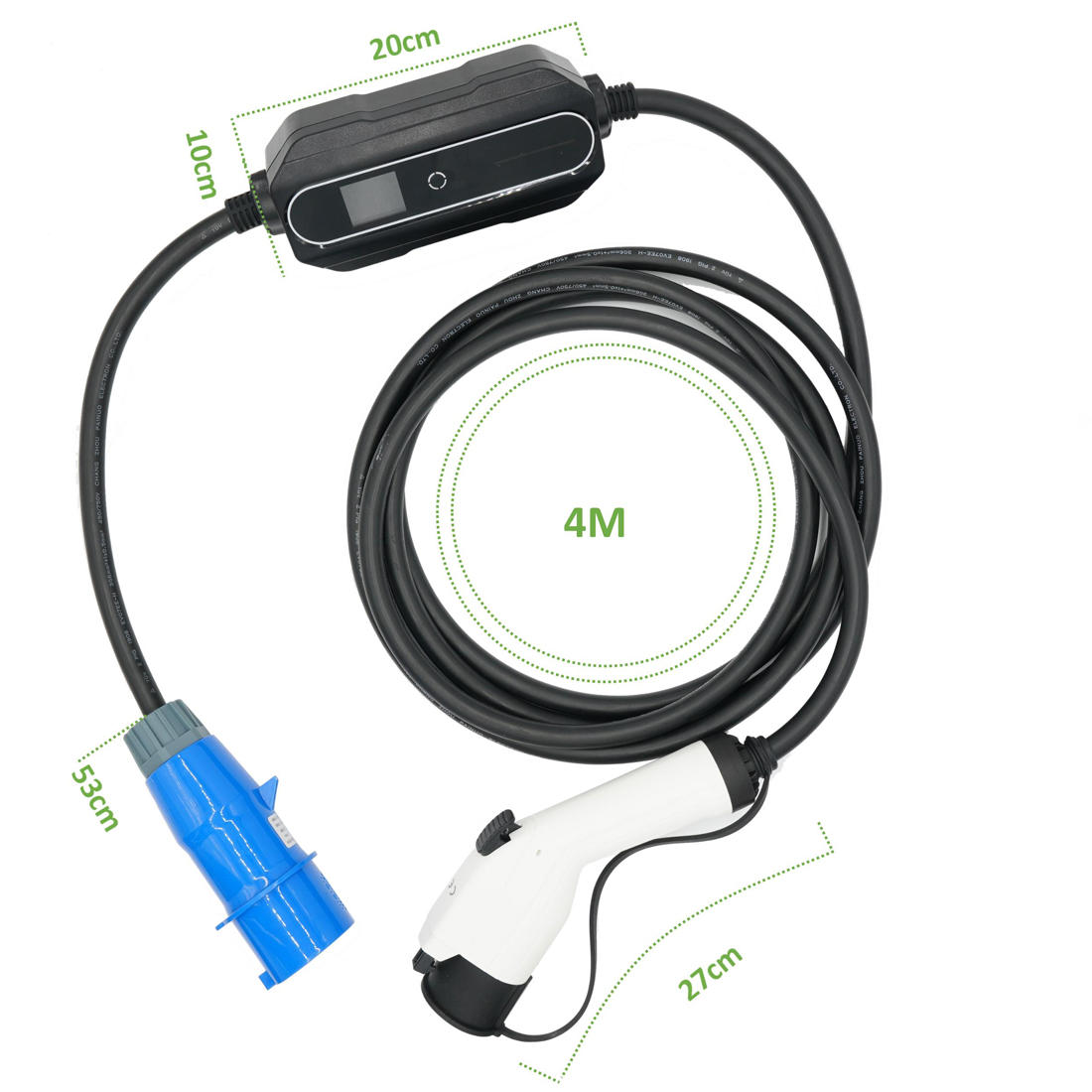

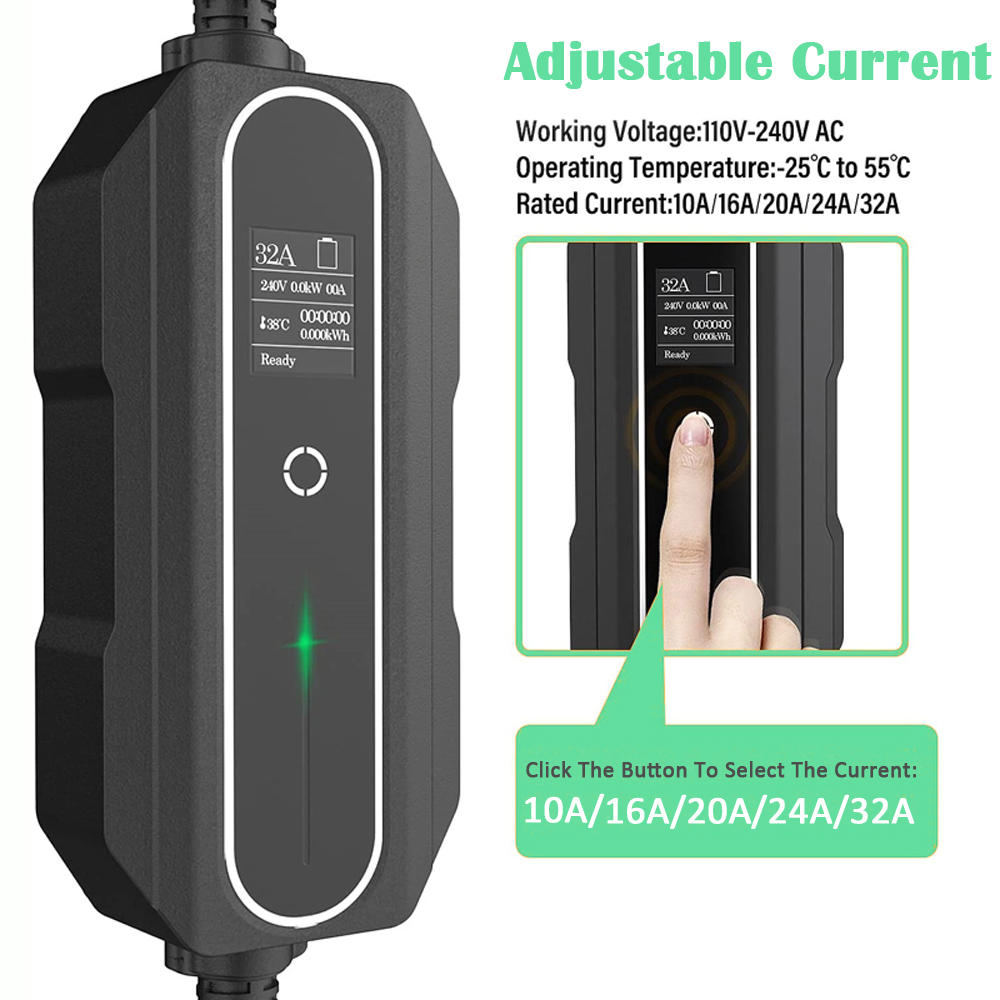

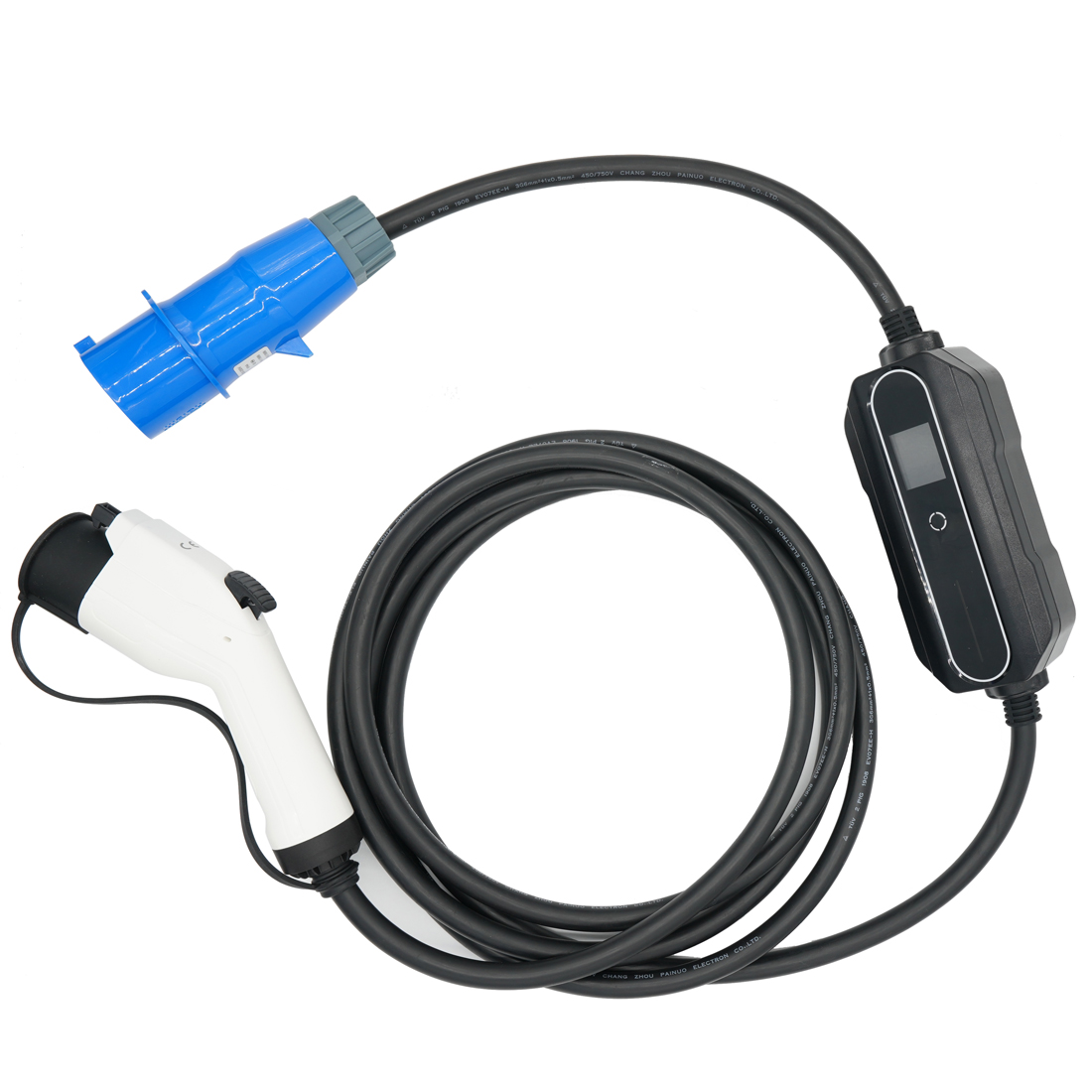

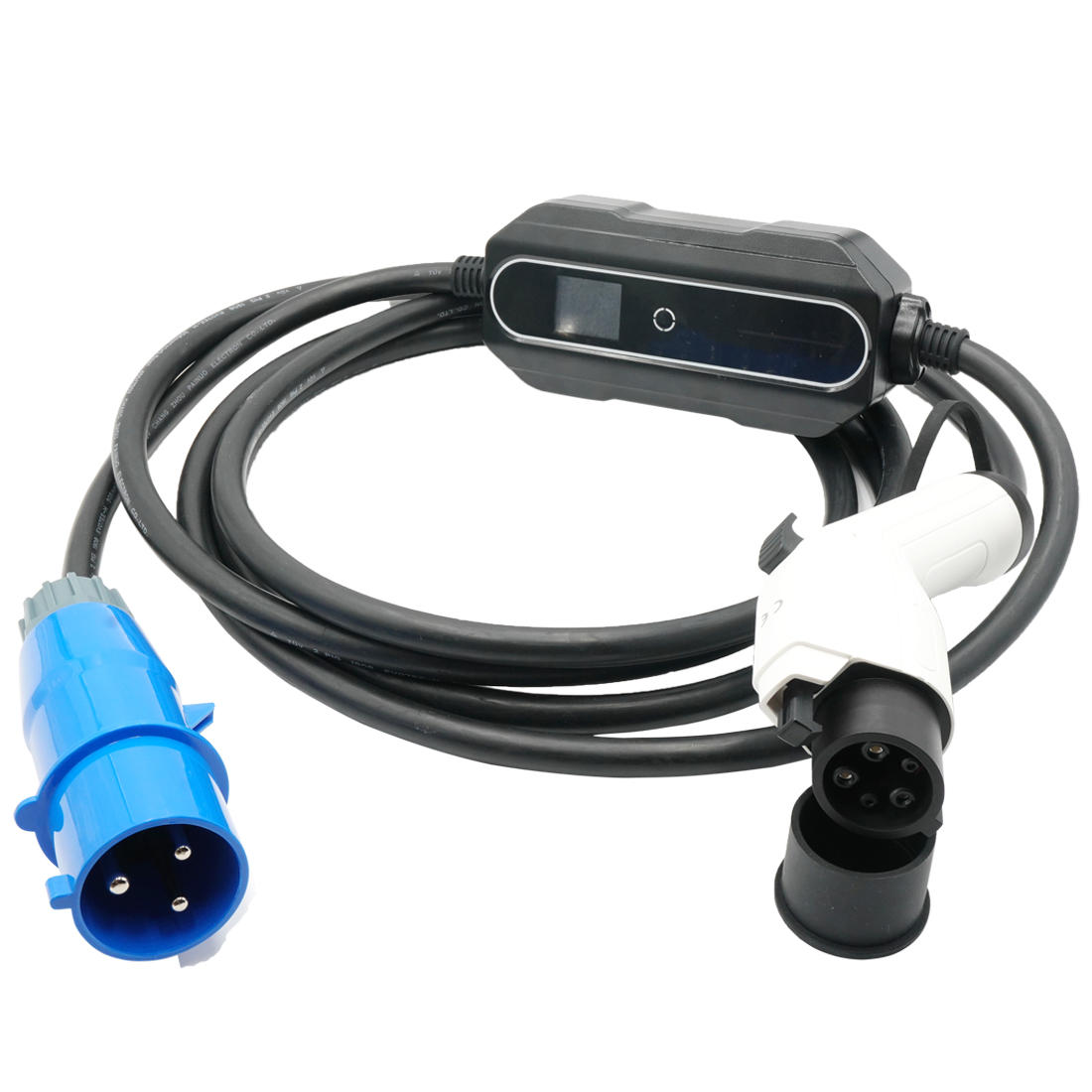

Portable EV Charger Type 1 Class 2 32a 7.2kw For Evse Adjustable Current Home EV Charger 5m

Product details
advantage:fast chargingpayment terms:L/C, Western Union, T/T, MoneyGram, Alipay
terminal:copper alloy, silver platedPackaging Details:Box
Coupling Insertion Force:45N-100NRated voltage:240V (one phase) alternating current;

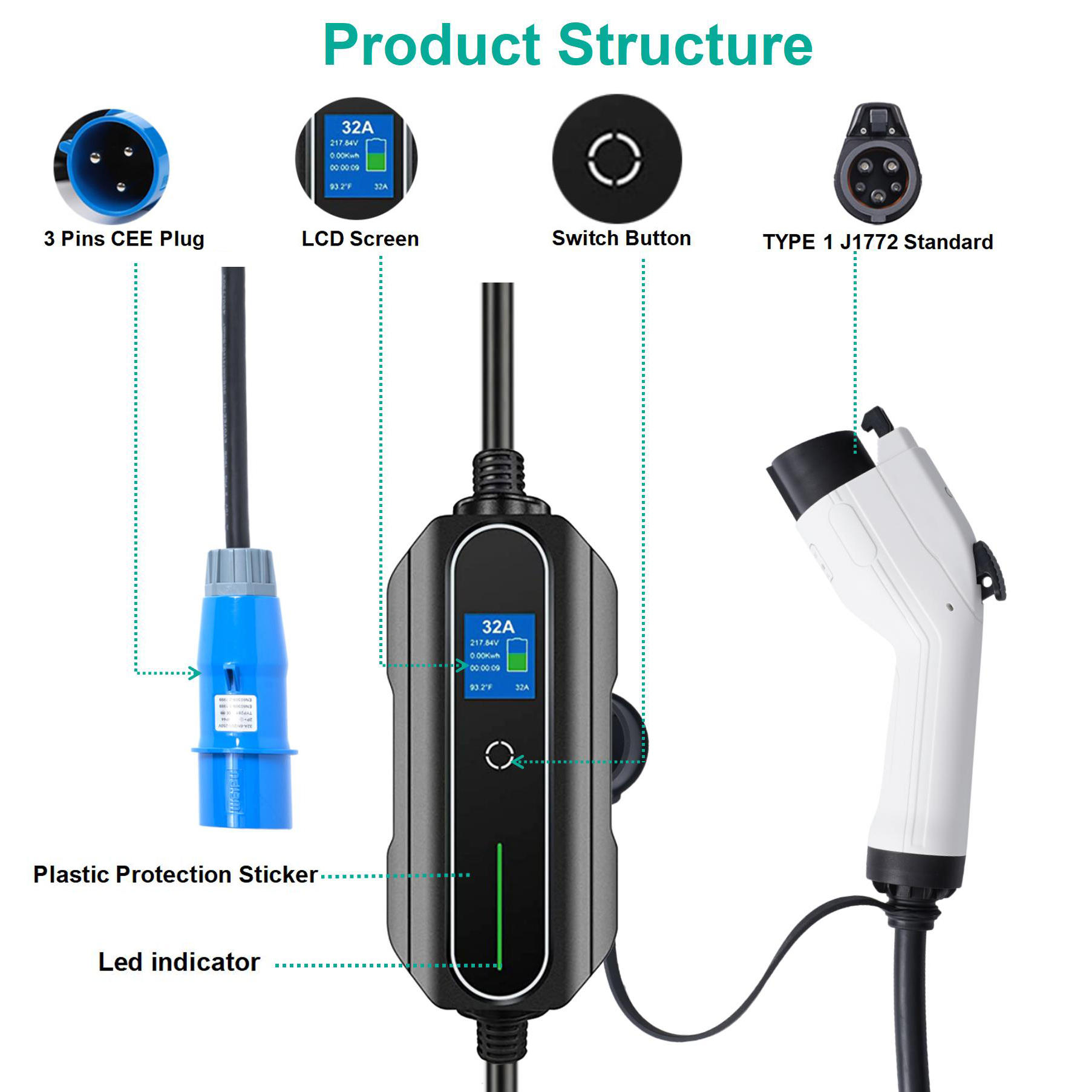

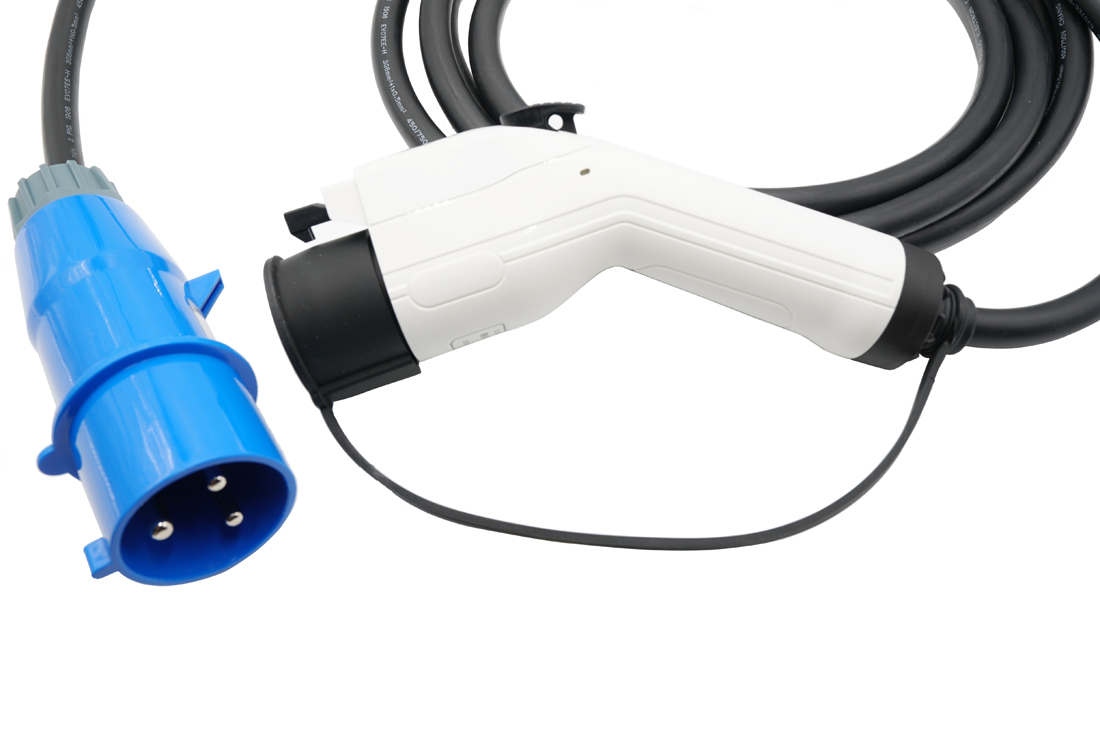

Wire:thermoplastic polyurethanePower plug:3 pin blue CEE plug

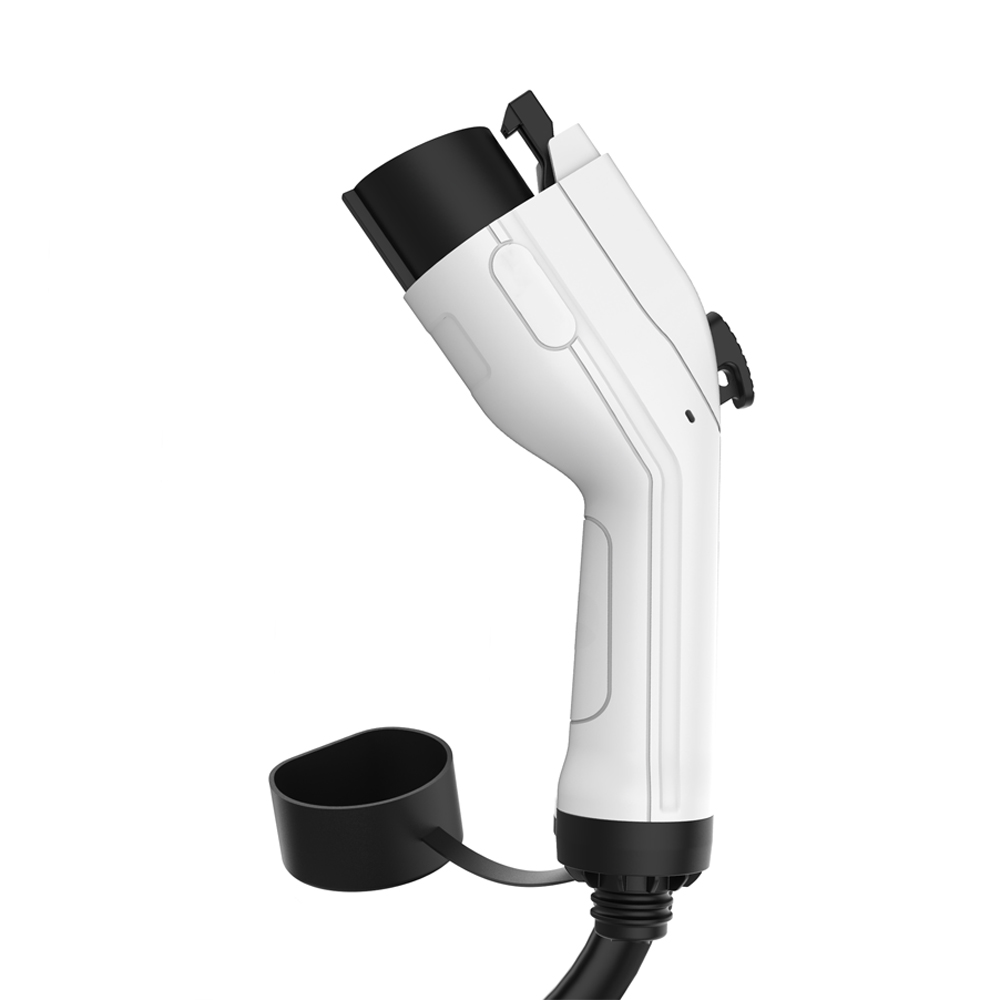

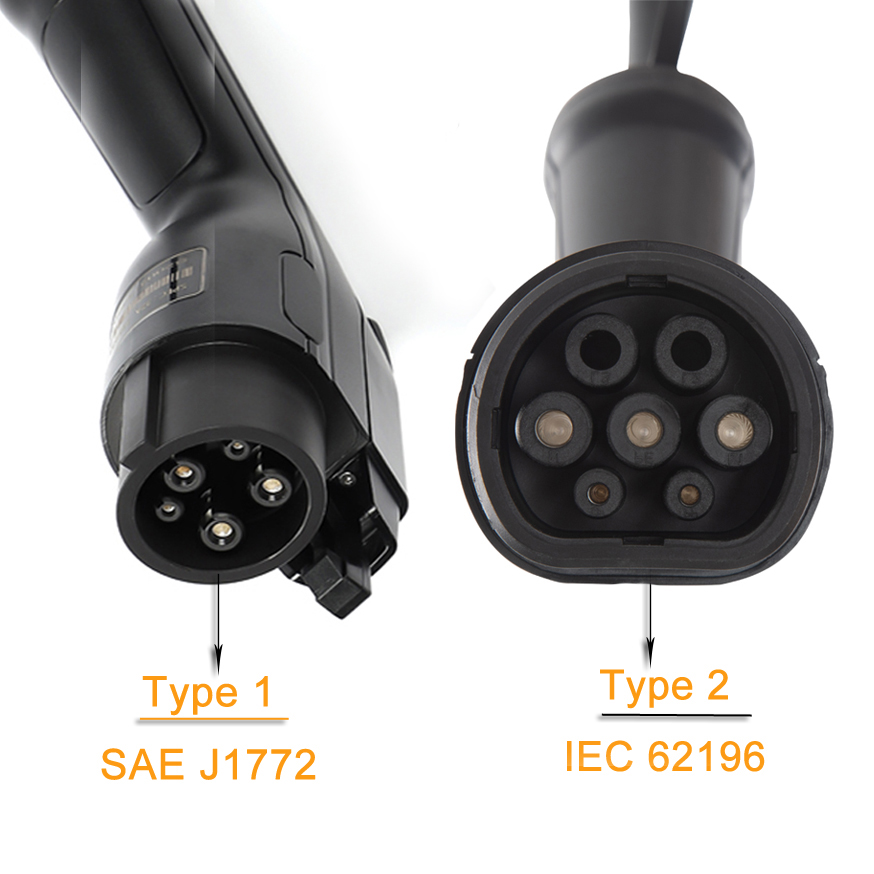

weight:3.5KGElectric vehicle plug:SAE J1772 Type 1 plug
port:Ningbo/Shanghaimodel:Type 1
Supply capacity:5000 pieces per weekOperating temperature:-30℃~+50℃
Origin:Zhejiang, Chinabrand:Suplee
Dimensions (length/width/height):40*40*10(cm)
Name

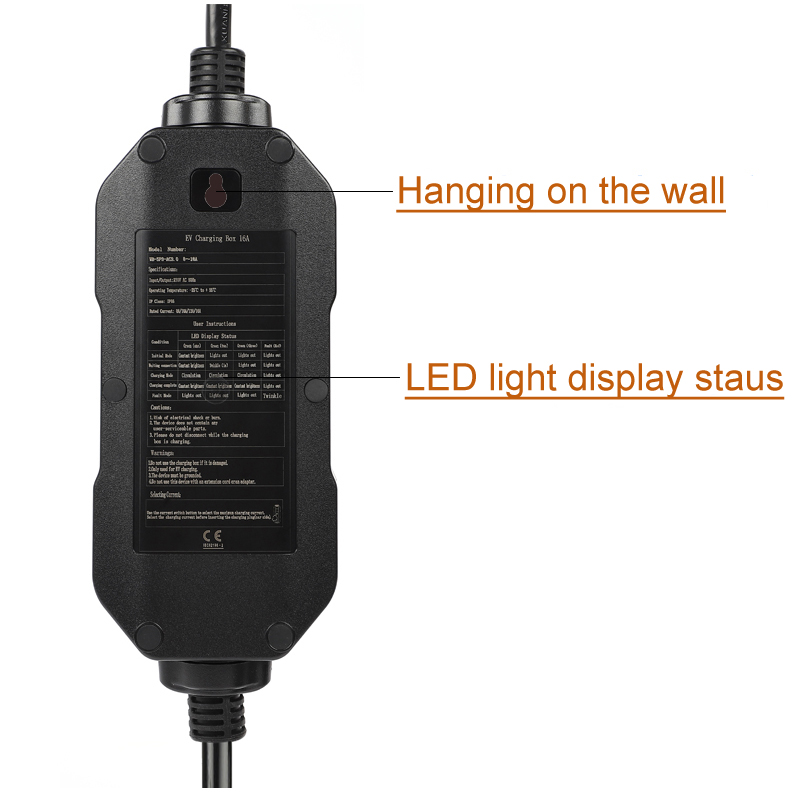

Electric Vehicle Portable EV Charger Type 1 J1772 32A 7.2KW
Rated voltage
240V (one phase) alternating current
Rated current (power)
32A 1 phase, 7.2KW
frequency
50/60 Hz
Insulation resistance
> 1000MΩ
terminal temperature rise
<50k
tensile strength
2000V
Contact resistance
0.5mΩ
project length
5 meters / 16.4 feet
mechanical life
> 1000 no-load mating cycles

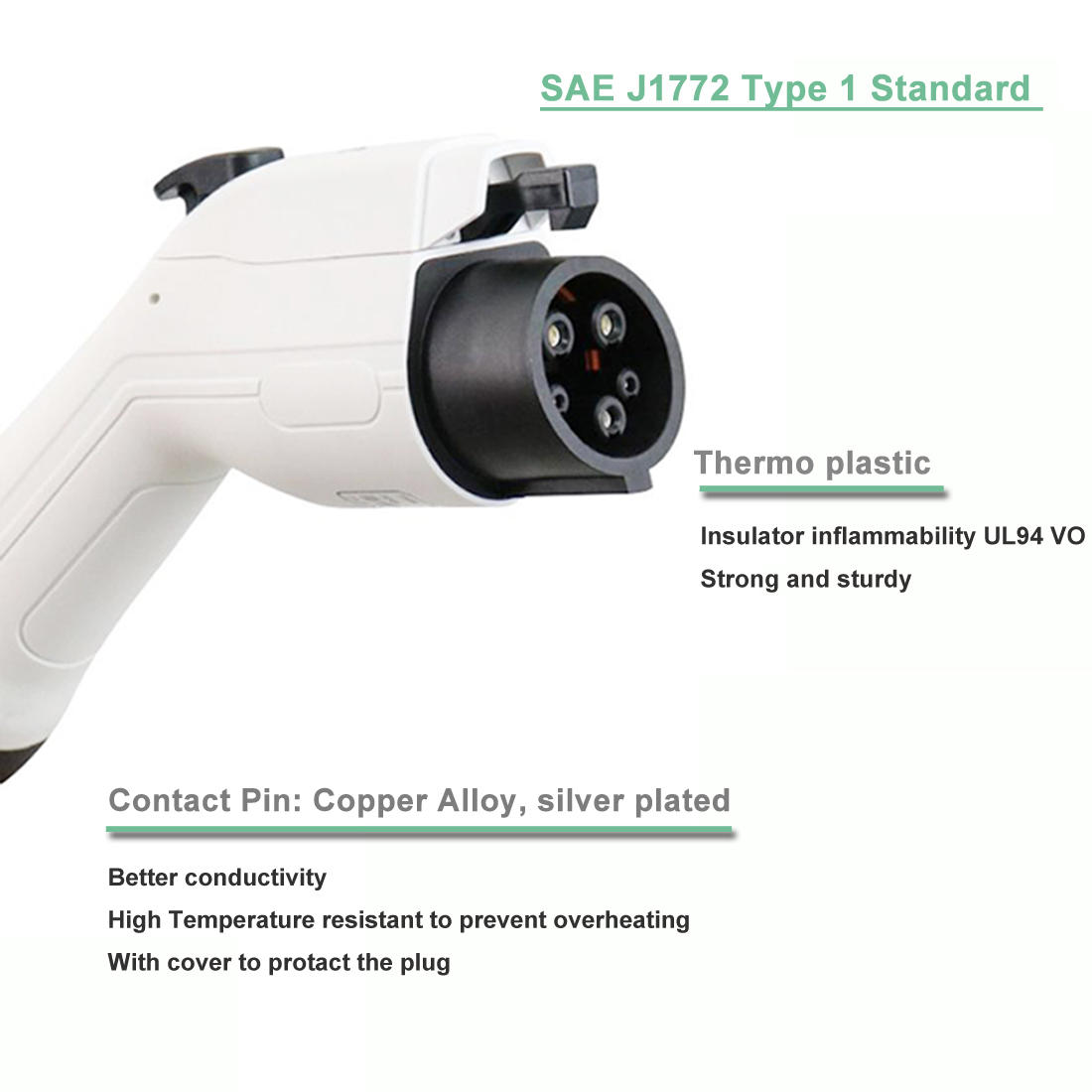

housing
Thermoplastic, flammability rating UL94 V-0
wire
thermoplastic polyurethane
terminal
copper alloy, silver plated
warn
1. Do not immerse the EV charging box in water. 2. Do not step on, bend or damage the cable. 3. Do not drop the EV charging box or place heavy objects on it. 4. Do not place the charging cable near high temperature objects when charging. 5. Do not operate the EVSE at temperatures above its -25°C to 55°C operating range. 6. The input line on the power supply side should be at least 3*2.5mm (recommended 3*4mm), equipped with a standard 16A board. It is recommended to have power distribution done by professionals. 7. Do not stick fingers into the charging jack while the power plug is still powered. 8. Do not use this EV charging box when the cable is damaged. 9. Do not use this device with extension cords or adapters.
