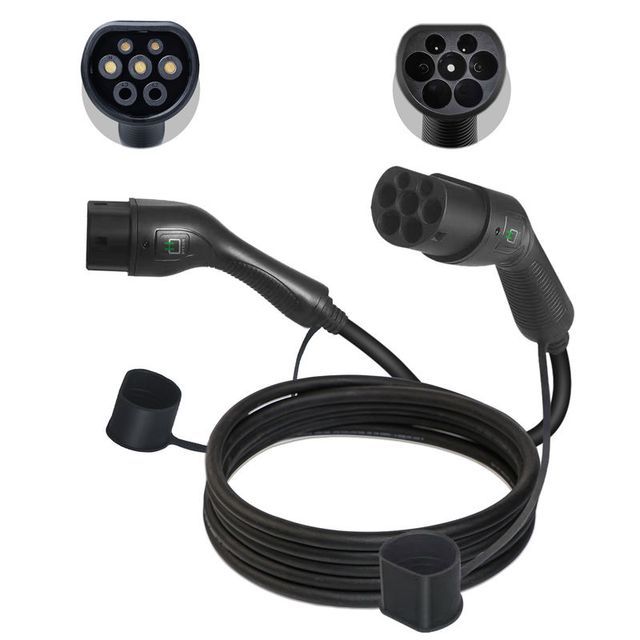

EV Charging Cable Type 2 32A 250V 5m 7m 10m EV Charger Home Car Commercial Charger EV Charging Cable

Supplier: Shenzhen Hysun Power Co., Limited
Region: Guangdong, China
Contact: Ms Sabrina Yang
Price: $62.79 / 3 - 99 sets
$57.79 / 100 - 999 sets
$49.99 / >=1000 sets
Min. Order: 3 sets

Click here to contact

Product details

power supply:	1 phase/3 phase	cable length:	/5/7/10m/Customized
strength:	3.5KW 7KW 11KW 22KW	payment terms:	L/C, Western Union, D/P, D/A, T/T
product name:	Electric vehicle charging cable	Charges:	Type 2 to Type 2
Warranty:	2 years	Pressure resistance:	2000V
Rated current:	16A/32A	Voltage:	250V/ 480V
Origin:	China	Protection class:	IP54

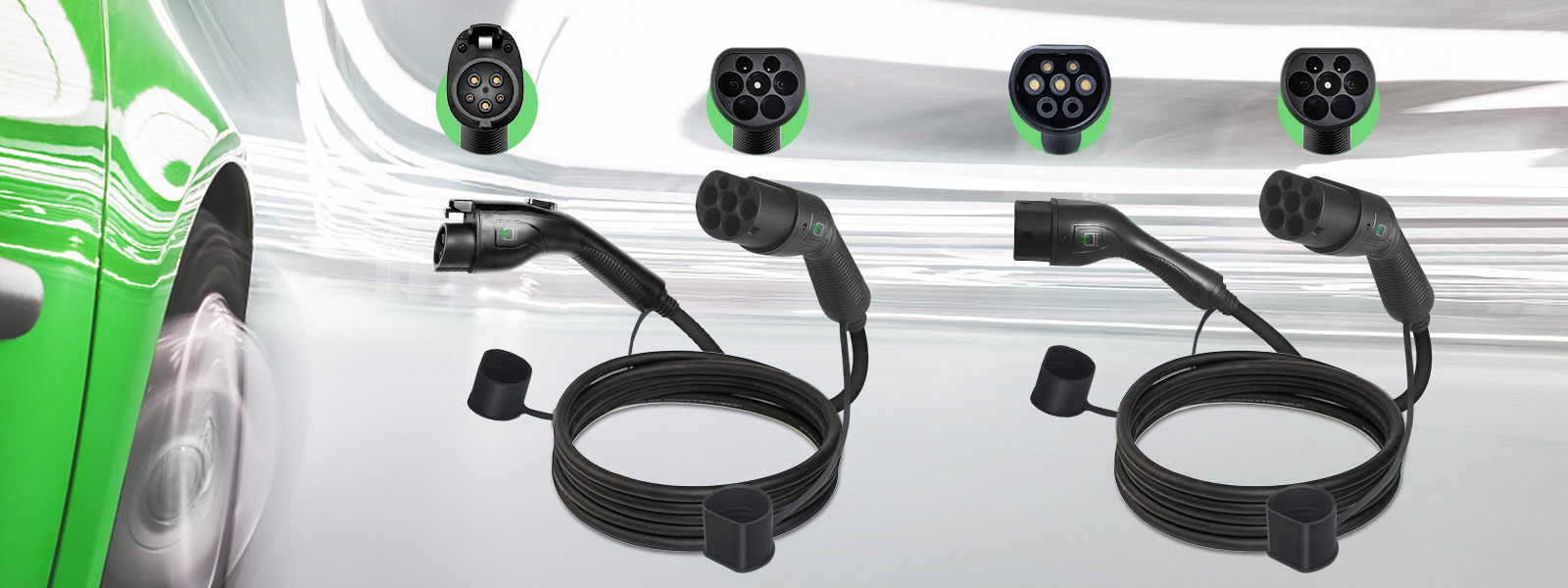

EV Charging Cable Type 2 32A 250V 5m 7m 10m EV Car Charger Home Charger Commercial EV Charger Cable

Type 2 to Type 2 EV Charging cable Mode 3 is designed to plug into sockets on the best selling AC EVSE in Europe. If your current EV charger is limited in length, our charging cable will extend the length of the cable.

Product Description

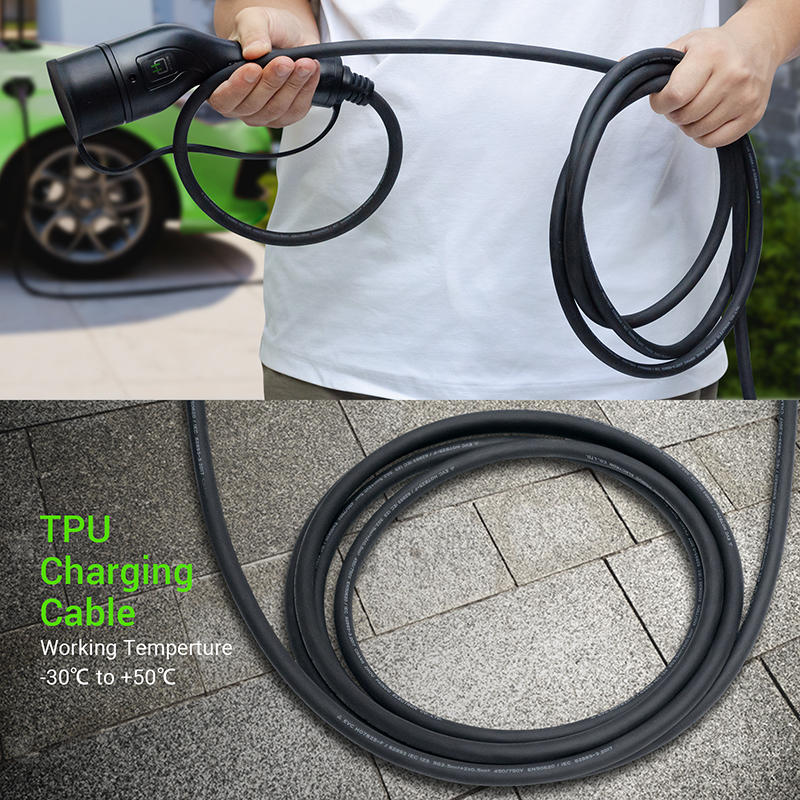

TPU charging cable

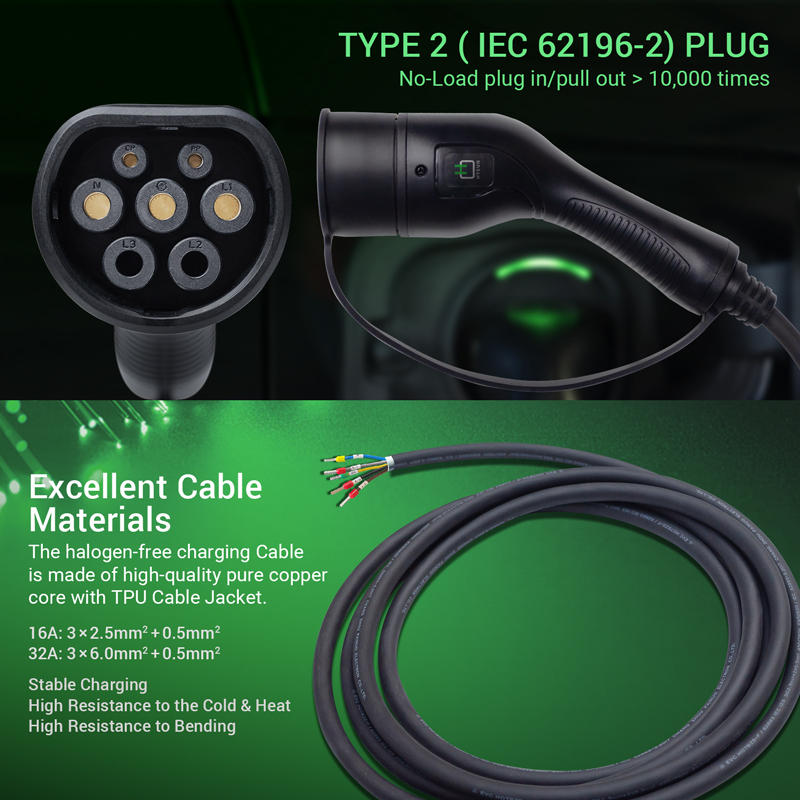

Halogen-free charging cable is made of high-quality pure copper core with TPU wire sheath.

excellent cable material

stable charging;

High cold and heat resistance;

high bending resistance

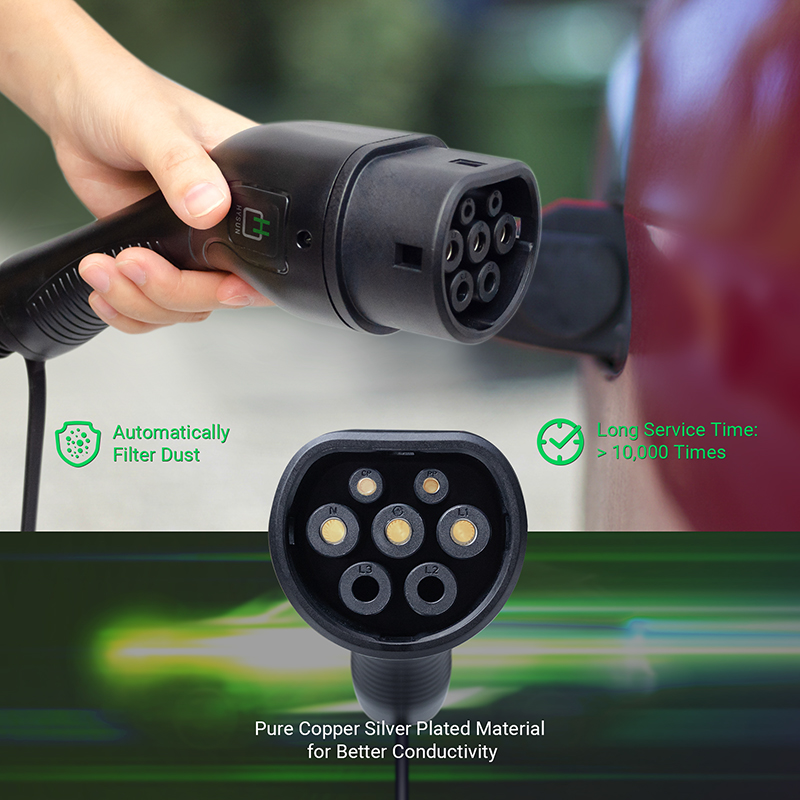

Special self-cleaning designImpurities on the surface of the pins can be removed during each plug-in process.Ergonomic all-in-one designIt conforms to the habit of using force and can be inserted and removed freely.Better Conductivity DesignSilver plating on the pins ensures higher conductivity, charging efficiency and reduces heat generation.

Product parameters

product specification	Product Code:	HY1P16A-T2	HY1P32A-T2	HY3P16A-T2	HY3P32A-T2
		power supply:	1 phase	1 phase	three phase	three phase
		Input Current:	16A	32A	16A	32A
		Input voltage:	250V	250V	480V	480V
	product specification	rated power:	3.5KW	7KW	11KW	22KW
		Cable Specifications:	3x2.5mm2+2x0.5mm2	3x6.0mm2+2x0.5mm2	5x2.5mm2+2x0.5mm2	5x6.0mm2+2x0.5mm2
		Outer Diameter (mm):	10.5±0.4	13.5±0.4	13.5±0.4	16.5±0.4
		Charging plug:	Type 2 vehicle side (female) – Type 2 charging station side (male)
		charging method:	way three
working environment	Insulation resistance:	>100M ohms (DC500V)
		Terminal temperature rise:	<50K
		Pressure resistance:	2000V
		Contact resistance:	≤ 0.05 megohm
		Coupling Insertion Force:	>45N <80N
	working environment	Operating temperature:	-30℃~+50℃
		humidity:	0~95% non-condensing
		Intellectual property rate:	Protection class 54
		impact:	1 meter drop or 2 ton vehicle overpressure operation
Material properties	shell:	Thermoplastic; flammability rating UL94V-0
		Charging plug cover:	Polyurethane
		Charging plug pins:	pure copper; silver plated
		Charging Cable:	TPU charging cable
		Mechanical life:	>10,000 times

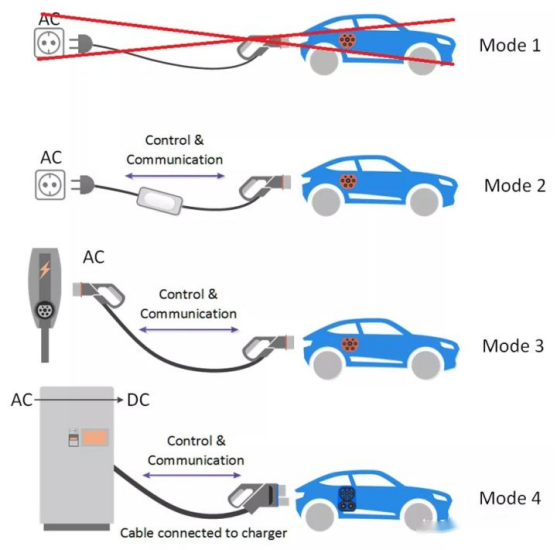

Mode 3 EV Charging Cable

Type 2 to Type 2 EV Charging Cable, the female end is the vehicle side, and the male end is the pile/station side.

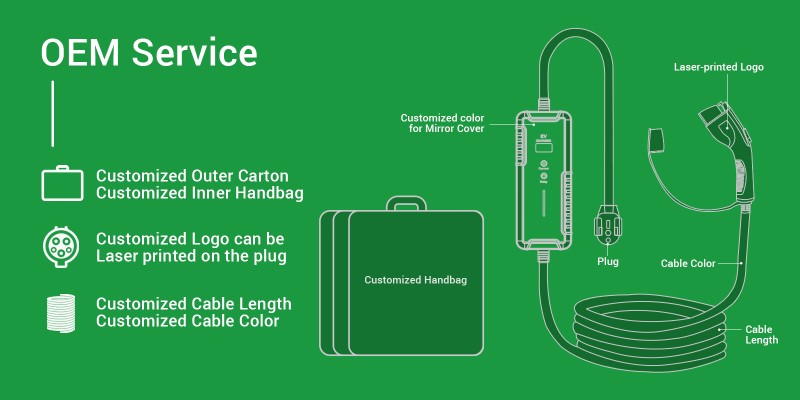

OEM service

As a professional manufacturer, if you need to customize cartons, tote bags, line lengths, laser printing logos, etc., please feel free to contact us.

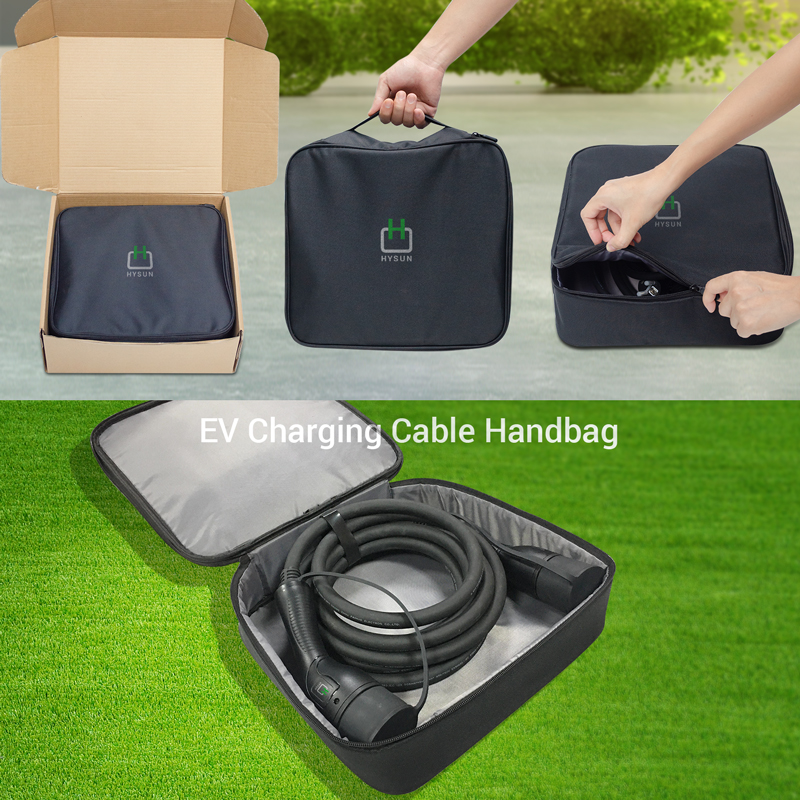

Product packaging

pack

HY1P16A-T2
inner box:14.2'' x 13'' x 3.94''

(36cmx33cmx10cm)
net weight:4.03 lbs (1.83 kg)
Number / Box:1 item
Carton size:20.87 inches x 15.35 inches x 14.17 inches
(53cm x 39cm x 36cm)
gross weight:30 lbs (13.6 kg)
Number / Box:5

HY1P32A-T2/HY3P16A-T2/HY3P32A-T2
inner box:14.2'' x 13'' x 3.94''
(36cmx33cmx10cm)
net weight:6.78 lbs (3.1 kg)
Number / Box:1 item
Carton size:20.87 inches x 15.35 inches x 14.17 inches
(53cm x 39cm x 36cm)
gross weight:44 lbs (20 kg)
Number / Box:5
