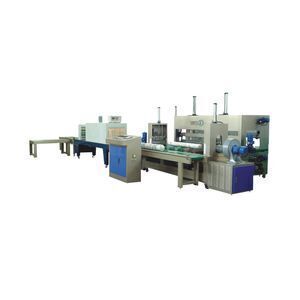

SUNTECH PLC Controlled Automatic Textile fabric roll packing machine

Supplier: Zhejiang Strength Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Mindy Dong
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Material:	Plastic;	Brand Name:	SUNTECH;
After-sales Service Provided:	Engineers available to service machinery overseas;	Automatic Grade:	Automatic;
Voltage:	3 Phase 380V 50HZ;	Type:	Vacuum Packing Machine;
Dimension(LWH):	4180x2500x2190mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Certification:	CE ISO9001;	Speed:	3-7rolls/min;
Driven Type:	Electric;	Condition:	New;
Range of Roll Diameter:	100-600mm;	Range of Roll Width:	900-3200mm;
Packaging Detail:	Steel Pallet or Wooden Box Packing for Automatic Fabric Roll Shrink Vacuum Packing Machine;	Compressed Air Pressure:	5-7bar;
Warranty:	13 months;	Item Name:	Automatic Fabric Roll Shrink Vacuum Packing Machine;
Application:	Textiles;	Packaging Type:	Film;
Port:	Ningbo or Shanghai Port;	Place of Origin:	Zhejiang China (Mainland);
Applicable Industries:	Manufacturing Plant,Retail;	After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Fabric Type:	All Fabric Rolls;	Supply Ability:	100 Set/Sets per Month Automatic Fabric Roll Shrink Vacuum Packing Machine;
Weight:	1500kgs (ST-ARPM-180I);

Product Description

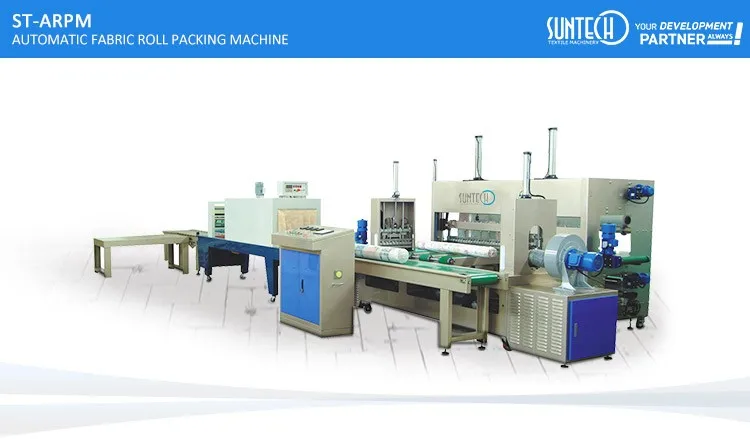

SUNTECH Fabric Roll Shrink Vacuum Packing Machine

This machine is controlled by PLC to pack fabric rolls with/without vacuum effects (as per customer requests) automatically.

It is CE Approved and can pack max. 3360 rolls/8 hrs.

It can be designed to connect with fabric inspection machine(s)/fabric rolling machine(s) via inlet conveyor to form an automatic inspection/rolling--packing line.

As for after-sale service, Suntech provides 13 months warranty for this machine, and engineer overseas service is also available as per need.

Model	ST-ARPM-180I	ST-ARPM-180II	ST-AROM-240I	ST-ARPM-240II
Range of Width	900-1800mm	900-1800mm	1200-2400mm	1200-2400mm
Range of diameter	100-400mm	100-600mm	100-400mm	5-7rolls/min
Packing capacity	5-7rolls/min	4-6rolls/min	4-6rolls/min	3-5rolls/min
Dimensions(mm)	418025002190	445032202590	478025002190	505032202590
Weight	1500kgs	1600kgs	1600kgs	1700kgs
Power consumption	43kw	43kw	43.5kw	43.5kw
Remark: Range of roll width can be designed & manufactured upto 3200mm.

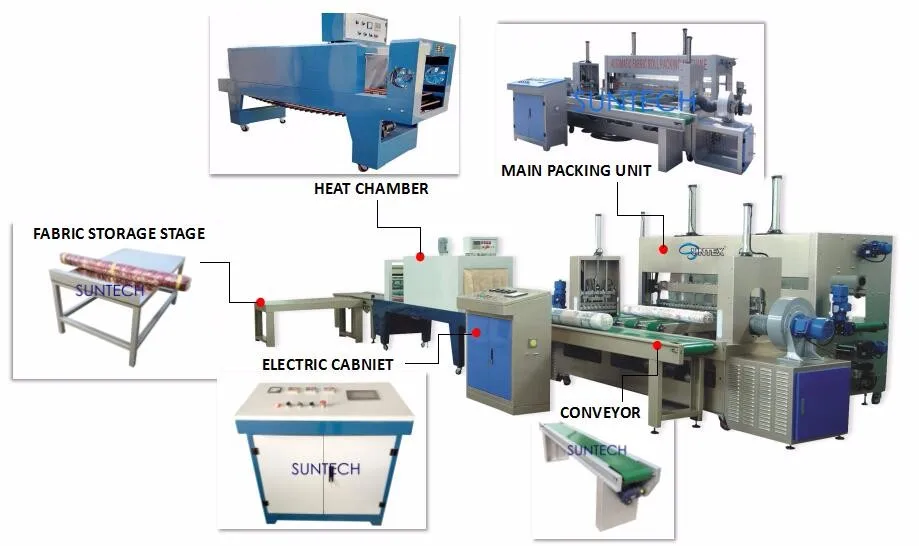

Machine Details

SUNTECH Fabric Roll Shrink Vacuum Packing Machine

<< 2. Auto Storage Conveyor (Optional)

For storing the fabric rolls coming from inspection/rolling machine automatically when the inlet conveyor is full.

3. Inlet Conveyor >>

For delivering fabric rolls to the packing machine.

<< 4. Main Packing Unit

For width sealing and side sealing with PE packing film.

The incoming roll's width and diameter are detected by sensors on the packing unit automatically.

5. Heat Chamber >>

For vacuum packing.

It is optional as per needs.

<< 6. Roller Conveyor with 90 Degree Turning System

.To deliver packed rolls onto fabric stage.

Fabric Stage (Optional) >>

To store packed rolls.

Features:

SUNTECH Fabric Roll Shrink Vacuum Packing Machine

1) The complete system is PLC controlled and the electric components are placed inside a separate operation box for the convenience of operation and maintenance.

2) The complete system can work independently and/or online work together with fabric inspection/rolling machines.

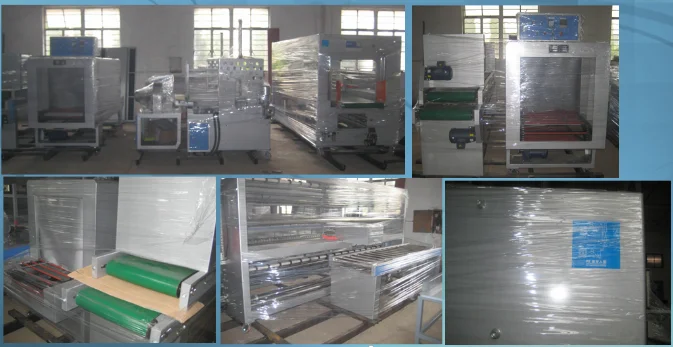

Reference photos of Fabric Roll Shrink Vacuum Packing Machine taken in our customers' factories:

Fabric Bolt Packing Machine

91.8% Response Rate

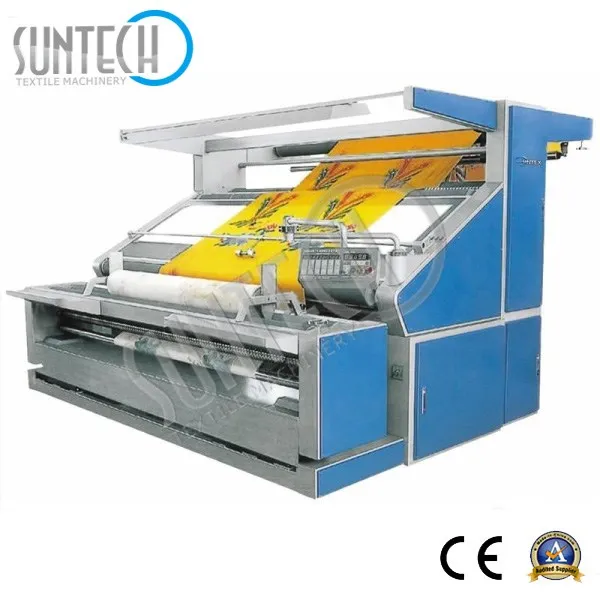

Fabric Inspection Rolling Machine

91.8% Response Rate

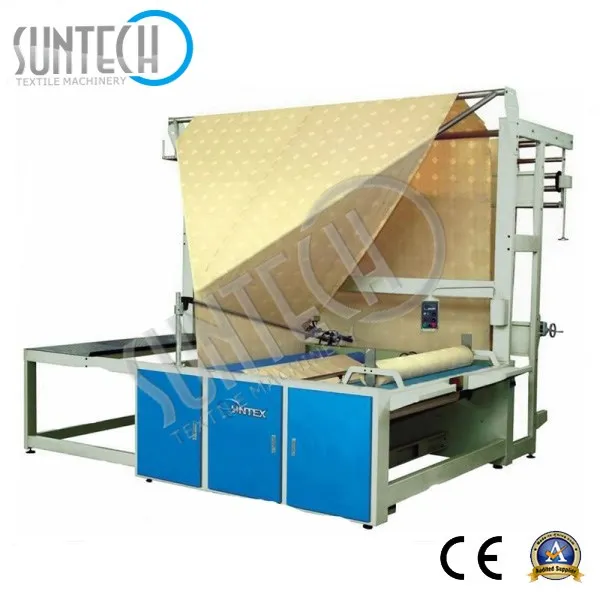

Double Folding Rolling Machine

91.8% Response Rate

Machine Packing

FAQ

Q1:What is the packing material? Can we find it in our market?
A1: It is the most common polythene film with 60-80 microns, very easy to get it in your market.
Q2: What is the packing speed?
A2: Our ST-ARPM-180I can pack 300 to 420 rolls/hr, which means it can pack 2400 to 3360 rolls/eight hour.
Q3: How many Fabric Inspection Machines could link with one Packing Machine at the same time ?
A3: 10sets.
Q4:What is the electrical specs? Can I use the machine directly in my country?
A4: It is 3 Phase, 380V and 50Hz; we could make it suitable for different countries.
Q5: Is the control panel in English?
A5: Yes, it is in English.(Other languages are available if needed.)
Q6: How long is the warranty? If any problems, how to solve it?
A6: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.
Q7: Will you provide free spare parts along with the machine?
A7: Yes, 5% to 10% free spare parts will be sent with the machine.
