SUNTECH Customized packaging size Fully Automatic Fabric Roll Packing Machine Price

Supplier: Zhejiang Strength Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Mindy Dong
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	SUNTECH;	Power:	43KW(for ST-ARPM-180I);
Packaging Detail:	Steel Pallet or Wooden Box Packing for Automatic Fabric Roll Packing Machine;	Dimension(LWH):	4000X2700X2200MM;
Condition:	New;	Application:	Textiles;
Type:	Other;	Range of Fabric Width:	900-1800mm;
Automatic Grade:	Automatic;	Type:	Other;
Packaging Material:	Wood;	Packaging Type:	Film;
Certification:	CE ISO;	Driven Type:	Electric;
Voltage:	380V/50HZ;	After-sales Service Provided:	Engineers available to service machinery overseas;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,e-checking;	Supply Ability:	100 Set/Sets per Month SUNTECH Automatic Fabric Roll Packing Machine;
Place of Origin:	Zhejiang China (Mainland);	Port:	Ningbo or Shanghai Port;
Weight:	2500KG(for ST-ARPM-1801);

Product Description

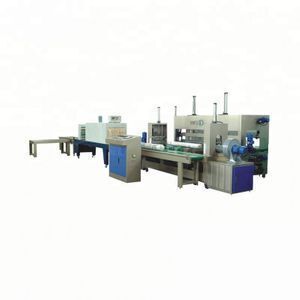

SUNTECH Fully Automatic Fabric Roll Packing Machine Price

This machine is controlled by PLC to pack fabric rolls with/without vacuum effects (as per customer requests) automatically.

It is CE Approved and can pack max. 3360 rolls/8 hrs.

It can be designed to connect with fabric inspection machine(s)/fabric rolling machine(s) via inlet conveyor to form an automatic inspection/rolling--packing line.

As for after-sale service, Suntech provides 13 months warranty for this machine, and engineer overseas service is also available as per need.

Model	ST-ARPM-180I	ST-ARPM-180II	ST-AROM-240I	ST-ARPM-240II
Range of Width	900-1800mm	900-1800mm	1200-2400mm	1200-2400mm
Range of diameter	100-400mm	100-600mm	100-400mm	5-7rolls/min
Packing capacity	5-7rolls/min	4-6rolls/min	4-6rolls/min	3-5rolls/min
Dimensions(mm)	418025002190	445032202590	478025002190	505032202590
Weight	1500kgs	1600kgs	1600kgs	1700kgs
Power consumption	43kw	43kw	43.5kw	43.5kw
Remark: Range of roll width can be designed & manufactured upto 3200mm.

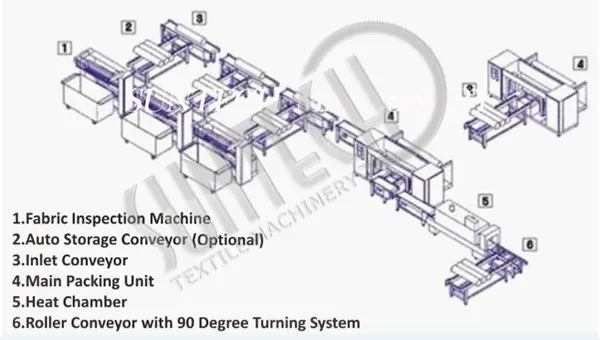

Machine Details

SUNTECH Automatic Fabric Roll Packing Machine

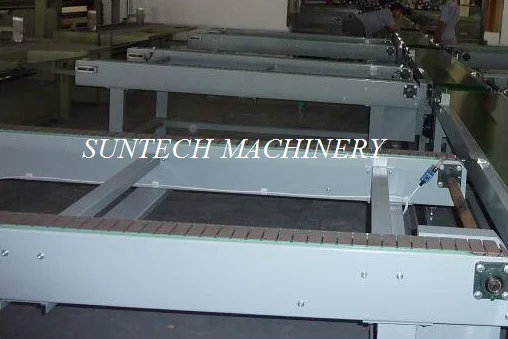

<< 2. Auto Storage Conveyor (Optional)

For storing the fabric rolls coming from inspection/rolling machine automatically when the inlet conveyor is full.

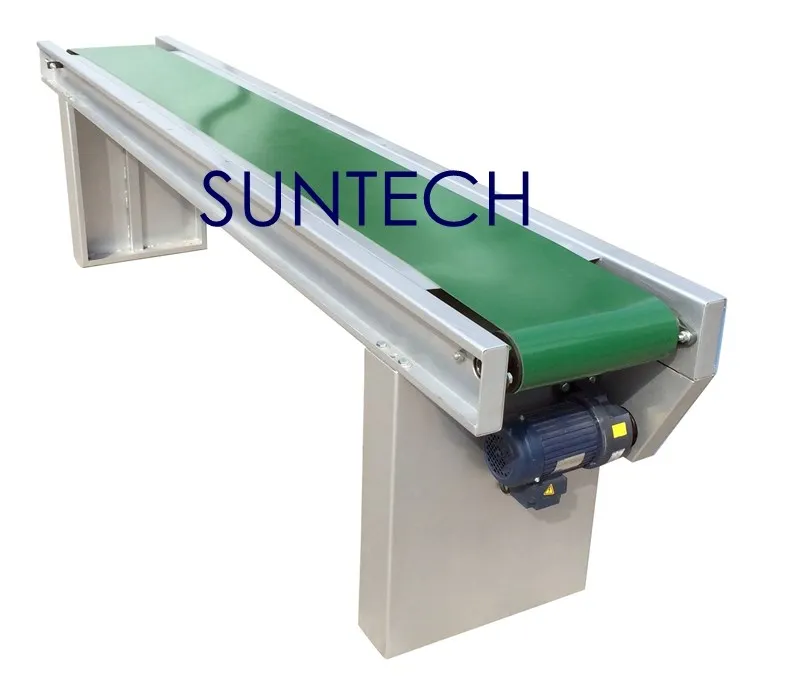

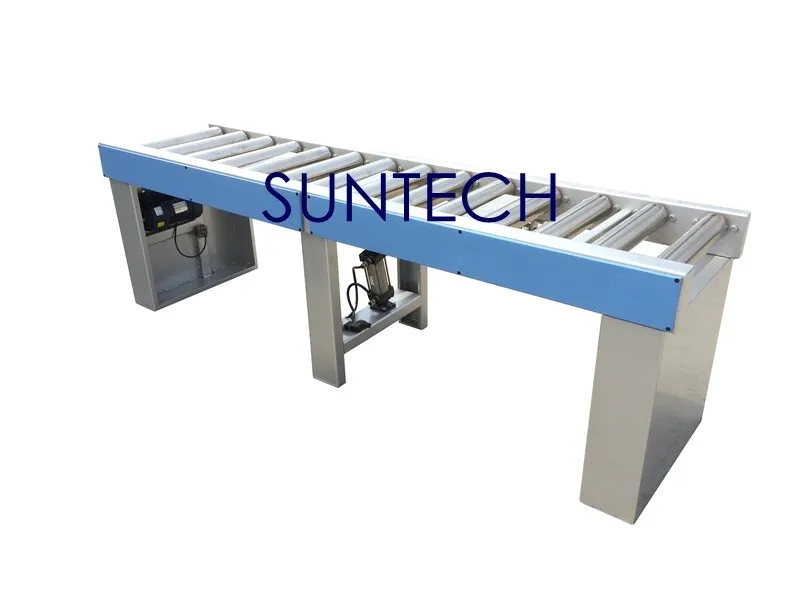

3. Inlet Conveyor >>

For delivering fabric rolls to the packing machine.

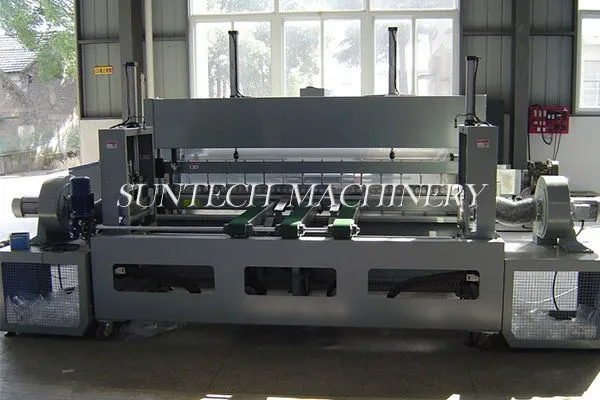

<< 4. Main Packing Unit

For width sealing and side sealing with PE packing film.

The incoming roll's width and diameter are detected by sensors on the packing unit automatically.

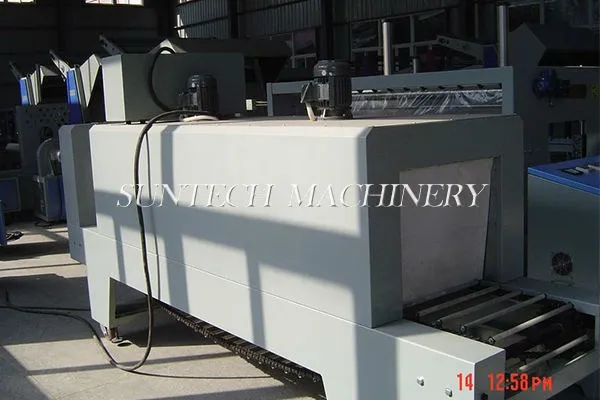

5. Heat Chamber >>

For vacuum packing.

It is optional as per needs.

<< 6. Roller Conveyor with 90 Degree Turning System

.To deliver packed rolls onto fabric stage.

Fabric Stage (Optional) >>

To store packed rolls.

Features:

SUNTECH CE Approved PLC Controlled Automatic Fabric Roll Packing Machine

1) The complete system is PLC controlled and the electric components are placed inside a separate operation box for the convenience of operation and maintenance.

2) The complete system can work independently and/or online work together with fabric inspection/rolling machines.

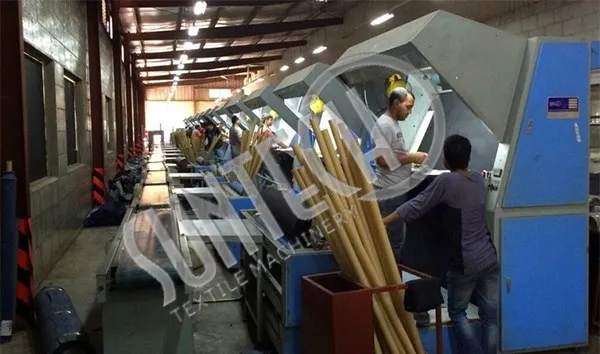

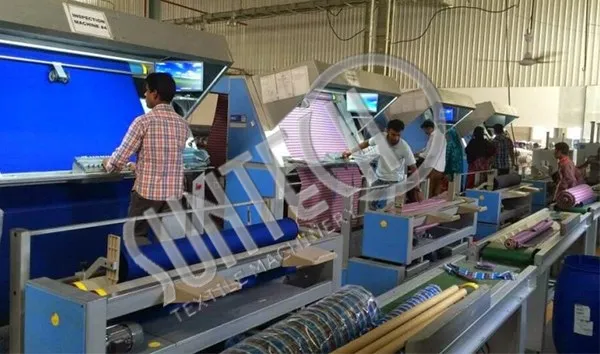

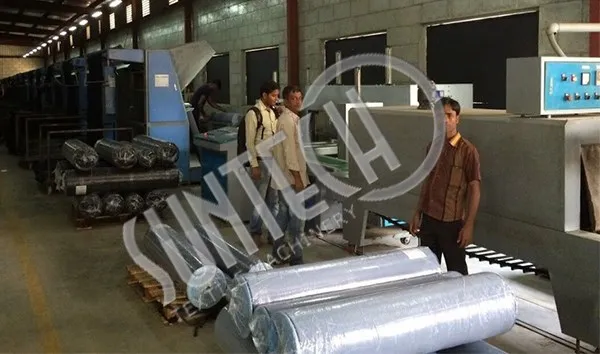

Reference photos of CE Approved PLC Controlled Automatic Fabric Roll Packing Machine taken in our customers' factories:

FAQ:

Q1:What is the packing material? Can we find it in our market?
A1: It is the most common polythene film with 60-80 microns, very easy to get it in your market.

Q2: What is the packing speed?
A2: Our ST-ARPM-180I can pack 300 to 420 rolls/hr, which means it can pack 2400 to 3360 rolls/eight hour.

Q3: How many Fabric Inspection Machines could link with one Packing Machine at the same time ?
A3: 10sets.

Q4:What is the electrical specs? Can I use the machine directly in my country?
A4: It is 3 Phase, 380V and 50Hz; we could make it suitable for different countries.

Q5: Is the control panel in English?
A5: Yes, it is in English.

Q6: How long is the warranty? If any problems, how to solve it?
A6: 13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.

Q7: Will you provide free spare parts along with the machine?
A7: Yes, 5% to 10% free spare parts will be sent with the machine.

Packing & Deilivery

Shipped by FCL

Steel Pallet & Stretching Film Packing

Shipped by LCL

Wooden Box Packing

Our Clients

About Us

SUNTECH is one of leading designers & manufacture on textile machines for weaving & finishing units.

Our scope of products includes Fabric Make-Up Machines, Material Storage, and Handling Equipment. Furthermore, from weaving factory, finishing and dyeing factory to garment factory, we can provide one-stop service for you.

Up to now, we already have 2500 global customers and 6000 installations. Within sales turnover, Asia takes up 48%, Europe 16%, North America 9%, South America 14%, Africa 8%, other countries 5%.
