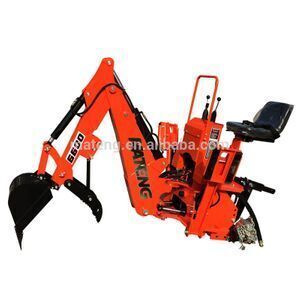

small towable 3 point hitch backhoes attachment for sale

Product details
Certification:CE ISO;DIGGING DEPTH:7';
After-sales Service Provided:No overseas service provided;Supply Ability:500 Set/Sets per Month small backhoes for sale;
Application:Farm;Hydraulic pressure requirements:2250psi;
Place of Origin:Jiangsu China (Mainland);Warranty:1 Year;
Payment Terms:L/C,T/T;Optional equipment:Mechanical grab thumb,Ripper attachment;
Model Number:BH6600/BH7600/BH8600;Weight:450-600kgs;
Name:small towable 3 point hitch backhoes attachment for sale;Brand Name:Mateng;
Standard equipment:Boom,dipper,sub frame-stabilizer;COLOR:Orange,grey, or Blue or Green etc.;
Port:Shanghai port;Delivery Detail:45 days after receiving payment;
Bucket Type:9" bucket ,12" bucket,15"bucket,18"bucket ,20"bucket,35" bucket,;Recommended tractor HP requirements:18-60HP;
Features:Tractor Towable Backhoe;Bucket Cylinder digging force:2450lbs;
Hydraulic volume requirements:4-5GPM;Dimension(L*W*H):2200*950*1750mm;
Condition:New;Packaging Detail:Iron frame for container, Wood cases for sample, Cartons for small parts;
Product Description



Mateng BH backhoe designed in compact structure, they are manufactured using heavy formed Q235 structural steel plate, the strongest plate steel available. The pieces are CNC laser cut so that they fit together perfectly, and then precisely welded, all of these result to a perfect combination of weight and rigidity.
Mateng BH backhoes offer a superior powder coat finish that is baked onto the steel. This finish is thicker from mature paint line and much more durable than paint to keep your backhoe free from rust and looking good for years.
It's very easy for the user to install Mateng backhoe on his tractor, you only need to remove the packge, link the pump to tractor PTO output spline, fix the 3 –point frame to tractor hitch, install the seat and finally remove the fixing pin that locate the backhoe, then you can carry on the operation easily
.

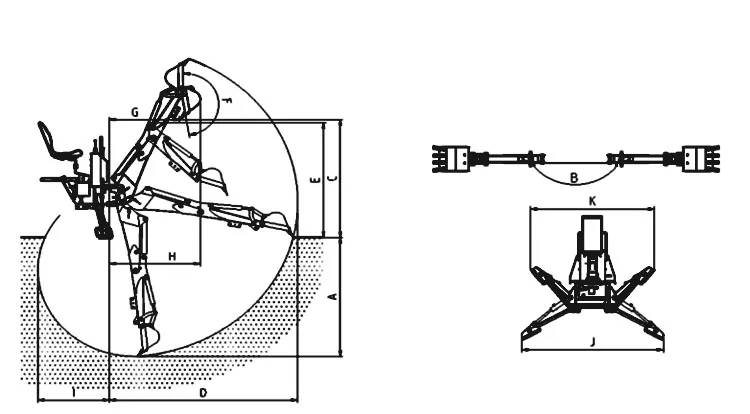

Specifications
Model
BH6600
BH7600
BH8600
Maximum digging Depth
7'0
8'0
9'0
A.Digging depth
B.Swing arc
180°
180°
180°
C.Loading height(Bucket at 60 degree)
5‘0“
5’10”
5‘25“
D.Reach from center line of swing piovt
8'6
9'6
10'6
E.Transport Height (Maximum)
F.Bucket Rotation
180°
180°
180°
G.Loading Reach(Bucket at 60°)
3'2
3'7
4'0
H.Transport Overhang
I.Undercut
2'4
2’6”
2‘8“
J.Stablizer Spread,Down position
K.Stablizer Spread,Up position
3'11
5'11
5'11"
Bucket Cylinder Digging Force
2450lbs
2840lbs
3000lbs
Dipper stick Cylinder Digging force
1250lbs
2005lbs
2500lbs
Shipping Weight(less bucket)
654lbs
875lbs
905lbs
Hydraulic Volume Requirements
4 to 5 GPM
5 to 6 GPM
5 to 6 GPM
Detailed Image

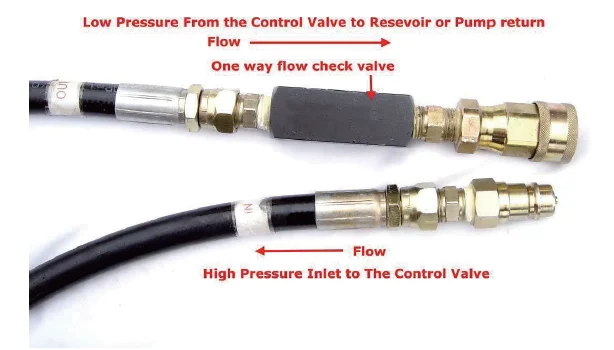

With high quality hoses and hardware,low pressure from the control valve to resevoir or pump return,high pressure inlet to the control valve.

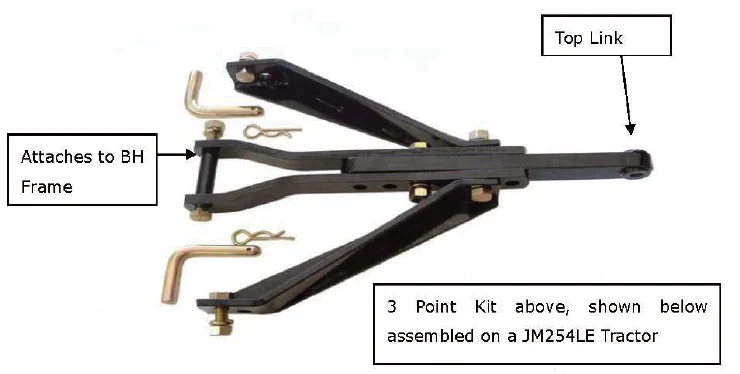

3 point components and hookups

These parts come with your 3 point backhoe ,both models BH6600/BH7600,some parts may vary in size or length for each model

Packing & Delivery

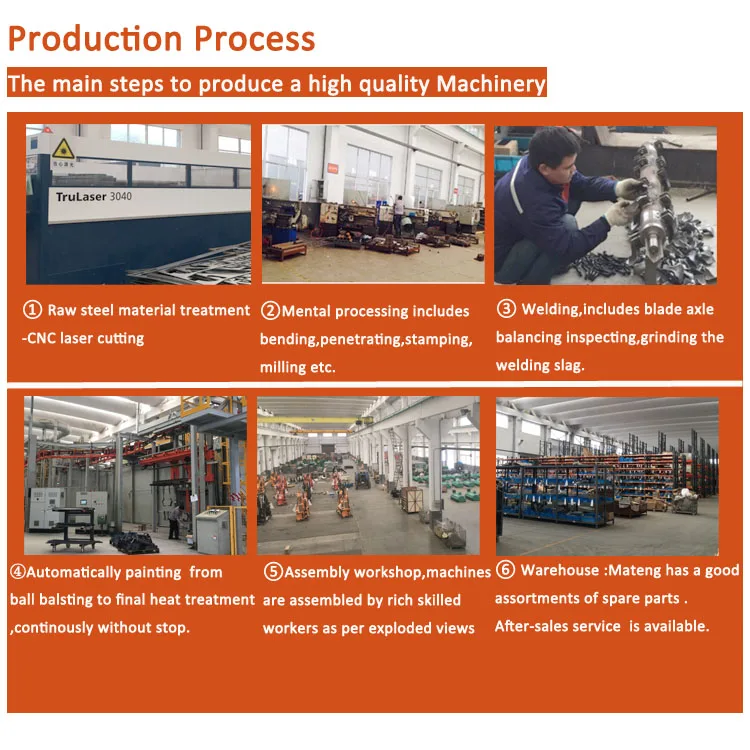

Production flow

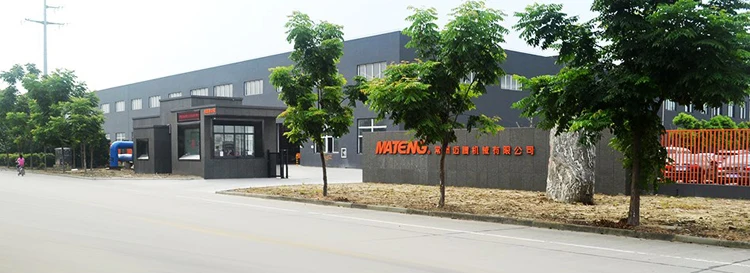

Our Company

Changzhou Mateng Machinery Co.,ltd

Mateng is one of the leading manufacturers in the production of agricultural equipments, such as flail mower, rotary tiller, wood chipper, PTO backhoe, snow blower etc. for compact utility tractors.
Established in 2008, it has built a strong cooperation with worldwide customers by quick growing, Thanks to its flexibility and attention to the customers requests, the Company has developed a wide range of products for Gardening, Farming, Wood and Road Maintenance, even with the possibility of adapting them to the needs of the final users.

FAQ

Q1:Why choose Mateng?

A1: *Mateng has 9 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .

Q2:How to keep superior quality?

A2: Laser cutting machine,skilled workers,perfect quaity inspection.

Q3:What is your payment term?

A3: 30% T/T payment in advanced,70% balanced payment as per the copy of B/L .
