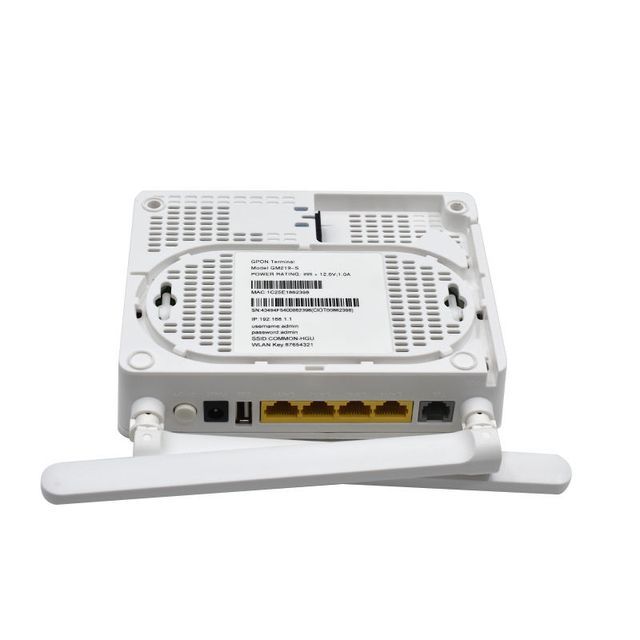

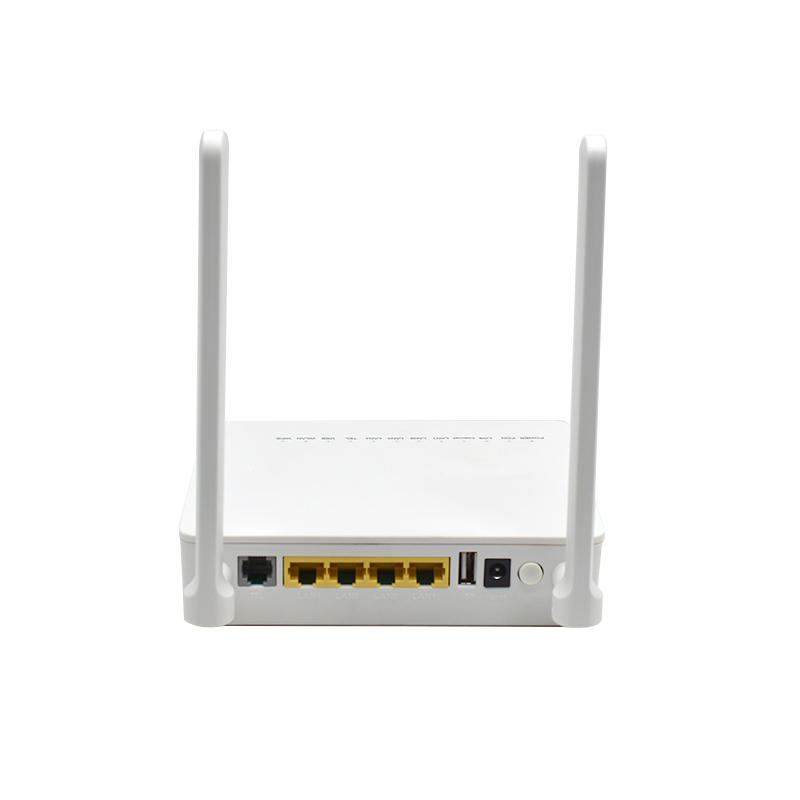

FTTH ONU XPON Wifi ont Modem Firmware English GM219 S 1GE 3FE USB 2.4 Wifi Xpon onu

Product details
port:ShenzhenOrigin:Guangdong, China
Warranty time:1 yearcolor:white
brand:Net Unionpower supply:DC 12V/1A
Warranty:12 months / 1 yeartype:FTTx solution, ONU
application:FTTH FTTxFTTB networkSupply capacity:5000 pieces per day
network:Wired LAN, wifiMOQ:50
Packaging Details:cartonFunction:FTTH fiber to the home system
use:Fiber to the Home Fiber to the Home Fiber to the Homepayment terms:Western Union, T/T, MoneyGram
product name:jepononuPackage:Neutral packing
model:GM219-SCertification:CE RoHS FCC
Product Description
Features: 1. Plug and play: One-click service deployment on the network management system without on-site configuration. 2. Remote diagnosis: Realize remote fault location through POTS port loop test, call emulation, and PPPoE dial emulation. 3. Link monitoring: use 802.1ag Ethernet OAM to realize end-to-end link detection. 4. High-speed forwarding: 900Mbit/s forwarding in NAT scenarios. 5. IPv6 capability: support IPv6/IPv4 dual stack and DS-Lite.
Specification
Model
GM219-S
outbound port contains
1GE+3FE+1 phone+1USB
WIFI signal
support
wireless gain
support
USB
support
local area network
1*10/100/1000Mbps adaptive Ethernet port, full/half duplex, RJ45 interface
Telephone
H248/Sip voice protocol
PPPOE
support
firmware
English
size and weight
116mm*136mm*28mm/145g
Fiber port
1 GPON/EPON/XPON interface, single fiber, downlink rate 2.5Gbps, uplink rate 1.25Gbps
wavelength
Transmit 1310nm, Receive 1490nm
fiber optic interface
SC/FC-UPC/APC Dual Mode/Single Mode
Receiver sensitivity
>-28dBm (1490nm)
DC power supply
12V 1.0A, external AC-DC power adapter
button
reset, power
Operation
Working temperature: -5-+55℃ Working humidity: 10-90% (non-condensing)
storage
Storage temperature: -30°C- +60°C Storage humidity: 10-90% (non-condensing)
