SUJ2 Steel Needle Roller Pin

Click here to contact

Product details

Tolerance of length:	0~- 0.2 mm;	Brand Name:	HOLO PACK;
Material:	SUJ2 (chrome steel);	Place of Origin:	Japan;
F type:	Flat end with corner break.;	Tolerance of diameter:	0~- 0.003 mm;
Length:	3 mm to 3";	Hardness:	HRC60;
Grade:	G3;	Material:	Chrome steel;
A type:	Round end;	Port:	keelung/shanghai;
Type:	Needle;	Supply Ability:	150000 Piece/Pieces per Month Depends on the factory production.;
Packaging Detail:	CTN/WDC;	Payment Terms:	T/T;
Diameter:	0.5 mm to1/2";	Model Number:	NEEDLE ROLLER;

Introduction

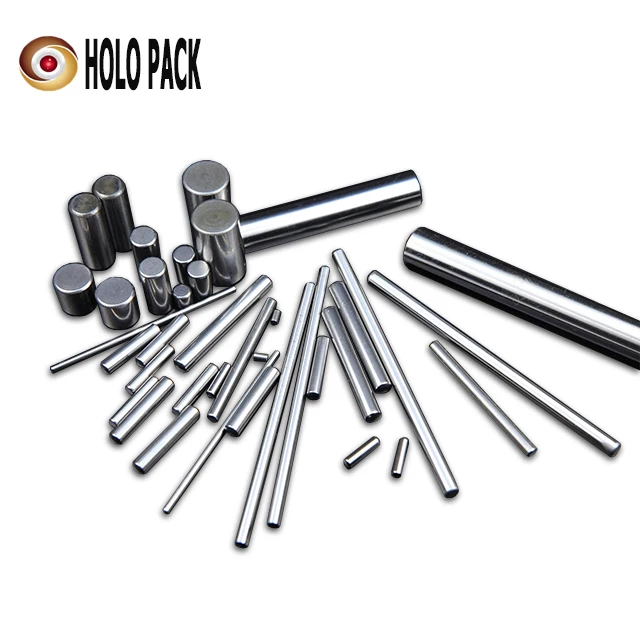

Needle roller pins

Needle rollers are used where radial load and medium speeds are encountered. Needle rollers

can also be useful in applications where the bearing envelope dimensions need to be kept to a minimum.

Needle rollers tend to have slightly rounded ends as a stress-relieving feature,

improving performance and life characteristics.

Holo Pack distributes Japanese high quality needle roller from NNR, SKS brand.

Needle Rollers are made of rolling bearing steel SAE 52100 with core hardness

HRC 58+.

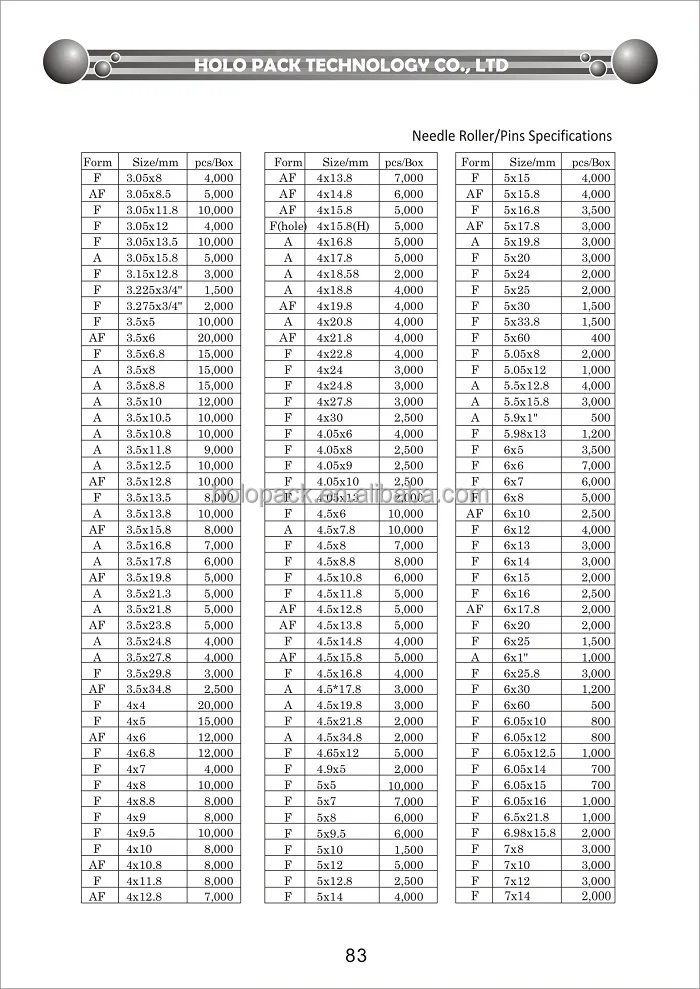

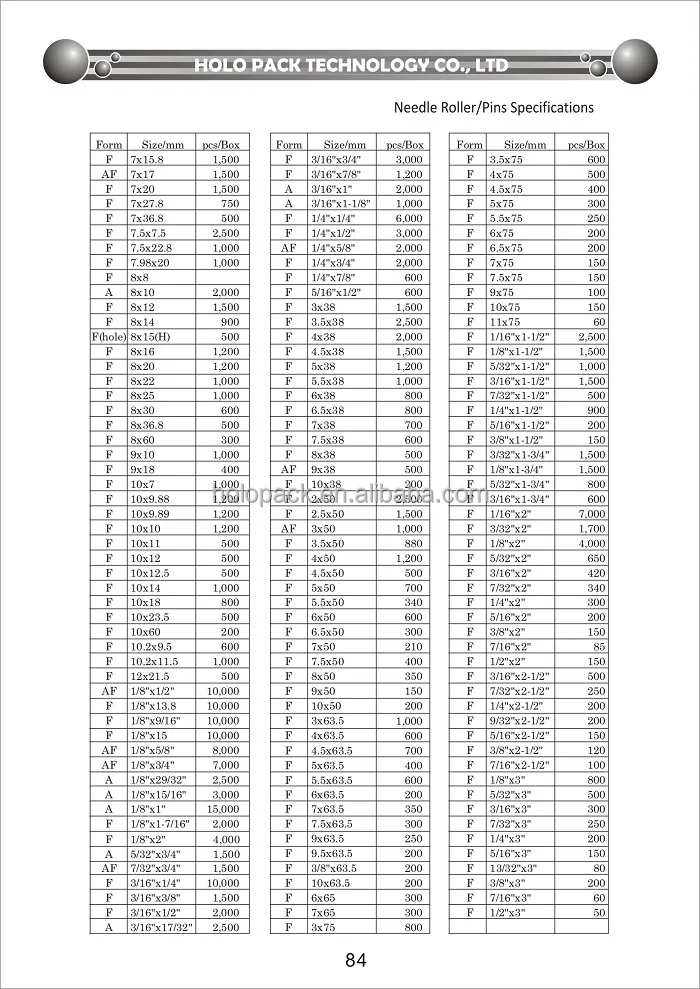

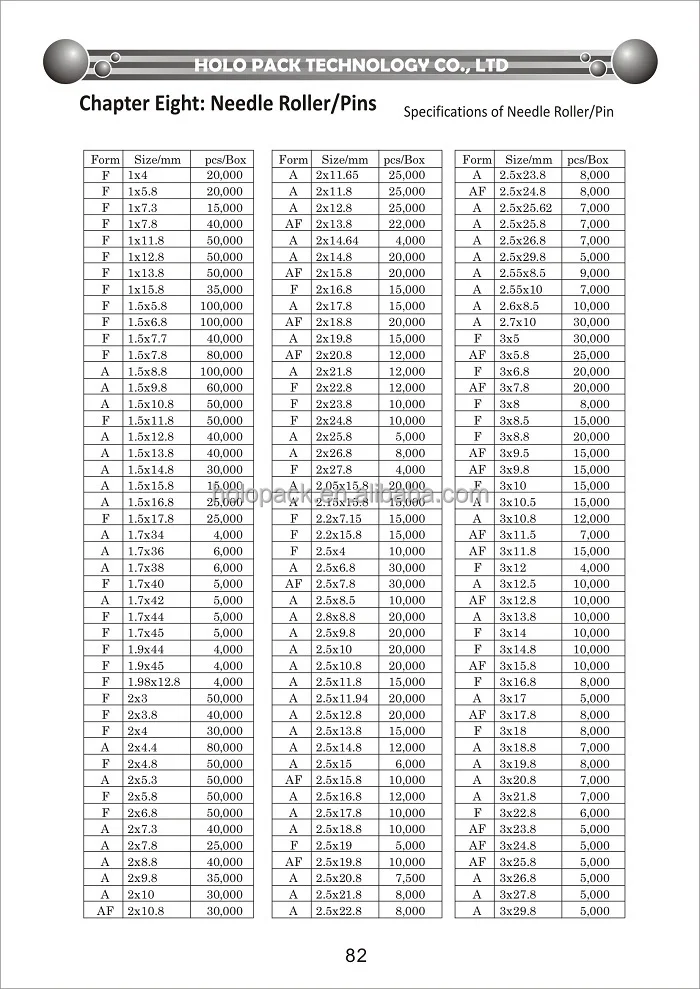

There are more than 800 specifications of needle rollers in stock. Diameter tolerance is 3um.

2um also available upon custom requested.

Product Description

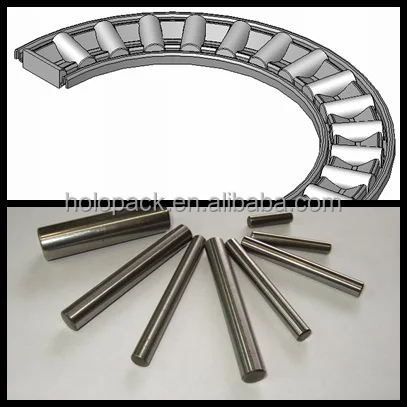

Needle Rollers

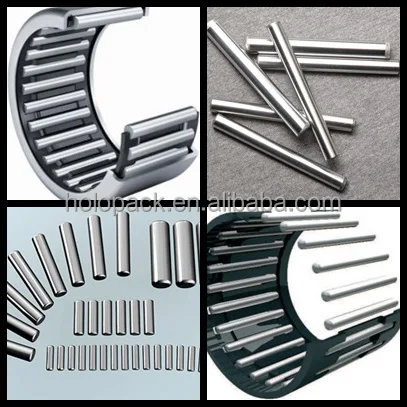

Needle Rollers are mainly used as bearing rolling elements to transmit torque and

reduce friction. In addition, they can also serve asprecision shafts or as precision

locating pins in some applications.

Needle rollers are used where radial load and medium speeds are encountered.

Needle rollers can also be useful in applications where the bearing envelope dimensions need to be kept to a minimum.

Needle rollers tend to have a slightly rounded ends as a stress-relieving feature, improving performance and life characteristics.

Holo Pack distributes Japanese high quality needle roller from NNR, SKS brand.

Needle Rollers are made of rolling bearing steel SAE 52100 with core hardness HRC58+.

There are more than 800 specifications of needle rollers in stock. Diameter tolerance is 3 μm. 2μm also available upon custom requested.

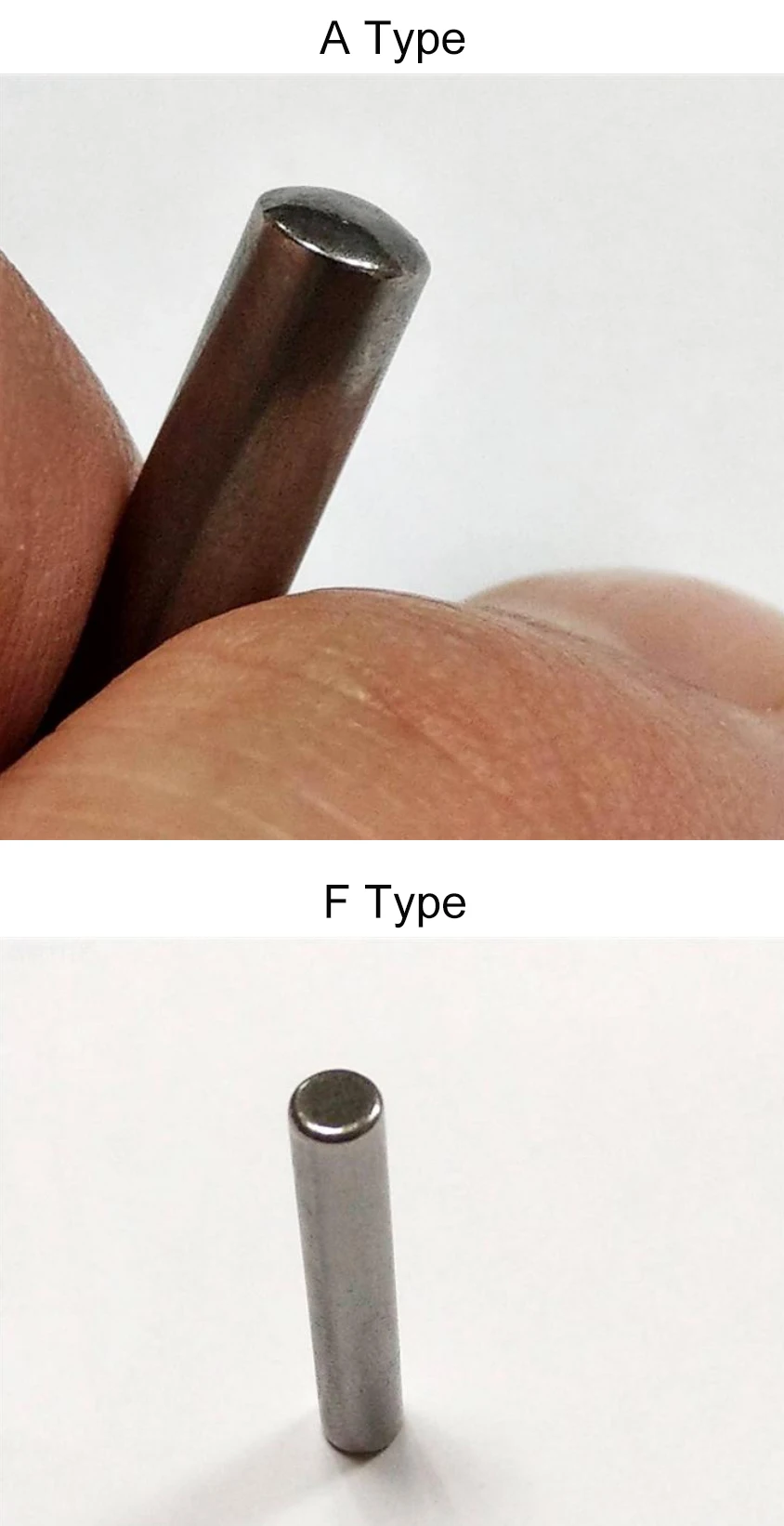

A type: Rounded end. (spherical End)

F type: Flat end with corner break.

Other Products

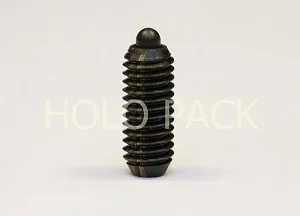

Other Plunger Pin Products

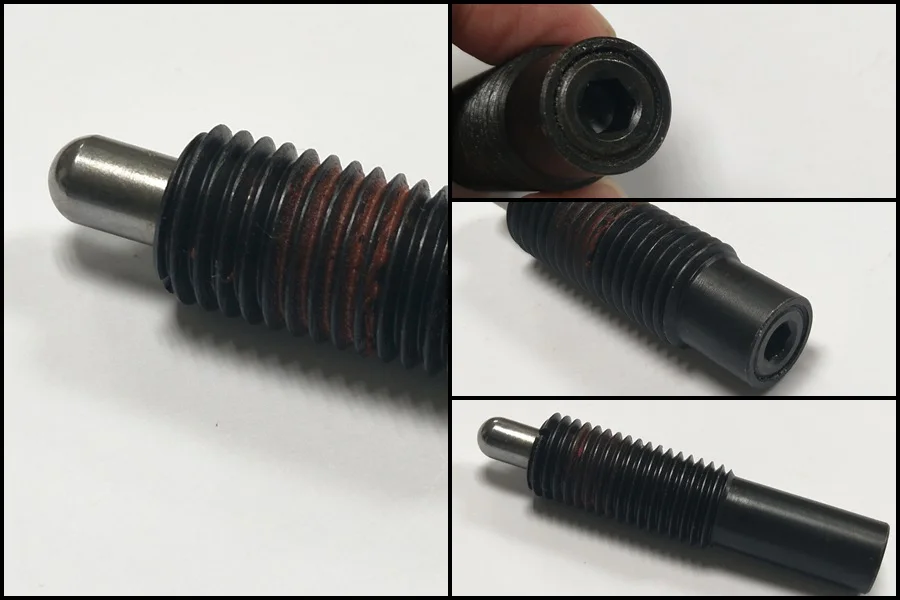

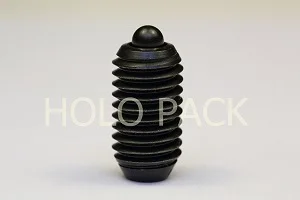

HO2B020 (Heavy spring load)	HO22050 (Standard spring load)
