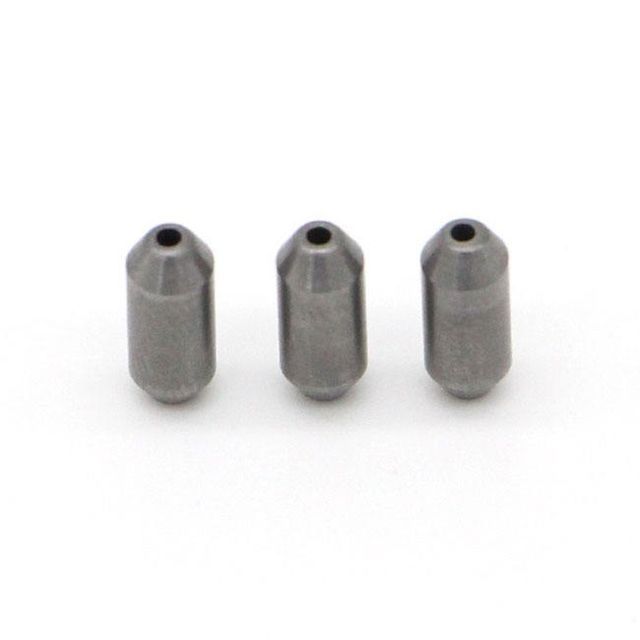

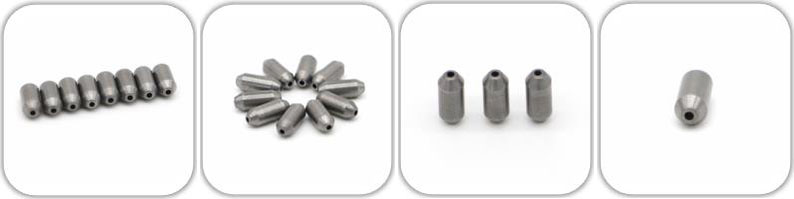

Cylindrical roller pin with high quality roller

Supplier: Zigong Dingli Alloy Material Co., Ltd.
Region: Sichuan, China
Contact: Ms Hua Li
Price: $10.00 / 10 - 99 pieces
$0.50 / >=100 pieces
Min. Order: 10 pieces

Click here to contact

Product details

length:	custom made	type:	Cylindrical
Applicable industries:	Building materials stores, fabrication plants, machinery repair shops, construction, energy and mining	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Visa
Supply capacity:	50000 pieces per month	product name:	Carbide Needle Roller
brand:	Dingli	Packaging Details:	Plastic box, wooden box, carton and soft material.
Origin:	Sichuan Province, China	port:	Chongqing, Shanghai, Guangzhou, Qingdao, Shenzhen, etc.
model:	RP-1	Material:	100% Virgin Material Tungsten Carbide, Tungsten Carbide
grade:	D30UF/YG6X/YG8 etc.	Package preview:
brand:	Dingli

- Material properties:

grade	ISO code	chemical composition (%)			Particle size (microns)	physical and mechanical properties (≥)
grade	ISO code	bathroom	cobalt	others	Particle size (microns)	Density grams/cubic centimeter³	Hardness (HRA)	TRS N/mm²
D10UF	K05-K15	93	6	1	0.6	14.70	93.0	2600
D30UF	K20-K30	89	10	1	0.6	14.50	92.0	3800
D30SF	K20-K30	89	10	1	0.5	14.40	92.5	4000
D40SF	K40	87	12	1	0.4	14.30	92.5	4200
DB10X	K20-K30	89	10	1	0.6	14.50	91.5	3800
DP12X	K30-K40	87	12	1	0.6	14.15	91.0	3300
DP13X	K40	86	13	1	0.8	14.10	90.5	4400
YG6	K05-K10	93	6	0	1.2	14.95	91.0	2600
YG6X	K10	93	6	0	1.0	14.95	92.0	2500
YG8	K20-K30	92	8	0	1.2	14.70	90.0	2800
YG10X	K30-K40	89	10	1	0.8	14.50	91.0	3500
YG15	K40	85	15	0	1.2	14:00	87.5	4500
YG25	--	75	25	0	1.2	13.15	82.5	4800

Zigong Dingli Alloy Co., Ltd. is located in the new industrial parkZigongSichuan, a famous cemented carbide production base in China. thisfactoryMainly committed to the production and development of various cemented carbide products, such asBars, tubes, round and flat bars.Our goal is to become the central base for the manufacture of extruded bars, carbide boring bars, standard tools, non-standard tools, and hard machining tools in China, and to establish a good and healthy corporate image among peers.
