Simple caulk mixer production line
-
Supplier: Contrust Machinery Co., Ltd. -
Region: Henan, China -
Contact: Ms Amy Zhao -
Price: $4000.00 / 1 - 9 pieces
$3000.00 / >=10 pieces -
Min. Order: 1 piece
Product details
| Function: | Spiral Ribbon Feed Mixer | Package preview: | |
| automatic: | fully automatic | strength: | 5.5-22kW |
| Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Spain, Thailand, Kenya, South Korea, South Africa, Uzbekistan, Tajikistan, Japan, Malaysia, Australia | Applicable industries: | Hotels, building supplies stores, manufacturing plants, food and beverage plants, farms, home use, retail, construction, energy and mining |
| feature: | fully automatic | payment terms: | Western Union, T/T |
| raw material: | sand cement additive | brand: | trust |
| Core component warranty: | 1 year | Supply capacity: | 50 pieces per week |
| Key words: | Simple dry powder mortar production line | Origin: | Henan, China |
| Ceramic adhesive: | Mortar/Gypsum/Tiles Production | Marketing Type: | New Products 2022 |
| Advantage: | easy to operate | port: | Qingdao, Shanghai, Guangzhou, Shenzhen, Ningbo |
| Core components: | PLC, engine, motor | weight: | 1500 kg |
| Warranty: | 1 year | Health status: | new |
| Blender Type: | wall putty mixer | Voltage: | 380V/220V can be customized |
| type: | Dry powder mixer | application: | Dry powder mortar production |
| Mechanical test report: | if | Name: | Horizontal Ribbon Mixer |
| Packaging Details: | FCL container / LCL wooden box packaging | Dimensions (L*W*H): | customizable |
| Main selling points: | easy to operate | Video shipment inspection: | if |
| productivity: | 1-5 tons/hour |
Product Description

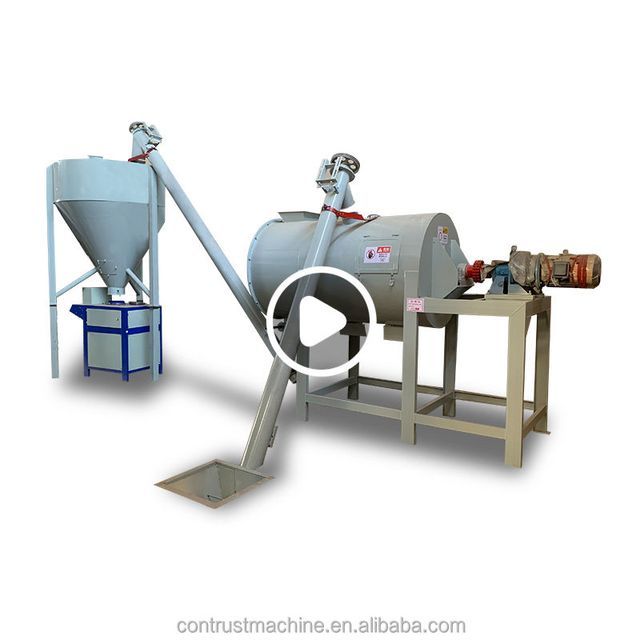

Dry powder mortar production line
The simple and practical small dry powder mortar equipment is based on the traditional mixer, adding a material conveying system, a storage bin, and an automatic filling machine. The mixed material enters the storage bin through the feeding pipe, the mixer can feed continuously, and the assembly line can work continuously, but the height of the equipment does not exceed 4 meters, which solves the problem of heightening the factory building. And it can realize automatic metering and filling, which not only saves time and effort, but also is more accurate. Small investment, but automatic feeding, weighing, automatic packaging, no wonder, it is a simple and practical production line suitable for diversified usage scenarios.
Specification
Model | Capacity (t/h) | Mixer size (M) | Motor Power |
DP500 | 2 | 1.22*0.73*0.85 | 5.5 kW |
DP1000 | 4-6 | 1.8*0.9*1.05 | 7.5 kW |
DP1500 | 6-10 | 2*1*1.15 | 11 kW |
DP2000 | 6-10 | 2.2*1.2*1.35 | 11-15kW |
DP3000 | 12-15 | 2.5*1.26*1.45 | 15-18.5kW |
DP5000 | 20-25 | 2.9*1.5*1.65 | 22 kW |

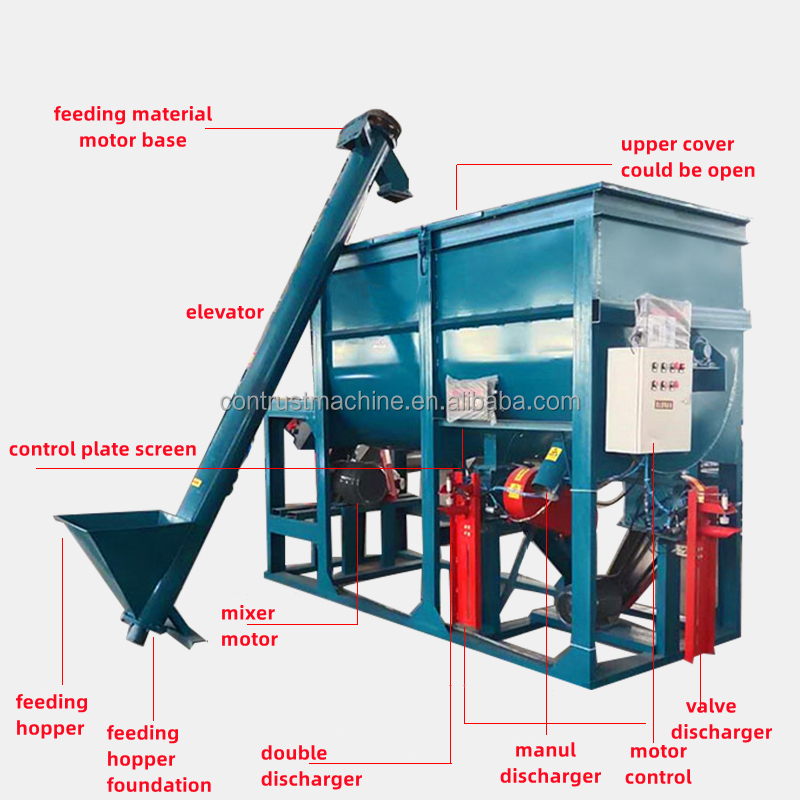

detailed drawing

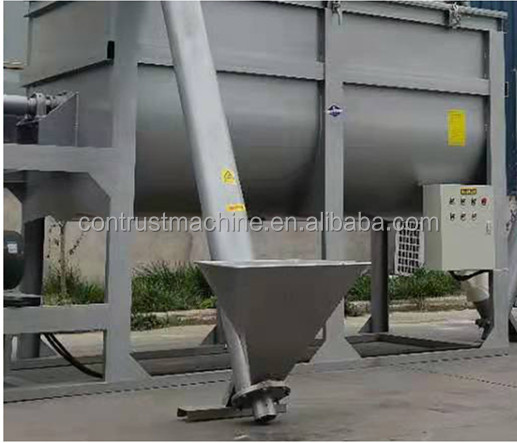

engine
and gear reducers.
It can provide powerful power and smooth operation.
Shaft end connecting rod

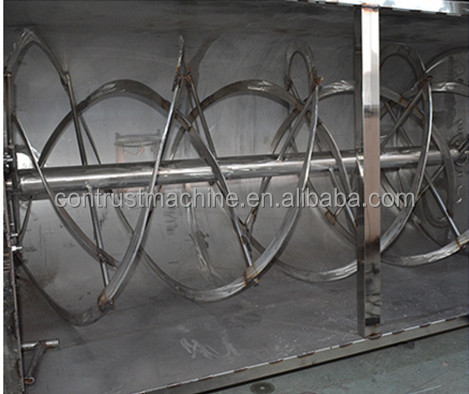

mixed spiral

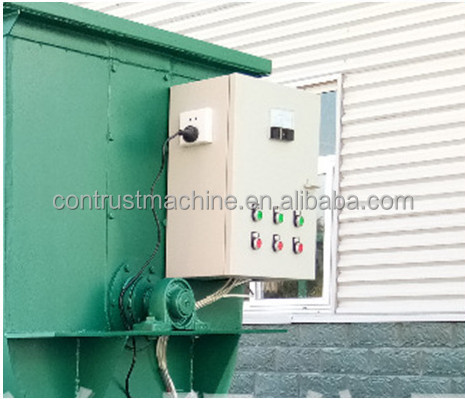

Control cabinet
musical instrument

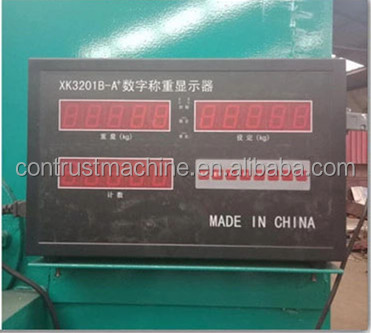

flow measurement
Labor-saving, labor-saving and money-saving.

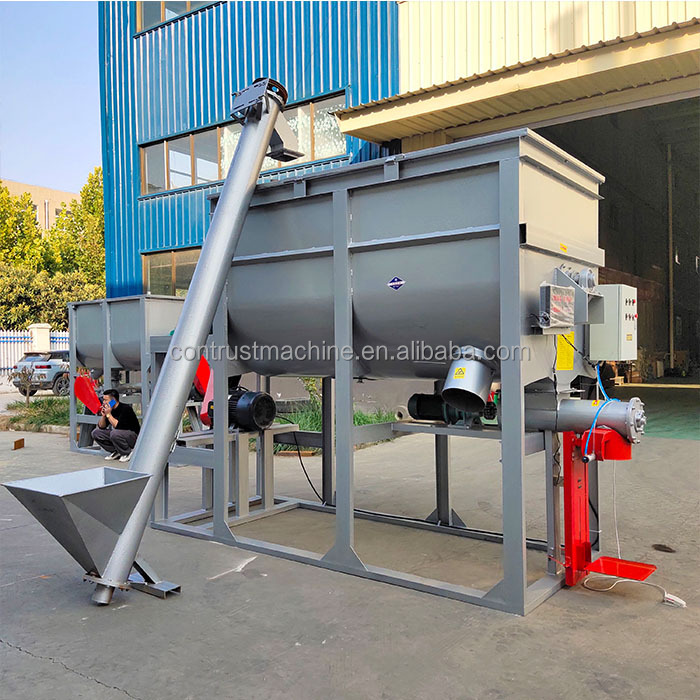

screw feeding

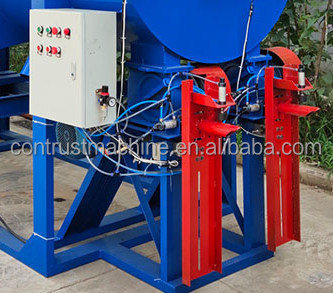

Packing Machine
advantage

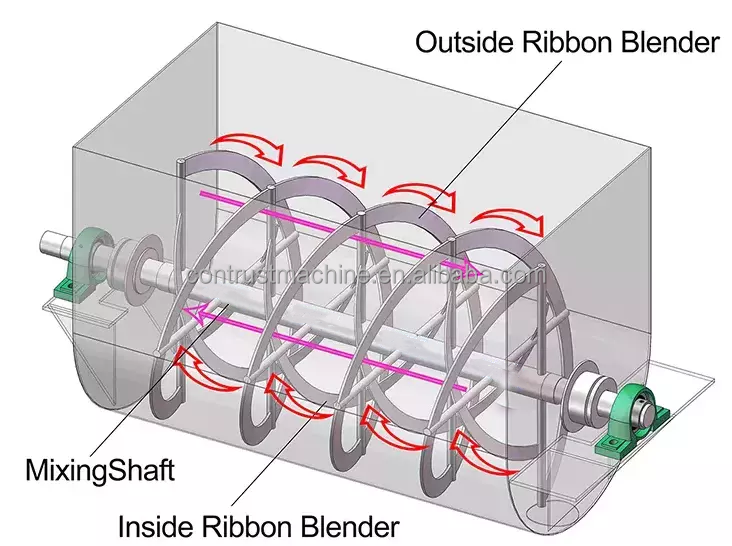

The gap between the spiral belt and the inner wall of the casing is adjustable, the operation is stable, the noise is low, the service life is long, the installation is convenient, and the application is extensive.
There is no mixing dead angle, the mixing speed is faster than that of the vertical mixer, and the uniformity of the mixed material is high.
Strong adaptability, not only can mix materials with strong scattering properties, but also materials with poor scattering properties and strong adhesion.
The parts in contact with the material are made of stainless steel or carbon steel and treated with anticorrosion.
The motor of this machine drives the pulley and the reducer for transmission. Avoid the excessive speed of the mixer when discharging the material, which will cause the finished material to overflow.
The whole machine occupies a small area and is more convenient to install and use.
The factory has the ability to customize the machine for you. The actual situation of the machine can be customized according to your site height and area requirements, the nature of the mixed material, and the mixing speed.
There is no mixing dead angle, the mixing speed is faster than that of the vertical mixer, and the uniformity of the mixed material is high.
Strong adaptability, not only can mix materials with strong scattering properties, but also materials with poor scattering properties and strong adhesion.
The parts in contact with the material are made of stainless steel or carbon steel and treated with anticorrosion.
The motor of this machine drives the pulley and the reducer for transmission. Avoid the excessive speed of the mixer when discharging the material, which will cause the finished material to overflow.
The whole machine occupies a small area and is more convenient to install and use.
The factory has the ability to customize the machine for you. The actual situation of the machine can be customized according to your site height and area requirements, the nature of the mixed material, and the mixing speed.
application
● What is a Minimum Quality Order?
--MOQ is 1 set. If you order a large quantity, you will get a discount.
● What are the payment terms?
--T/T, L/C, Western Union, Credit Card.
● What kind of shipments do you support?
- By sea, by air and by international express.
● When will it be shipped?
-- 7-15 working days after receiving the balance payment.
● Do you provide training and after-sales service?
--Yes, we will provide on-site or online installation and training. We also have a professional service team that can solve problems as soon as possible.
● What is the warranty period of the machine?
-- 12 months after shipment.
--MOQ is 1 set. If you order a large quantity, you will get a discount.
● What are the payment terms?
--T/T, L/C, Western Union, Credit Card.
● What kind of shipments do you support?
- By sea, by air and by international express.
● When will it be shipped?
-- 7-15 working days after receiving the balance payment.
● Do you provide training and after-sales service?
--Yes, we will provide on-site or online installation and training. We also have a professional service team that can solve problems as soon as possible.
● What is the warranty period of the machine?
-- 12 months after shipment.
