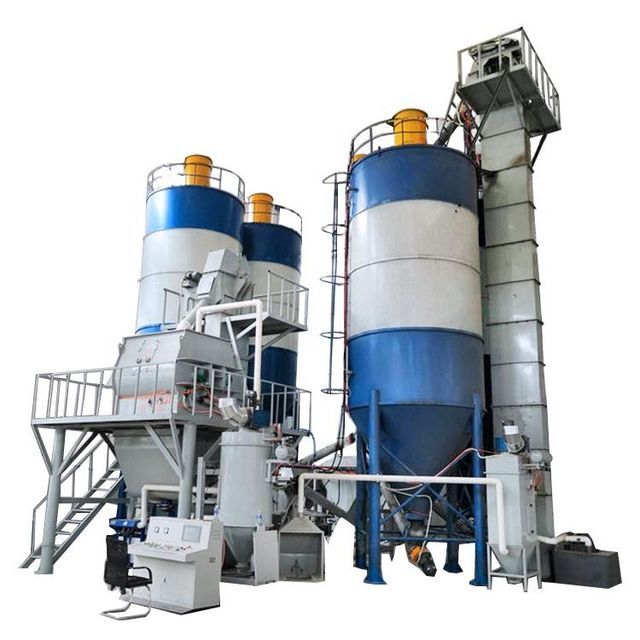

hot sale dry cement mixer for mixing sand and cement / automatic dry mortar production line equipment

Product details
Key words:Dry powder mortar mixing stationIngredients and Weighing:Automatic feeding
Voltage:220V/380V/415V/440VFunction:mixer plant
Mechanical test report:ifMarketing Type:2020 New Products
Origin:Henan, ChinaAfter-sales service provided:Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support
Supply capacity:99 sets per monthfeature:Dry powder mortar production line
Applicable industries:Building material stores, manufacturing plants, household, energy and miningapplication:dry powder mortar mixing
Local service locations:Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, TajikistanName:Dry powder mortar production line
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramstrength:therefore
Dimensions (L*W*H):thereforebrand:Colin Mark
type:Fully automatic dry powder mortar production lineShowroom location:Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Package:10-50kg/bagraw material:Cement, sand, gypsum, additives
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesCore components:engine
Certification:ISO9001:2008port:Qingdao
Health status:newWarranty:1 year
Advantage:personalized designPackaging Details:export package
Blender Type:Single shaft mixer, double shaft mixerMain selling points:easy to operate
capacity:1-30 tons/hourVideo outbound inspection:if
Package preview:Core component warranty:1 year
weight:Kilogram
Product Description
According to customer requirements, we can design personalized production process. The equipment of this production line includes:Dry sand production section, material storage section, material metering system and additive metering system, mixing equipment and packaging equipment.
Dry sand making part

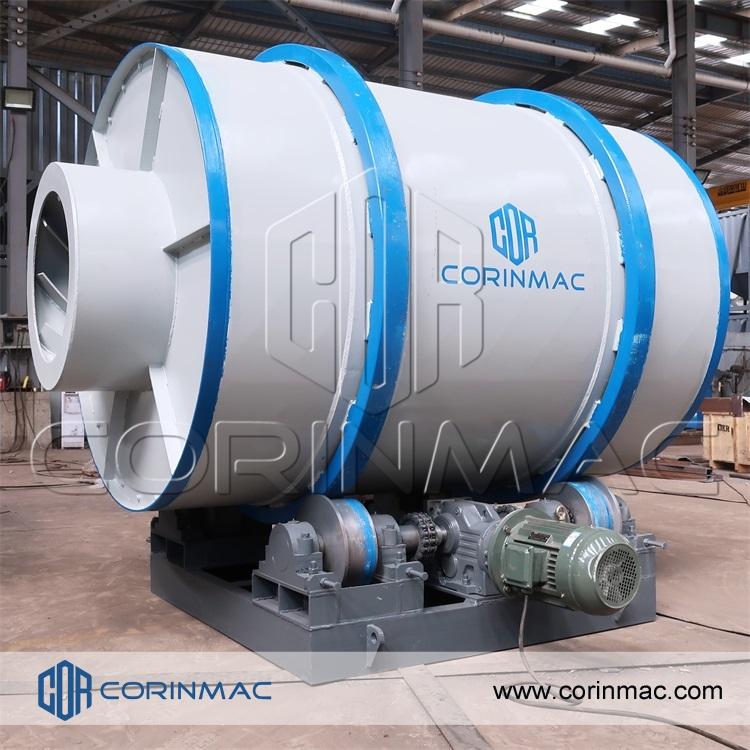

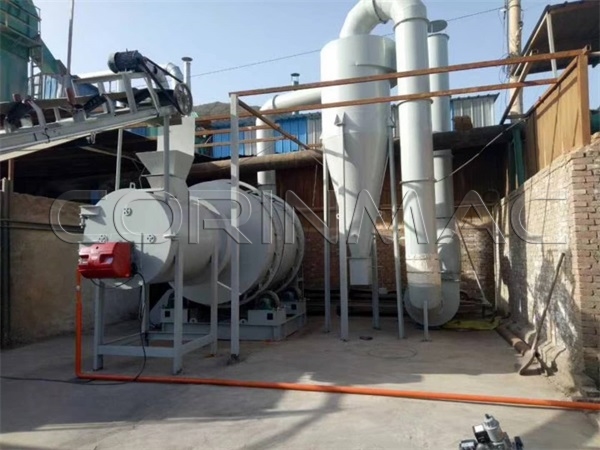

In order to obtain dry sand that meets production requirements,The original wet sand must be dry, and the moisture content should be less than 0.5%. The main production equipment used in the drying process is a three-pass dryer, which is a newly developed dryer for sand drying, with high thermal efficiency, novel, compact, stable and efficient structure. After the sand is dried, it is sent to the grading screen by the belt conveyor. The dry sand is divided into several grains according to the process requirements and stored in the discharge bin.
material storage section

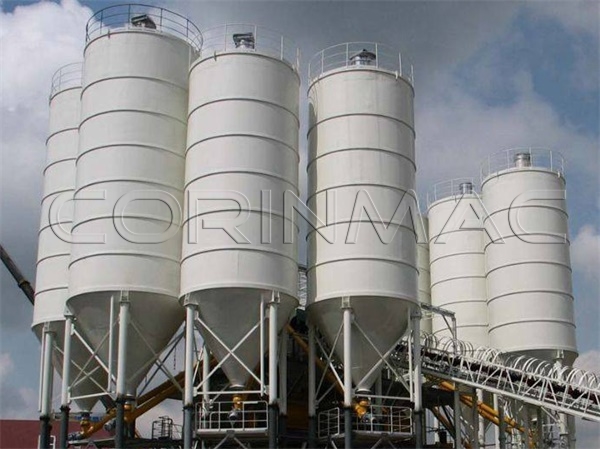

The material storage part is composed of a number of circular silos with different volumes, and there are inspection ladders and guardrails inside the silos. The top of the silo is provided with a feed port and a discharge port, and a dust collector is provided on the top of the silo. Each silo is also equipped with a high and low level meter, which helps the staff to understand the situation of the material in the silo. A valve is installed at the lower mouth of the silo, and various materials are transported to the weighing silo by the screw conveyor.
Material Measurement System

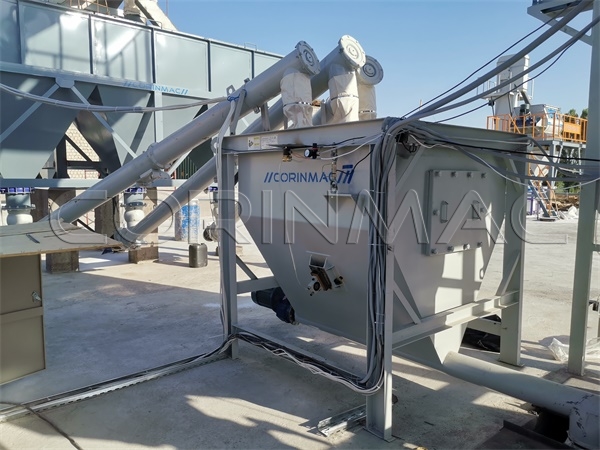

The material metering system consists of a weighing bin, a steel frame and a sensor group.
The weighing bin is a closed bin body, with a discharge screw at the lower part and a feeding port and a breathing system at the upper part. Under the instruction of the control center, the materials are sequentially added to the weighing bin according to the set formula. After the measurement is completed, wait for the instruction to send the material to the bucket elevator entrance of the next link. The whole batching process is controlled by centralized control cabinet PLC. The control automation is high, the error is small, and the production efficiency is high.
Additive Measuring System

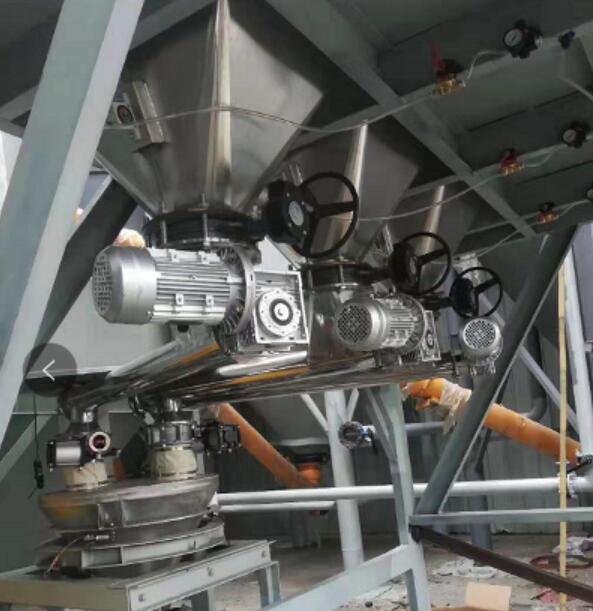

The additive metering system consists of a hopper, a feeding screw and an additive metering scale. The entire set of parts is made of stainless steel, and the contact surfaces with the additives are all finished to avoid sticking and residue. The additive weighing scale adopts a high-precision weighing system to achieve accurate batching, with an error range of ±0.1%
Mixing host

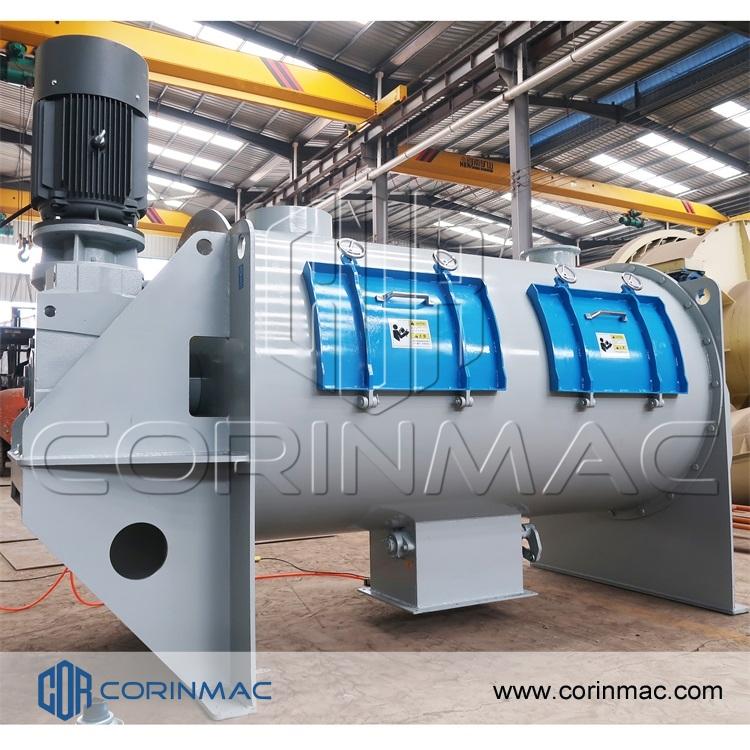

The mixing host is generally a double-shaft gravity-free mixer or a single-shaft coulter mixer, which can be used for
Choose according to the material. After the material enters the host, it starts mixing according to the program set by the PLC
machine, after 3-5 minutes the mixing is complete. The control program issues an instruction to open the outlet of the mixer
Door unloading. In addition, in the process of material mixing, the next batch of material has already been completed.
Packaging Equipment

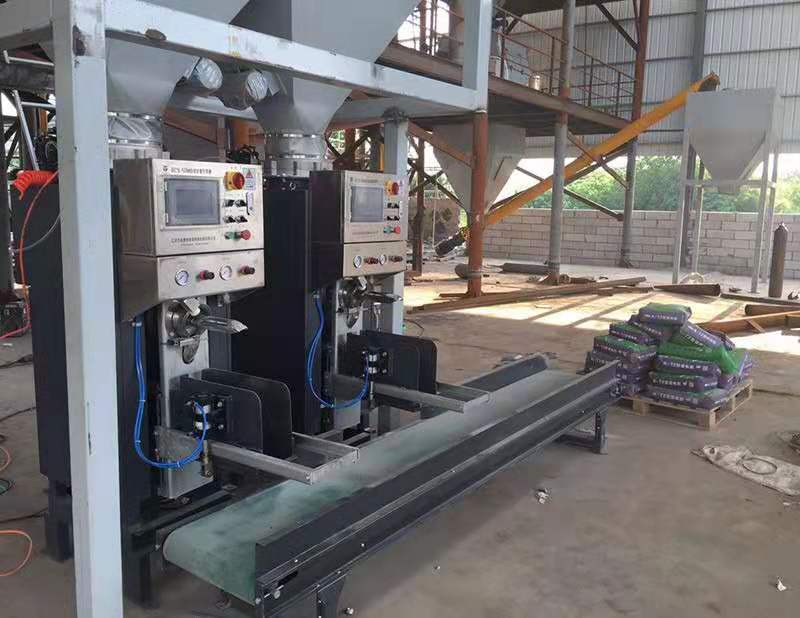

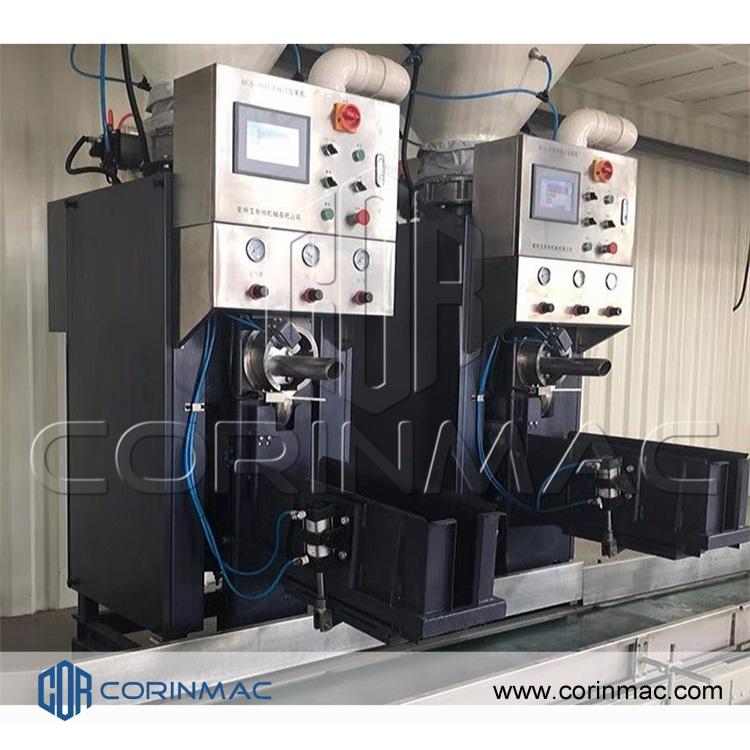

The production line is equipped with air-blowing or air-floating packaging machines, and the number of packaging machines is determined according to the required output. In addition, the entire production line is equipped with a dust removal system to reduce dust and improve the working environment; the air supply system is an air compressor with a displacement of not less than 0.6m3/min and a matching air storage tank.
List of functions
Application of dry powder mortar production line
Dry-mix mortars are used in many different applications in building construction. Some of these apps are generic, while others are specific to certain regions or countries. The main applications are: bonding mortar, decorative mortar, protective mortar, etc.

product configuration
sand dryer

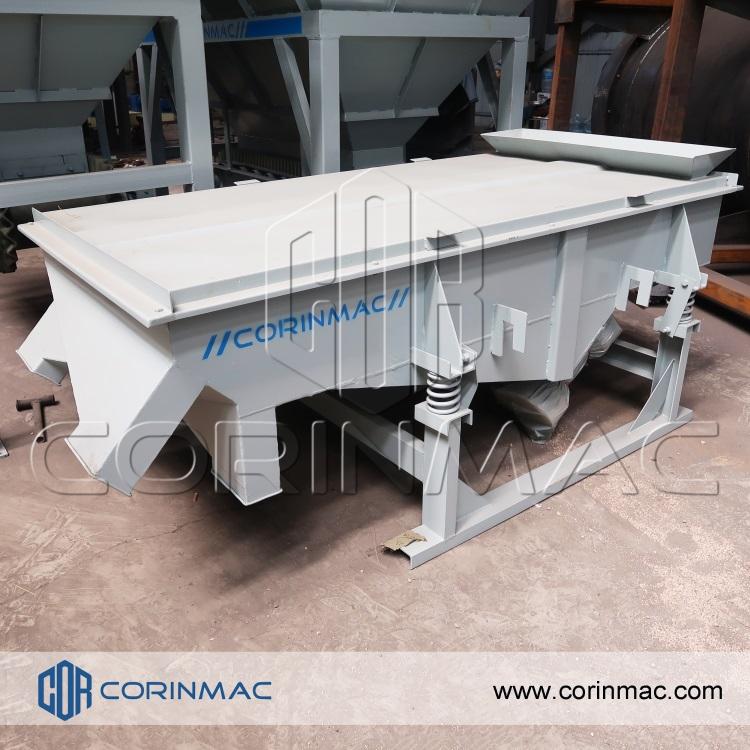

Shaker

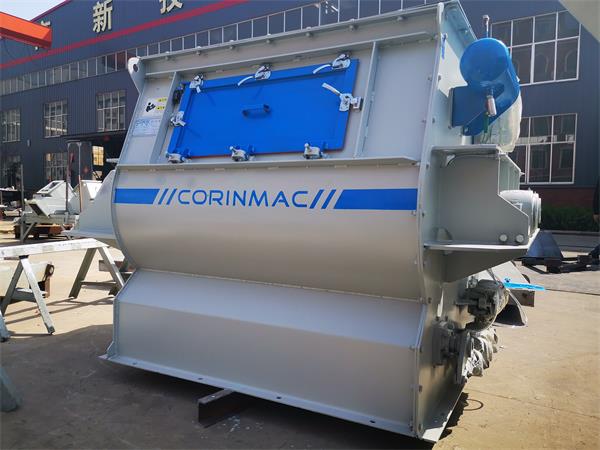

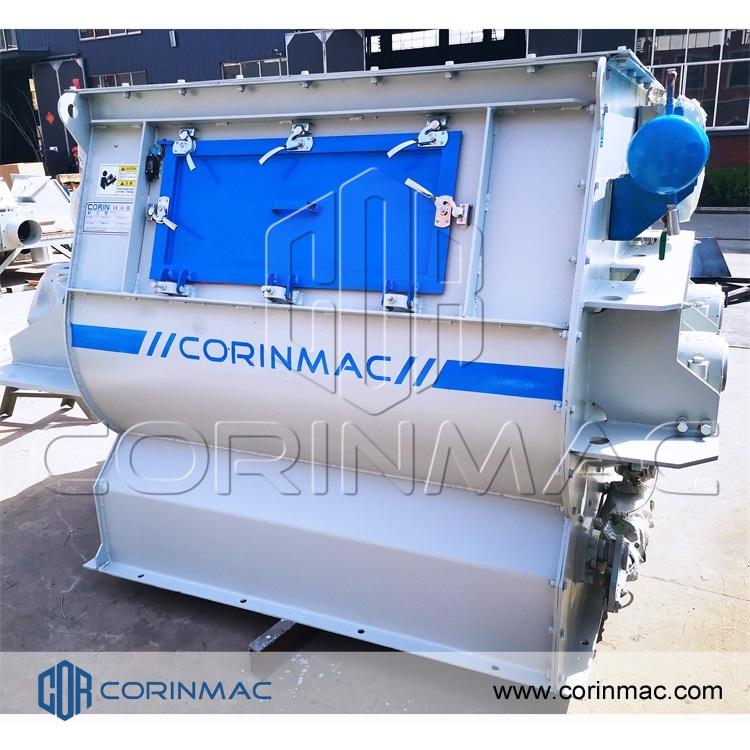

Double Shaft Gravityless Mixer
Single Shaft Coulter Mixer
Packing Machine

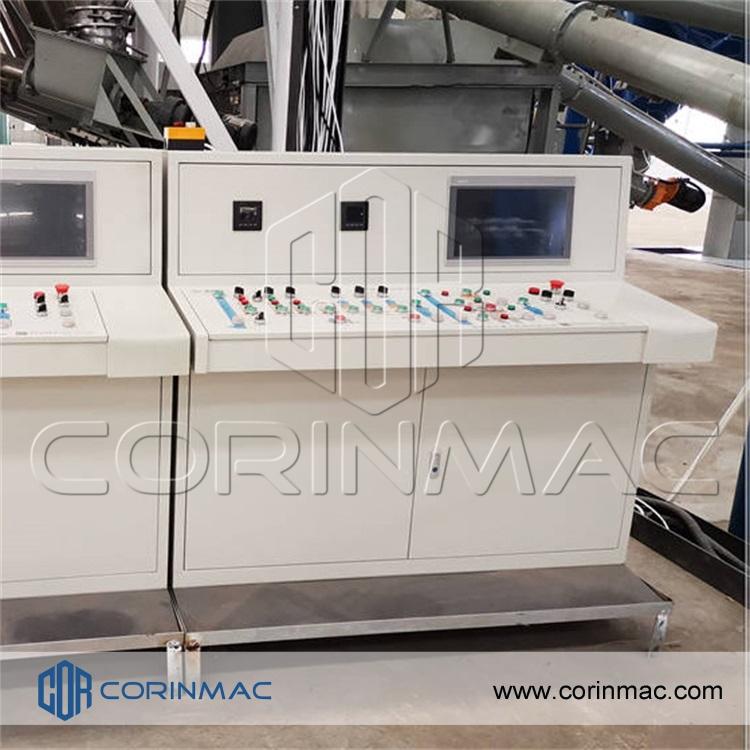

PLC-electronic control system
successful project

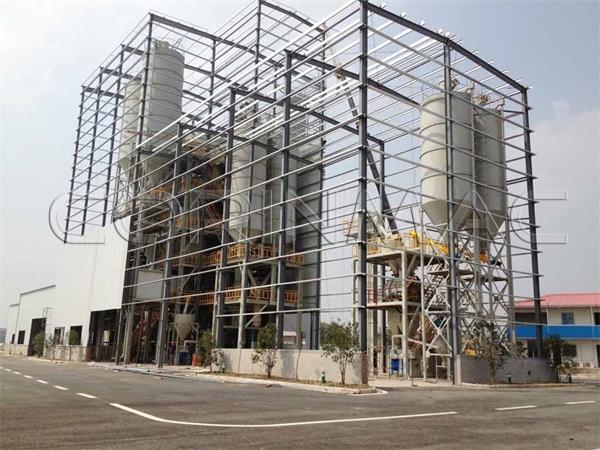

Dry powder mortar production line 30tph

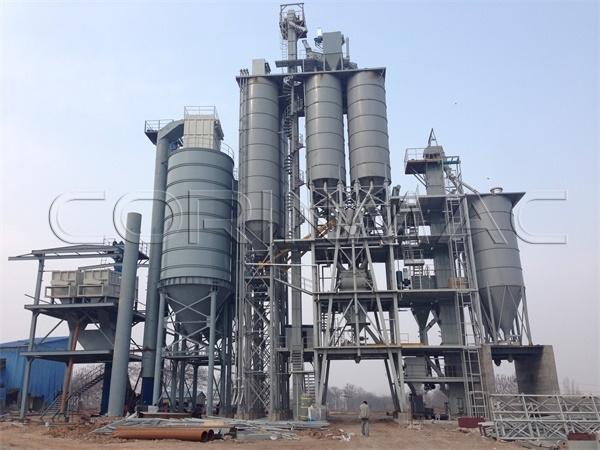

Dry powder mortar mixer 50tph

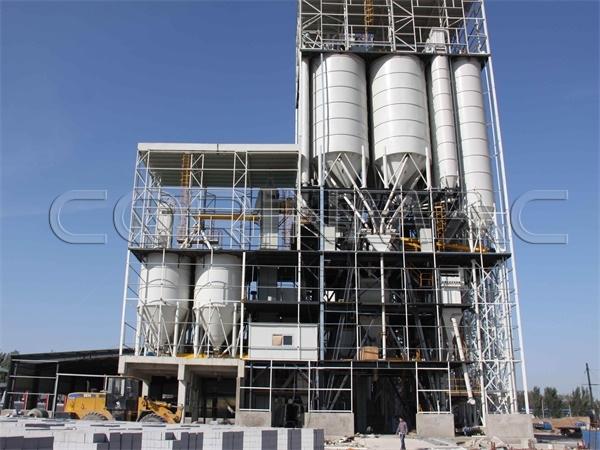

Dry powder mortar mixing equipment 35tph
