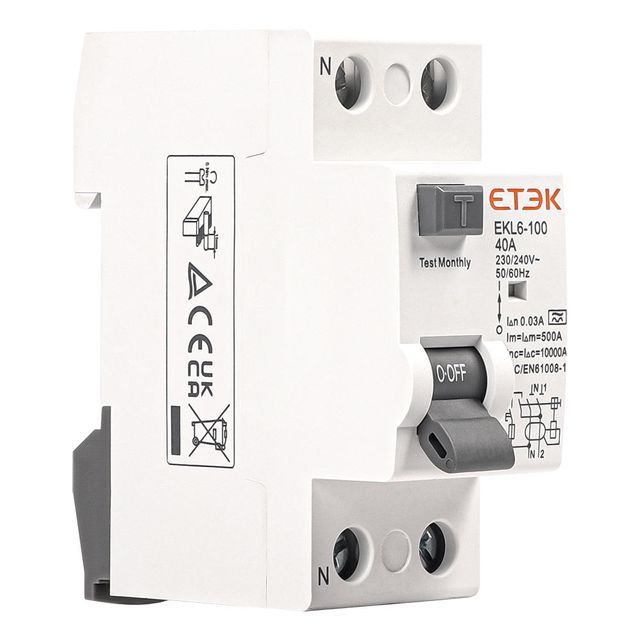

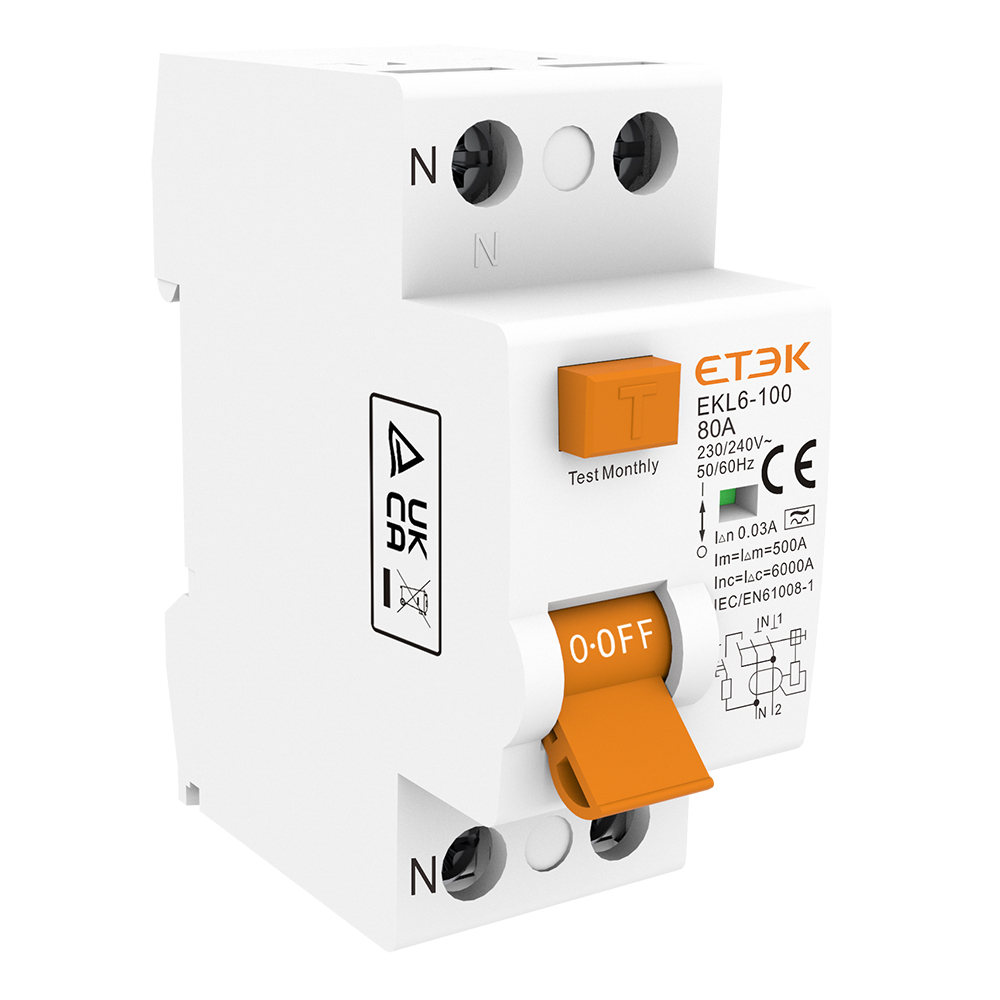

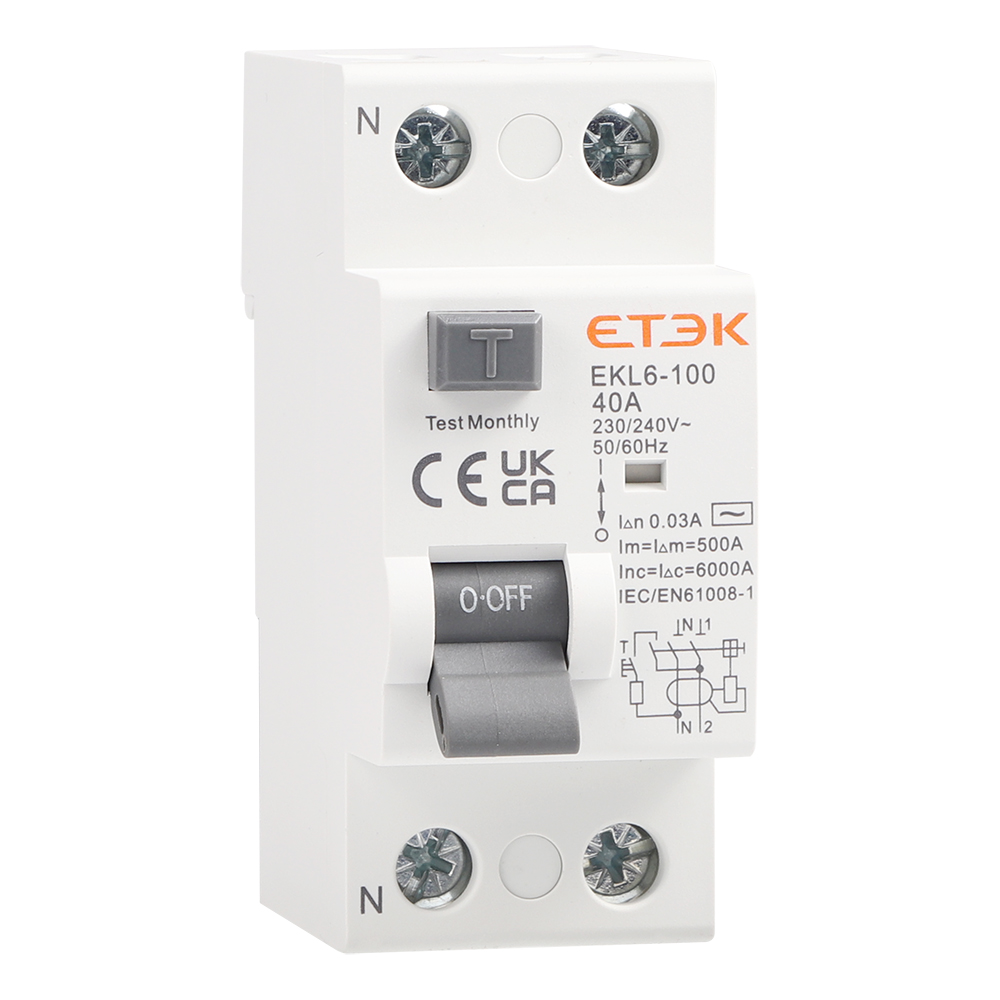

ETEK rcb circuit breaker low price EKL6-100 2P Type A residual current circuit breaker 25amp 230V mcb rcb
-
Supplier: Wenzhou Etek Import And Export Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Fiona Chen -
Price: $5.80 /piece -
Min. Order: 1 piece
Product details
| Package preview: | color: | white | |
| Breaking capacity: | 6KA/10KA | port: | Ningbo |
| Number of poles: | 1P+N | pole: | 1P+N |
| Nominal frequency (Hz): | 50 Hz | brand: | Easy Tech |
| type: | breaker | Rated voltage: | 240V |
| Supply capacity: | 10000 pieces per week | product name: | EKL6-100 |
| Origin: | Zhejiang, China | Mechanical life: | 4000 cycles |
| Certificate: | CE certification | Rated current: | 16-100A |
| model: | EKL6-100 | standard: | IEC61008-1 |
| Packaging Details: | carton | payment terms: | L/C, Western Union, D/P, D/A, T/T |
Product Description
Technical data
standard | IEC/EN61008-1 |
Protect | Ground Fault, |
travel type | Ground Fault: Electromagnetic |
Protection type (leakage) | G, AC, A, S |
number of poles | 1P+n, |
Rated current In | 16-100A |
Rated sensitivity current I△n | 10, 30, 100, 300mA (only 10mA when ln=16-25A) |
Residual current off time under I△n | ≤0.1s |
Residual on-off capacity (I△m) | 500A |
Rated voltage Ue | 230/240V~ |
rated frequency | 50/60 Hz |
Rated breaking capacity | 6000A 10000A |
Standard Voltage Rated Impulse (1.5/50) Uimp | 4,000 volts |
Dielectric test voltage at Ind. Freq. for 1 minute | 2kV |
Electrical life | 2,000 cycles |
Mechanical life | 4,000 cycles |
contact position indicator | Yes |
protection level | IP20 |
ambient temperature | -5°C to +40°C max 95% humidity |
Terminal Connection | Cable/pin busbar/fork busbar |
cable terminal size | 25 square millimeters |
tightening torque | Length (inch): 2.5Nm |
Install | Mounts on 35mm DIN rail |
connect | top to bottom |
