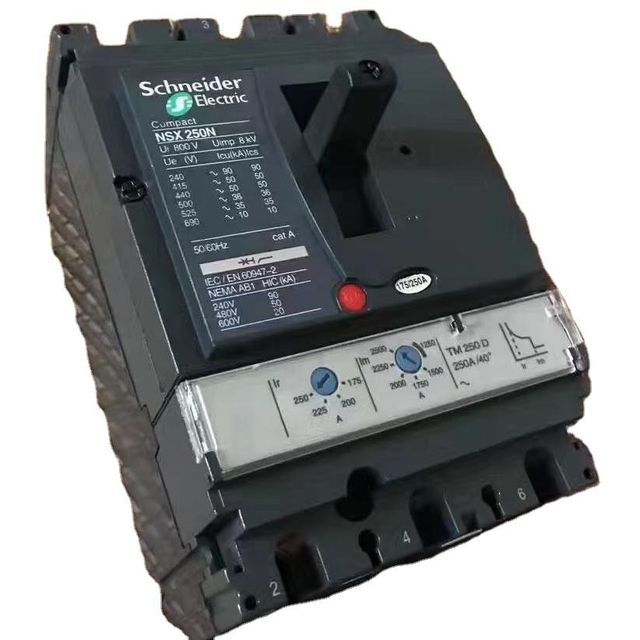

Telemecanique ComPact NSX250n NSX250b NSX250f 100a 250a MCCB LV432693 Schneider circuit breaker

Supplier: Wenzhou Kinee Electrical Limited Company
Region: Zhejiang, China
Contact: Ms ma sandy
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated voltage:	230/400V	Rated voltage:	220
Breaking capacity:	10KA/20KA	port:	Ningbo
Breaking capacity:	4	Rated current:	630A
Supply capacity:	10000 pieces per week	Shipping method:	DHL
Origin:	Zhejiang, China	brand:	Kenny
pole:	3P/4P	model:	JM5-630/3P(S6-TX/3P)
payment terms:	L/C, Western Union, D/P, D/A, T/T	Number of poles:	3,3
product name:	Mccb molded case circuit breaker	Certificate:	CE/ISO9001/ROHS/TUV high voltage circuit breaker
type:	plastic case	Rated frequency:	50Hz/60Hz
Packaging Details:	Standard Export Carton 12.5A 16A 20A 25A 32A 50 Amp Electrical Switch 3 Pole MCCB Molded Case Circuit Breaker/Interrupter	Rated current:	1-63

12.5A 16A 20A 25A 32A 50 A Electrical switch 3-pole breaking capacity 25kA MCCB molded case circuit breaker/interrupter

Tmax MCCB 3 poles 4 poles 690V 100A 225A 250A 400A 600A 800A 1000A 1250A 1600A 2000A Tmax AC or DC molded case circuit breaker

The Sace T generation of molded case circuit breakers guarantees an extremely high level of performance, while at the same time shrinking in size, easy to install, and able to provide operators with ever-increasing safety.

In addition to being well suited for secondary distribution of AC and DC, they also have dedicated solutions for all application requirements.

Molded case circuit breakers are available for low-voltage residential and industrial installations with operating currents from 1 to 3200 A. The Sace T Generation range includes 9 breaker sizes in three or four pole versions:
- XT1, XT2, XT3 and XT4 up to 250A;
- T4, T5 and T6 up to 1000A;
- T7 and T8 up to 3200A.

The ultimate short circuit breaking capacity (Icu) ranges from 18kA to 200kA at 415V and up to 100kA at 690V.

Available ranges are as follows:
- AC and DC distribution circuit breakers;
- Circuit breakers for zone selectivity;
- Circuit breakers for motor protection;
- Circuit breakers for applications up to 1150V AC and 1000V DC;
- Isolation switch.

All Sace T Generation circuit breakers can be enhanced with a large number of standardized accessories. This convenience not only reduces inventory, but creates an extremely flexible and manageable solution.

Sace T Generation circuit breakers can be equipped with thermal magnetic trip units, pure magnetic trip units or electronic trip units; all of these trip units are interchangeable.

Thanks to simple assembly instructions, the trip unit can be replaced quickly and easily; even in the field.

All of this makes the circuit breaker very easy to operate and offers significant cost savings due to sensible inventory management.
