Factory direct sale poe injector 30w poe injector oem poe injector

Supplier: Shenzhen Mosslink Technology Co., Limited
Region: Guangdong, China
Contact: Ms Shino Lee
Price: $12.30 / 1 - 99 pieces
$11.80 / 100 - 499 pieces
$11.60 / 500 - 999 pieces
$11.40 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Gross weight per piece:	0.500 kg	country of origin:	China
Package preview:		PoE pins:	1,2+/3,6-
Single package size:	22X13X6 cm	size:	3962.7145mm
chipset:	I see	application:	IPC application
Packaging Details:	carton	strength:	30 watts max
weight:	350 g (0.77 lb	Sales unit:	single product
brand:	SDAPO	Input Power AC Input Voltage:	Voltage: 100~240VAC

Product Description

Advanced PoE Solutions

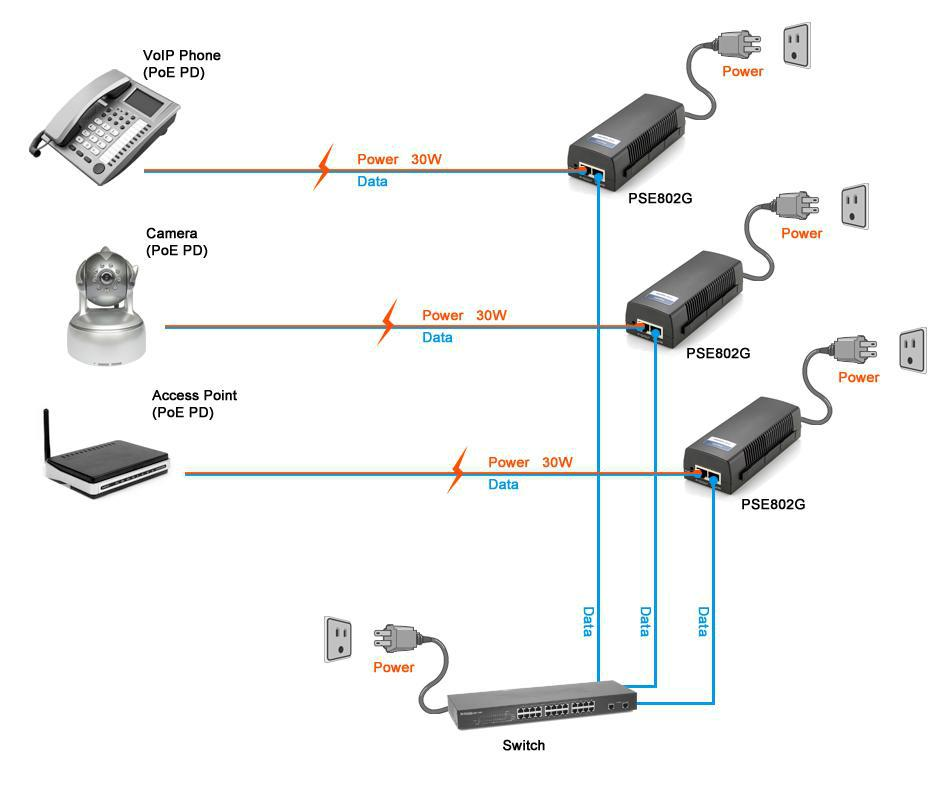

The PSE802G is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W of power, the PSE802G provides remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras, and videophones. It complies with IEEE 802.3at PoE standard and falls back to IEEE802.3af. It works with 10/100Base network equipment and emerging 1000Base-T equipment such as Wi-MAX and wireless IEEE 802.11n access points. With all the features in the PSE802G, one can reap the benefits of flexible network installation at lower cost and less downtime. It also provides high-bandwidth pipes for the network.

main features
* Up to 30W PoE power * IEEE 802.3at compliant
* Compatible with IEEE 802.3af or legacy PoE applications
* Safe low power devices receive only the power they need
* Provide safe and reliable power for WLAN access points
* Automatic detection and protection of non-standard Ethernet terminals
* Support 10/100/1000Base-T LAN environment
* Unique interlock function, easy to install
Applies to:
PS5712P
PS5712AT

technical specifications	Dimensions (L x W x H) / Weight
Standard compliance	144mm x 57mm x 40mm (5.62" x 2.24" x 1.57")
IEEE 802.3 10Base-T Ethernet	350 g (0.77 lb)
IEEE 802.3u 100Base-Tx Fast Ethernet	index
IEEE 802.3af Power over Ethernet	AC power (orange) / PoE (green)
IEEE 802.3at Power over Ethernet	environmental conditions
Connector: RJ-45 10/100/1000 Mbps	Working temperature: -10~50°C
PoE power output	Storage Humidity:
Pin assignment and polarity: 1/2(+), 3/6(-)	95% max, non-condensing
Output supply voltage: 54 Vdc max	Supervision
Power: 30W max	Compliant with RoHS, CE/FCC
Input Power AC Input Voltage: 100~240 VAC	safety certificate
Required AC input current: 0.8A@ 100-240 VAC
AC frequency: 50~60 Hz
