chipset: | MT7620A+7612E | model: | Stainless steel - CPE590 |
Transmission distance: | 5 kilometers | interface: | 10/100Mbps LAN*2 |
Origin: | Guangdong, China | Modulation: | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK |
Packaging Details: | 10KM Point to Point Long Range WiFi Distance Outdoor Wireless CPE Package Details: 1* 5.8G Hz 900M Long Range Outdoor Wireless Bridge Outdoor CPE 1* 24V POE Power Supply 1* Hose Clamp 1* Instruction Manual 1* Certificate | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
weight: | 0.45 kg | antenna: | 2*14dBi antenna |
port: | Shenzhen | brand: | Shun Shun |
Supply capacity: | 50000 pieces per month point-to-point remote WiFi distance outdoor wireless CPE | product name: | 10KM point-to-point remote WiFi distance outdoor wireless CPE |
Package Size: | 310*95*75MM | frequency: | 4900~6100MHz |
Transmission rate: | 900Mbps |

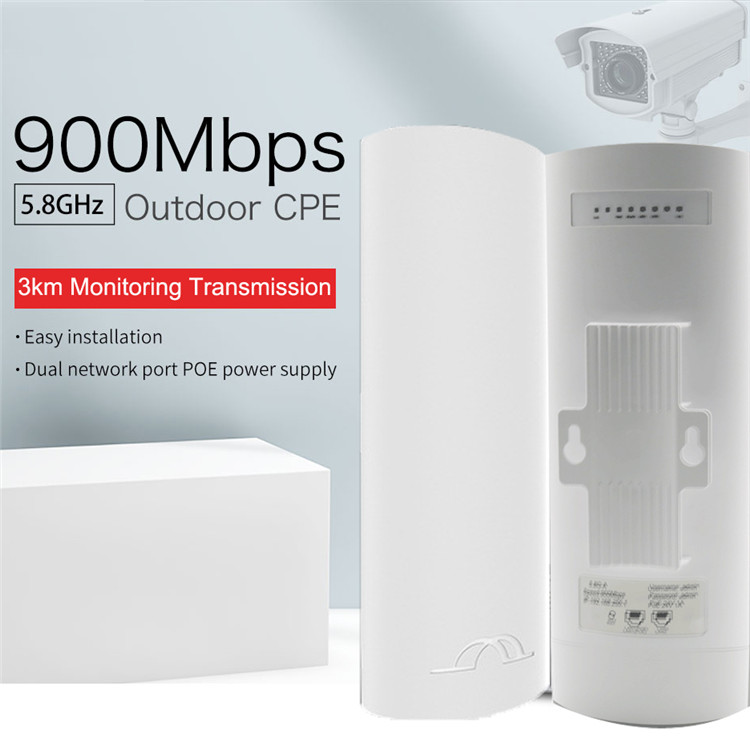

10KM point-to-point remote WiFi distance outdoor wireless CPE/bridge/router/repeater/access point POE
Overview:

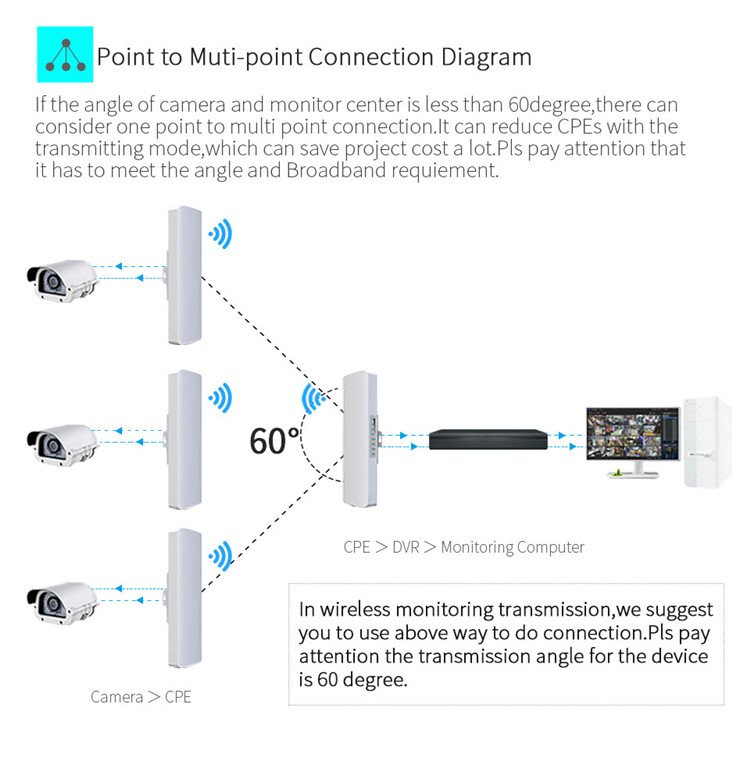

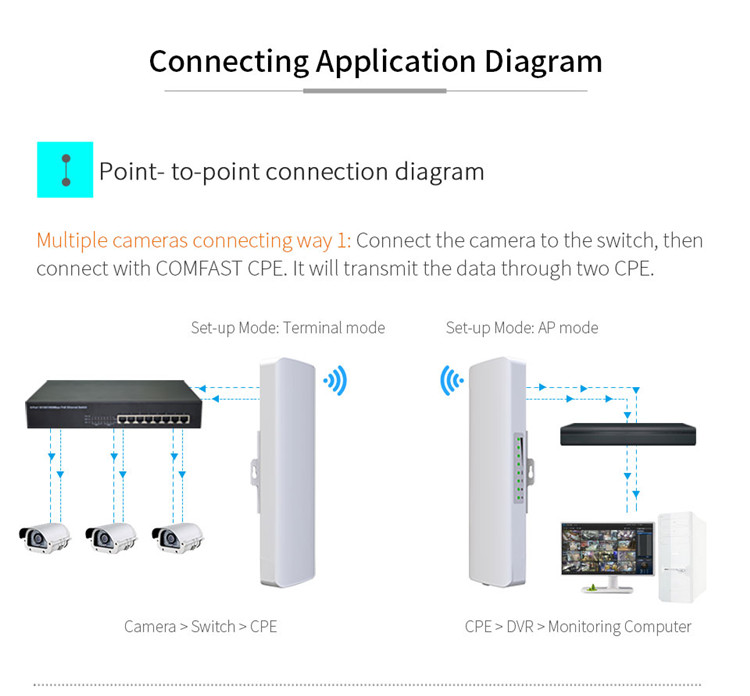

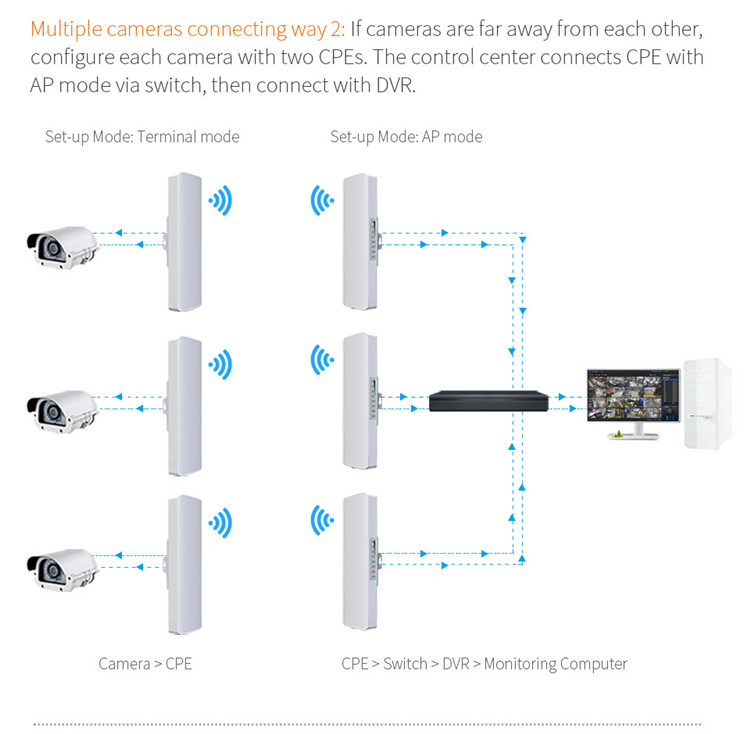

SST-CPE590 is a high-power industrial 5G outdoor CPE that complies with the next-generation 802.11ac Wi-Fi standard, combined with 900Mbps high-speed 5G, equipped with two 10/100M LAN ports, the Ethernet data rate is 2 times faster than ordinary CPE, allowing more Up to 50+ end users can access it to enjoy seamless HD movies, streaming media, online gaming, wireless security and other bandwidth-intensive tasks. It uses air as a medium for network data transmission to realize remote point-to-point or point-to-multipoint connections. Support 3KM transmission distance, bi-directional traffic up to 140M.

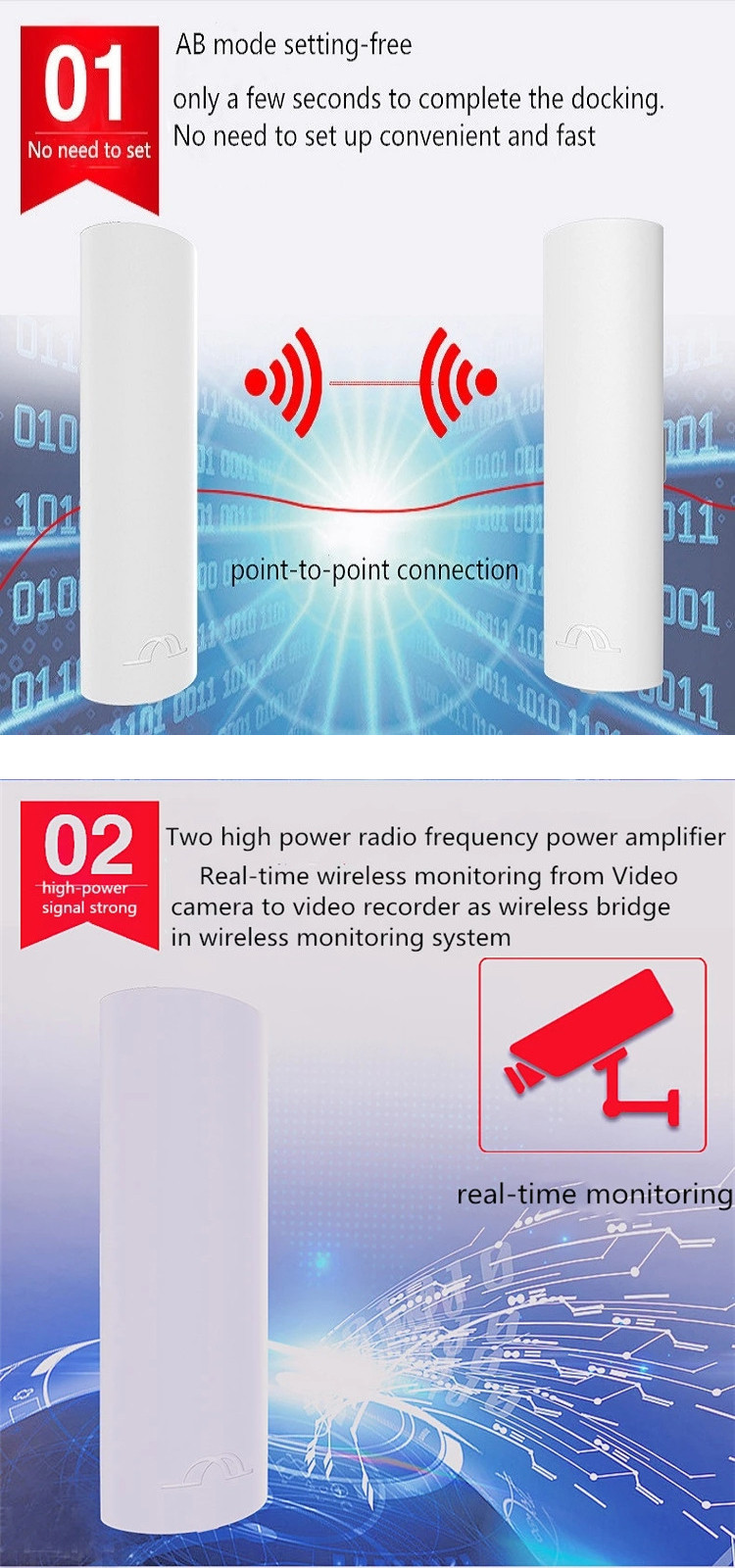

Stainless steel - CPE590With intelligent web page management, it can be paired automatically.
feature:

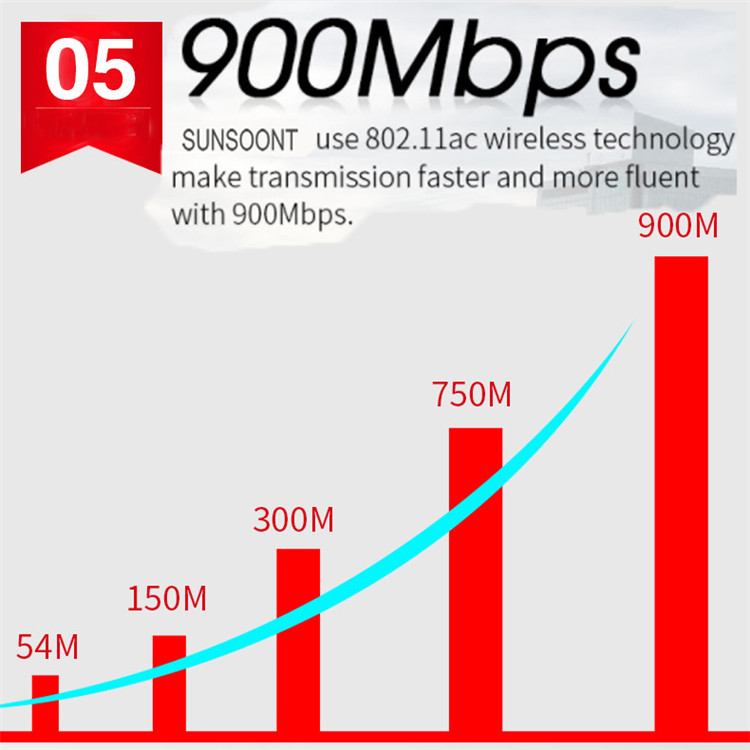

* Compliant with IEEE 802.11ac/g/n, 5G, 900Mbps data rate
* 2x 10/100M LAN ports
* 500mW high power, built-in 14dBi MIMO panel antenna, stronger signal and wider wireless coverage
* Support passive PoE
* Features built-in firewall, IP filter, URL filter and MAC filter
* Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer, better adapt to different environments
* Support DDNS, VPN transparent transmission, port forwarding and DMZ host
* Support 64/128-bit WEP security, 128-bit WPA (TKIP/AES) security
10KM point-to-point remote WiFi distance outdoor wireless CPE/bridge/router/repeater/access point POE
Specification:
CPU | MT7620A+7612E; RAM 64MByte, FM 8MByte | |||
interface | 10/100Mbps LAN*2 | |||
data rate | 11a: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps | |||
11n: 7.2M, 14.4M, 21.7M, 28.9M, 43.3M, 57.8M, 65M, 72.2M, 14.4M, 28.9M, 43.3M, 57.8M, 86.7M, 115.6M, 130M, 144.4Mbps 433Mbps | ||||
transfer method | DSSS | |||
Modulation | OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK | |||
wireless standard | IEEE802.11ac IEEE802.11n, IEEE802.11a, IEEE802.3u | |||
protocol | CSMA/CA, TCP/IP, IPX/SPX, NetBEUI, DHCP, NDIS3, NDIS4, NDIS5 | |||
frequency | 4900~6100MHz | |||
energy consumption | ≤3W | |||
strength | POE 24V 1A (default)/POE 48V 0.5A (optional) | |||
size | 310*95*75MM | |||
weight | 0.45 kg | |||

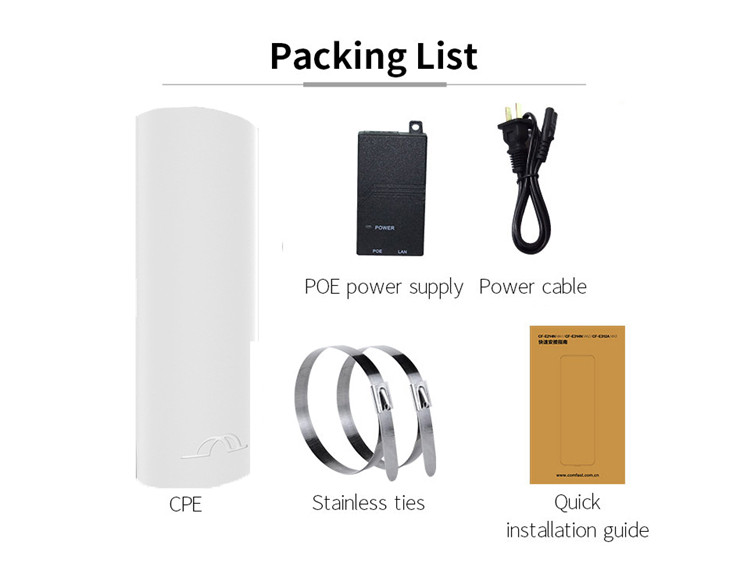

package list | 1* Outdoor CPE 1* 24V POE power supply 1* Hose Clamp 1* Description 1* certificate |
chip:
