Ethernet switch 5 port Rack mount 5-port gigabit poe switch 5 ports poe

Product details
Storage temperature:-40 ~ +70℃;Certification:CE RoHS FCC;
Warranty:3 years;Transmission Rate:10/100Mbps;
Special Function:With VLAN DIP;Function:QoS,SNMP,Stackable;
Working Voltage:DC5V;Packaging Detail:Package for Metal case 5 port 8 port 10/100Mbps network switch: One piece packing size is 26*13*6cm, gross weight is 0.5kg, All package will be individually packed in carton case with protective EPE foam padding.;
Switch Capacity:1G;Ethernet Ports:5*10/100Mbps RJ45 Ports;
Product name:Metal case 5 port 8 port 10/100Mbps network switch;Brand Name:Sunsoont;
Port:Shenzhen/Guangzhou port;Max distance:100m;
Supply Ability:50000 Pieces per Month Metal case 5 port 8 port 10/100Mbps network switch;Model Number:SST-5RJ45-H;
Place of Origin:Guangdong, China;Communication Mode:Full-Duplex & Half-Duplex;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Product Dimension:87.6*79.2*26mm;
Ports:≤ 8;Power supply:External Adpater (Input:AC100-240V 50/60Hz);
Housing material:Metal;Products Status:Stock;

Metal case 5 port 8 port 10/100Mbps network switch for CCTV NVR surveillance, LANs, SOHO, IP camera, and VoIP

Product Description

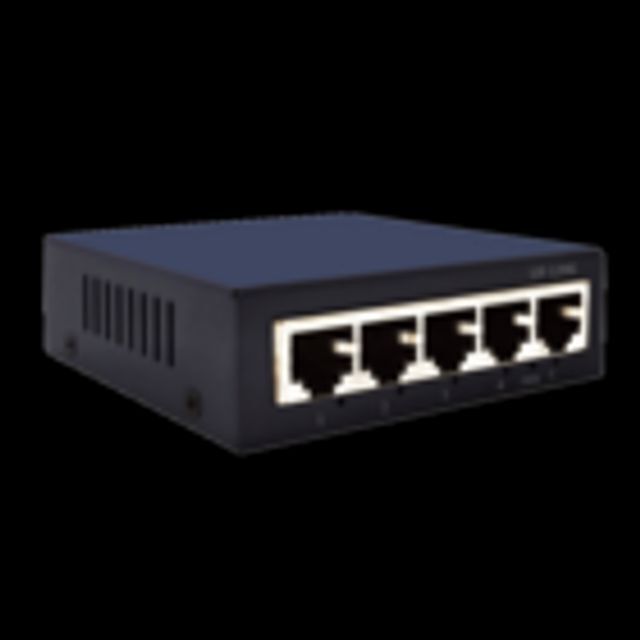

Sunsoont SST-5RJ45-H Ethernet network switch, a Fast Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 5 10/100Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 100Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required, it will instantly operate as soon as you power it up.





Specifications

Metal case 5 port 8 port 10/100Mbps network switch for CCTV NVR surveillance, LANs, SOHO, IP camera, and VoIP specs:

Standards

IEEE 802.3 10-BASE-T (Ethernet)

IEEE 802.3u 100-BASE-TX (Fast Ethernet)

IEEE 802.3x Flow Control

IEEE802.1p QoS

IEEE802.3q VLAN

IEEE802.1d Spanning Tree

Ethernet Port

Connector: RJ45

Data Rate: 10/100M

Distance: 100m

UTP Type: UTP-5E or higher level

Performance

Processing Type: Store and Forward

Transmission Mode: half/full-duplex with auto-negotiation function

MAC Table Size: 1K

Buffer Space: 448K

Back bandwidth: 1G

Time Delay: <150μs

Power

Power type: external power supply

Input Voltage: AC100V~240V  50/60Hz

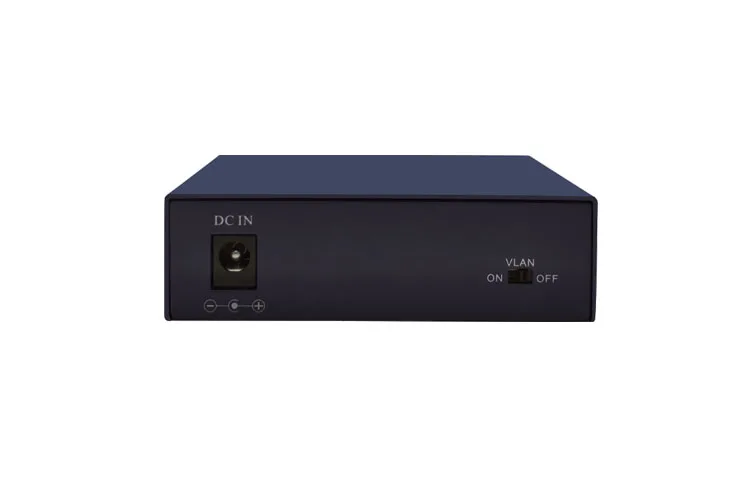

Connector: DC Socket

Working Voltage: 5V

Power Consumption: 1W~2W

Environment

Storage Temperature: -40~70℃

Operating Temperature: -10~55℃

Relative Humidity: 5-90% ( no condensation)

Physical Characteristics

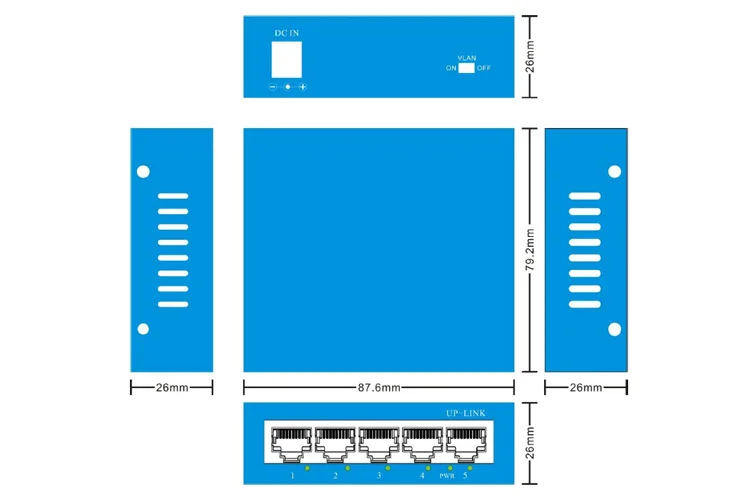

Dimension: 87.6×79.2×26mm

Weight: 0.20kg

Color: Metal, Blue

Certification

CE RoHS FCC

Warranty

3 years



Product Avantages

Metal case 5 port 8 port 10/100Mbps network switch for CCTV NVR surveillance, LANs, SOHO, IP camera, and VoIP advantages:

5*10/100M Ethernet ports with auto-negotiation function

Support 100M speed rate, MDI/MDIX and half/full-duplex with auto-negotiation function

Each port has the complete LED Indicator light

Support single mode single fiber, single mode dual fiber, multi-mode dual fiber and SFP slot

Support IEEE802.1d Spanning Tree

Each port supports wire-speed switching, 64~1518 frame length can reach the wire speed

Support 9216bytes Jumbo packet

Internal 4K MAC Address Entities

Support high performance QoS function on each port

Support multicast to avoid network congestion

Support 5-16V voltage input

Support 4KV port lightning protection

VLAN DIP effectively solve the network congestion and lagging caused by broadcast storm.

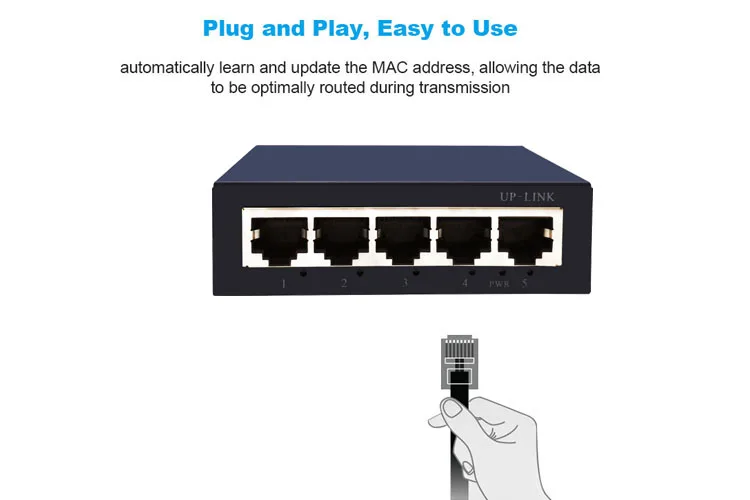

Require no configuration and will instantly operate as soon as you power it up

Use low-power consumption chips, only 2.0W in full load conditions



Detailed Images









Packaging & Shipping







Company Information

Shenzhen Sunsoont Technology Co,. Ltd. established in 2016, is a professional manufacturer engaged in the research, development, production, sale and service of fiber optic equipments and network devices. We are located near to Shenzhen Subway Line 11 Qiaotou station. Dedicated to strict quality controlling and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including Laser automatic coupling machine\Eye diagram instrument\Oscilloscope. In addition, we have obtained CE, RoHS, FCC, TUV certificates.  our products are exported to many countries, such as, Russia, India, Israel, Thailand, Ukraine, Brazil, Indonesia, Korea, Frence,Colombia,  South Africa, and so on. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Hope we could offer the best products and services to you!









FAQ



1. What is your MOQ, Can I have a small sample order?
Yes, we welcome sample order to test and check quality.



2. What is your payment terms?

Trade assurance ,T/T, West Union, Paypal, Credit card or Cash.



3. What is your warranty time

We promise 3 years’ warranty for all products shipped from us.



4. What is the lead time?

For usual products. We keep stock, could ship 1-3 days after payment, as to big quantity and special products, will provide the lead time after confirming with our production dept.



5. Could I use our own logo and label?

Yes, we could provide OEM service and make the products with your own label.





Contact Us



Welcome your inquiry, and welcome to visit our factory.

 For more information, please feel free to contact us, we will reply you in 8 hours.

Thanks for your attention!
