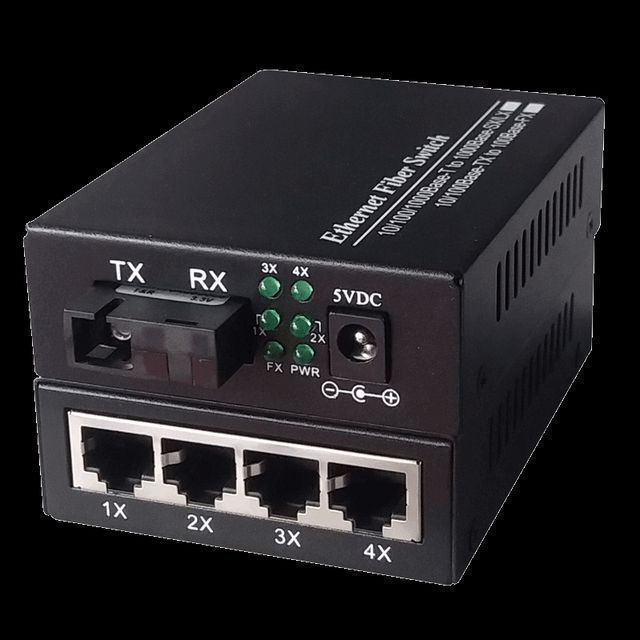

4 ports 10/100/1000M POE switch + 1 port 1000M fiber switch

Product details
wavelength:1310nm/1550nmWarranty:3 years
type:Fiber Transceiverport:Shenzhen/Guangzhou Port
Fiber Port:1*1.25Gbps SC portEthernet port:4*10/100/1000Mbps RJ45 port
Number of Fibers:1.Storage temperature:-20 ~ +70℃
use:fiber to the homeplace of origin; place of origin:Guangdong, China
Back Bandwidth:10GFiber Type:single mode single fiber
Supply capacity:30000/month 4 ports 10/100/1000M POE switches + 1 port 1000M fiberbrand:fresh air
power supply:External type, AC100~240V(50-60Hz)Product Size:94*70*26mm
product name:4 ports 10/100/1000M POE switch + 1 port 1000M fiber switchPackaging Details:4-port 10/100/1000M POE switch + 1-port 1000M fiber optic switch Packing: One piece packing size: 25cm x 12cm x 6cm; weight is 0.75kg, packing method: outer carton including inner box, anti-static PE bag and EPE foam, The box includes 1 fiber optic switch, 1 power adapter, 1 English manual.
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypalmodel:SST-1F4ET-1X9

4 ports 10/100/1000M POE switch + 1 port 1000M fiber switch

Product Description

Fiber switch SST-1F4ET-1X9, 10/100/1000Mbps adaptive fiber switch. It has 4 10/100/1000Mbps Ethernet ports and 1 1.25Gbps fiber port. It can extend the transmission distance from 550m to 120km through optical cable. There are also many advantages such as isolation protection, good data security, stable work, and convenient maintenance.



Specification

4 ports 10/100/1000M POE switch + 1 port 1000M fiber switch:

standard

IEEE802.3u 100Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX

IEEE802.1q VLAN

IEEE802.3x flow control

IEEE802.p Quality of Service

IEEE802.3d Spanning Tree



Certification

CCC, CE, FCC, RoHS

Ethernet port

Connector: RJ45

Data rate: 10/100/1000M

Distance: 100m

UTP type: UTP-5E or higher

Fiber port

Connector: SC/FC/ST slot

Data rate: 1.25Gbps

Light wavelength: 850nm/1310nm/1490nm/1550nm

Distance: 550m~120km

Fiber (single mode): 8/125, 8.7/125, 9/125, 10/125

Performance

Processing Type: Store and Forward

MAC table size: 8K

Buffer space: 1Mbit

Back bandwidth: 10G

Jumbo Packets: 10K

Delay: <20μs



strength

Input voltage: AC100V~240V 50/60Hz

Connector: DC socket

Working voltage: 5V 1A

Power consumption: 1.8W~2.5W

surroundings

Storage temperature: -40~70℃

Working temperature: -10~55℃

Relative humidity: 5-90% (non-condensing)

Warranty

3 years

physical properties

Size: 94×70×26mm

Weight: 0.20kg

Color: Metal, Black



Product advantages

4 ports 10/100/1000M POE switch + 1 port 1000M fiber switch:

  • supportswitch between10/100/1000Base-T and 1000Base-SX/LX
  • 1*1.25Gbps full-duplex fiber port, 4*10/100/1000M adaptive Ethernet port
  • Support 10/100/1000M rate, support MDI/MDI-X self-adaptation, support full/half duplex self-adaptation
  • Each port has full LED indicators for installation, commissioning and maintenance
  • Supports single-mode single-fiber, single-mode dual-fiber, multi-mode dual-fiber and SFP slots
  • Support IEEE802.1d spanning tree
  • Support IEEE802.1p traffic priority protocol
  • Support high-performance QoS function per port
  • Support broadcast storm protection
  • Support maximum forwarding packet length 2048 bytes option
  • Supports IEEE 802.3x flow control and back pressure control
  • No configuration required, runs immediately after startup
  • Using low-power Realtek chip, full load is only 2.5W
  • Support non-standard POE function
  • Built-in IC protection against electrostatic discharge during lightning strikes

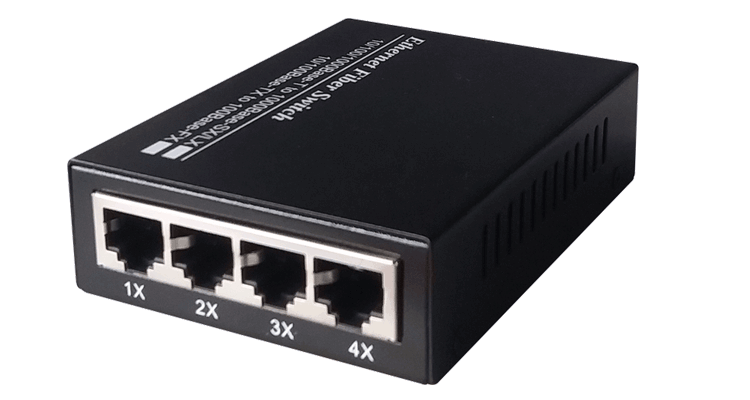

detailed image

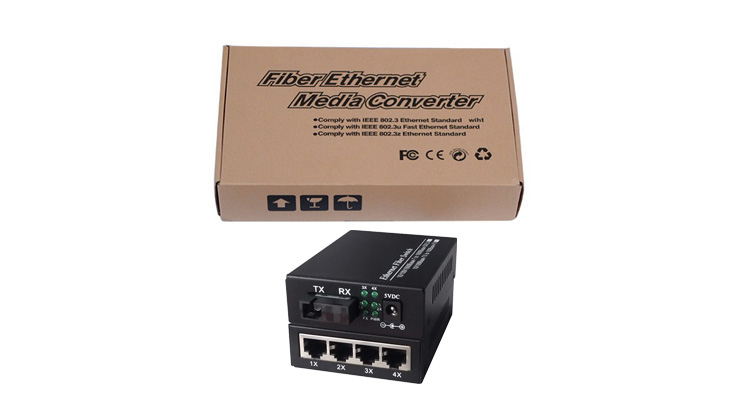

Packaging and Shipping
