Multicast: | IGMP V2/V3 Proxy | Origin: | China |
brand: | Starlink | service quality: | Ethernet Speed/802.1PPrier/SP/WRR/SP+WRR/Broadcast Test Speed |
Intelligent operation and maintenance: | PPPOE/DHCP etc. | Three-tier features: | PPPoE/Static IP/DHCP/UPnP/DDNS/DNS server/IPv6/IPv4 |
Interface port: | Pon port/Ethernet port/Pot/USB/HDMI/AV/WLAN | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
port: | Shenzhen, Shanghai | application: | GPON, EPON, IPTV network |
Packaging Details: | 20 sets/25cm*33cm*56cm/14kg/box | Supply capacity: | 100000 sets per month |
Intelligent interconnection: | WiFi Coverage/SIP/Any Port Any Service/Parental Control | Decoding format: | HD/SD MPEG-2, H.264/AVC, etc. |
model: | WS-8125T |

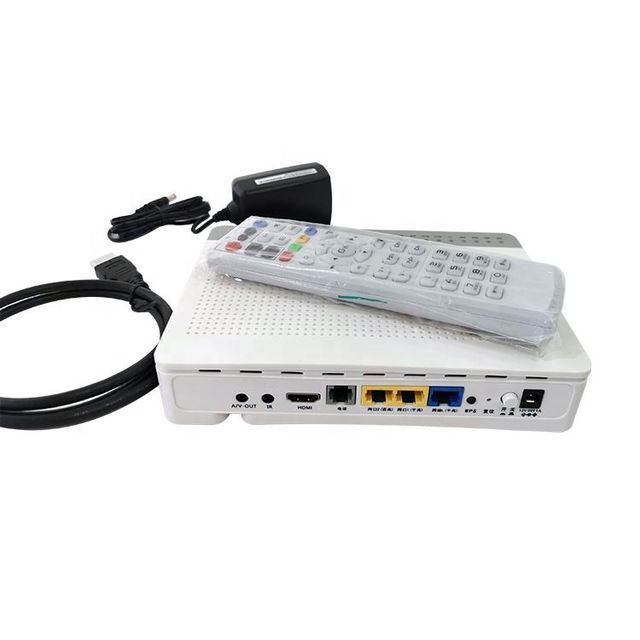

WS8125T GPON EPON ONU IP TV Box
feature
smart communication
smart service
Support IPTV&OTT
ARM Cortex-A7 processor, CPU 4*1.5GHz, 11000DMIPS
HD/SD MPEG-2, H.264/AVC and H.265 decoding formats
2160p(30fps) HD output
HDMI 1.4a
DLNA/UPnP home media sharing
TR-069/TR111 CPE WLAN protocol
hardware specification
Dimensions (L*W*H) | 180MM*160MM*40MM | power supply | 11-14V, DC 1.5A |
weight | < 500g | energy consumption | 3.5W |
interface specification
PON port | Class B+/px 20 Receiving sensitivity: -27dBm Wavelength: uplink 1310nm, downlink 1490nm World Bank Federation GEM port and TCONT flexible mapping Authentication method: SN/Password/LOID(GPON)/MAC/Key/LOID(EPON) Dual FEC DBA who supports SR and NSR |
ethernet port | virtual local area network Flag/Unflag 1:1 VLAN/N:1 VLAN/VLAN passthrough Qin Q VLAN MAC address restrictions MAC address learning Layer 2 IPV6 passthrough |
POTS port | One port connects to Max. Number of calls, 4REN Support G.711A/U, .729A/B, G.722 codec Support T.30/T.38/G711 DTMF SIP protocol |
Wireless LAN | IEEE802.11b/g/n 2*2MIMO Antenna gain: 2dBi WMM Multiple SSIDs WPS Airspeed 300Mbits/S |
usb port | USB 2.0 Based on SAMBA DLAN DMS/Upnp AV Zigbee adapter |
HDMI port | HDMI 1.4A & HDCP 1.2 |
mini AV port | 3.5mm4 CVBS&LR Audio |
Micro SD card slot | SDHC memory card Level 2, 4, 6, 8, 10 The maximum storage capacity is 32GB |
infrared receiving point | NEC protocol 37.9KHz |
Product Features
Smart Internet | Wi-Fi smart coverage SIP/h.248 adaptive any port any service Parental Controls |
Intelligent operation and maintenance | IPTV Video Quality Diagnosis variable length OMCI Active/passive rogue ONT detection and isolation Call Simulation/Internal and External Line Test PPPOE/DHCP simulation test Wireless LAN Emulation |
multicast | IGMP V2/V3 Proxy MLD V1/V2 snooping WIFI bearer multicast service |
safe | SPI firewall IPv6 firewall Anti-DOS attack MAC/IP/URL address filtering |
power saving | Dynamic Power Saving LED energy saving wifi timer switch |
sound | Decoding format: MPEG Layer1, 2 and 3 (mp3) MPEG AAC, AAC-LC/HE Dolby Digital/Dolby Digital Plus Decoder converter optional output: mono, stereo |
smart service | wireless tethering Portal, 802.1X Certificate Soft GRE based |
Three-tier feature | PPPoE/Static IP/DHCP Network Address Translation / Network Address Translation port retransmission Application Layer Gateway, UPnP DDNS/DNS server/DNS client IPv6/IPv4 Dual-Line DS-Lite Static Router/Default Router Ten thousand carries more services |
service quality | Ethernet speed limit 802.1P Priority SP/WRR/SP+WRR Broadcast Test Speed Limit |
operation and maintenance | OMCI/Web User Interface/TR069 Software double backup rollback |
video | Decoding format: H.264 BP/MP/HP@5.0 level; support MVC H.265; 4K P30 MPEG1 MPEG2 MP@HL MPEG-4 SP@L0-3, ASP@L0-5 Real-time decoding 2160P@30Hz, Maximum resolution: 2160P@30Hz Display: 4:3, 16:9 2D/3D OpenGL ES2.0/1/1/1/0, OpenVG 1.1 3-layer OSD four video layers |
