ZTE ZXR 10 5952E Layer 3 48 Gigabit Modular Port Aggregation Switch Supporting 10G Uplink L2/L3 MPLS

Product details
Origin:Guangdong, ChinaSupply capacity:20000 pieces per month
payment terms:Western Union, T/T, MoneyGramPackaging Details:gift box
brand:ZTEtype:enterprise switch
model:ZXR10 5900Eport:Shenzhen

ZTE ZXR 10 5952E three-layer 48-port modular Gigabit aggregation switch, supports 10G uplink L2/L3 MPLS

overview

ZXR10 5900E Series MPLS Easy Maintenance Switches are box-type Layer 3 MPLS routing switches that provide superior integrated network services for space-constrained environments in service provider networks. It can be used as an aggregation switch in various scenarios such as MAN, FTTX, and IP RAN.



ZXR10 5900E adopts European standard hardware architecture, the most advanced software platform, the industry's first "easy maintenance" design concept, and industry-leading MPLS capability. It is a milestone switch launched by ZTE. With the ZXR10 5900E, you can build a highly reliable, secure and scalable network while ensuring an excellent user experience.

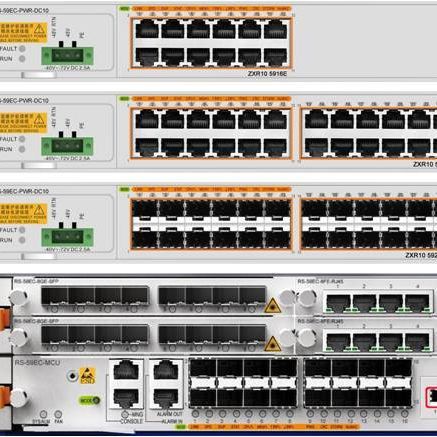

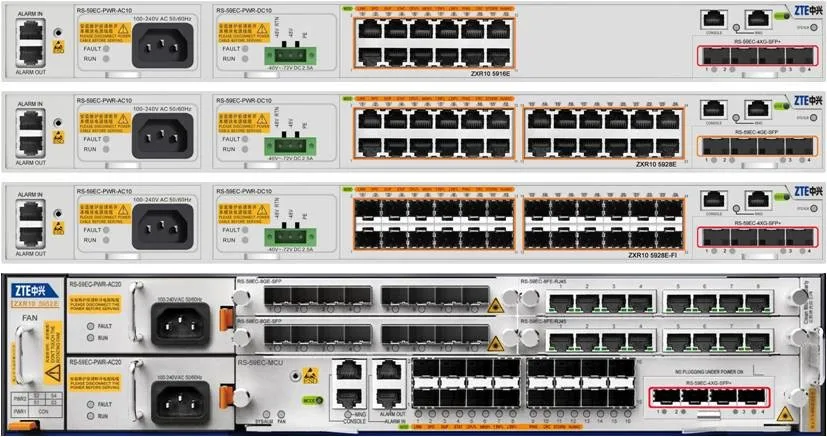

The ZXR10 5900E is available in the following switch types: 5916E, 5928E, 5928E-FI, and 5952E. The interface offerings for these switches are listed below:

  • 5916E:12*GE RJ45 + 1*expansion card slot
  • 5928E:24*GE RJ45 + 1*expansion card slot
  • 5928E-FI:24*GE SFP+ 1*expansion card slot
  • 5952E:16*GE RJ45/SFP + 4*subcard slots+ 1*expansion card slot
  • The expansion card slot can install the following types of expansion cards:
  • 4GE RJ45 /4GE SFP /4 10GE SFP+ /2 10GE SFP+

Advanced Features

ZXR10 5900E series switches fully support all leading L2/L3/MPLS features, large switching capacity, high-density GE ports, and flexible GE/10GE uplink ports, so they are suitable for deployment in service provider networks.



Modular Design Brings Scalability

  • ZXR10 5952E can provide users with extremely flexible electrical/optical interface combinations:

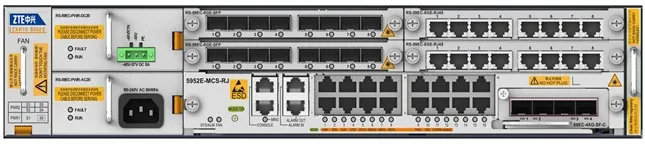

  • 5952E is a switch with a height of 2U, and its 4 sub-card slots can be inserted with 8*GE RJ45 cards or 8*GE SFP cards;
  • The 5900E supports dual modular power supplies, while the 5952E also supports field-replaceable fan trays.
  • The modular design brings ultimate flexibility for users to control investment and continuously upgrade the network.



Full Service Support

  • ZXR10 5900E supports a variety of VLAN features, including Port-based VLAN, Subnet VLAN, Protocol-based VLAN, Selective QinQ, and VLAN translation, to separate/distinguish different services of different users.
  • Multicast-based technologies such as IPTV are important profitable services for service providers. ZXR10 5900E fully supports L2/L3 multicast, including IGMP snooping, filtering, proxy and Fastleave, MVR (Multicast VLAN Registration) and PIM-SM to facilitate the deployment of these services.
  • By implementing IPTV control, operators can apply different CAC (Channel Access Control) rules to channel package users.
  • Voice VLAN provides higher forwarding priority for voice packets. When detecting the access of a voice device, ZXR10 5900E will transfer the legal voice data to the designated voice VLAN, and assign a higher priority to ensure forwarding, regardless of the default priority of the voice data stream it sends.
  • ZXR10 5900E fully supports MPLS L2/L3 VPN technology, providing an economical and reliable VPN solution for commercial use.
  • ZXR10 5900E also supports MCE, which can run multiple VPN instances without running MPLS, reducing the pressure on PE (provider edge) devices.



Clock synchronization

ZXR10 5928E/5928E-FI supports the following clock synchronization modes:

They provide BITS external clock input/output interfaces, GPS input and GPS output interfaces, and also support synchronous Ethernet interface services.



It also supports 1588v2 precise time synchronization mode; 5900E can be used as a common clock boundary clock and a transparent clock, and the 1588v2 algorithm can be implemented with 1-step method or 2-step method.

When multiple clock sources are available, you can configure the clock source with the best quality as the main clock source, and other clock sources as the backup of the main clock source.



It is generally recommended to use Synchronous Ethernet for frequency synchronization and 1588v2 for phase synchronization.



PPPoE+ and VBAS

  • PPPoE+ and VBAS (Virtual Broadband Access Server) are two very useful measures for providing user line identification means in the user access network.
  • When acting as a L2 switch or L2/L3 switch and enabling PPPoE+ or VBAS, ZXR10 5900E can insert subscriber circuit information into data packets so that BRAS can get detailed subscriber location information for future billing/control/ACL implementation Purpose.



multi-core acceleration

  • ZXR10 5900E is equipped with a new generation of dual-core CPU processor, which greatly improves the processing efficiency.
  • The dual-core CPU greatly enhances the processing ability of data, voice, video and complex data communication protocols. Virtual multi-core technology and dual-core processing architecture improve control plane performance and control system reliability.



easy to maintain

  • The ZXR10 5900E integrates the innovative "easy maintenance" concept into every detail of the design, bringing extreme efficiency and simplicity to daily maintenance work, and reducing network operating costs through simple and efficient methods.
  • The GVRP VLAN registration protocol can help network administrators reduce the workload of network configuration and easily deploy a large number of VLANs in complex networking environments. ZXR10 5900E series switches support the realization, allocation, registration and transfer of VLAN attributes in dynamic GVRP mode, which can simplify VLAN configuration management and reduce network interconnection problems caused by inconsistent configuration.
  • Thanks to the 220mm depth of the ZXR10 5900E, users need very little space to install the switch. All hardware components including the power supply, all access and uplink ports, and fan modules (only 5952E supports replaceable fan modules) adopt a front-plug design to facilitate switch management in space-constrained environments.
  • Innovative M-Button function, when there is a problem in the network, the administrator can obtain important device information by reading the interface indicator, including port/memory/CPU status, and realize instant troubleshooting, thereby reducing the network scale to the greatest extent OPEX time. The M-button no longer adds to the investment; the status of the port lights is simply given additional meaning.
  • ZXR10 5900E supports zero configuration, that is, the switch can automatically download the software image and startup configuration. Zero configuration is truly plug-and-play, reducing the need for experienced engineers.



green

ZXR10 5900E follows the design concept of green and environmental protection, and helps customers save energy and reduce consumption from all aspects of design:

  • ZXR10 5900E adopts advanced chip technology, and the power consumption of the main chip is greatly reduced.
  • ZXR10 5900E fully supports IEEE 802.3az, which means it can dynamically set the port to idle state when there is no traffic transmission on the port. This can save power, and single-port power consumption can be reduced by 70%.
  • ZXR10 5900E applies the latest energy-saving technology, such as dynamically adjusting port power according to cable length.
  • Materials used throughout the life of the 5900E are fully RoHS and WEEE compliant.



Enhanced security

  • ZXR10 5900E supports multiple mechanisms to ensure network security:
  • The CPU DDOS protection capability helps devices mitigate the impact of attacks. The device itself will not go down, ensuring network stability.
  • DAI (Dynamic ARP Inspection) function and IP/MAC binding help prevent DOS (Denial of Service) attacks.
  • 802.1X can be used for authentication purposes. Working in conjunction with the policy server, user control policies can be applied to the 3900E after authentication is complete. Thus bandwidth throttling/Qos policies can be automatically enforced.
  • Enhanced routing protocol communication, including simple password testing and MD5 authentication can be used to prevent routing protocol interaction changes.

Traffic mirroring/analysis functions such as RMON (Remote Monitoring), SPAN (Switched Port Analyzer), RSPAN (Remote Switched Port Analyzer) and sFlow help analyze real-time network conditions.



System Specifications


Functions and parameters

5916E

5928E

5928E-FI

5952E

aspect
(height*width*depth)

43.6mm*442mm*440mm

88.1mm*442mm*220mm

stable

12GE RJ45

24GE RJ45

24GE single board

not applicable

Master card slot

not applicable

1

Main control card type

not applicable

16GE SFP card

or
16GE RJ45 network card

Secondary card slot

not applicable

4

Subcard type

not applicable

8GE SFP card

or
8GE RJ45 network card

expansion card slot

1

1

1

1

Expansion card type

4*GE SFP card
4*GE RJ45 network card
4*10GE SFP+ card
2*10GE SFP+ card

weight

<3.8 kg

<4.8 kg

<4.8 kg

<10kg

management port

1 GE MNG, 1 RJ45 console, 1 mini USB console

DC power supply

-40V ~ -72V

-40V ~ -72V

-40V ~ -72V

-40V ~ -72V

AC power

Rated voltage: 100V~240V, 50Hz~60Hz

Maximum voltage: 90V~286V, 45Hz~66Hz

Maximum power consumption

<45W

<63W

<64W

122W

Typical power consumption

38W

43W

35W

53W

Power redundancy mode

Two independent pluggable power modules, supporting AC 1+1, DC 1+1,

Cooling method

Fan cooling, support multi-level speed regulation

cooling

190 BTU/hour

213 BTU/hour

180 BTU/hour

341 BTU/hour

Operating temperature

Long-term working temperature: -10 oC ~ +50 oC

Short-term working temperature: -10 oC ~ +55 oC

humidity

5%~95%

working altitude

<3000 meters

Mean Time Between Failures/MTTR

>200000 hours / < 30 minutes

Switching capacity

104Gbps

128Gbps

128Gbps

176Gbps

packet forwarding rate

78Mpps

96Mpps

96Mpps

132Mpps





Service Specification

Function

ZXR10 5900E Series Switches

L2 function

Support IEEE 802.1p (COS), IEEE 802.1q (VLAN)

Support IEEE 802.1d (STP)/ 802.1w (RSTP)/ 802.1s (MSTP)

Support IEEE 802.3ad (LACP)

Support IEEE 802.3z (1000Base-X)/ 802.3ab (1000BaseT)

Support IEEE 802.3ae (10Gbase)

Support QinQ, Selective QinQ

Support port mirroring and traffic mirroring

Support PVLAN

Support GVRP

Support LLDP

L3 function

Support static routing, policy routing, RIP, OSPF, BGP, IS-IS and other IPv4 routing protocols

Support DHCP server/relay/proxy, DHCP snooping

Support IPv6 static routing, policy-based routing

MPLS

LDP, VPLS, VPWS, H-VPLS, MPLS L3 VPN, CE dual-homing protection

multicast

Support IGMPv1/v2/v3, IGMPv1/v2/v3 snooping

Support PIM-SM, PIM-DM, PIM-SSM

Support multicast/IPTV, MVR within the scope of management

service quality

Support traffic classification based on Layer 2 header, Layer 3 protocol, Layer 4 protocol and 802.1p priority

Supports 8 hardware-based queues per port

Support queue scheduling algorithms such as SP, WRR, DWRR, SP+WRR, etc.

Support congestion avoidance mechanisms such as WRED and tail drop

Supports port-based policing/shaping

Safety

Support L2-L4 ACL

Support standard ACL, MAC ACL, L2 ACL, extended ACL, hybrid ACL, VLAN ACL

Support time segment ACL configuration, two-way ACL

Support 802.1x authentication and 802.1x server

Support MAC authentication

Support AAA/RADIUS and TACACS+ authentication for login users

Support SSH v1.0/v2.0 server

Support CPU attack defense

Support STP Root Guard, BPDU guard

Support URPF

Support RIP/OSPF/BGP MD5 encryption verification

reliability

Support 1+1 redundant power supply

Support hot swap

Support LACP

Support ZESR/ZESR+ (ZTE Ethernet Switch Ring)

Support VRRP, VRRPv3, VRRPE

Support GR for OSFP/BGP/IS-IS

Support Ethernet OAM (802.1ag and 802.3ah)

device management

Support CLI, Telnet, SSH, local and remote (Radius/Tacacs+) user authentication

Support SNMPv1/v2/v3

Support mirroring, RSPAN, ERSPAN

Support RMON

Support NTP

Support Syslog, Flow

enhanced function

Support M key

Supports zero-touch deployment





Scenes

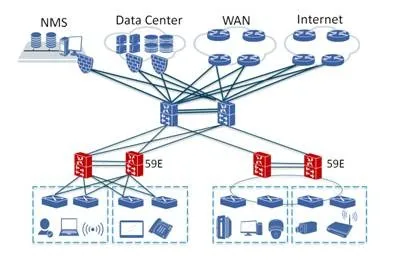

Campus network access and aggregation

The ZXR10 5900E series switches are box-type Layer 3 MPLS routing switches that provide excellent integrated network services for space-constrained environments in enterprise networks. It can be used as an aggregation switch for enterprise networks and campus networks. The following uses a campus application as an example as an aggregation switch.
