New product ZC-521T XPON CATV ONU with RF AC WIFI similar to HG8247H HG8247H5 EG8143A5 F668 F680

Product details
brand:Zikunfirmware:English firmware
payment terms:Wire Transfer, Western Union, MoneyGramport:4GE+RF+2POTS+2.4G&5G WIFI+WDM
Supply capacity:100000 pcs/month XPON CATV ONUproduct name:CATV XPON ONU
Packaging Details:XPON CATV ONU will come in standard caron packaginguse:fiber to the home
Power Adapter:EU, US, UK, AustraliaOriginal Equipment Manufacturer:Customized LOGO
color:whiteplace of origin; place of origin:Guangdong, China
application:FTTH FTTB FTTX Networktype:FTTx solutions
model:ZC-521TWifi:2.4G/5.G
Packaging Preview:Certification:CE RoHS FCC
Warranty:1 yearport:Shenzhen
Number of Fibers:2.

New product ZC-521T XPON CATV ONU with RF AC WIFI similar to HG8247H HG8247H5 EG8143A5 F668 F680



Product Description



1. English firmware


2. ZC-521T XPON ONU 4GE+2POTS +2.4G&5G WIFI +CATV


3.
Compatible with OLT Huawei/ZTE/FIBERHOME


4. Customizable LOGO



Model
ZC-521T NEW
Optical port
GPON/EPON mode adaptation
ITU-T G.984 GPON standard, supports backward compatibility
IEEE 802.3ah EPON
single mode fiber
Optical connector
SC/APC
Receive sensitivity
-28dBm
Overload optical power
-8 dB
Transmitting optical power
0.5~5dBm
Transmission rate
GPON: Downstream 2.488Gbps; 1.244Gbps Upstream
EPON: Downstream 1.25Gbps; Upstream 1.25Gbps
wavelength
Receive (DOWN): 1490nm; Transmit (UP): 1310nm
verify
Consistent with SN or Password authentication as defined in G.984.3;
LOID authentication; MAC authentication
automatic gain control
-9~+2dBm

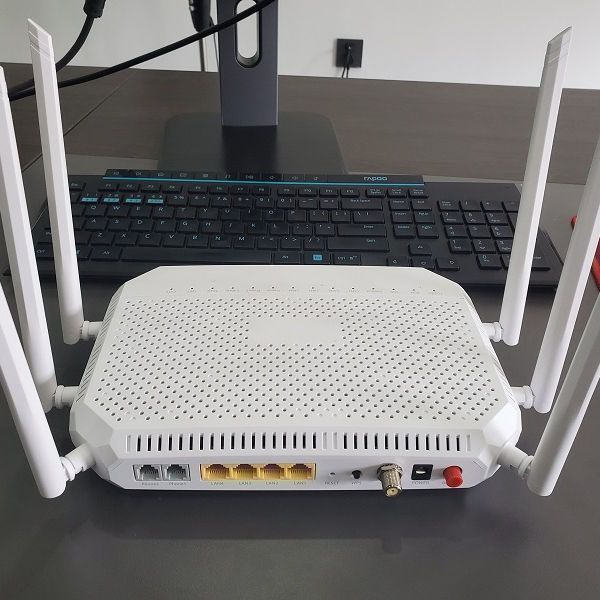

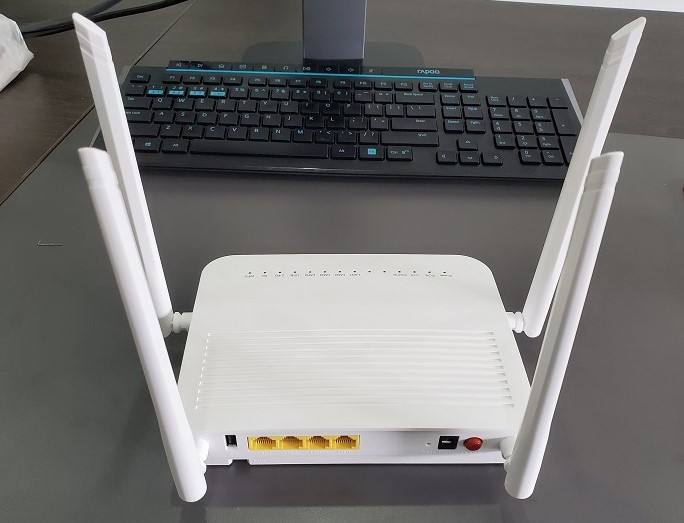

Product Image







Packaging and Shipping

Bale:
1. All products are packed in cartons, which can be effectively protected from damage.
2. Packing according to customer requirements

Shipping:
1. We ship small orders via DHL/FedEx/TNT/etc. You can receive your package in about 3-5 days around the world.
2. For large orders, we will arrange air freight for you, so it will be much cheaper than DHL, UPS, etc.
3. You can choose your own shipping agency, we will provide good cooperation.



our service

After-sales service
1. We can provide detailed documentation and remote assistance for equipment installation and configuration.
2. Warranty period: 1 year. (After the warranty period, the corresponding maintenance service fee will be charged.)
3. The company promises to deliver the goods within 7 days or 15 days, and returns and exchanges in full due to quality problems.
