Wanglink 12V/24V 2F4E Passive Media Converter POE PCB 10/100M 4 RJ45 2 SC Fiber Ethernet Switch

Supplier: Shenzhen Wanglink Communication Equipment Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Scott Su
Price: $8.80 / 100 - 499 pieces
$8.50 / 500 - 999 pieces
$8.20 / >=1000 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Packaging details:	Carton Wanglink 12V/24V 2F4E Passive POE Media Converter PCB 10/100M 4 RJ45 2 SC Fiber Optic Ethernet Switch	Main features 3:	10/100M fiber optic Ethernet 20KM PCB
Main features 1:	10/100M 2F4E Passive POE PCB	Sales unit:	Single product
Main features 2:	4 RJ45 and 2 SC fiber optic ports 10/100M PCBA	Single piece packaging size:	16X8X5cm
RJ45 port:	4 ports	Serve:	OEM/ODM
Certification:	Restriction of Hazardous Substances Directive	Warranty:	1 year
application:	Fiber to the home	country of origin:	Shenzhen, China
Fiber optic port:	2 ports	Place of origin:	Guangdong, China
Gross weight of single piece:	0.200kg	brand:	Wang Linke
type:	Enterprise switch	model:	WOR-824ASS20-SC-POE-PCB

Recommended Products

Product Description

Wanglink 12V/24V 2F4E Passive POE Media Converter PCB 10/100M 4 RJ45 2 SC Fiber Ethernet Switch

Fast Ethernet switches are Ethernet fiber optic switches specially designed for network monitoring. It has 4 10/100Mbps Ethernet ports and 2 155Mbps fiber optic ports. Using Marvell 6060 chip to ensure low power consumption and high stability. It extends the network transmission distance from 100m to 120km through copper cables. It can extend the transmission distance; it also has many advantages such as isolation protection, good data security, stable operation, and easy maintenance.

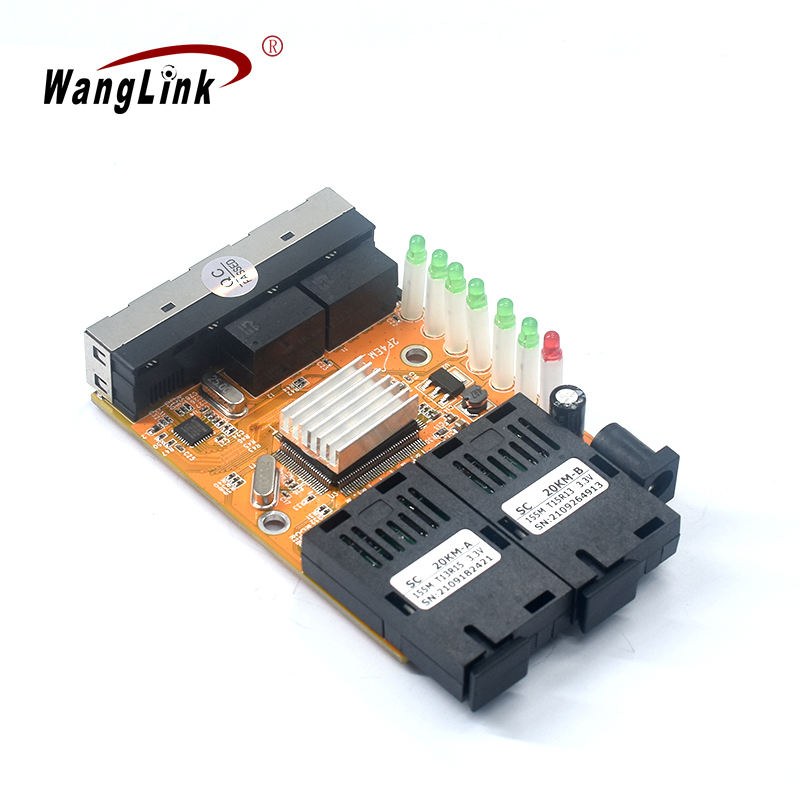

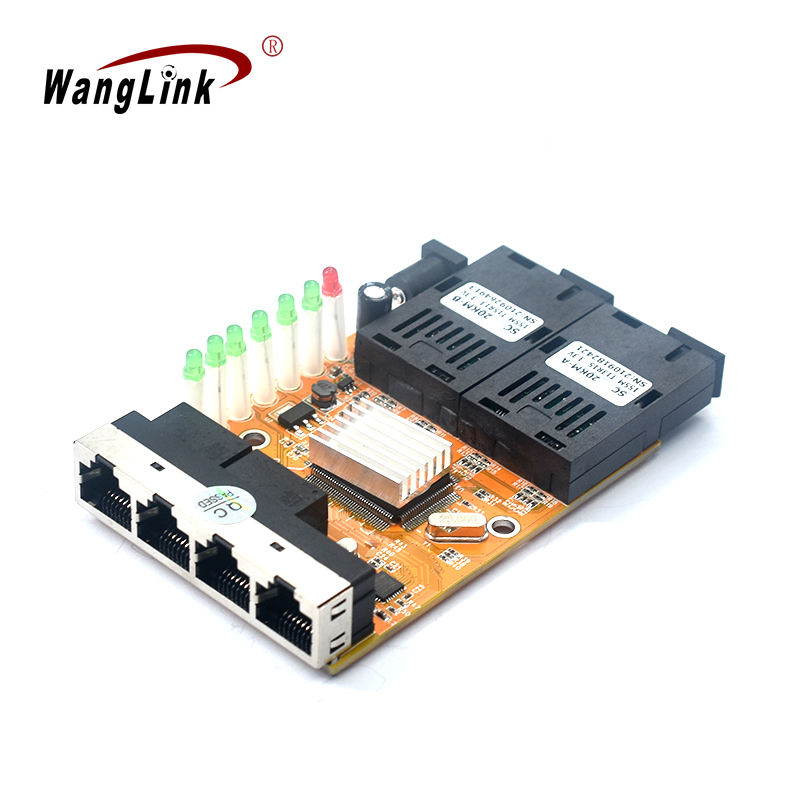

Product display

Main features:

1.Support switching between 10/100Base-TX and 100Base-FX
2.2*155Gbps full-duplex optical fiber ports and 3 100M Ethernet ports with auto-negotiation function
3. Supports 100M rate, MDI/MDIX and half/full duplex, with auto-negotiation function
4. Each port has complete LED indicators
5. Supports single-mode single fiber, single-mode dual fiber, multi-mode dual fiber and SFP slot
6.Support IEEE802.1d spanning tree
7. Each port supports high-performance QoS function
8.Support 5V-24V voltage input
9.Support IEEE 802.3x flow control and back pressure control
10. No configuration required, runs immediately after power-on
11. The low-power chip has a built-in heat sink to ensure long-term and efficient operation.
