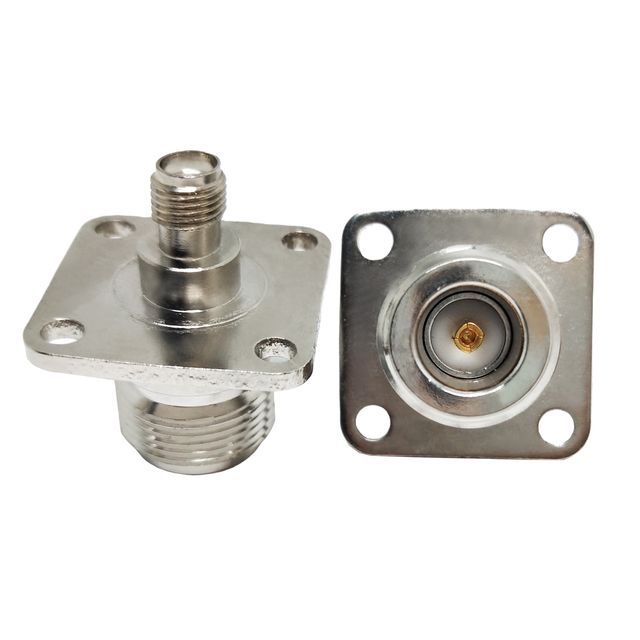

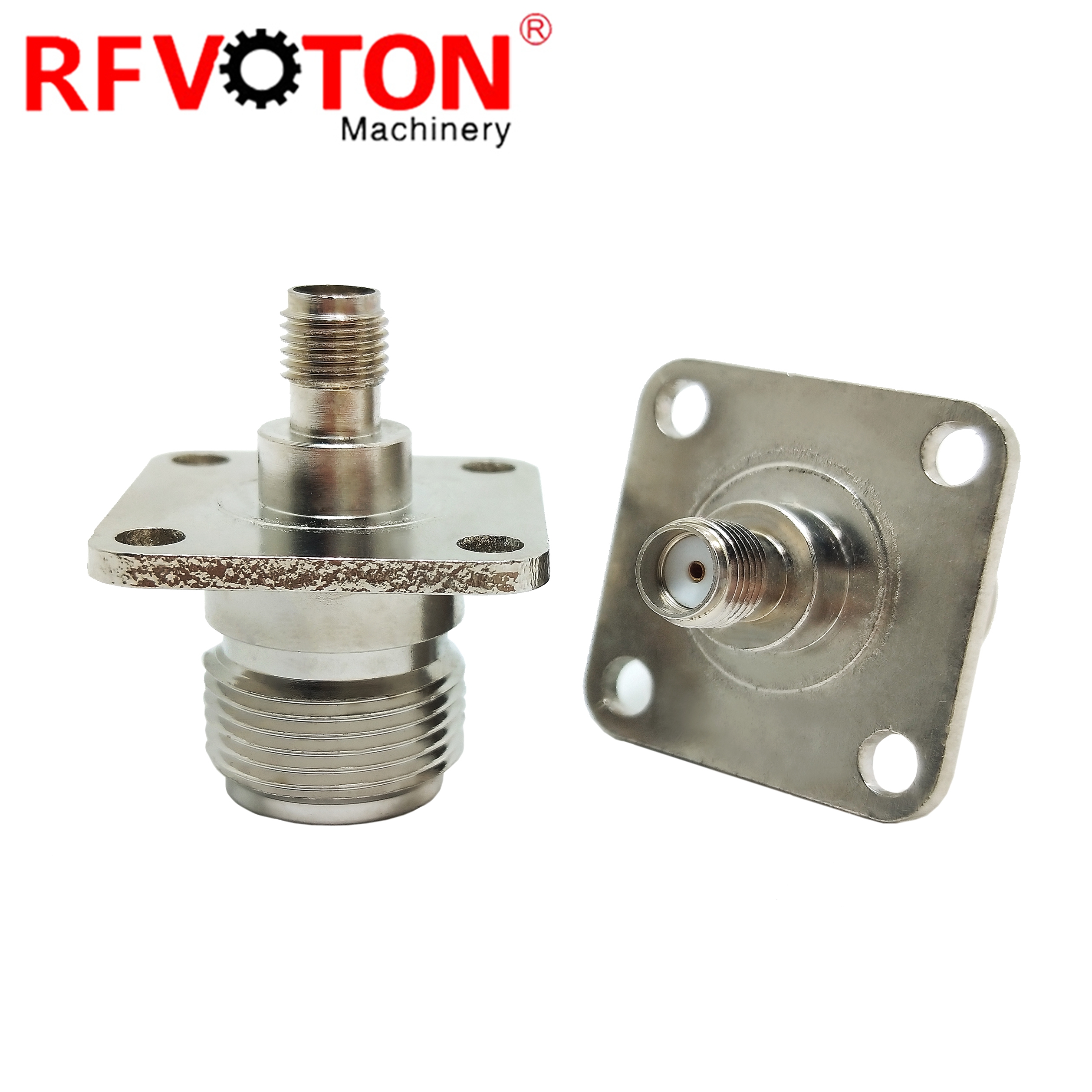

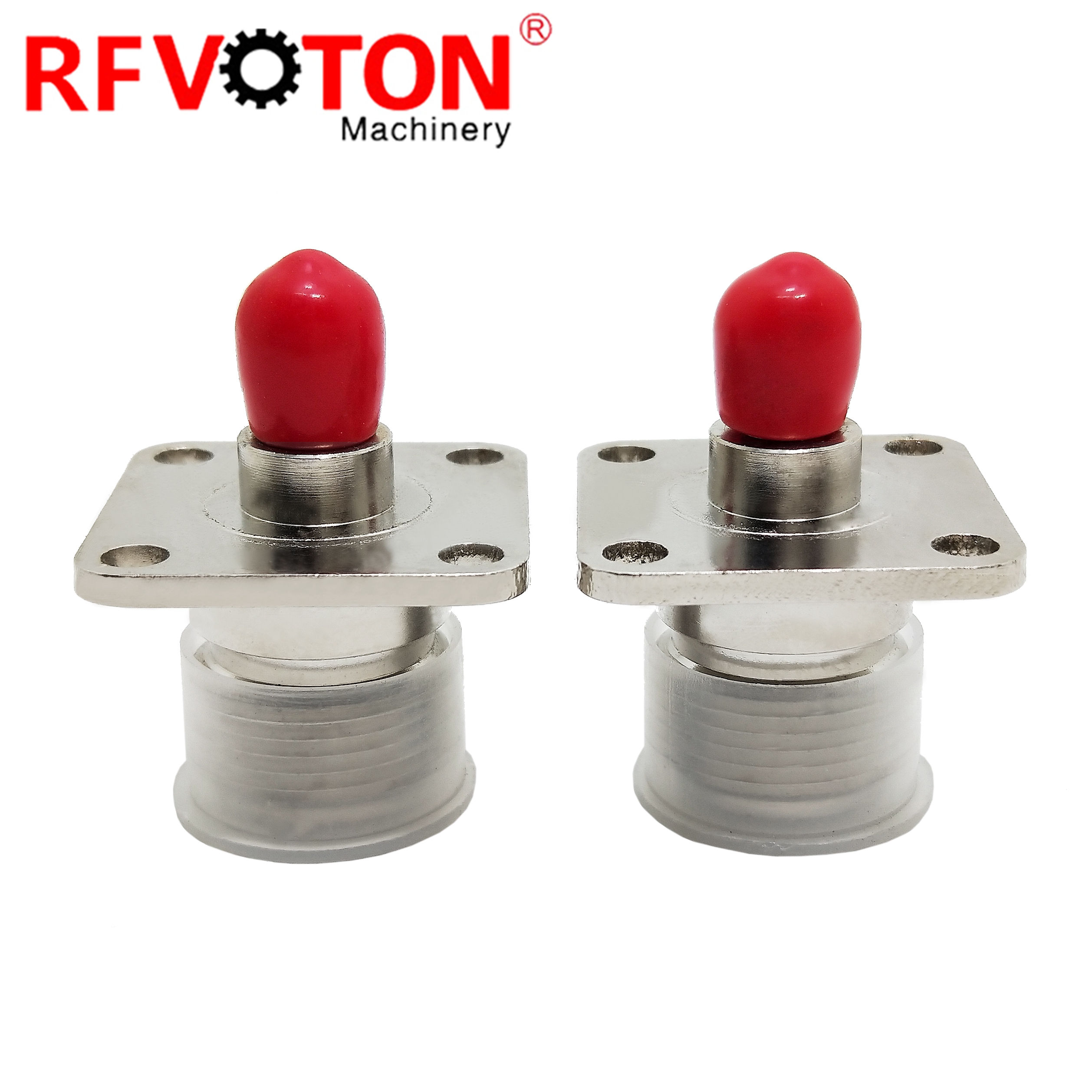

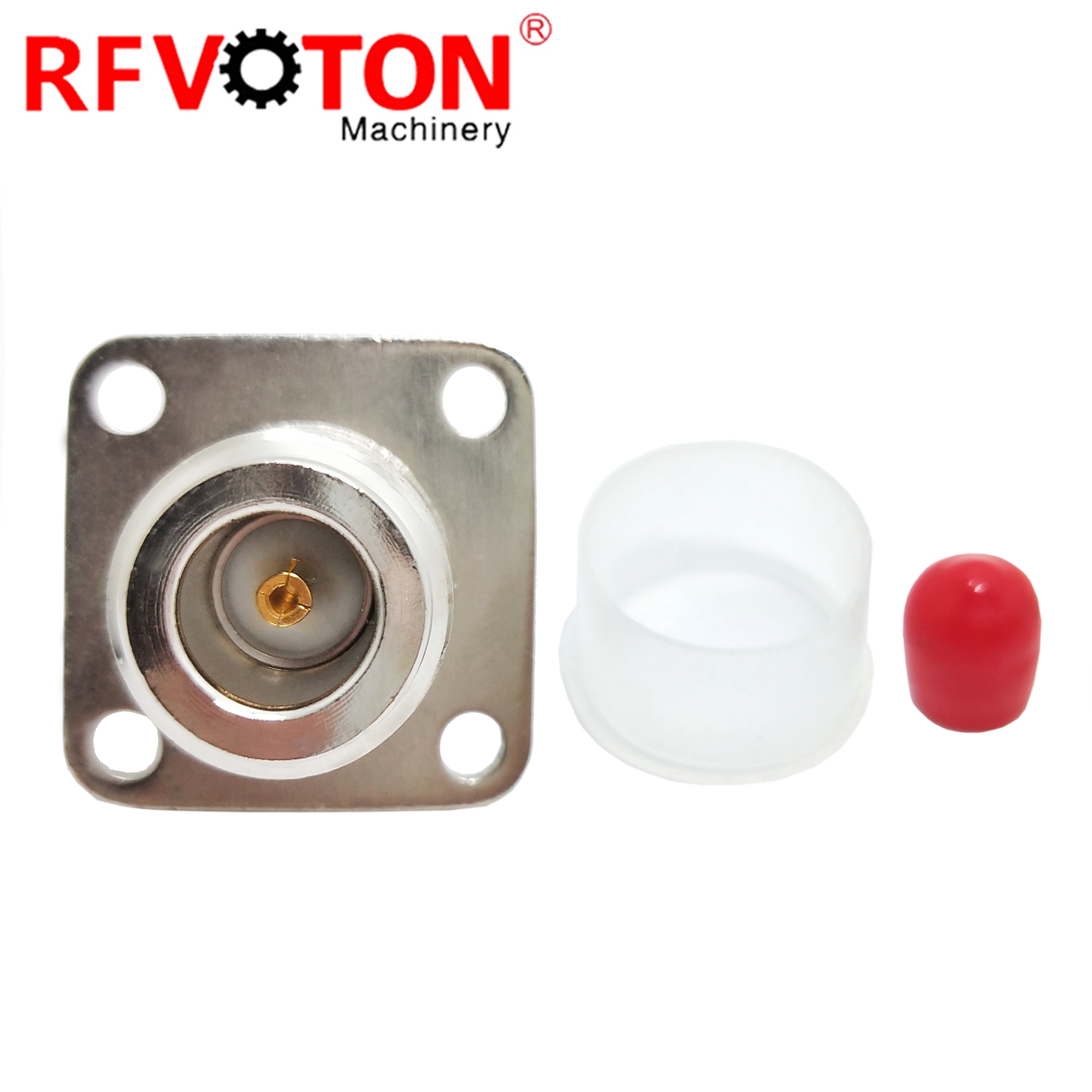

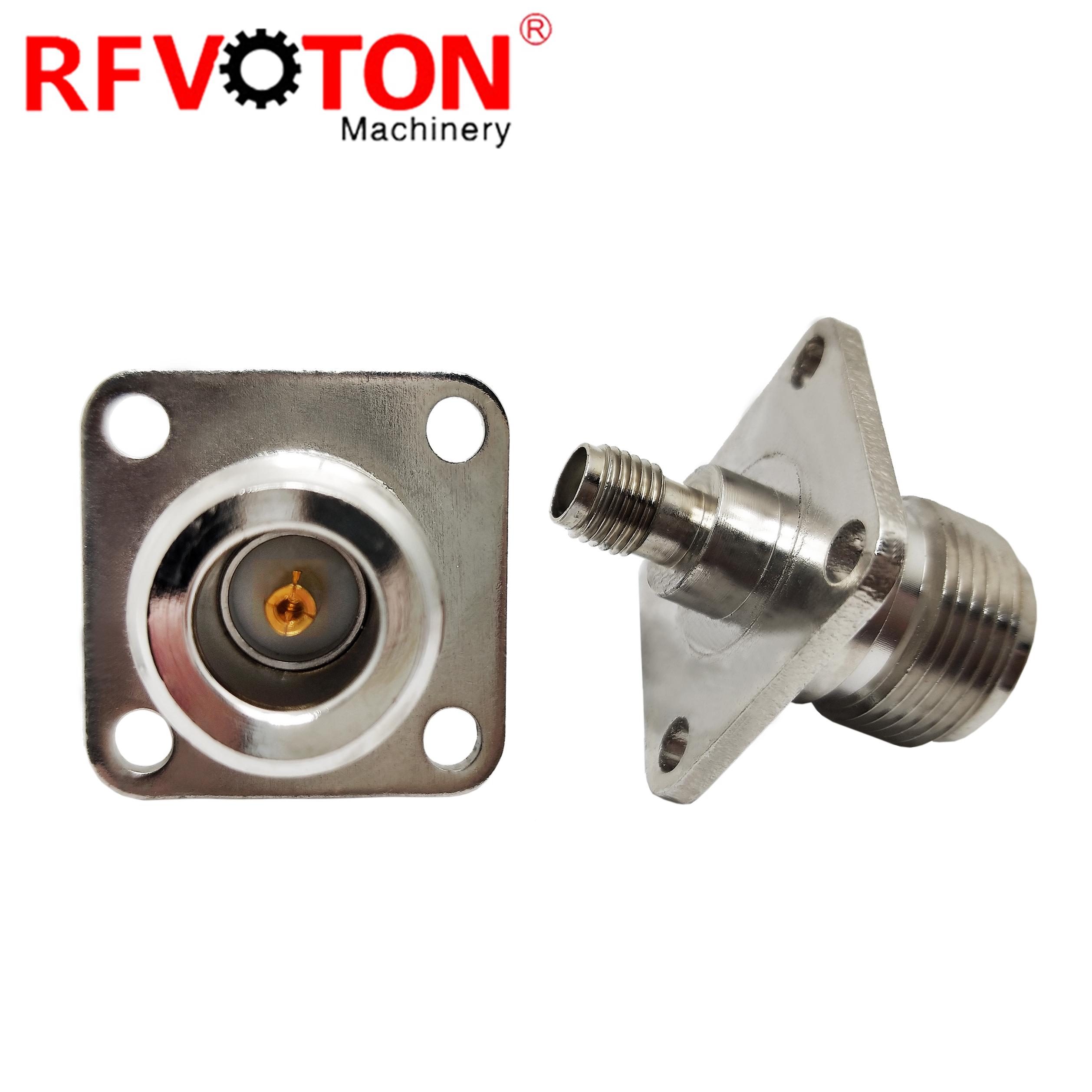

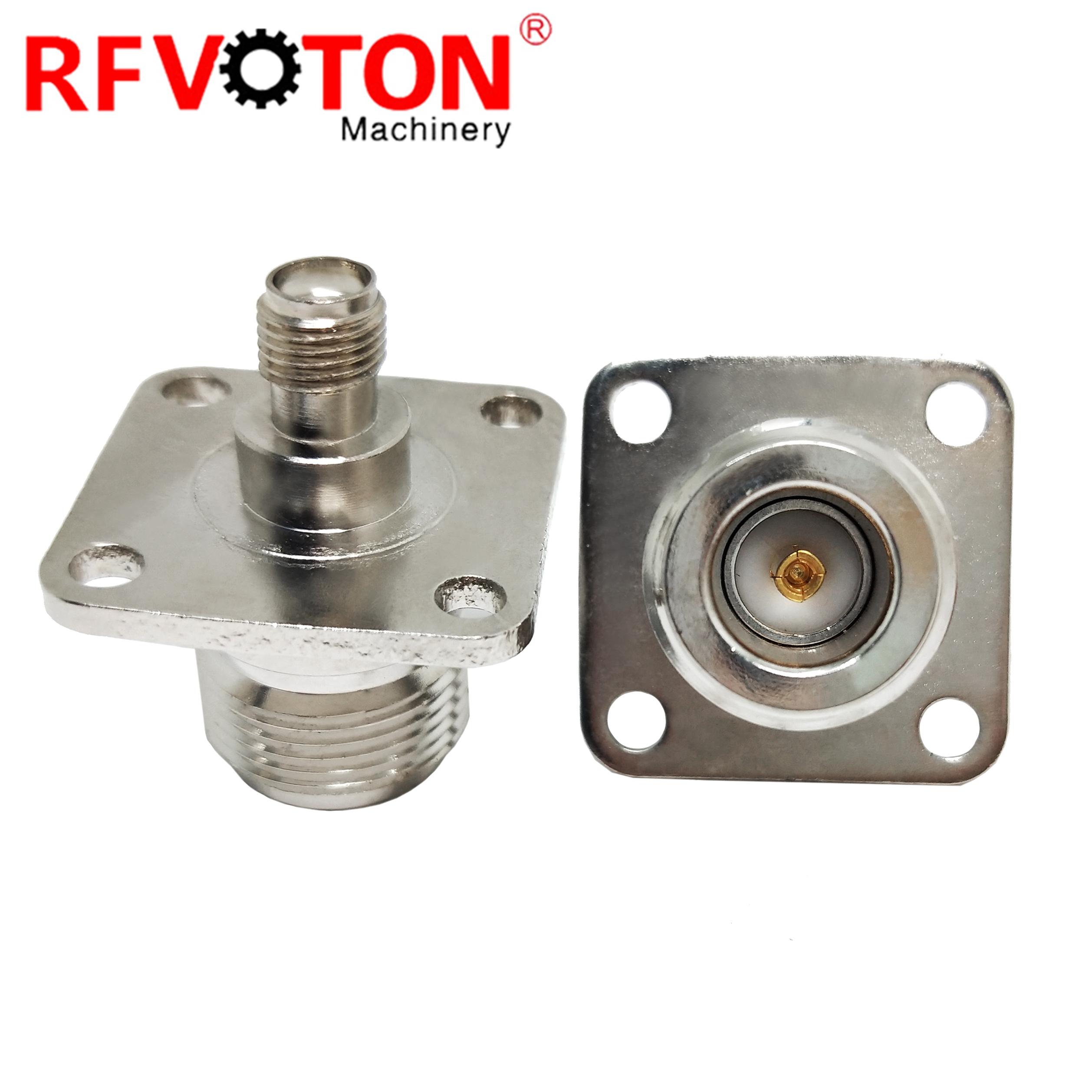

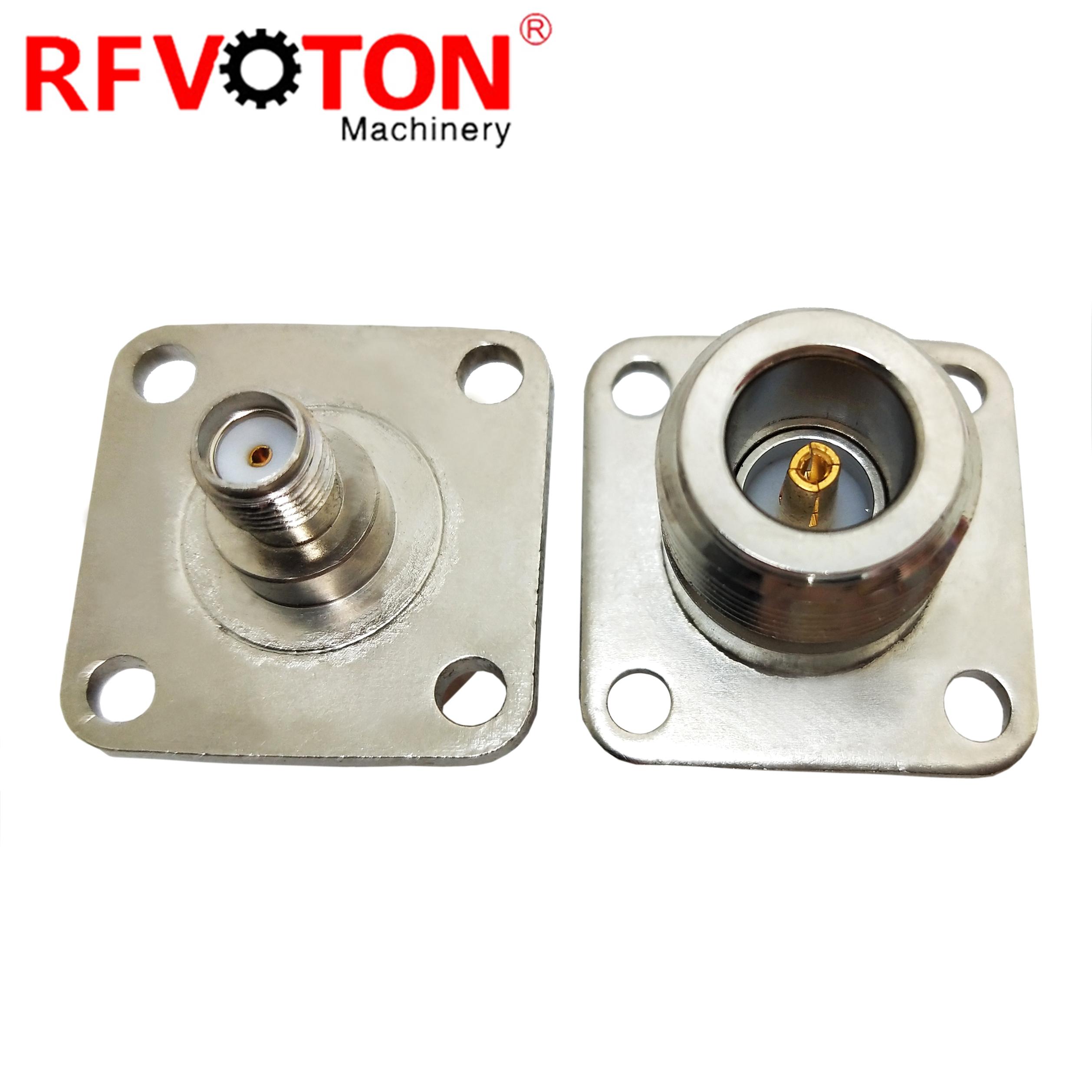

N internal thread to flange SMA internal thread

Product details
Frequency Range:DC-6GHzPackage preview:
plant:nickelPackaging Details:RF coaxial straight n-type female to sma male plug or female jack adapter 1pc in a polybag. 2 100pcs in a carton. 3 transparent plastic bags/standard export cartons.
Material:brassGross weight per piece:1.000 kg
temperature range:-55℃~+155℃insulator:PTFE/plastic
ROHS:ISO9001:2000Single package size:12X12X18 cm
brand:RF WhartonPackage:carton
type:RF connector, RF adapterSales unit:Item
Supplier type:original factorydescribe:RF adapter
Origin:Jiangsu, Chinamodel:the hustle and bustle
impedance:50Ω
Product Description
N internal thread to flange SMA internal thread
RF Coaxial Cable Assemblies (7/16 DIN/N/TNC/BNC/FME/U.FL/IPEX/L9/SMA/SMB/MMCX/MCX/OEM)
We specialize in coaxial components
Our custom RF cable assemblies are built and shipped worldwide
50 Ohm RF cable assemblies can be ordered with the following connector types such as 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA,
SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohm cable assemblies can be made with the following 75 ohm connectors such as
BNC, F, N, SMB, SMC, TNC and mini SMB
RF cable assemblies include: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/
RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58/U
Depending on your needs and application, RF cable assemblies can be produced with many different connector types and custom lengths. If you need a special RF cable assembly configuration not found here, you can create your own RF cable assembly
Configure by calling our sales department
Specification
temperature range
-55~+1555℃
vibration
100m/s2 (10~500Hz)
impedance
50 ohms
Frequency Range
DC – 6GHz
Operating Voltage
500V max
VSWR:

-straight

- right corner


≤ 1.22

≤ 1.3
Contact resistance:

- Center contact

- Outer contact


≤1.5mΩ

≤1mΩ
average power
Maximum 3KW
Insulation resistance
≥5000MΩ
temperature range
-55℃~+155℃
Durability (mating)
≥500 (cycle)
Materials and Plating
high qualityN internal thread to flange SMA internal threadadapter
Body
brass
Nickel/Gold Plating
Domestic sales
Domestic sales
brass
elastic contact
elastic contact
Beryllium copper
socket contacts
socket contacts
beryllium or tin bronze
insulator
insulator
PTFE
Crimp ferrule
Crimp ferrule
copper alloy
Silicone rubber O-ring seal
Silicone rubber O-ring seal
Silicone Rubber
