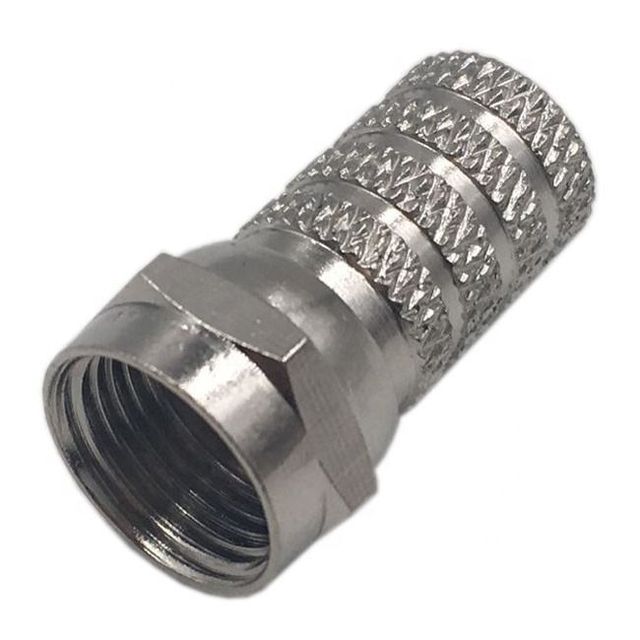

RG58 RG6/RG59 Twisted Brass Zinc F Male RF Connector Coaxial Plug

Supplier: Zhenjiang Xinhuafeng Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Mr Lei Wang
Price: $0.045 / >=2000 pieces
Min. Order: 2000 pieces

Click here to contact

Product details

payment terms:	Western Union, T/T	Frequency Range:	0～1GHz
application:	RG6/RG59 coaxial cable	plating:	nickel/gold
Package preview:		model:	F113
impedance:	75 ohms/50 ohms	brand:	Xinhua
Factory city:	Zhenjiang	Packaging Details:	100PCS/bag, 1000PCS/carton
type:	plug	Durability:	500 (cycle)
Package:	100pcs/bag	Certificate 2:	Institute of Computer Technology
Material:	brass	Supply capacity:	1,000,000 pieces per month
Function:	Signal transmission	size:	RG6/RG59/RG58
port:	Shanghai	Origin:	Jiangsu, China

Product Description

F RF connectorIs the cheapest general-purpose connector, has a non-constant impedance, can be used at 500 volts or less, and can be used at frequencies as low as 500Mhz. F-type coaxial connectors are widely used in cable TV, MATV, CCTV and related consumer TV products.

temperature range:	-40~+60℃	Insulation resistance:	≥1000MΩ
impedance:	75Ω	Sea level withstand voltage:	750V
Frequency Range:	0~1GHz	Operating Voltage:	170V max
Center conductor pullout force:	≥0.49N	VSWR:	Straight line≤1.2 Angle≤1.3
Contact resistance:	Center conductor≤6mΩ, outer conductor≤1mΩ	Durability:	500 cycles

F connectorLimited options are available to accommodate various cable sizes.

technical features
temperature. Range..........-40~+60℃
Impedance.........75Ω
Frequency range...................DC~1GHz
Working voltage.........170V max
Withstanding voltage.........500V rms

Contact resistance
Center contact.........≤10mΩ
Outer contact.........≤5mmΩ
Insulation resistance...≥1000mΩ
VSWR Straight...................≤1.20
right angle? ................≤1.30
Durability (mating)..........500 (cycles)

Materials and Plating
Housing....Brass....Nickel Plated
Contact Pins...Brass...Gold Plated
Resilient Contacts....Beryllium....Gold or Silver Plated
Insulator.......PTFE or PE
Crimp Kit.....Copper Alloy....Nickel Plated
