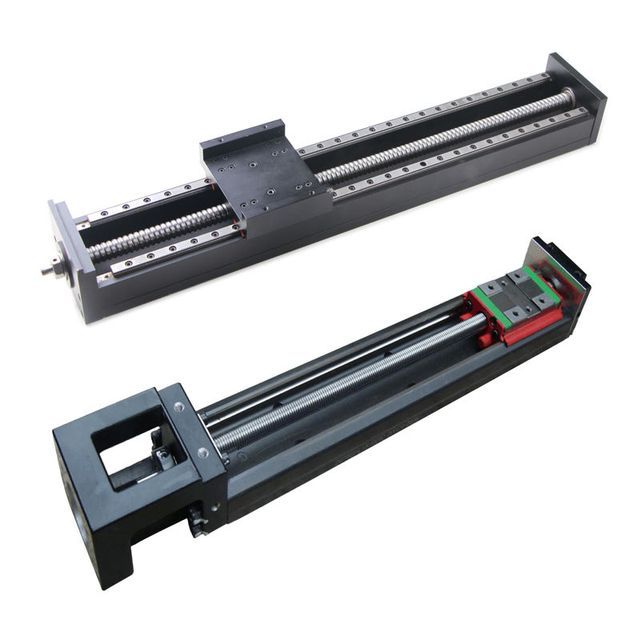

Single-axis robot linear module KK86-740A1-F0 with HGH guide rail ball screw 1610

Supplier: Lishui Yingte Bearing Co., Ltd.
Region: Zhejiang, China
Contact: Mr Ives Lan
Price: $430.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	SAIC	Marketing Type:	normal product
Packaging Details:	Single piece packed in inner box, then in outer carton, packing details according to customer's requirement	Model:	40,50,60,86,100
Health status:	new	application:	CNC
MOQ:	1 set	Showroom location:	not any
track length:	100-1680mm	port:	Ningbo, Shanghai
hardness:	HRC58-62	payment terms:	L/C, Western Union, D/P, D/A, T/T
Applicable industries:	Machinery Repair Shops, Food and Beverage Plants, Construction Works, Energy and Mining, Others, Advertising Agencies	Mechanical test report:	if
Video shipment inspection:	if	Origin:	Zhejiang, China
Core components:	bearing	Weight (kg):	6.5
Core component warranty:	6 months

Company Profile

We are a technical joint venture factory in Taiwan, China, with two factory bases of about 110,000 square meters, which will be put into operation in 2015 and 2022 respectively. The main product SHAC brand is a modern enterprise specializing in R&D, manufacturing, sales and after-sales of linear transmission components, such as linear guides, ball screws, linear modules, etc.
Our products have been exported to America, Europe, East Korea, South America, North America, Southeast Asia and some other markets
Asia, India, etc.

Product overview

The SHAC single-axis robot module adopts the professional standard manufacturing technology developed for many years, and cooperates with the ball screw and magnetic slide design module independently developed and produced. SHAC is suitable for all kinds of automation equipment with its characteristics of easy installation and small size, and high precision. , Various specifications.

List of functions

integrated system
Easy to install and maintain
small and light
high accuracy
high stiffness
Complete range of accessories

product specification

Rail length:
KK40: 100mm, 150mm, 200mm
KK50: 150mm, 200mm, 250mm, 300mm
KK60: 150mm, 200mm, 300mm, 400mm, 500mm, 600mm
KK86: 340mm, 440mm, 540mm, 640mm, 740mm, 840mm
KK100: 980mm, 1080mm, 1180mm, 1280mm, 1380mm
KK130K: 980mm, 1180mm, 1380mm, 1680mm
