application: | Plastic Recycling Pellet Granulator | Video shipment inspection: | if |
Blade material: | SKD-11/D2/wheel steel, etc. | engine: | copper wire |
Core components: | engine | weight: | 1200 |
type: | Granulation production line | Function: | Making Recycled Plastic Pellets |
Power (kW): | twenty two | brand: | Asahi color |
Package preview: | Voltage: | 380v, 50Hz, 3 phase (customized) | |
Advantage: | High efficiency and low energy consumption | Core component warranty: | 1 year |
Dimensions (L*W*H): | 1600x1200x1750mm | Output (kg/h): | 400 - 600 kg/h |
Packaging Details: | Plywood enclosure. | Mechanical test report: | if |
Plastic processing: | HDPE,HDPE/PP,PE/PP,LLDPE,polystyrene,ABS/PP,PP,FRPP/PVC,ABS | After-sales service provided: | Online Video Technical Support |
Showroom location: | Canada, UK, US, Italy, France, Germany, Philippines, Indonesia, Thailand, UAE, Colombia | Origin: | Guangdong, China |
Supply capacity: | 100 sets per month | Finished goods: | small plastic particles |
payment terms: | L/C, Western Union, T/T, MoneyGram, Cash | Blade speed: | 520 rpm |
Screw design: | single | Screen aperture: | 8-50mm, customized |
Health status: | new | Applicable industries: | Manufacturing plants, food and beverage plants |
Warranty: | 1 year | Name: | Plastic granulator |
port: | Guangzhou/Shenzhen |

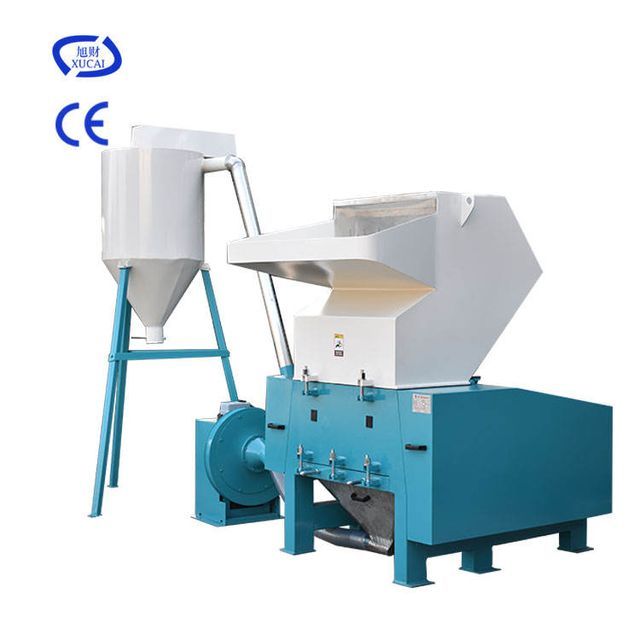

Plastic Shredder Features:
1. The strong plastic shredder has a wide range of applications and can shred various plastic raw materials and plastic products of various shapes.
2. Mature manufacturing process, integrated manufacturing of important components such as box body and knife holder, to ensure perfect matching.
3. Good design structure, convenient operation, energy saving and durability, high efficiency and economy.
4. A number of safety protection devices to ensure safe operation.
5. The feed screen adopts double-layer sound insulation design to reduce noise.
6. This series of machines run smoothly, with low noise, no dust pollution, uniform granulation, good performance, no overheating phenomenon in operation, and long service life.
7. The plastic shredder adopts sealed bearings to ensure the long-term perfect operation of the bearings. The knife shape is reasonable, so that the product particles are uniform. The knife holder is heat-treated for high strength.
Technical Parameters:
Model |
broken room Dimensions (mm) |
broken ability (kg/hour) |
engine strength (kilowatt) |
fixing knives (pieces) |
flexible knives (pieces) |
Mechanical Dimensions (mm) |
weight (Kilogram) |
TLP2520 |
250x200 |
100-150 |
4 |
2 |
12 |
940x600x1090 |
175 |
TLP3126 |
310x265 |
150-200 |
5.5 |
2 |
9 |
1150x720x1220 |
350 |
TLP4128 |
410x280 |
200-300 |
7.5 |
2 |
12 |
1200x860x1350 |
450 |
TLP5032 |
500x320 |
300-400 |
11 |
2 |
15 |
1300x1000x1530 |
680 |
TLP6032 |
600x320 |
400-500 |
15 |
2 |
18 |
1400x1100x1600 |
900 |
TLP6246 |
620x460 |
500-600 |
twenty two |
2 |
18 |
1600x1200x1750 |
1200 |
TLP7146 |
710x460 |
600-700 |
twenty two |
2 |
twenty one |
1900x1350x2100 |
1600 |
TLP8146 |
810x460 |
700-800 |
30 |
4 |
twenty four |
2000x1500x2100 |
2000 |
TLP8156 |
810x560 |
800-900 |
37 |
4 |
twenty four |
2000x1500x2250 |
2400 |
TLP1065 |
1020x650 |
900-1000 |
37 |
4 |
30 |
2100x1750x2400 |
3000 |
TLP1072 |
1020x720 |
1000-1400 |
45 |
4 |
30 |
2220x1800x2500 |
3500 |
