Fanless mini industrial Embedded PC with Wide range power supply (9V-36V)

Product details
CPU:N2800;Storage:64G SSD;
Operating System:WIN 7/8/10/LIUNX;Memory:4G;
Single gross weight:3 KG;Network:2*Intel 1000M LAN;
Products Status:Stock;Wifi:optional;
Selling Units:Single item;Place of Origin:Guangdong China (Mainland);
Brand Name:EvrTech;Product name:PBOX-7;
Power supply:DC12V/5A or Wide range power supply (9V-36V);Single package size:13X14X10 cm;
USB:4*USB;Service:OEM,ODM;
Type:Embedded Computer;

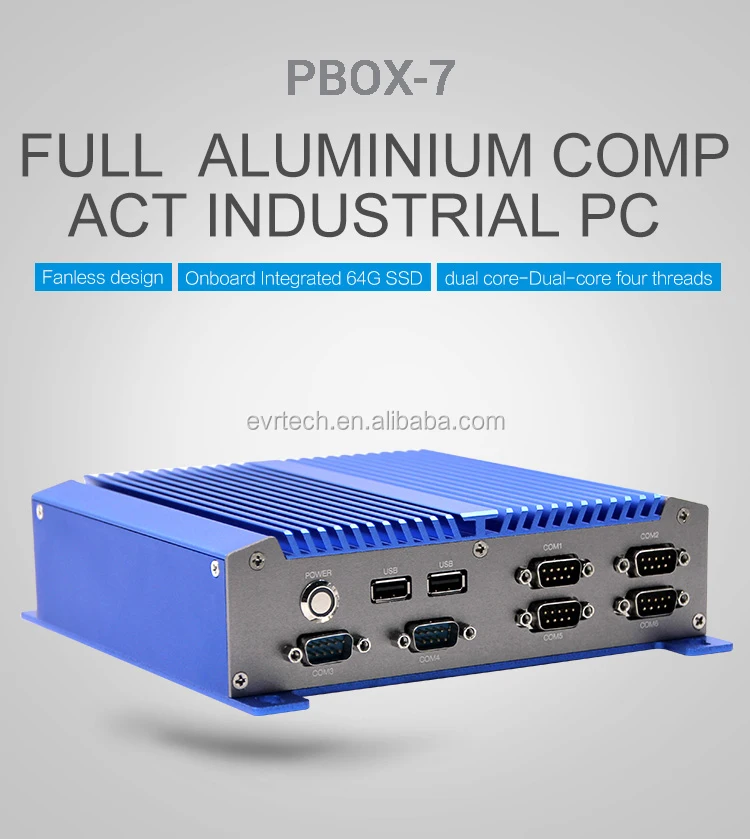

Fanless mini industrial Embedded PC with Wide range power supply (9V-36V)

Product Description



 Features of Our industrial computer

  • Support Intel Atom D2550 Serial CPU;
  • Onboard DDR3 2GB/4GB Ram ,Fanless design;
  • 1*Mini PCIE Support WIFI or 3G Module,1* SIM slot;
  • Rich I/O Port,Including 4*USB ,1*HDMI,1*VGA display,6*COM or 5*COM,1*LVDS.
  • 12V DC or 16-40V wide voltage power supply(optional).

 Specification of our industrial computer

Model

PBOX-7

Chassis

Colour

Blue or Silver

Dimension

185mm*194mm*64mm(L*W*H)

Construction

Fanless

material

High quality Aluminum Alloy

Motherboard

Chip set

NM/10

Processor

Onboard Intel® Atom D2550/N2800 CPU

Graphics

Onboard Intel® HD Graphics (depends on processor)

Memory

Onboard DDR3 2GB/4GB Ram

Expansion

1*MINI-PCIE ,can add wifi/3G Module,1*MINI-SATA ,can add SSD

Storage

SSD

Support 1*MSATA SSD

HDD

1*2.5inch laptop hard disk

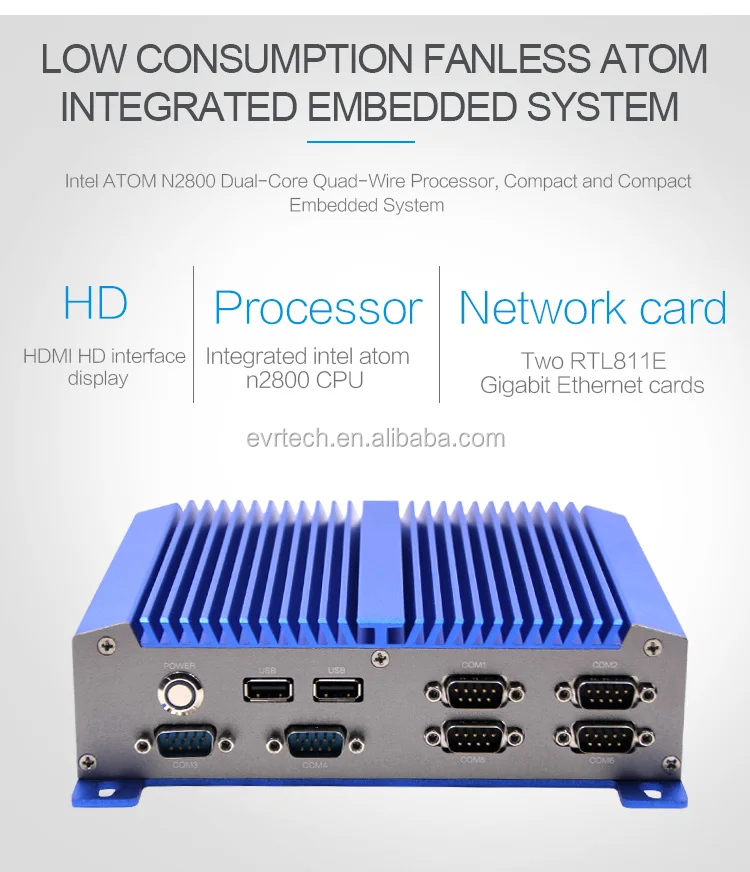

Front I / O

Button

1*power button

COM

6*COM or 5*COM +1*LVDS

USB

2*USB 2.0

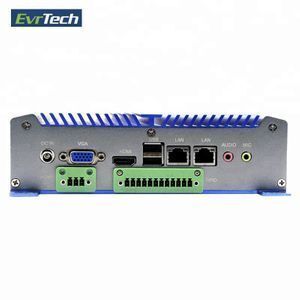

Back I/O

Video

1*MIC,1*AUDIO

Display

1 * HDMI, 1 * VGA

USB

2* USB 2.0

Connector

1*DC12V power connector,1*16-40V wide voltage power connector,

1*GPIO connector

Lan

2*Realtek 81111 EL(Gigabit Ethernet)

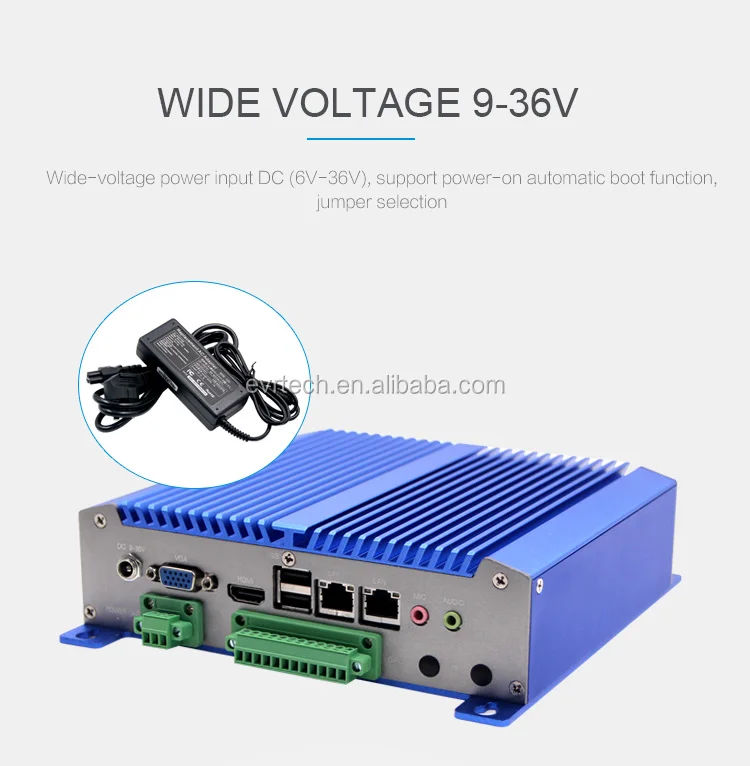

Power

Power supply

DC12V/5A or 16-40V wide voltage power supply

Reliability

Operating Temp.

0℃~45℃

Storage Temp.

-20℃~70℃

Relative humidity

5%-95%, no condensing

Vibration

0.5g rms/5-500HZ/random/operating

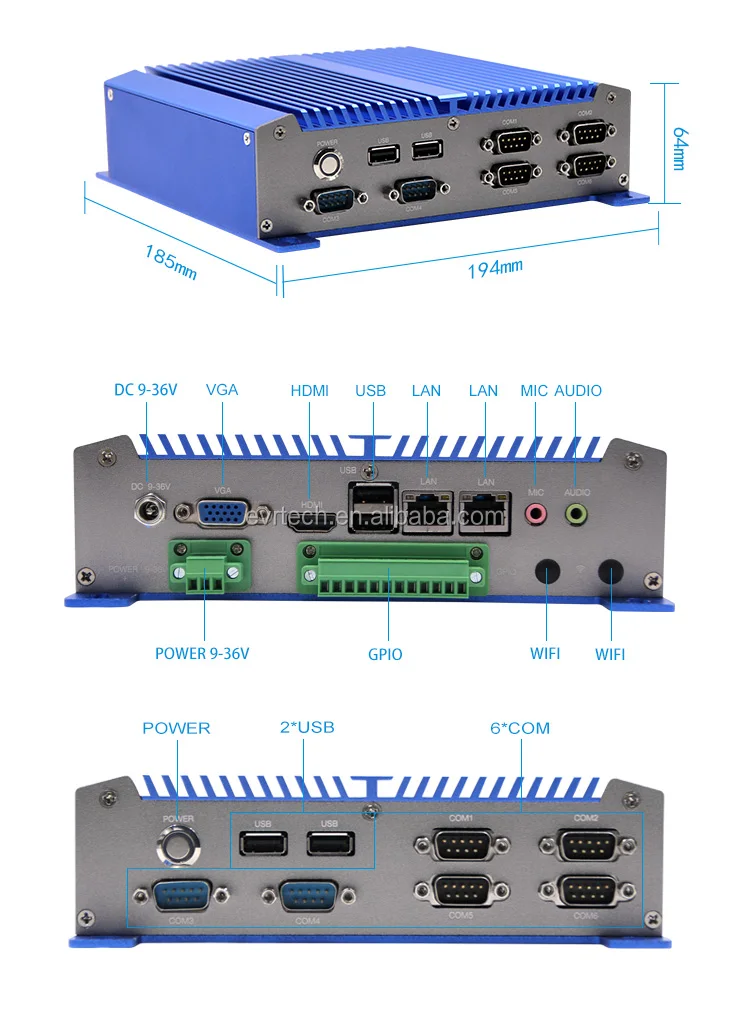

Detailed Images









Packaging & Shipping



 1.Delivery      Time: 1 ~ 3 Days for one sample, 25 Working days for a large quantity.

 2.Packaging Ways: Each pc for one neutral box,

 3.Shipping    Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.

                                  For a large quantity, we can support to ship by air or by sea.

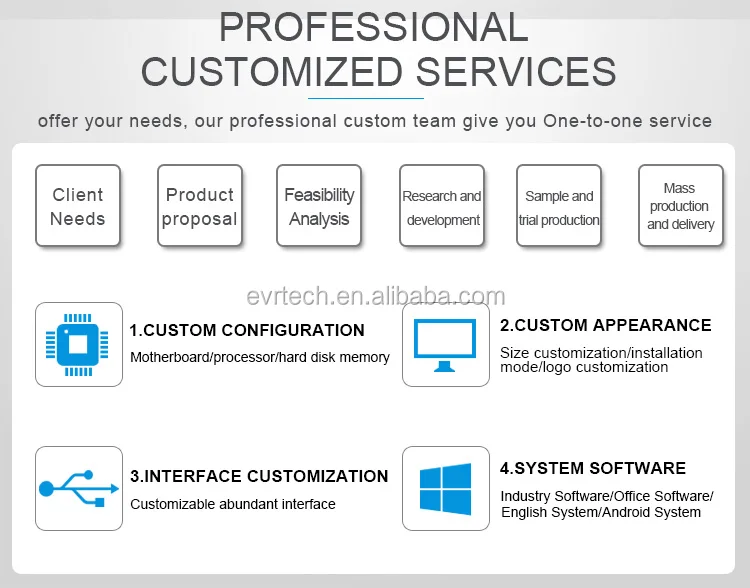

Our Services



1.We can provide OEM/ODM services .

2.We can sell one sample for your test .

3.High-quality product and competitive price.

4.1 years Warranty, the second year and the third year,

   we can repair it ,but we will charge for the parts that need to change.



Company Information





FAQ



Q1: Can you put Our brand name (logo) on these products
A1:  Yes,.We can support OEM/ODM service, the process of customization is following:
       1:provide your specific requirement.    2:our design engineer draw the design draft.
       3:you confirm the design draft.            4.we start produce it.



Q2:  What payment method do you accept?
A2:   T/T,Western Union,PayPal.



Q3: What is the Minimum Order Quantity(MOQ)?
A3:  We can sell one piece sample for your test.



Q4: What is the lead time of your products?
A4:  1-3 days for one sample, 15 working days for a large quantity.



Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.



Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.



Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
   we can repair it free. but we will charge for the parts that need to change.



Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China



Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.



"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about

our products. We will try our best to help you.
