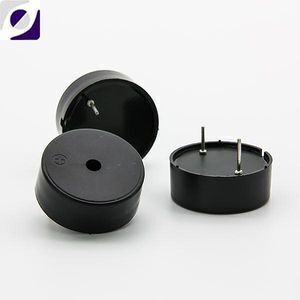

5v buzzer for Machine alarm 100db piezo buzzer

Supplier: Changzhou FHD Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Sunny Kim
Price: $0.01 /piece
Min. Order: 1 piece

Click here to contact

Product details

Packaging Detail:	Carton packaging, sealed with adhesive tape, the outer packing with packing belt. 100db piezo buzzer;	Capacitance of Piezo Buzzer:	25000±30% pF At 1KHz;
Buzzer:	100db piezo buzzer;	Operating Temperature:	-20℃~+70℃;
Brand Name:	FHD 100db piezo buzzer;	Place of Origin:	Jiangsu China (Mainland);
Piezo Buzzer Net Weight:	Approx 5g;	Operating Voltage of piezo buzzer:	1~30 Vp-p;
Sound Output at 10cm:	Min. 85dB, At 4KHz 50% duty Square Wave 5Vp-p;	Resonant Frequency:	4000±400Hz;
Supply Ability:	3000000 Piece/Pieces per Month 100db piezo buzzer;	Model Number:	BP2410 100db piezo buzzer;
Rated Current:	Max.5mA , At 4KHz 50% duty Square Wave 5Vp-p;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Store Temperature:	-30℃~+80℃;	Type:	Buzzer;
RoHS of Piezo Buzzer:	Yes;	Port:	SHANGHAI, Ningbo, Shenzhen, Qingdao etc.;

5v buzzer for Machine alarm 100db piezo buzzer

Part shall be measured under a condition (Temperature: 5~35℃, Humidity: 45%~85%R.H., Atmospheric pressure: 860 ~1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ~1060hPa) is regulated to measure.

1. Features of 4000HZ 5v piezo buzzer for Machine alarm

As this product is not protected from foreign material entering, please make sure that any foreign materials (e.g. magnetic powder, washing solvent, flux, corrosive gas) do not enter this product in your production processes. The functional degradation (e.g. SPL down) may occur if foreign material enter it.

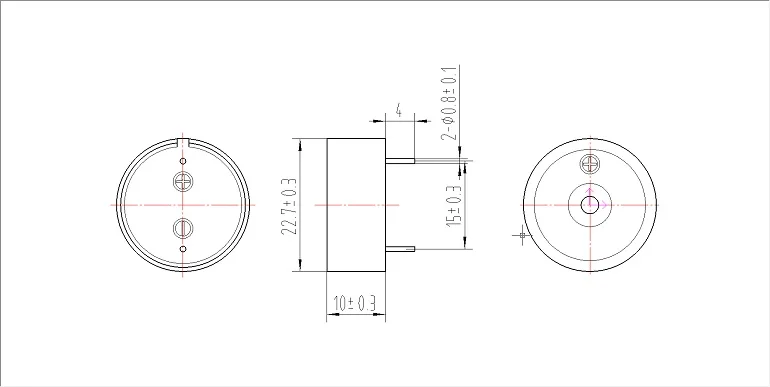

2. Dimensions of 4000HZ 5v piezo buzzer for Machine alarm

Dimensions Unit: mm

*Unit: mm; Tolerance: ±0.5mmExcept Specified

*Housing Material: Black ABS

3. Piezo Buzzer Model Details

Measuring condition

After any following tests the part shall meet specifications without any degradation in appearance and performance except SPL. SPL shall not deviate more than -5 dB from the initial value

1	Resonant Frequency	4000±400Hz
2	Operating Voltage	1~30Vp-p
3	Rated Current	Max.5mA ,At 4KHz 50% duty Square Wave 5Vp-p
4	Sound Output at 10cm	Min. 85dB, At 4KHz 50% duty Square Wave 5Vp-p
5	Capacitance	25000±30% pF At 120Hz
6	Operating Temperature	-20℃~+70℃
7	Store Temperature	-30℃~+80℃
8	Net Weight	Approx 5g
9	RoHS	Yes

4. Piezo Buzzer Exploded View

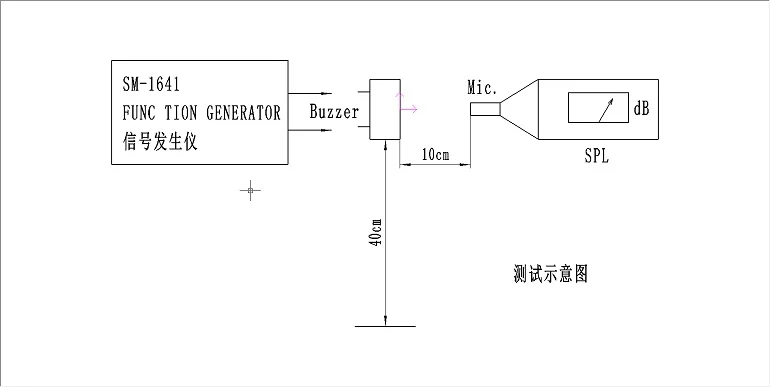

Electrical And Acoustical Measuring Condition

Recommended Setting

5. Piezo Buzzer Advantages

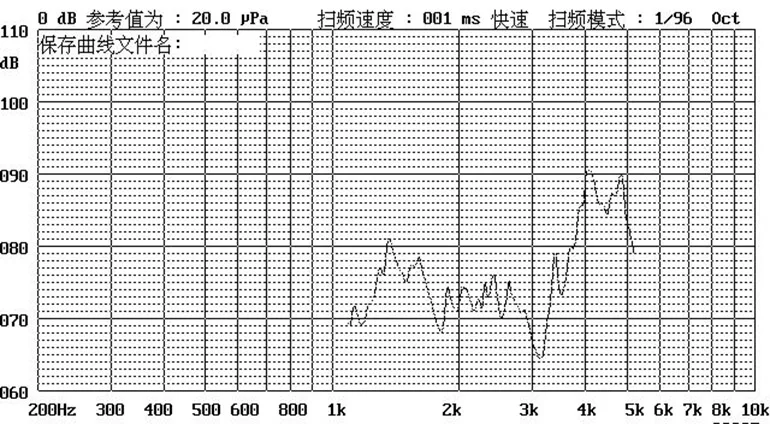

Frequency Response

5Vp-p 50% duty Square wave,10cm

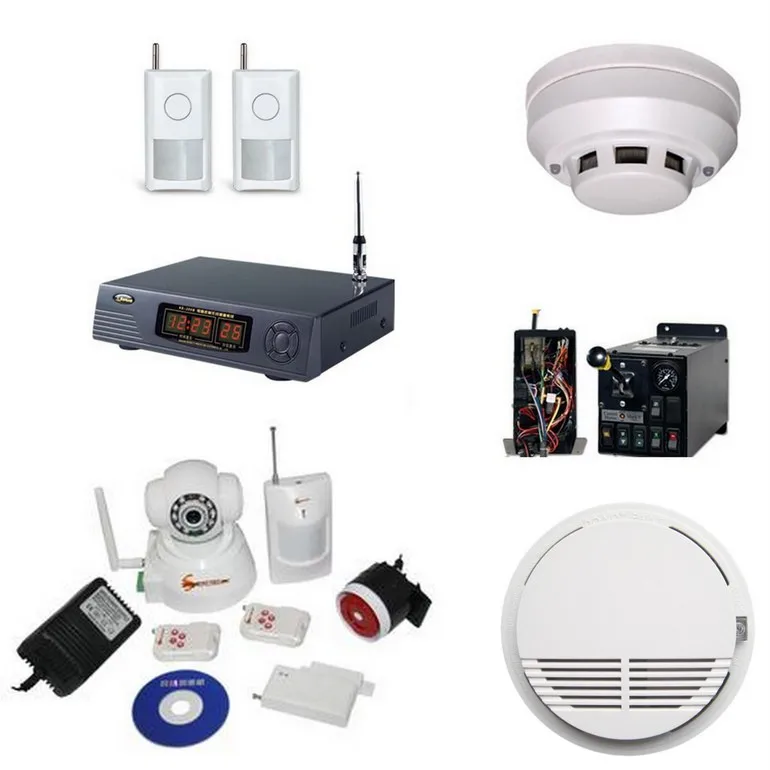

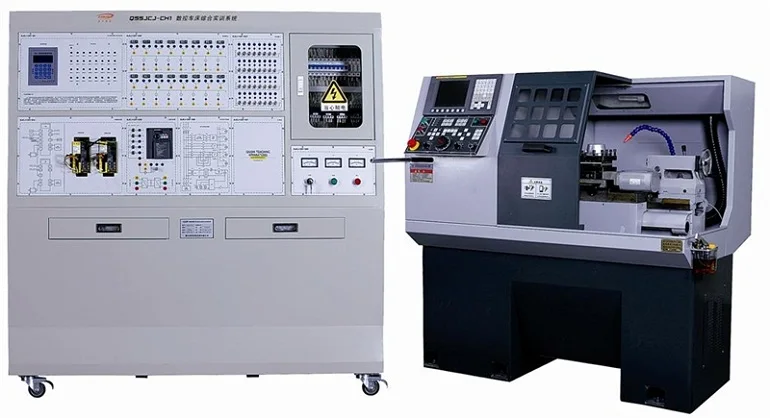

6. Piezo Buzzer Application

A Piezo buzzer or beeper is an audio signalling device, which may be mechanical, electromechanical, or piezoelectric. Typical uses of buzzers and beepers include alarm devices, timers and confirmation of user input such as a mouse click or keystroke.

7. Piezo Buzzer Family Models

There are so many products in FHD, such as Mylar speaker, Piezoelectric Buzzer, Receiver, Microphone, Alarms and so on. FHD products have been used abroad in many famous electronic factories.

8. Piezo Buzzer Workshop

Our company has been specializing in Acoustic products since 1996. Our company has been producing cutting-edge acoustic components for 10 years. We have focused on the research and development of our products. Our main products are:

Electromagnetic and Piezo Transducers/Buzzers

10. OEM/ODM Services about Piezo Buzzer

FHD defines an OEM (Original Equipment Manufacturer) as an entity or organization that integrates a customized or embedded Canbo product in its own unique solution for sale to its customers. The proof of this concept is that the FHD product must be significantly transformed. The OEM Partner primarily uses its own company logo and brand name on its solution and it markets, sells and provides technical and warranty support directly to its customers. Our main product is piezoelectric buzzer.

11. Your Facotry Name specialized in piezo buzzer

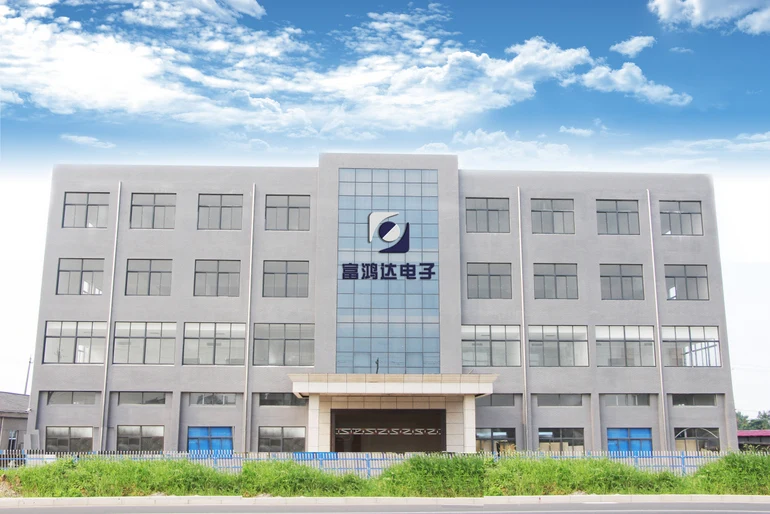

Our company has been specializing in micro acoustic products since 1997. Our company has been producing piezoelectric buzzer for 18 years. We have focused on the research and development of our products. It has worldwide customers from USA, Germany, Korea, Netherlands and some other countries. Satisfying the customer consistently with the most suitable products, FHD products have been used abroad in many famous electronic factories.

We employ over 200 people in our factory and 15 full time engineers in our R&D division. None of them are new comers to the field, and some of them have 18 years or more of experience in acoustic technology.

We already have a factory of 2,000 square meters with our facilities for production, so our monthly production capacity reaches 2,000,000 finished pieces. Most products of what we produced in 2005 were exported to markets in Europe and the United States.

12. Piezo Buzzer FAQ

Piezo Buzzer Payment terms: T/T, L/C, Paypal, Western union all support

Piezo Buzzer Delivery time: Sample order 3 working days, Container order 10 working days.

Piezo Buzzer Minimum order quantity : 1 PC

Guarantee period: 12 months

OEM service: Support (Print logo on carton for free)

To Know more price and prodcts details please send Inquiry.
Response Time < 24 Hours
