20718.43 Stirling Engine Model, Vertical

Product details
model:20718.43brand:Kelson
Stirling engine model:Stirling engine model, verticalSupply capacity:100 sets of 30 per day
payment terms:wire transferOrigin:Zhejiang, China

Stirling engine model

Item No.: 20718.40A
Size: (D*H)Φ90*146mm, weight 220g
Flywheel, base, connecting rod are made of stainless steel
steel. The stand is made of aluminum alloy. power
The cylinder is made of plexiglass



Stirling engine model
Item No.: 20718.40B
Size: (D*H)Φ90*146mm
Flywheel size: Φ88mm



Stirling engine model

Item No.: 20718.41A
Dimensions: (length*width*height) 180*90*83mm, weight 370g
With generator, 4 LED lights
base plate made of metal
The stand is made of aluminum alloy
Connecting rods are made of stainless steel
Power cylinder, cylinder made of glass



Stirling engine model

Item No.: 20718.41B

1. Dimensions: length*width*height (165X90X90) mm,
The flywheel diameter is 60mm, the transmission wheel diameter is 25mm, and the net weight of the model is 505 grams
2. Parameters: power cylinder diameter 16mm, piston stroke 15mm.
The speed is about 2000 rpm, which can also increase the firepower
3. Power supply voltage; about 5v, more lighting than LED,
4. Material: aluminum alloy brushed chassis



Stirling engine model

Item No.: 20718.42A

1. Size: length * width * height (165X80X130) mm, flywheel diameter 65mm, driving wheel diameter 29MM
2. Parameters: power cylinder diameter 10mm, piston stroke 20mm, ventilation cylinder diameter 15, strong power.
3. Engine net weight: 800g

4. Material: board with red bakelite

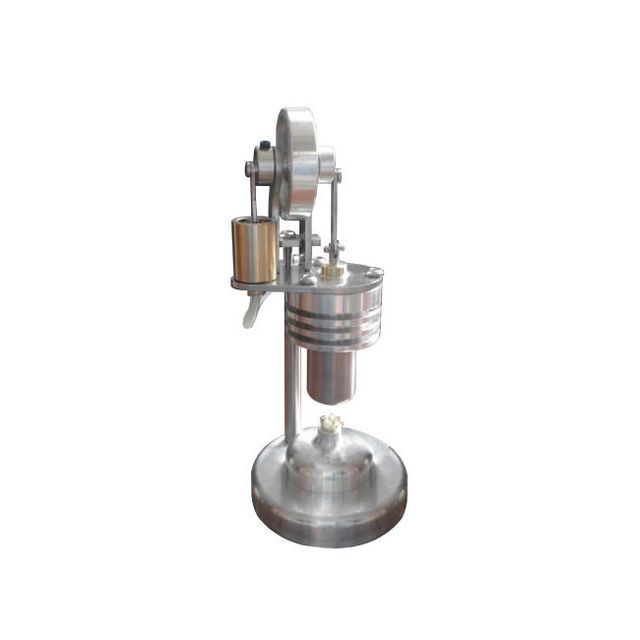

Stirling engine model, vertical

Art number: 20718.43
Size: (D*H)Φ55*130mm



How to apply:

  1. Turn the flywheel by hand to see if it is smooth. If not, you can adjust the relevant screws (generally adjusted before sale).
  2. Check that sliding parts are clean
  3. Fill no more than 2/3 of the alcohol lamp with the best alcohol content above 95%
  4. Light the lamp and place it in front of the test tube. After about a minute, turn the flywheel and the engine will start. Generator warm-up time is slightly longer.

Precautions:

  1. Not allowed under 13; if not, under parental supervision.
  2. Do not allow the cotton thread to touch the test tube during ignition.
  3. Be careful of burns and do not touch the baked test tube.
  4. Be careful of burns and don't touch the long burning alcohol lamp.
