steam room steam room heater steam generator

Supplier: Shenzhen Keya Sauna & Swimming Pool Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Sophia KEYA
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	steam fog	model:	LT-60
Certification:	ce	Warranty:	1 year, 3 years
Certificate:	CE certification	port:	Shenzhen
strength:	6 kW	Origin:	Guangdong, China
Supply capacity:	3000 pcs per month STEAMIST LT series premium steam bath generator price	Voltage:	380V
control Panel:	display time and temperature	Packaging Details:	Seaworthy carton with foam inside
payment terms:	L/C, D/P, T/T	Controller options:	KS-120, TC-135, TC-135A
Function:	steam bath, wet steam	flow away:	by manual or automatic
water tank:	304 stainless steel

steam room steam room heater steam generator

introduce

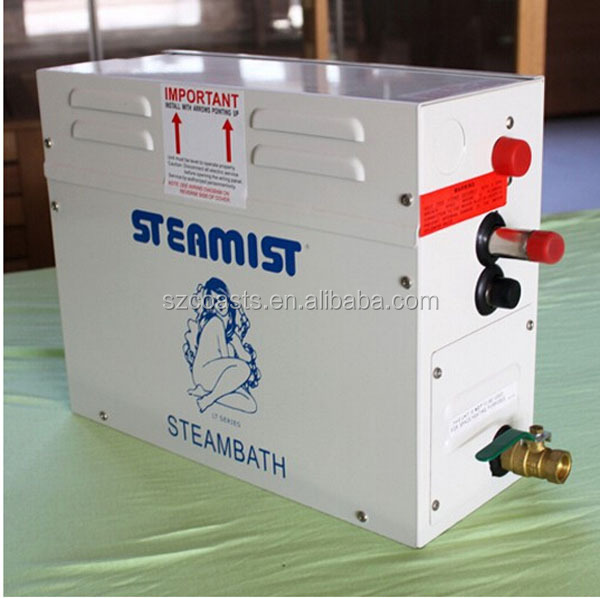

STEAMIST LT series steam generators are suitable for home use and are popular for their good quality and competitive price. Automatic drainage system is recommended for 9KW and above.

The shell is made of plastic-sprayed electrolytic plate, which is anti-corrosion and durable. Using TC-135 control panel, the machine will automatically shut down after 45 minutes, and the temperature can be automatically controlled at

35-55°C (95-131°F) range, digital temperature display; use the TC-135A control panel to automatically control the temperature within the 35-55°C (95-131°F) range, and also within 1- Set the automatic shutdown time within 60 minutes, digital display temperature and time. This model is suitable for families and small sauna clubs, with European CE certification and China Import and Export Commodity Inspection and Quarantine Certificate. The economical steam generator has the functions of automatic water supply system, overpressure protection and so on. Perfect choice for residential bathrooms or small businesses.

Advantages of our steam generators

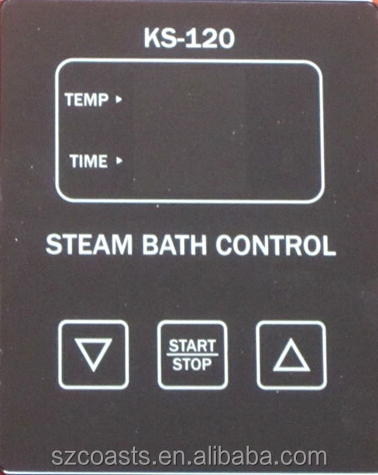

1. Anti-steam touch button control panel KS120 can be used with LT/AR/GT steam generator and can be installed in the steam room.

2. Provide a variety of control panel options.

3. Optional powerful automatic drainage system with manual drainage button. A powerful drainage system quickly refreshes the water in the tank, keeping the water clean and reducing mineral build-up to extend the life of the heating element.

4. Self-diagnosis function and error message display. Easy to maintain and service.

5. Temperature and time digital display. Easy to read, operate and adjust.

6. Water shortage and overheating protection

Control System

product	Model	time range (minutes)	Temperature display range	Temperature adjustment range	Dimensions (mm)	Comment
	KS120	1-60 or nonstop	6-60°C (43-140°F)	35-55°C (95-131°F)	8010120	Touch buttons, water and steam proof

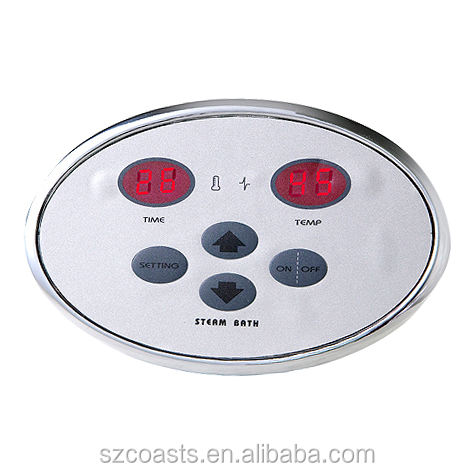

	TC135A	1-60 or nonstop	6-60°C (43-140°F)	35-55°C (95-131°F)	11017018 (ellipse)

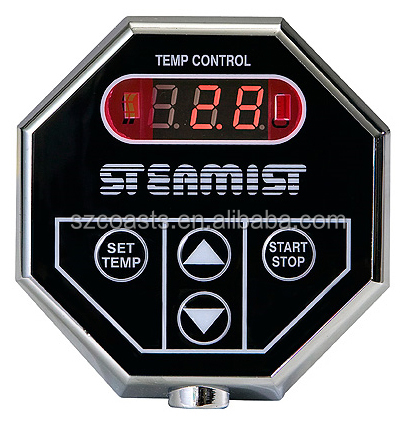

	TC135	45	6-60°C (43-140°F)	35-55°C (95-131°F)	10010025 (octagonal)	1. The heating time is fixed for 45 minutes. 2. Temperature digital display
Function	1. Digital display boyh temperature and time 2. Heating status LED indication 3. Self-diagnosis function and error message display 4. Water shortage and overheating protection 5. Heating state KED indication

parameter

Model	power kw	Power (50/60Hz)		Power cord (copper) N*mm²	Size cm	Package size cm	Gross weight kg
		Voltage V	Current A
LT-40	4.0	220-240V~	18.2	3*2.5	39.515.339.3	53.52149	10.8
LT-50	5.0	220-240V~	22.7	3*2.5
LT-60	6.0	220-240V~	27.3	3*4.0
		380-415V3N~	9.1	5*1.5
LT-70	7.0	220-240V~	31.8	3*6.0	44.518.239.3	53.52149	12
		380-415V3N~	11.4	5*2.5
LT-80	8.0	220-240V~	36.4	3*6.0
		380-415V3N~	13.6	5*2.5
LT-90	9.0	380-415V3N~	13.6	5*2.5
LT-105	10.5	380-415V3N~	15.9	5*2.5	502052	542561	18
LT-120	12.0	380-415V3N~	18.2	5*2.5
LT-150	15.0	380-415V3N~	22.7	5*2.5
Note: LT series ordinary steam generator comes with high cover and coupling plate heating element, automatic drainage function and 9-12KW single-phase 220V-240V need special manufacturing.

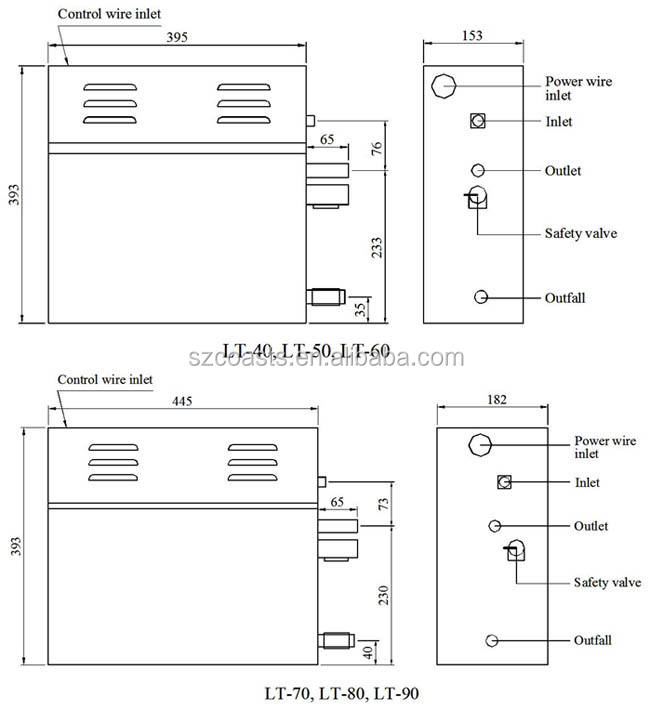

structure diagram

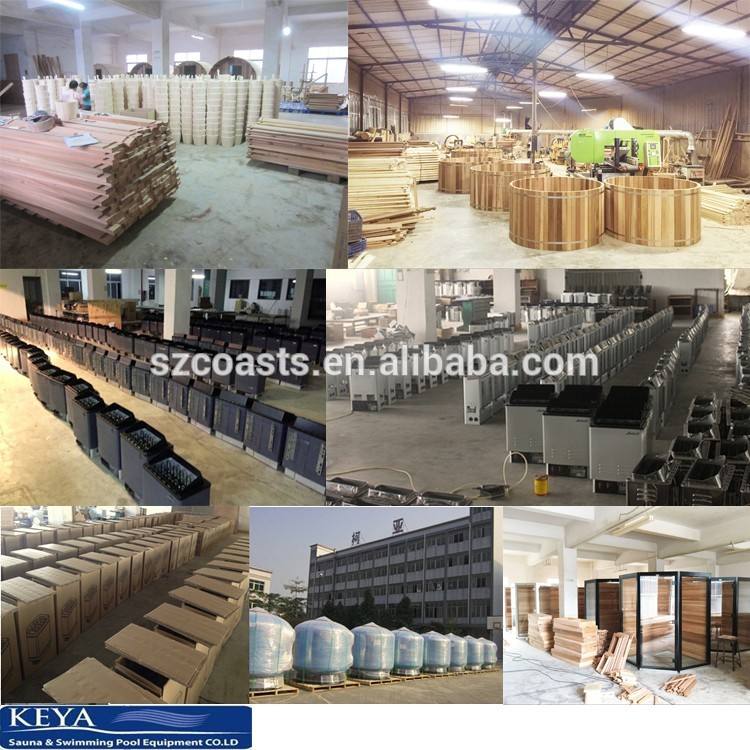

Why choose KEYA company?

Since established in 1997, we are the first sauna and steam manufacturer in China, and we are the original manufacturer of Amazon sauna heaters and steam generators. We provide one year free warranty (from the date of sale) on all of our products. The electric heating is guaranteed for half a year (or according to the terms of the manual); if the maintenance period exceeds the maintenance period, a maintenance material fee will be charged. Lifetime maintenance, consulting service.
