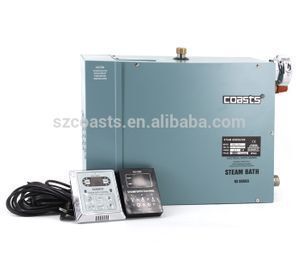

Coast 3-24KW electric steam generator price sauna bath generator with CE

Product details
Power:8 KW;Brand Name:coasts;
Voltage:380-415V3 N~;Payment Terms:L/C,D/P,T/T,credit card;
Model Number:KSA-80;Matel:Stainessl steel cover;
Place of Origin:Guangdong China (Mainland);Packaging Detail:seaworthy carton with foam inside.;
Water tank:#304 stainless steel;Supply Ability:1500 Piece/Pieces per Month Coast 3-24KW electric steam generator sauna bath generator with;
Type:Wet steam;Certificate:CE UL;
Name:steam generator;Port:Shenzhen port;
Draining:automatic;Delivery Detail:15 working days;
Controller model:KS-200 A, KS 150;
Company Information

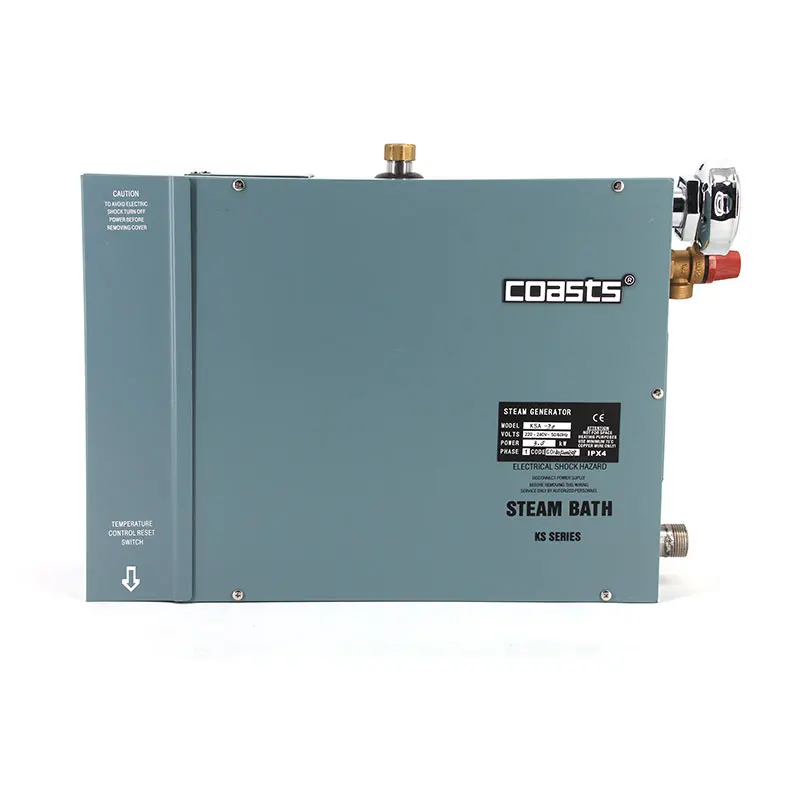

Coast 3-24KW electric steam generator sauna bath generator with CE

KSA series steam generator is our BEST-SELLER. It is suitable for both residential and commercial use.  Equip  with water-proof touch panel KS-150 or KS-200A.



The Economic steam generator features auto water supplementary system, over-pressure and over-heat protection. The segment-heating and self-diagnose function make the heater energy-efficient and easy-operation. Only need 8-10 minutes it could produce steam. The heating element is made of #316 stainless steel have UL certification and the inner tank is made of #304 stainless steel. The  KSA steam generator is automatic drain with CE approval.













Products Introduction:

1) NEW steam-proof touch button control panel KS150.  Could be installed inside steam room for easy operation. (Available in black and white)

2) Display both room temperature and working time

3)  Motorized auto-drain system to prolong life of heating elements.

4) Automatic water supplementary function

5) Multiple safety protection

6) Improved water-proof connector

7) #304 stainless steel water tank,UL certificate heating element made of #316 stainlesss teel

8) CE certified products.

9) Dual steam outlets for large power units 12kw and above,  much safer!

10) Special water level sensor design for large power units 12kw and above, more stable!





Controller System

Time range(minute)  Temperatrue display range  Temperatrue adjustment range Dimension(mm)
 1-60 or none stop

 6-60℃

(43-140℉)

        35-55℃

(95-131℉)

 80*101*20

Functions:

1. Touch buttons, water-proof and steam-proof           2. Digital display for both temperature and time
3. Heating status LED indicating                                  4. Self-diagnostic function and Error message display
5. Lack- water and over-heat protection                      6. Steam room light control button.
7. Automatic water feed-in and drain control.



Parameters:

Model

Power         kW

Power requirement 50/60Hz

Current (A)

Power wire (Copper)

N*mm2

Dimensions  CM

Packing dimensions CM

Gross weight kg

KSA-30

3.0

220-240V~

13.6

3*2.5

42.5*16*30

54.5*21.5*42

10.5~11

KSA-40

4.0

220-240V~

18.2

3*2.5

KSA-45

4.5

220-240V~

20.5

3*2.5

380-415V3N~

6.8

5*1.5

KSA-50

5.0

220-240V~

22.7

3*2.5

380-415V3N~

9.1

5*1.5

KSA-60

6.0

220-240V~

27.3

3*4.0

380-415V3N~

9.1

5*1.5

KSA-70

7.0

220-240V~

31.8

3*6.0

47.5*18.5*45

53.5*23*59

15.6~16.2

380-415V3N~

11.4

5*2.5

KSA-80

8.0

220-240V~

36.4

3*6.0

380-415V3N~

13.6

5*2.5

KSA-90

9.0

380-415V3N~

13.6

5*2.5

16.4~17

KSA-105

10.5

380-415V3N~

15.9

5*2.5

KSA-120

12.0

380-415V3N~

18.2

5*2.5

KSA-150

15.0

380-415V3N~

22.7

5*2.5

51*18.5*46

56.5*23*59

17.5~18.5

KSA-180

18.0

380-415V3N~

27.3

5*4.0

KSA-225

22.5

380-415V3N~

34.1

5*6.0

KSA-240

24.0

380-415V3N~

36.4

5*6.0

Notice: KSA steam generator are equiped with auto drain system. 9~12 KW units could be customized to 220~240V on request.

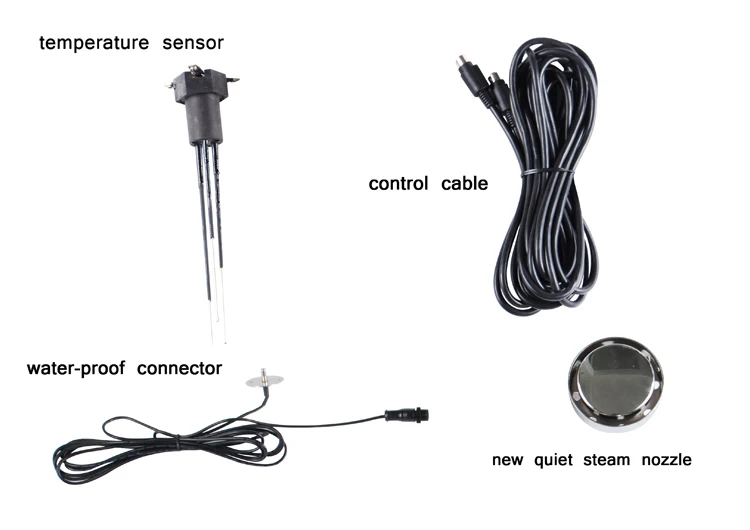

Products Structure:





Opotions:

You could

Upgrade to #201 stainless steel shell

Upgrade to #304 stainless steel shell



Why choose us?

We are first manufacturer of sauna&steam in China since founded in 1997,and we are original manufacture of Amazon sauna heater&steam generator.We provide One year free warranty for all of our products(start from the dateof sale).Half of year warranty for electric heating element (or according to the clause in theinstruction book);Maintenance material fee will be charge if expired of maintenance period.Life time maintenance and consult service.
