EKO PET Braided Wrap Cable Sleeving Expandable Flame Retardant Braided Cable Protection Sleeve

  • Supplier: Xiamen QX Trade Co., Ltd.
  • Region: Fujian, China
  • Contact: Mr Bill Xie
  • Price: $0.30 / >=200 meters
  • Min. Order: 200 meters
Product details
Thickness:0.25mm;Material:Polyester;
HS Code:4602900000;Color:Green;
Available Colors:64 colors available;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Working Temperature:-50°C~+150°C;Classification:Pet Cable Protective Sleeve;
Certificated:ROHS,Reach,Halogen Free;Port:Xiamen;
Supply Ability:50000000 Meter/Meters per Month;Flammability:VW-1;
Brand Name:EKO;Packaging Detail:200m/rool 4 rools/ctns G.W:5kg/ctn Carton Size:52*52*18cm;
Melt Point:240+(-)10C;Size:25mm falt width(1");
Type:Spiral Wrapping;Model Number:BS-PET020;
Place of Origin:Fujian China (Mainland);
Product Description

What's special about this Pet Cable Protective Sleeve?


1. Flame-retardant and halogen-free.

2. It offers durable abrasion resistance in a wide range of industrial applications.

3. The open weave construction allows an easy installation on a bundle of hoses
    and cables, even if some with bulky or large connectors.

4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.

5. Suitable for constructing and protecting cable harnesses or tidying cable looms.

6. Sleeve expands to allow the cables to pass through and then automatically shrinks back.

7. Multiple sizes and lengths available - identify via the sizing guide below and then select your
     required sizes and length via the drop down boxes above.

Specification about this Cable Protective Sleeve?

Product Name
EKO PET Braided Wrap Cable Sleeving Expandable Flame Retardant Braided Cable Protection Sleeve
Sleeve Material
0.25mm Polyester monofilament
Size
25mm
Thickness
0.25mm
Color
Green
Flammability class
VW-1
Operating Temperature
-50°C~+150°C
Melt Point
240°C+(-)10°C
Cerfication
ROHS,UL,REACH,HALOGEN FREE
Cutting tool
Hot knife

Application

Pet cable protection sleeve use in electronics, automotive, marine and industrial wire harnessing applications where cost efficiency and durability are critical.


Polyester braided sleeving  can be found in applications ranging from small office/home office to high tech wire and cable harnesses.

Available Size?

Datasheet
Nominal size (W)
Part No.
Expanded range
Packing (L)
Inch
mm
Min. (I)
Max. (O)
Standard spool
1/8''
3
BS-PET003
1
6
1000m
1/4''
6
BS-PET006
3
9
500m
5/16''
8
BS-PET008
5
16
350m
3/8''
10
BS-PET010
7
19
350m
1/2''
12
BS-PET012
8
24
300m
5/8''
15
BS-PET016
10
27
250m
3/4''
20
BS-PET019
14
30
200m
1''
25
BS-PET025
18
35
200m
1-1/4''
30
BS-PET032
20
50
150m
1-1/2''
40
BS-PET038
30
60
100m
1-3/4''
45
BS-PET045
35
75
100m
2''
50
BS-PET050
40
80
100m
2-1/2''
64
BS-PET064
45
105
100m
3''
76
BS-PET076
64
120
100m

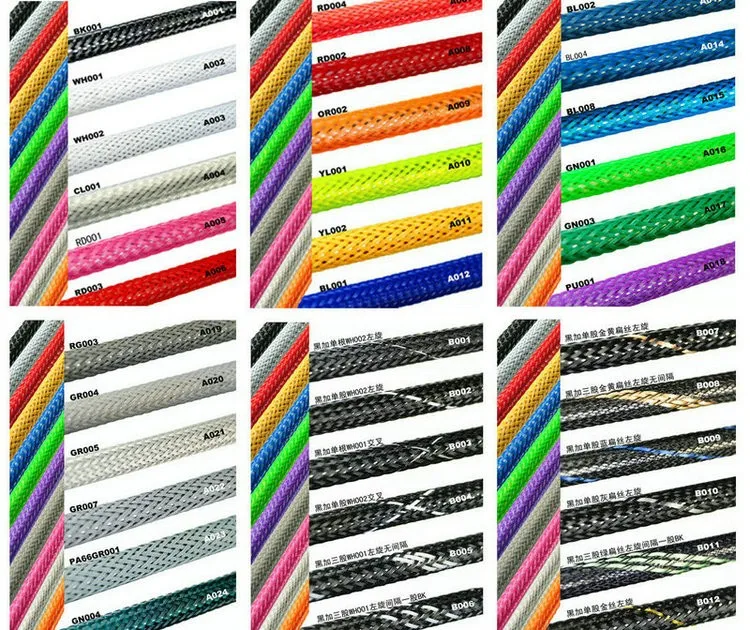

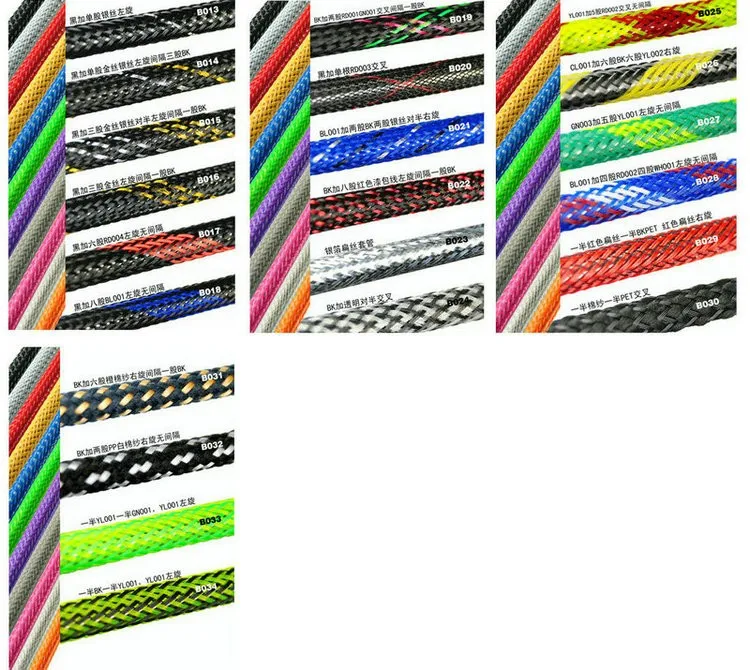

Available Color

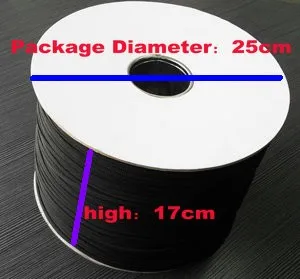

What's the packing of 25mm PET cable sleeve?

Length
200m/spool
Carton Quantity
4/spools in 1 ctns
G.W
15 kg/ctn
Carton Size
52*52*18cm

Can i get some sample?

Sample free, buyer afford sample shipping charge


Sample leadtime:3-5 days
