Single screw pump universal joint Screw pump universal joint Eccentric pump universal joint

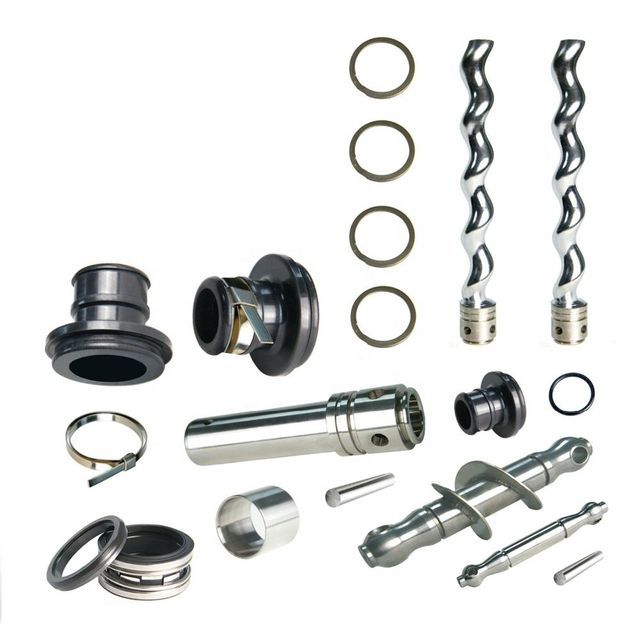

Universal joint components

MONO screw pump universal joint assembly, including rubber sheath, rubber ring, connecting rod pin, and fixing belt.

Part function and material introduction

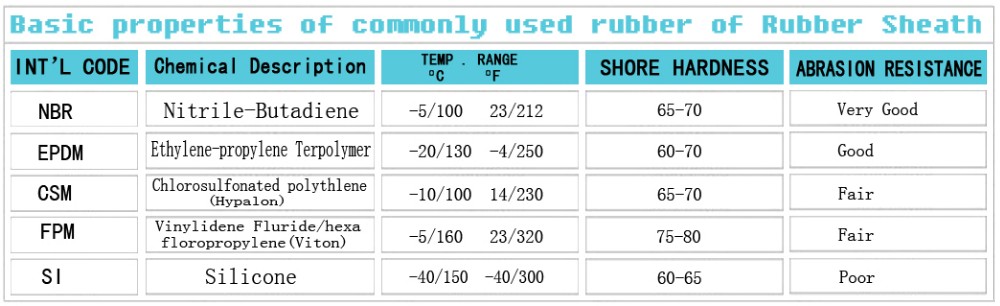

Detailed introduction of rubber sheath

1. Product features and performance

(1), good wear resistance, stronger tear resistance, good bending strength

(2), greater tensile strength and elongation at break

(3), moderate high temperature resistance (30 ~ +110 degrees)

(4), adjustable range of hardness (Shore 80A-95A);

(5), lower compression set rate

(6) More resistant to oil corrosion, good solvent resistance, high mechanical strength, corrosion resistance and long service life.

(7), ozone resistance, aging resistance;

(8), non-toxic, in line with environmental standards

2. Material

Nitrile, EPDM, Viton, SI. FPM is especially suitable for strong acid, strong alkali, corrosive chemicals and high-speed environment, temperature 30Bachelor of Scienceand 280Bachelor of Science

3. Customization and design

International standard sizes, non-standard sizes, and special-shaped rubber parts can be customized; special products can be customized according to drawings, and customers are welcome to consult and order.

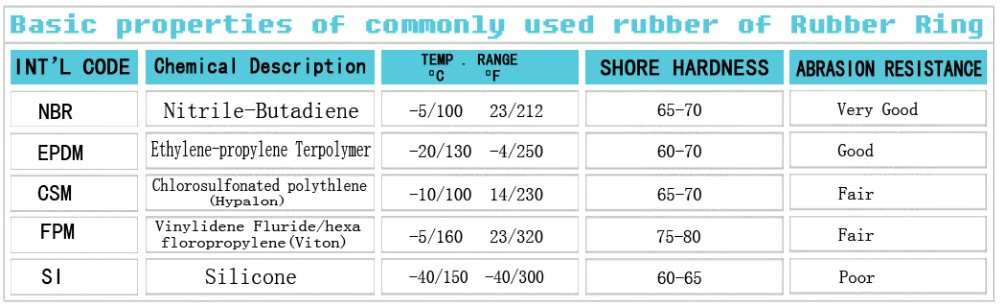

O-ring seal details:

Silicone waterproof sealing ring has high temperature resistance, low temperature resistance, ozone resistance, aging resistance, and electrical insulation properties. The Shore hardness of the silicone waterproof sealing ring is between 20 degrees and 90 degrees.

We stock all types and sizes of seal rings under the NETZSCH, SEEPEX, MONO and PCM brands. Warmly welcome inquiries and orders.

fixed sleeve

The screw pump stop sleeve is one of the typical parts of the screw pump universal joint assembly. It is mainly used to support transmission parts, transmit torque and bear load.

The stop sleeve fits on the rotor and the transmission shaft, and the shaft can be positioned, supported, guided or protected when the screw pump is running

The function of the stop sleeve is generally to prevent the axial movement and fracture of the shaft. In some horizontal pumps, the shaft sleeve is used for axial adjustment, and the packing ring with packing is used for sealing.

Fixed sleeve material

Generally choose steel, casting, bronze, brass or alloy steel material

Link pin

The connecting rod pin is the part that goes through two holes in the connecting rod.

It is mainly used in the shaft assembly of the screw pump, connecting the transmission shaft and the rotor.

Connecting rod pin material

As a connection pin, its diameter can be determined according to the structural characteristics of the connection. Do a strength check if necessary.

Commonly used materials for the shaft are No. 35 steel, No. 45 steel, No. 50 steel, T8A, T10A, and the hardness after heat treatment is 30~36HRC.

The main materials used by our company are: No. 35 steel, No. 45 steel; GCr15; 4Cr13

Detailed description of screw pump hoop

(1) Product name: steel hoop stainless steel

(2) Product use: used to lock and fix the rubber sleeve on the coupling rod and the transmission shaft.

(3) Product material: stainless steel; spring steel

(4) Product features: The size can be adjusted freely to meet the requirements of different specifications of screw pump parts.

Description of the main material of the hoop:

Stainless steel

The main alloying element in stainless steel is Cr, and only when the Cr content reaches a certain amount, the steel is resistant to corrosion. Therefore, stainless steel generally has a Cr (chromium) content of at least 10.5%. Stainless steel also contains Ni, Ti, Mn, N, Nb, Mo, Si, Cu and other elements. The corrosion resistance of stainless steel decreases with the increase of carbon content. Therefore, the carbon content of most stainless steels is low, up to 1.2%, and the Wc (carbon content) of some steels is even lower than 0.03% (such as 00Cr12) .

spring steel

Spring steel refers to steel that is elastic under quenching and tempering conditions, and is specially used to manufacture springs and elastic components. The elastic deformation of steel depends on its deformation ability, that is, within the specified range, the elastic deformation ability enables it to bear a certain load, and no permanent deformation occurs after the load is removed.

Standard Factory Availability

1) There are various accessories in ST D'Secondfactory, which allows us to offer quick turnaround to help reduce equipment downtime and save you from buying inventory.

2) Same day delivery is available upon request (subject to availability, location and time of order), helping to minimize disruptions and production interruptions. This service, combined with an online purchase option, simplifies the logistics of pump maintenance.

3) For spare parts, fast shipments are available, ensuring production disruption or downtime is minimized. The industry's top service and very competitive price are the source of your trust and value in purchasing spare parts

very competitive price

With the increasing focus on operating and maintenance cost control, we understand that the price and availability of spare parts is an important agenda item when evaluating plant savings and efficiency.

compare betweenvenereal disease Generic parts and OEM spares, just request a no obligation quote.

quality assurance

STD is a manufacturer specializing in R&D and production of single screw and general accessories. The product quality is tested by the professional market to meet the needs of customers.

Unanimous recognition and praise.

STD Common Parts Overview

STD has a solid reputation for the quality of its equipment and parts. In recent years it has been our mission to use our manufacturing and engineering expertise to expand our product offering to include a range of high quality STD common parts for many other brands of Progressive Cavity (PC) pumps.

We offer STD universal parts that can be used with other brands of single screw pumps in the following series. For others not listed, please contact STD

1) NETZSCH™ 2) SEEPEX™ 3) MONO™ 4) PCM™

Progressive cavity pump spare parts and service

Commonly used spare parts are always in stock, and spare parts are required to ensure timely delivery.

1. Rotor 2. Stator 3. Shaft seal (mechanical seal or packing)

4. Transmission system assembly: universal joint; rubber sleeve; connecting rod; shaft pin; stop sleeve; guide sleeve; etc.

We can supply MONO brand general spare parts

We can provide universal spare parts of SEEPEX brand

We can supply universal spare parts of NETZSCH brand

certified

1) What products does STD offer?

STD provides global solutions for screw pumps, screw pump accessories, and fluid system products.

Product range overview of STD

Progressive cavity pumps for conveying and metering low to high viscosity media with or without solids

Macerators are used to macerate solid and fibrous components in media

Control systems for monitoring, regulating and controlling processes

Services: consulting, commissioning, maintenance, common parts for NETZSCH, SEEPEX and MONO, repairs and various service contracts

2) Does STD offer custom pumps?

Yes, that's our specialty. With different designs and material combinations, our modular systems can be customized for almost any application. This means that we develop the best technical and economical solution for your requirements.

3) Can STD spare parts be ordered online

Yes, STD Progressive Cavity Pumps and spare parts and other brands (blogsmallCH,SEEPEX.MONO) Universal accessories can be ordered online. To order, please contact us.

4) How soon can my STD pump be delivered?

Typically, standard pumps are delivered within 4 to 6 weeks. In urgent cases, the delivery time may be between 2 and 5 days. Please contact us. Tel: 0086 -189 4242 4342

6) Product quality assurance

According to the international standards, according to international standards,

Water pump warranty is 1 year, accessories are guaranteed for 3 months

our service

1). Our screw pump products have reasonable price, excellent service and quality inspection. Customized products are welcome.

2). We have a special quality supervision department to ensure the quality of mass production

3). If the product has quality problems, we will deal with it as soon as possible, find out the reason and take responsibility.

4). If you are interested in our products and company, please leave a message here or send us an email, we will reply you within 24 hours.

Why choose us

1). We produce and export the goods directly without an agent in the middle, which minimizes the cost and makes your price lower.

2). In order to maintain stable product quality, all our production machines are imported from European original factories, and we do not use low-standard equipment.

3). We ensure on-time delivery; we can provide the best service for purchasing, quality control, shipping, documents, etc.

4). We provide samples and OEM service.

5).We will reply your inquiry within 24 hours.

6). More than 20 years of industry experience, and a professional team make our customers feel easy and comfortable to work with us

7). Please contact us by email, we will send you more pictures of our products for your selection.
