Single package size: | 16X34X63 cm; | Size: | Custom; |
Material: | PTFE Coating Fiberglass Fabric; | Good Features: | Heat resistant; |
Color: | Black , beige, light brown, silver; | Application: | OUTDOOR; |
Certification: | ISO,SGS,FDA,LFGB,PONY; | Place of Origin: | Jiangsu China (Mainland); |
Roll length: | 1-100m; | Thickness: | 0.08mm-1mm; |
Brand Name: | Chuanda Teflon tape; | Name: | heat-resist insulating Fiberglass tape; |
Selling Units: | Single item; | Package Type: | PTFE Teflon tape Bubble film + Standard export CTN to pack the heat-resist insulating Fiberglass tape; |
Single gross weight: | 1 KG; | Temperature resistance: | -80-260C; |
Model Number: | CD0009 Teflon tape; | Sample: | Free sample, free shipping; |

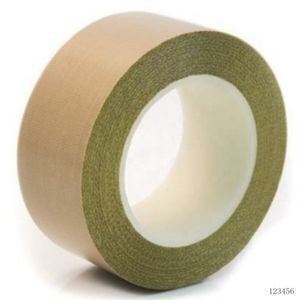

heat-resist insulating Fiberglass tape
Name | heat-resist insulating Fiberglass tape |
Material | Fiberglass coated with PTFE |
Mini order quantity | 50 square meters |
Port | shanghai |
Term of payment | T/T,L/C,D/P,PAYPAL,WESTERN UNION |
Supply ability | 100000 squar meters /month |
Delivery detail | 3-10 days after advance payment or confirmed L/C received |
Packing detail | Bubble film + Standard export CTN. |
Length | 10~55m |
Max width | 1250mm |
Color | Black, beige, brown |
Temperature | -70℃~ 260℃ |
Certifications | FDA,LFGB,SGS, ROHS, CE / EU, PONY |
Other | Easily Cleaned, Heat Resistance |
Shipment | Express Delivery, Sea Shipment, Air Shipment |
heat-resist insulating Fiberglass tape Properties:
1.The non-adhesive side exhibits excellent features of polytetrafluoroethylene (PTFE) such as electrical
properties, resistance to heat, weather, chemical, and water (water shedding), and non-adhesiveness
2.Superior tensile strength.
3.Superior flame resistance.
4.Can be used in a wide range of temperature (-60°C-260°C), however, it may vary according to the
use condition.
heat-resist insulating Fiberglass tape Applications:
1.For roll wrapping in polyethylene laminators (Suitable for long continuous use as the tape has superior durability and mechanical strength).
2.For endless belts of polyethylene laminators.
3.For insulation of coils as a class H insulating material.
4.Can be laminated with metals, plastics and ceramics as general sliding materials.
Product Model:
Model | Size |
973UL | 0.13MM*5MM*10M |
973UL | 0.13MM*10MM*10M |
973UL | 0.13MM*13MM*10M |
973UL | 0.13MM*19MM*10M |
973UL | 0.13MM*25MM*10M |
973UL | 0.13MM*100MM*10M |
903UL | 0.08mmx13mmx10m |
903UL | 0.08MM*25.4MM*10M |
918UL | 0.18MM*1M*50M |
918UL | 0.18MM*1M*30M |
Can be custom |
heat-resist insulating Fiberglass tape TECHNICAL DATA:
Item | Basic cloth Thickness | TOTAL THICKNESS | Max width | Adhesive Strength | Tensile Strength | Temperature | Color | |
mil | mm | mm | mm | N/mm | N/mm | ℃ |
| |
7008 | 3 | 0.08 | 0.13 | 1250 | 20/100 | 100/100 | -60-260 | Brown, Black, White, Beige |
7013 | 5 | 0.13 | 0.18 | 1250 | 22/100 | 900/100 | -60-260 | |
7015 | 6 | 0.15 | 0.20 | 1250 | 24/100 | 1300/100 | -60-260 | |
7018 | 7 | 0.18 | 0.23 | 1250 | 28/100 | 1700/100 | -60-260 | |
7020 | 8 | 0.20 | 0.25 | 1250 | 30/100 | 2000/100 | -60-260 | |
7025 | 10 | 0.25 | 0.30 | 1250 | 45/100 | 2750/100 | -60-260 |
heat-resist insulating Fiberglass tape
heat-resist insulating Fiberglass tape
heat-resist insulating Fiberglass tape
heat-resist insulating Fiberglass tape
Production Process
Product quality inspection
Our team
heat-resist insulating Fiberglass tape
