PTFE Coated Fiberglass Fabric Mesh Belts

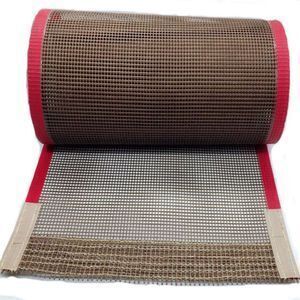

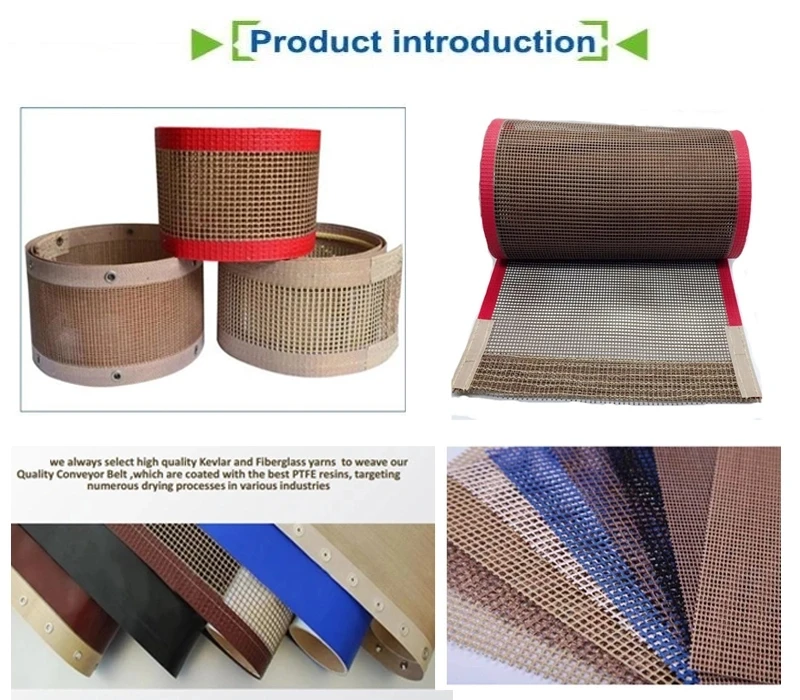

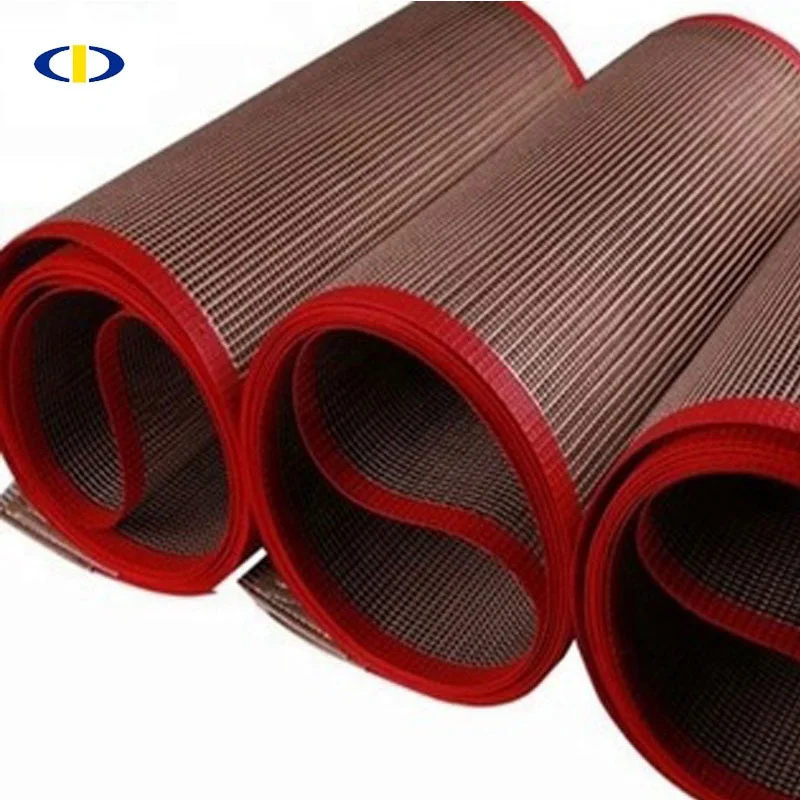

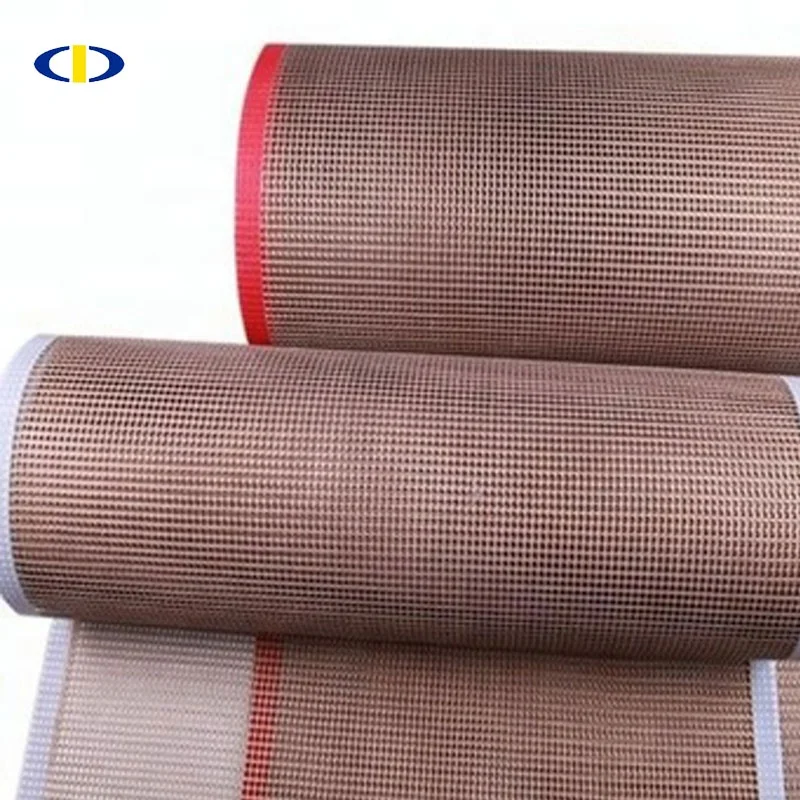

PTFE Teflon Coated Fiberglass Mesh Conveyor Belt
1.Thickness:1.0mm
2.Temperature :-70 to 260C
3.Chemical Inertness
4.Non-Stick surface

PTFE Teflon Coated Fiberglass Mesh Conveyor Belt Applications:

PTFE mesh belts are used in applications such as the drying of printed products for example; point of display stands, T-shirts, glass and mass produced paper prints. Print dryers usually opt for Ultra violet, Infra red or hot air as the heat source to dry.

Other applications range from the drying of cereals, non woven's, charcoal interlinings, carpet & carpet tiles, printed circuit boards and shrink-wrap tunnels but to name a few.

PTFE Belting

Chuanda manufactures various of belts with its material of smooth ptfe fabric,ptfe mesh, kevla, silicon rubber etc to custom specifications, depending on each customer’s individual needs. To help determine the best belt for your unique application, you need provide the following information for our experienced technical manager to discuss your requirement.

Ordering Your Chuanda PTFE teflon coated fiberglass Belt
Whenever possible, have the following information available:

     * Dimensions of belt: width and length
     * Desired splice, edge reinforcement and tracking devices, where needed
     * Pulley size and type
     * Any special construction or instructions concerning the fabrication of your Ruida belt. In some cases of
       complex fabrication,a print may be requested.

Choosing the Right Material
There are a number of factors to keep in mind when choosing the belting material for your application:

     * Temperature Range – Our ptfe fabrics have the capabilities of withstanding -70°C- +260°C constant operating temperatures.
     * Pliability – If the material is to track around pulleys that drive the belt, the diameter of the pulley is critical. The smaller the roller the more flexible the belt must be. Ruida’s thinner materials (0.010” and under) are more pliant than the heavier coated fabrics.
     * Release Qualities – The surface finishes of our materials range from a rough, semi-porous finish to a super smooth surface. The release or fabric impression results desired will be a determining factor.
     * Strength – Options to be considered are breaking, tensile and tear strength. How much of a load the belt carries, how fast it moves and how tightly it will be tensioned all must be considered.

Fabric Grades
Pls refer to PTFE fabric products colomn

Fabrication Options
Learn more about the many options available for constructing your PTFE conveyor belt.

Edge Reinforcements
Chuanda belts can be supplied with strips of heat-sealed film or fabric on one or both edges of your belt. This reinforcement serves a dual purpose; it reduces fraying of belt edges which rub on guiding rollers and it also provides the strongest possible anchor for guiding pins, snaps and grommets.

Two-Ply Belts
Two-ply belts are constructed of two plies of TFE-GLASS™, laminated together with staggered splices. This provides a smooth, continuous thickness along the entire belt length which guarantees a uniform seal in packaging and heat-sealing applications. The belts are typically available in widths of ½" – 3".
