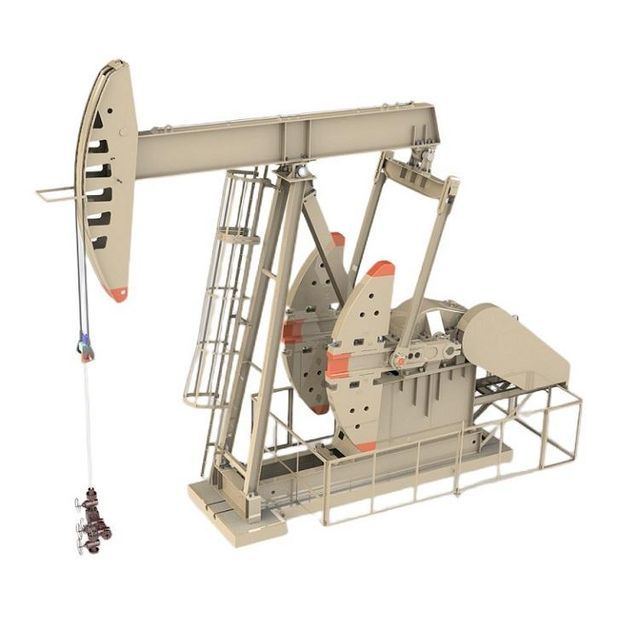

API 11E oil well jack pump crankshaft pump beam pumping unit

Supplier: Yantai Sanmon Machinery Equipments Co., Ltd.
Region: Shandong, China
Contact: Ms Candice TIAN
Price: $5000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Health status:	new	After-sales service provided:	Overseas service center available
Dimensions (LWH):	223.2386.61168.43	Packaging Details:	seawothy packaging, open top container
weight:	3 kg	Warranty:	1 year
model:	C-228D-246-86,C-228D-246-86	journey:	64m
Origin:	Shandong China	Mechanical test report:	if
Core component warranty:	1 year	Marketing Type:	2019 New Products
unit weight:	8.5 tons	Voltage:	high pressure
Reducer Rating:	80 (1000 lbs)	feature:	conventional walking beam
Applicable industries:	Energy and Mining	port:	Tianjin port or Qingdao port
product name:	pumping unit	Supply capacity:	100 pieces of pumping units per month
Production capacity:	100%	strength:	electrical
Showroom location:	not any	Standard or non-standard:	standard
brand:	Three doors	standard:	API 11E
Video shipment inspection:	if	Structural capacity:	119((100 lbs)
Core components:	gear pump	Package preview:
payment terms:	L/C, Western Union, T/T, MoneyGram

Product Description

Our API series conventional beam pumping units are fully compliant with API specifications. Modularization and virtual manufacturing technology are adopted in the design process, the product structure is optimized, and the components are highly standardized, generalized and serialized.

Model	Rated polished rod load (lbs)	Stroke Length (inches)	Reducer Rated Torque (in.lbs)
C-912D-470-240	47,000	240, 211, 181	912,000
C-912D-427-216	42,700	216, 185, 155	912,000
C-912D-427-192	42,700	192, 165, 138	912,000
C-912D-305-192	30,500	192, 165, 138	912,000
C-912D-365-168	36,500	168, 144, 121	912,000
C-912D-305-168	30,500	168, 144, 121	912,000
C-912D-427-144	42,700	144, 123, 102	912,000
C-640D-305-192	30,500	192, 165, 138	640,000
C-640D-305-168	30,500	168, 144, 121	640,000
C-640D-365-144	36,500	144, 123, 102	640,000
C-640D-305-144	30,500	144, 123, 102	640,000
C-640D-256-144	25,600	144, 123, 102	640,000
C-640D-305-120	30,500	120, 102, 84	640,000
C-456D-305-168	30,500	168, 144, 121	456,000
C-456D-305-144	30,500	144, 123, 102	456,000
C-456D-256-144	25,600	144, 123, 102	456,000
C-456D-365-120	36,500	120, 102, 84	456,000
C-456D-305-120	30,500	120, 102, 84	456,000
C-456D-256-120	25,600	120, 102, 84	456,000
C-320D-256-144	25,600	144, 123, 102	320,000
C-320D-256-120	25,600	120, 102, 84	320,000
C-320D-213-120	21,300	120, 102, 84	320,000
C-320D-305-100	30,500	100, 85, 70	320,000
