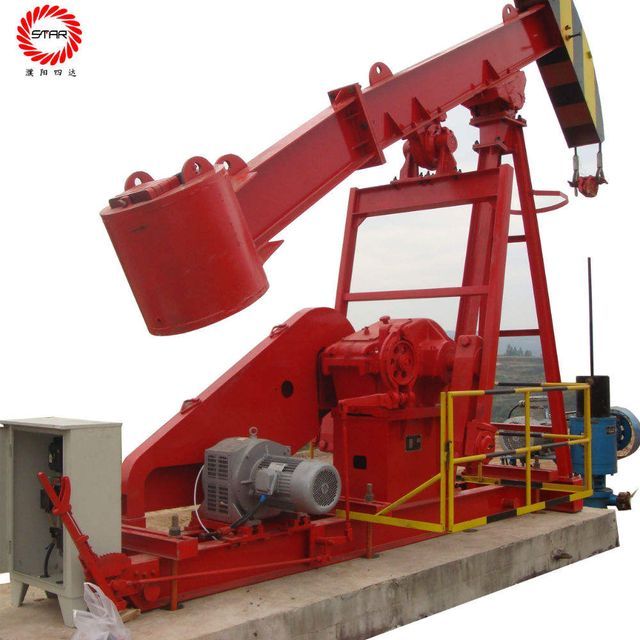

Electric Gear Reducer Oil Well Equipment Walking Double Horse Oil Beam New Simple Bucket Machine

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

port:	Tianjin, Qingdao, Shanghai, Ningbo, Guangzhou, Dalian	After-sales service provided:	Engineers can repair machinery overseas
feature:	traditional walking beam	Place of origin:	Henan, China
strength:	traditional	weight:	3-20 tons
Packaging details:	Kowtow machine: 1. Small items are loaded into iron boxes, 2. Large items are loaded naked into containers, 3. The specific container transportation information depends on the model of the pumping unit.	Customs code:	8413200000/8431499900
standard:	API Specification 11E	Company Name:	Puyang Star Petroleum Machinery Co., Ltd.
balance:	beam balance	color:	According to order
Voltage:	Require	Polishing Rod Capacity (lbs):	6700-13300
model:	B009	product name:	kowtow machine
Health status:	new	Production capacity:	Trip frequency
payment terms:	L/C, T/T, Western Union, MoneyGram, Paypal, Credit Card, Cash	Dimensions (lengthwidthheight):	irregular
Warranty:	2 years	Rated torque (in. lbs.):	16000-80000
Supply capacity:	300 sets per month	Stroke Length (inches):	20-82
Delivery details:	According to order quantity	brand:	Star
Certification:	ISO9001:2008/API Specification 11E	type:	B series

Product Description

brief introduction

kowtow machineIt is a beam balancing device. These devices meet many of the economical production needs of shallow wells. It is a common surface device for pumping oil with a sucker rod.

product information

kowtow machine

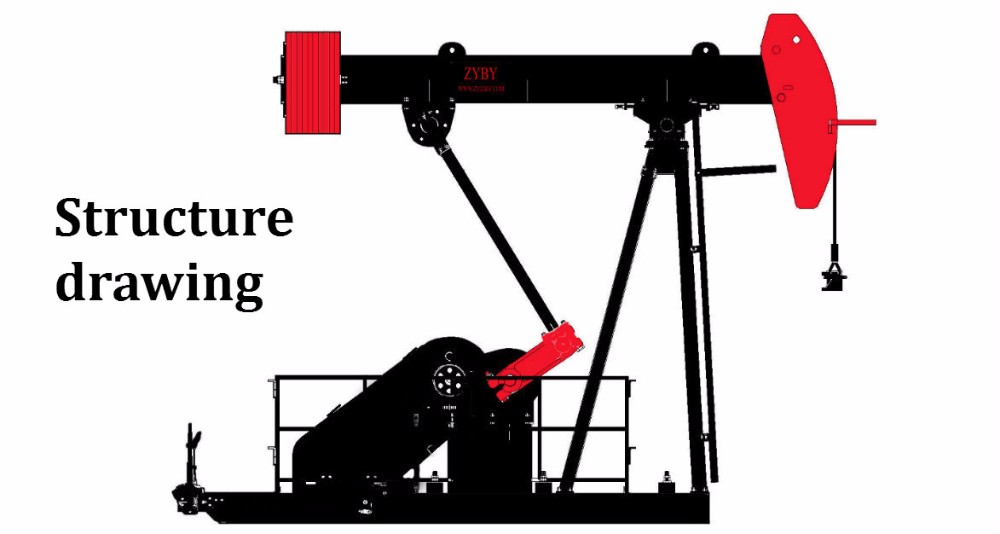

Structure diagram

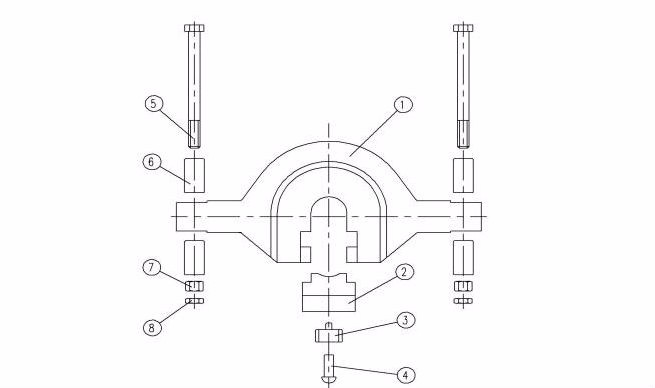

_{load bearing rod}

describe:Body, baffle, lock, block, rivet, bolt, sleeve, nut

introduce:

The load-bearing rod is used to connect polished poles, steel wires and polished pole clamps with high strength and stability.

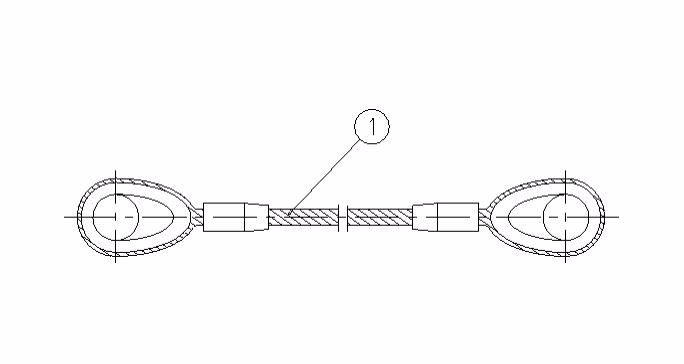

wireline

Description: Loading rod

introduce:

Wire rope is made from multiple layers of non-twisted steel wire. Has sufficient strength and complies with API 11E specifications.

head
describe:horse head
introduce:Germany
The horse head is made of welded steel plates. The wire rope is hung on the horse head rope bracket. The horse head is attached to the front of the walking beam.

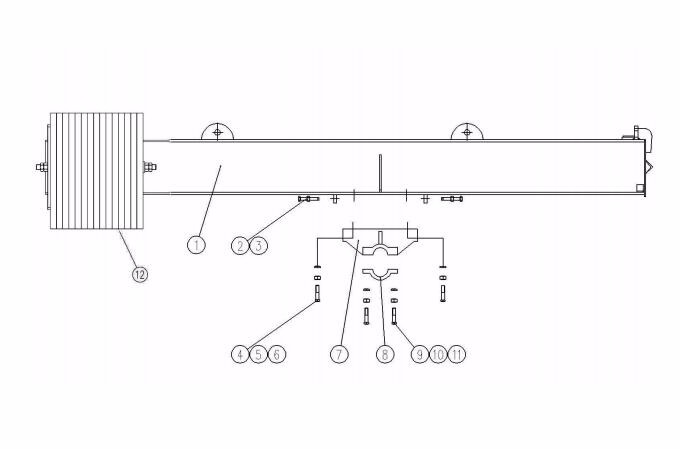

walking beam

Product description: Walking beam, bolts, nuts, center bearing assembly, bearing cap, cross beam counterweight

introduce:
The walking beam is made of welded steel plates. The front end of the beam is connected to the horse head through the horse head pin, and the rear end is connected to the balancer. The entire walking beam is fixed on the center bearing.

Protection belt

Description: Side fence, front fence, bolts, diagonal washers, washers, spring washers, nuts.

introduce:

The belt protective cover is a safety protection facility for the oil pumping unit. It is constructed from solid plate and is bolted to the pumping unit base assembly and gear reducer.

To learn more, please contact Lillian.

Please provide the following information so I can create a quote as quickly as possible:

1. Gear reducer: peak torque rating, reduction ratio, bearing type.

2. Frame structure: unit structure rating, travel range, beam counterweight, wrist pin bearing, color.

3. Quantity.

4. Transaction methods: EXW, FOB, CIF (CIF requires destination port)...

It would be better if there is a model, such as B-80D-119-64

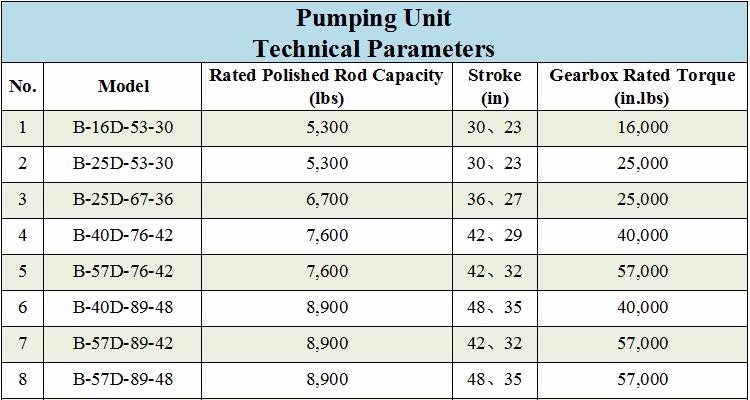

Technical Parameters

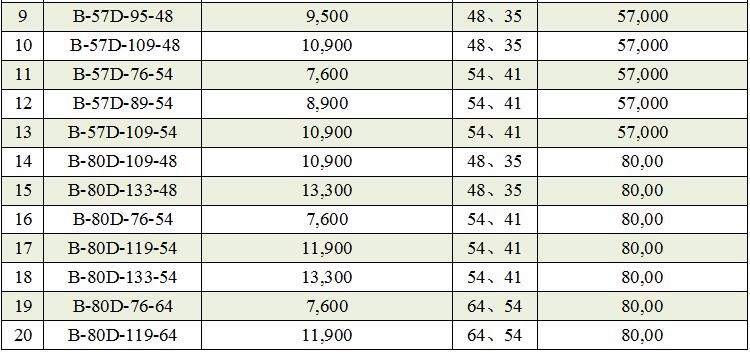

Main technical parameters of kowtow machine

Packaging and shipping

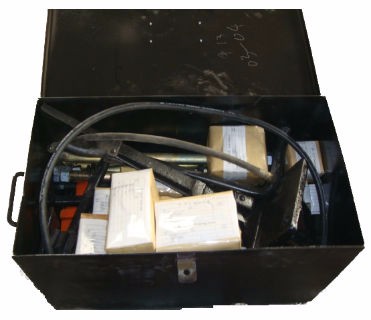

Package
Name	Parts/Tools/Documents
method	iron box
Packaging details	Put the small parts, tools and documents (operation manual, parts catalog) of the kowtow machine into the iron box, and then put them into the container together with the main machine
