2019 Oilfield Effective- friendly Equipment Flare Ignition Device Widely Used In Oil and Gas Drilling

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $2380.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	200kg;	Product Name:	Electrical Equipment Protection Device;
Industry:	Oil and Gas;	Warranty:	1 Year;
Condition:	New;	Temperature:	-40℃~55℃;
Port:	Tianjin,Qingdao,Shanghai,Lianyungang,Guangzhou,Ningbo;	Dimension(LWH):	3003002100mm;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash,Paypal, Trade Assurance;	Grouped Equipment:	Liquid Gas Separator;
COLOR:	Red or according to the requirement;	Place of Origin:	Henan China (Mainland);
Supply Ability:	50 Set/Sets per Month;	Company Nature:	Factory;
Certification:	ISO;	Packaging Detail:	Ignitor: 1.Main body naked into the container.Other parts fixed with iron frame 2.Transport to the port. 3.Shipping to the desitination port by sea. Remark:Can package according to the order requirement.;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Product Usage:	Elimination of Harmful Gases;
Brand Name:	STAR;	Aoolication:	Oil Drilling,Refinery and Natural Gas Gathering Station;
Raw material:	Steel;	Ignition Method:	Electronic;
Voltage:	16;

Product Description

Product Application

Ignitor for liquid-gas separators is an environmentally-friendly discharge torch that is exclusively produced by our company. It is suitable for ignition of long distances and air and toxic gas burning placesthat cannot be reached by humans.It is especially suitable for oil production(gas) overflow of gas or oil, naturral gas, and drilling operation in stationo gathering pipelines, and long-distance ignition of natural gas separated by liquid-gas separators during killing operations eliminate the unsafe factors of manual ignition. Avoid explosions that may occur when natural gas is mixed with air and H2S-containing gases that can harm humans and equipment.

Horizontal Igniter for burn the gas from well drilling discharged pipelines（Type:SDKX)

Verrical Igniter for Burn the gas from liquid-gas separator.（Type:YPD）

Flare Ignition Device Feature:

1.Stainless steel burner torch

2.Mature design with successful job site performance

3.Conventional battery or solar battery

4.Custom built available

Electrical Equipment Protection Device Tehnical Parameters
Fuel Tank	40L	Burner(Torch) Path:	DN200MM
Burner Height:	About 2m	Burner Height:	3m
Pressure Regulator Valve Set Outlet Pressure	≥0.5 Mpa	Electronic Ignitor Power:	DC
Remote Control Distance	30m	Electronic Ignitor Voltage:	16kW
Ignition Medium	Diesel	Electronic Ignitor Frequency:	100-1000beats/Min
Charging Voltage	~220V,50HZ
Ambinent Temperature:	－30℃～40℃
Ignition Frequency	≤10 Times/Second
Main Configuration
Combustion Cylinder	1	Fire Torch	1
Ignition Rod	1	Fire Tube	1
Control Box	1Set	Windshield	1
Fuel Injection Gun	1	Electrical Control Box	1
Oil Pipeline	1	Ignition Device Body	1(Including Torch,High-Energy Package)
Gas Pipeline	1	Ignition Control Box	1(There is a remote control,electronic control box key)
High Voltage Cable	30m	Cable Tray	1
Gas Hose	30m	Liquefied Gas Connection Pipeline	1(with 2 tube clip)
Remote Control	1	Pressure Reducing Valve	1

Products Display

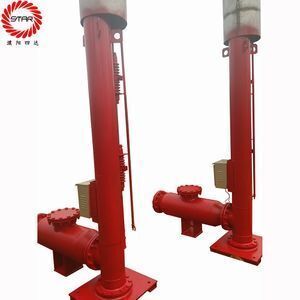

Verrical Igniter Display

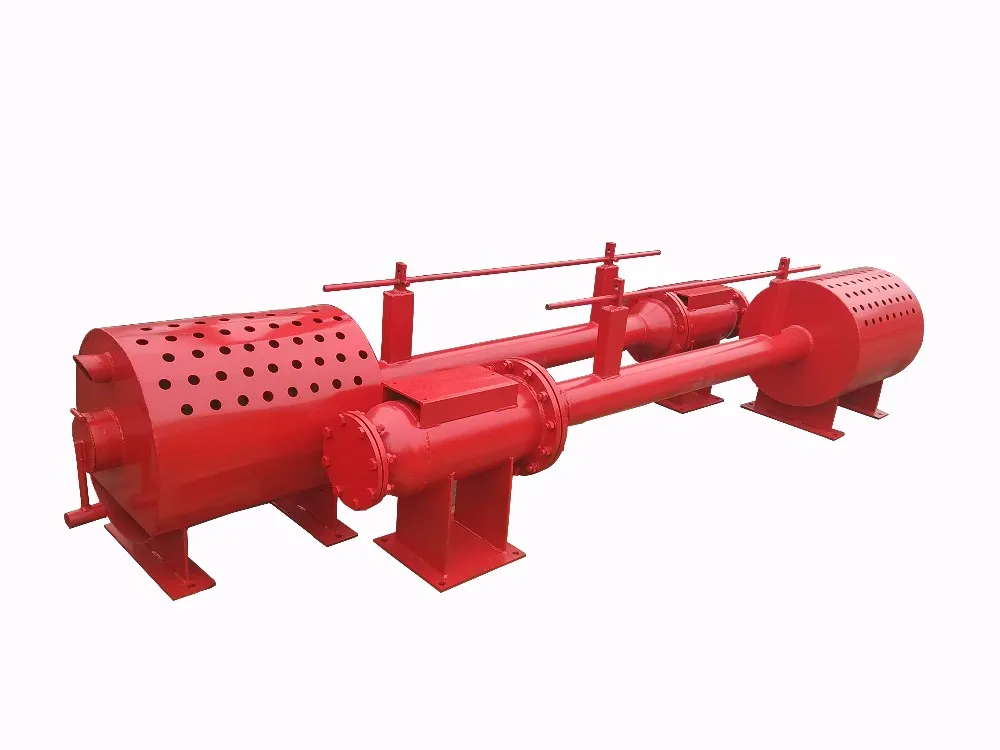

Horizontal Igniter

Certifications

Our Company was established in 2007,Obtained a business license,ISO,API and so on.

Packing & Delivery

Waiting for delivery

Ignitor for Well Drilling ready well, waitiing to be transport to the port.

Transport to the port

Container is transported to the port.

Sea Shipping

Container loaded on board, travel across to sea to the port of destination.

Our Company

Workshop Show

Factory Show

Team Show

The China Import and Export Fair

Foreign Exhibition

International Trade Service Team

Welcome friends from all over the world to come to visit our factory and guidance our work.

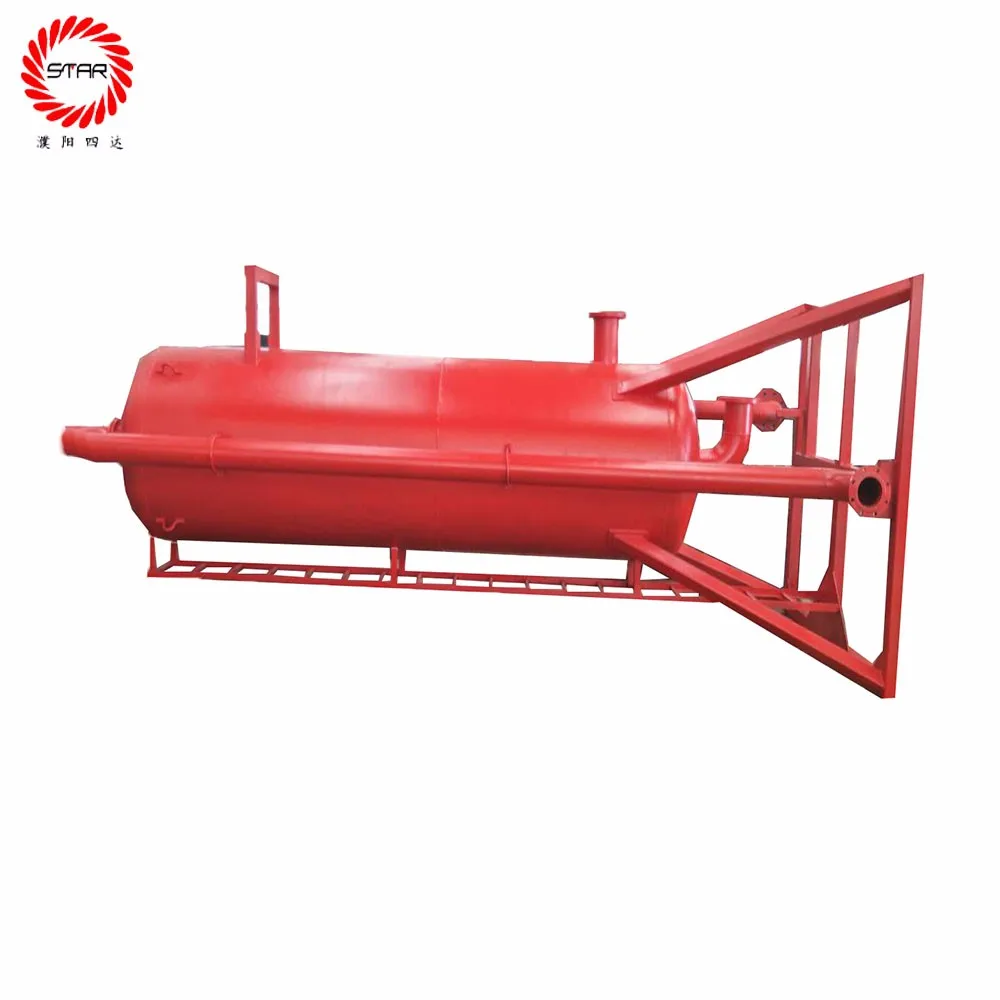

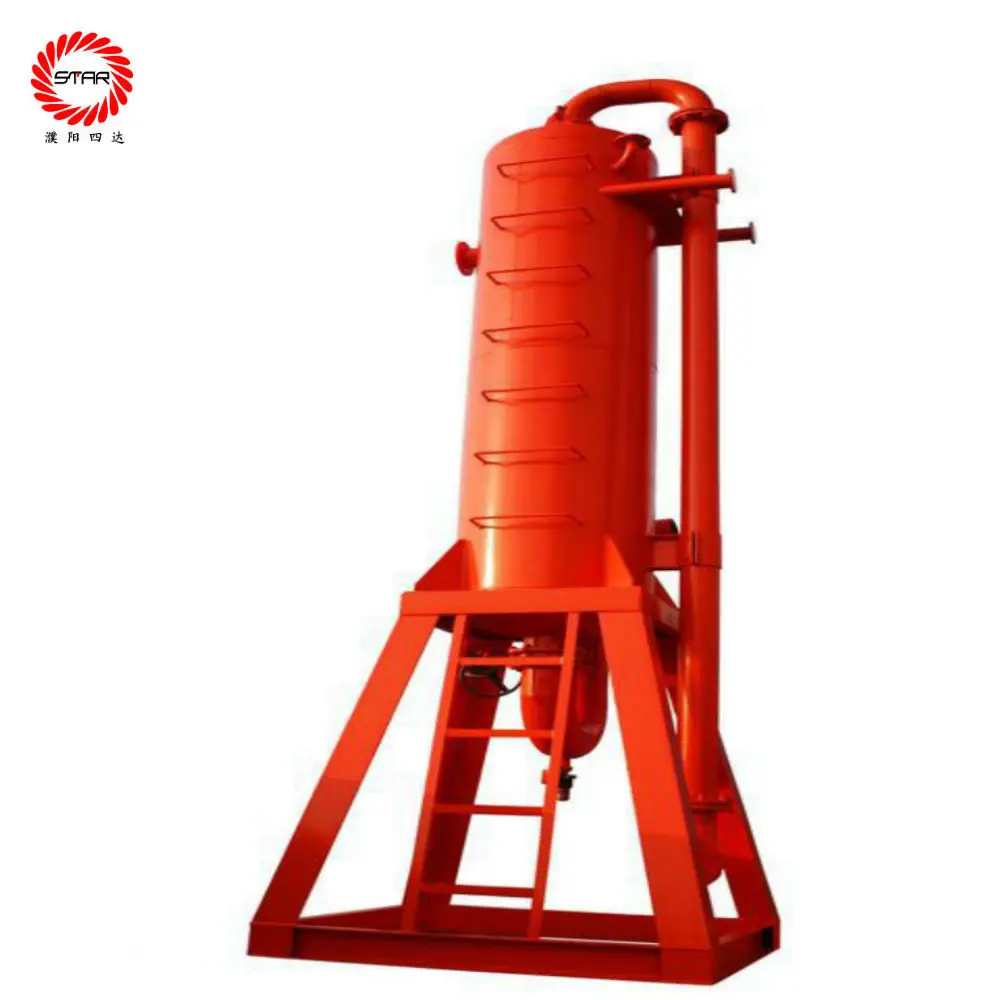

Oil-Gas Separator

91.8% Response Rate

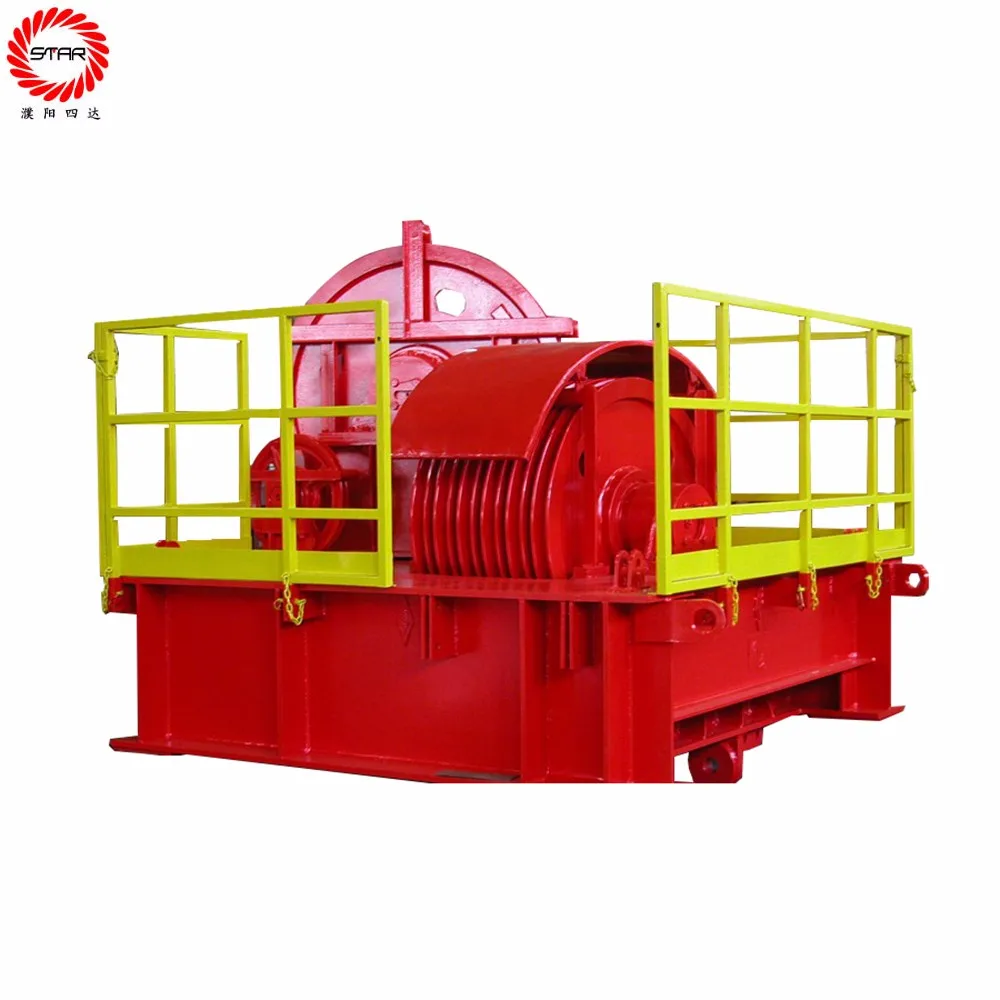

Crown Block

91.8% Response Rate

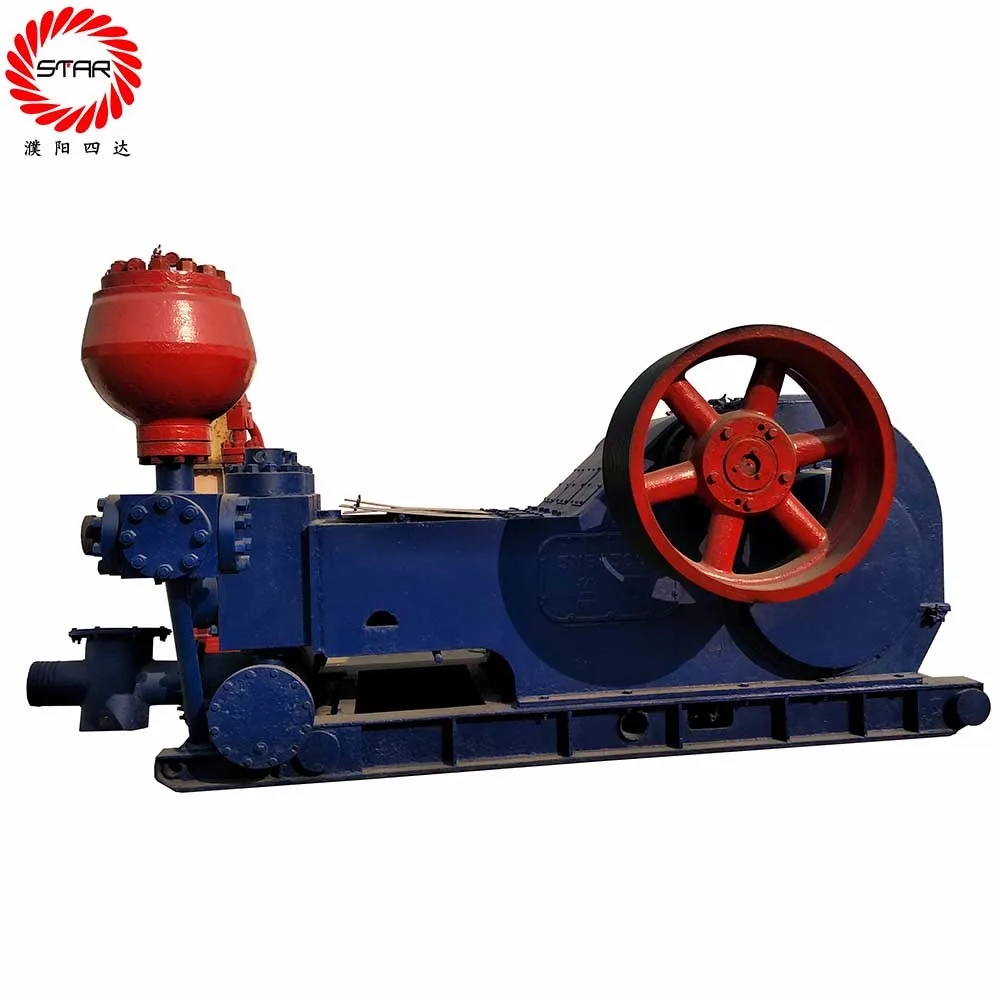

Mud Pump

91.8% Response Rate

FAQ

Problem	Reason	Solutions
1.After the controller is turned on, Ignition device does not ignite	1.Loss of battery 2.Output insurance blown 3.Cable and ignition cable broken 4.Possible ignition device is broken 5.Ignition conductive rod is damaged 6.High energy cable connector is not connected fastened	1.After charging, use again 2.Replace the same type of insurance 3.Check the connection wire and ignition wire 4.Contact after-sales service or repair 5.Check whether it is broken or replaced. 6.Close the ignition controller, check, check it ,then tighten the connection.
2.When the ignitor works, the front end of the conductive rod emits a sound of "pa,pa,pa...."	Ignition electric shock sound	Ignition electric shock sound
3.Igniter sparks at each connection	The connector is not tightened	Tighten(note that porcelain cannot be used too much)
4.Ignition controller output votage is too low	Maybe the voltage converter in the controller is faulty	Contact after-sale service or repair
5.Ignition controller charging deficiency	Maybe the controller charging system is faulty	Contact after-sale service or repair
