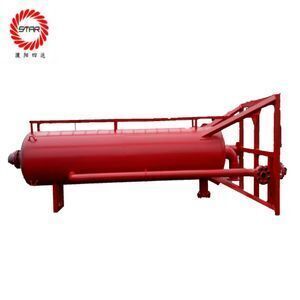

high performance mud/gas filter separator used for oil field

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Delivery Detail:	Within 30 days;	After-sales Service Provided:	Engineers available to service machinery overseas;
Condition:	New;	Condition:	New;
Brand Name:	Star;	Type:	Separating Plant;
place of origin:	Puyang,China(mainland);	Voltage:	Normal;
Dimension(LWH):	200020005860;	Brand Name:	STAR;
Model Number:	ZYQ800;	Ceitification:	API;
Weight:	2000kg;	Supply Ability:	500 Set/Sets per Month;
Place of Origin:	Henan China (Mainland);	Warranty:	2 YEARS;
Power(W):	50-60Hz;	Certification:	API&ISO;
Port:	Tianjin,Qingdao,Shanghai, Ningbo, Guangzhou,Dalian.;	Product name:	high performance mud/gas filter separator used for oil field;
color:	Red,Blue or customization;	Payment Terms:	L/C,Western Union,MoneyGram,CASH;
Usage:	drilling liquid cycling purification systom;	Packaging Detail:	Standard Package;

Product Description

Product Information:

The liquid gas separator is a special equipment for the primary degassing of the gas invasion drilling fluid, which is mainly used to remove the large bubbles in the gas invasion drilling fluid with a diameter of about 3mm to 25mm.

Work principle:

The gas invasion drilling fluid enters the separator from the inlet of the separator, and the surface area of the drilling fluid is enlarged and exposed after impacting with the impact plate. The large bubble is broken and separated from the drilling fluid. After the first degassing of the drilling fluid, the surface area of the three layers of baffles is increased again, and the remaining bubbles are broken and separated again. The free gas is discharged through the gas outlet of the top of the tank and is brought to the safety place.

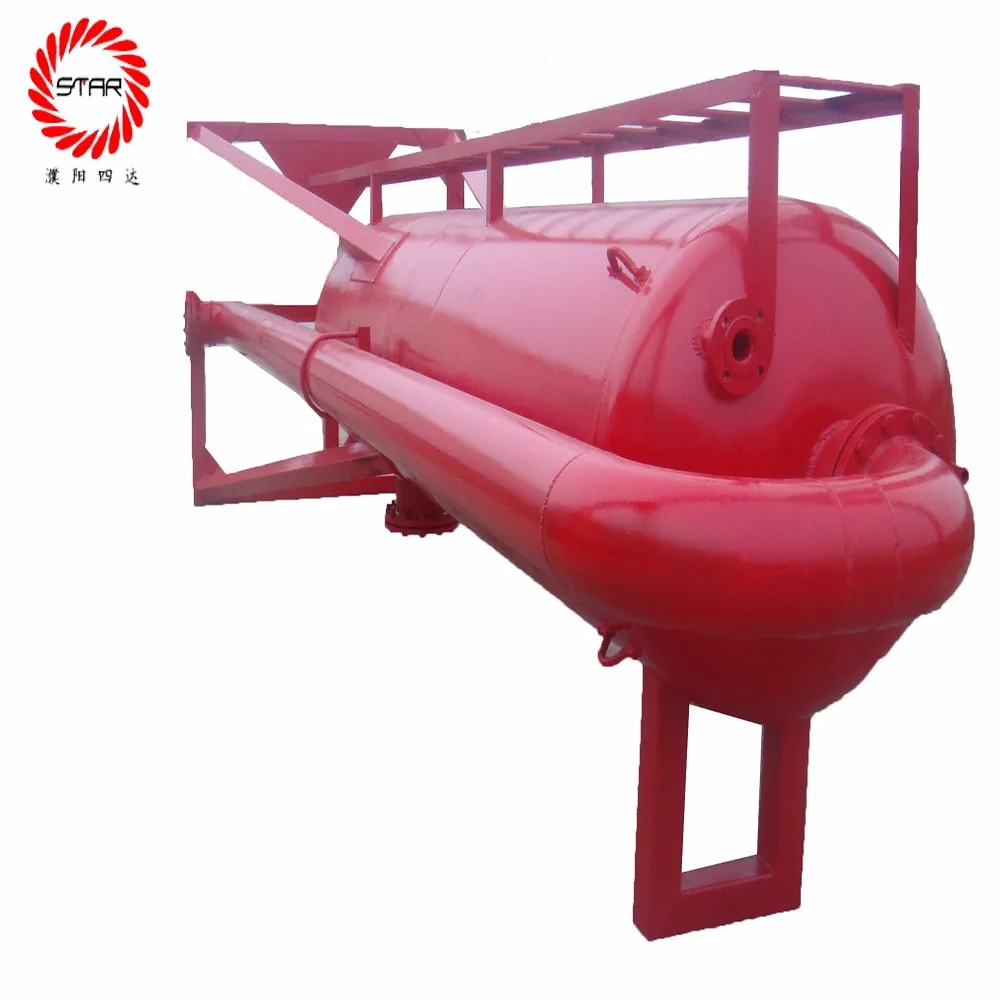

Mud/Gas Filter Separator Structure

Main Features:

1)Separate and vents large pockets of free gas accumulations,including toxic gases.

2) The separated gas is carried by vent line to a remote location and flared.

3) The unit is ruggedly built and coated with corrosion-resistant epoxy to ensure long life while processing hazardous and toxic gases.

Specation

Model	ZYQ800	ZYQ1000	ZYQ1200	ZYQ1400
Main Body Diameter	800mm	1000mm	1200mm	1400mm
Capacity	200-250m³/h	200-250m³/h	220-300m³/h	240-320m³/h
Inlet Pipe	5“	5”	5“	5”
Output Pipe	10“	10”	10“	10”
Gas Discharge Pipe	8“	8'	8"	8"
Weight	1500kg	2000kg	2800kg	3500kg
Dimensions	1800mm×1800mm×5860mm	2000mm×2000mm×5860mm	2200mm×2200mm×5860mm	2390mm×2390mm×6595mm
Height Adjustable	N/A	N/A	Available	Available
