2019 Top Quality Oilfield Drilling Fluid Mud Tank For Solid Control Made In China

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Features:	Solid Control System Corrugated Mud Tank;	Condition:	New;
Certification:	ISO9001;	Material:	Carbon Steel;
Voltage:	460V/380V/600v/660v;	Model Number:	ZG-3;
After-sales Service Provided:	Engineers available to service machinery overseas;	Nature of business:	Factory;
Company:	Puyang Star Petroleum Machinery CO.,LTD;	Dimension(LWH):	Client's Requirement;
Brand Name:	Star;	Production Capacity:	10 Sets/month;
Supply Ability:	2 Set/Sets per Month;	Payment Terms:	L/C,D/P,T/T,Western Union,payple,credit card;
Port:	Tianjin,Qingdao,Shanghai, Ningbo, Guangzhou,Dalian,;	Place of Origin:	Henan China;
Product name:	China Drilling Fluid Mud Tank;	Applicable Industries:	Energy & Mining;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service;	Warranty:	1 Year;
Heavy steel:	Oil Industry;	Application:	Petroleum Drilling Fluids Cleaning System;
Color:	White;	Diameter(mm):	860028002350;
Weight:	9.8tons;

Product Description

Mud tank is the necessary equipment and slurry processing equipment supporting the mud circulation system for storing the drilling mud.

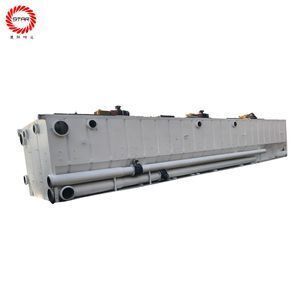

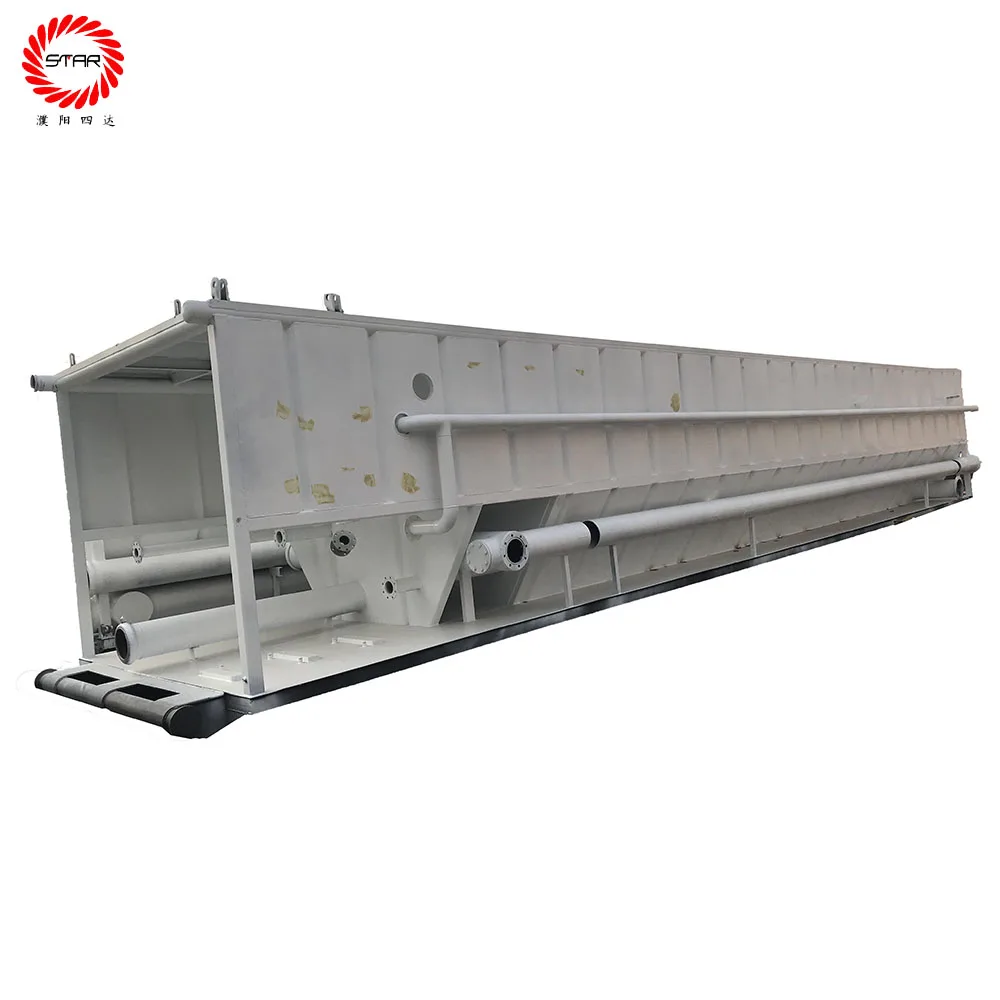

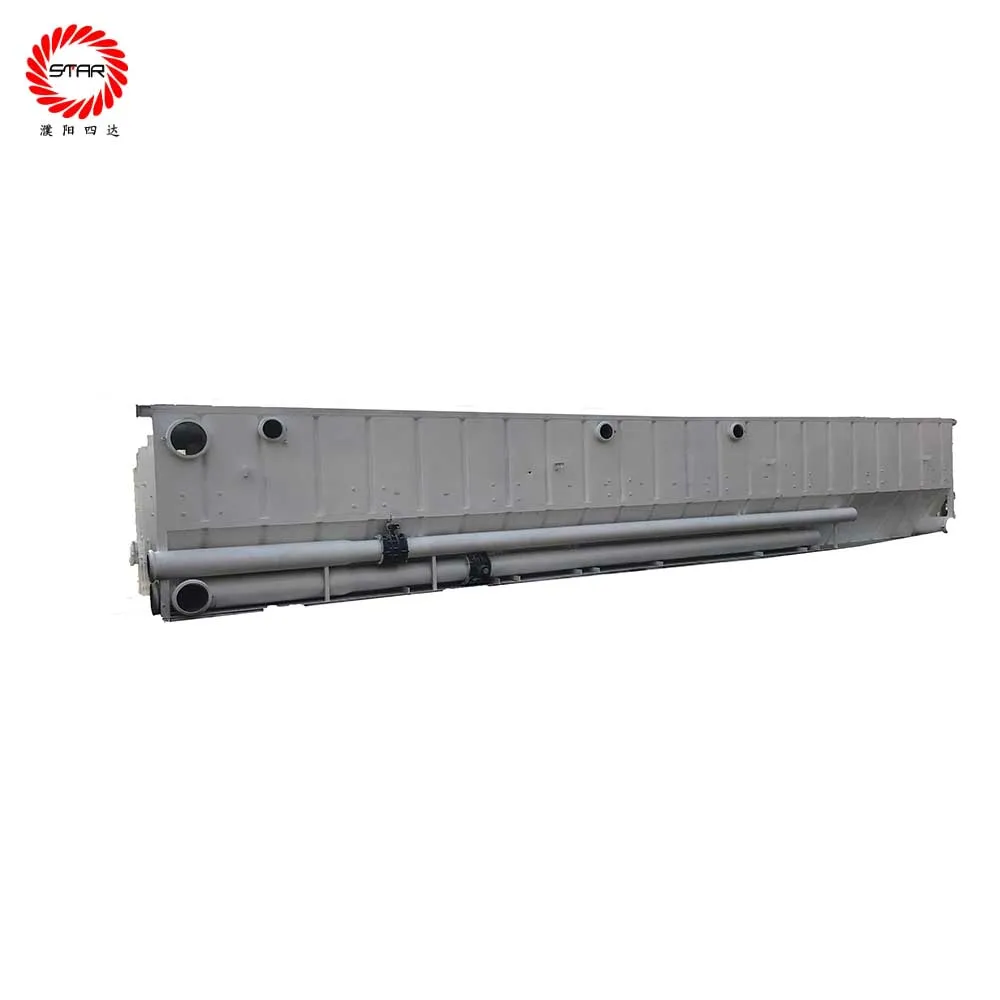

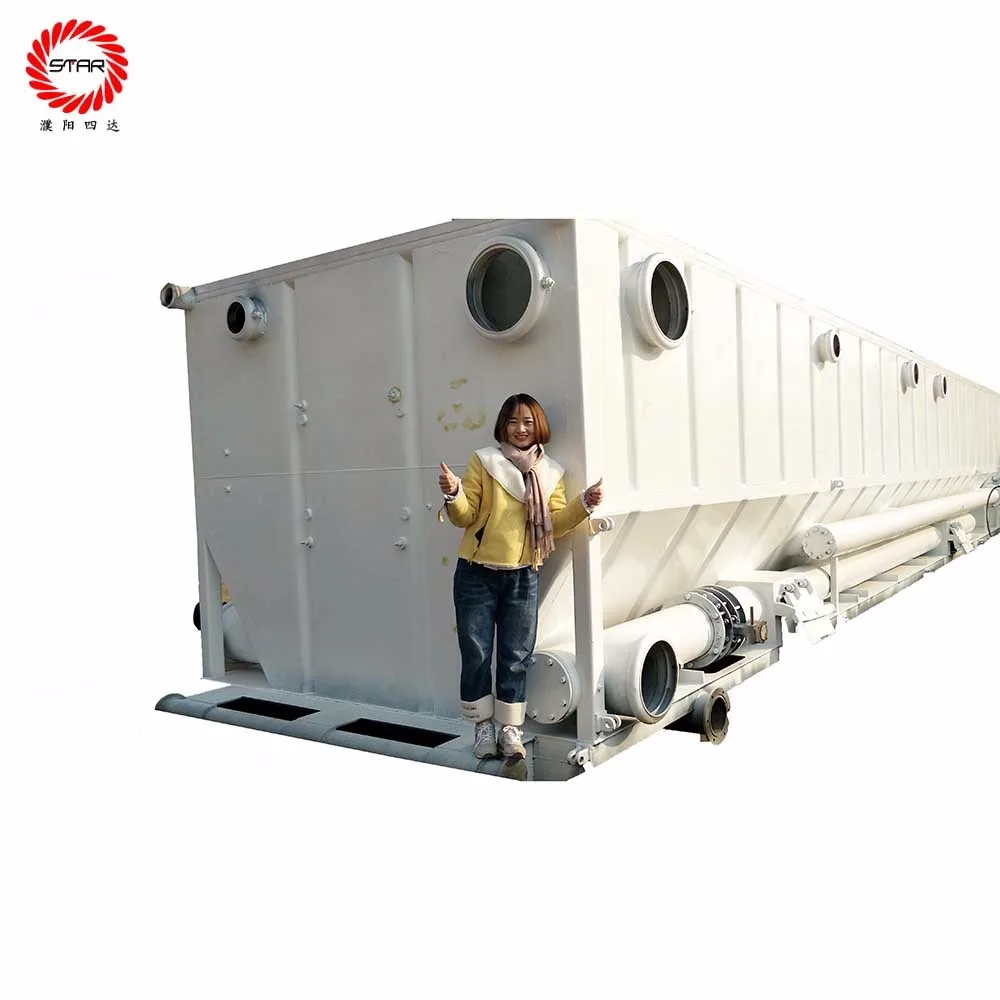

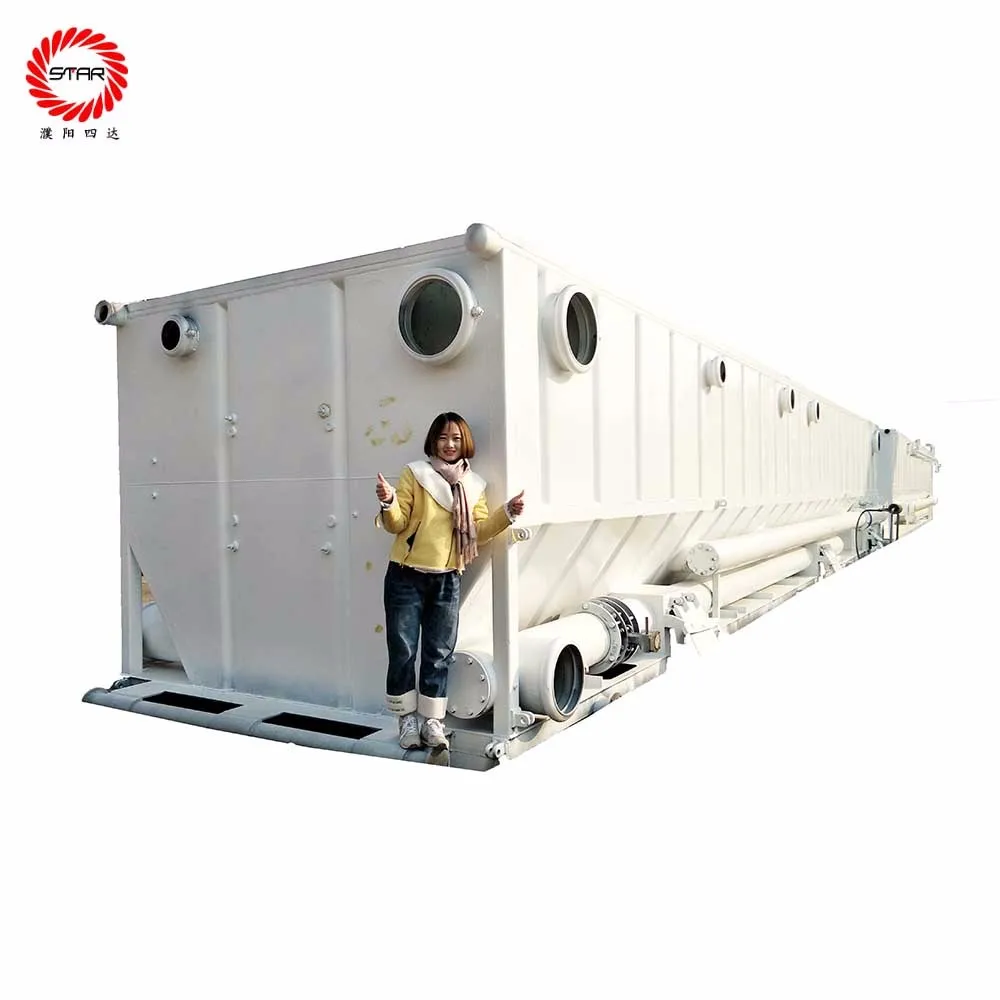

Detailed Images

China Drilling Fluid Mud Tank Technical
Mud circulation tank number		5 (Contains 1 conical grit tank)
Single tank dimensions		(Length Width Height )
V-shaped tank		8600×2800×2350
1# 2# 3# Tank		8600×2800×2350
4# Tank		9600×2800 ×2350
Effective volume		About 210m³
Medium pressure cycle line rated pressure		6.4Mpa
Low pressure slurry pipeline rated pressure		1.6Mpa
Rated pressure water pipeline		1.0Mpa
Solids control equipment handling capacity		≥200m³/h
Pump suction pipe diameter		Φ245mm
Suction inlet centerline height		450mm and slurry pump into the center height of the same
Mud Agitator		7.5KW×9 set
Mud gun specifications and quantity		6.4Mpa Three rotating × 7 sets

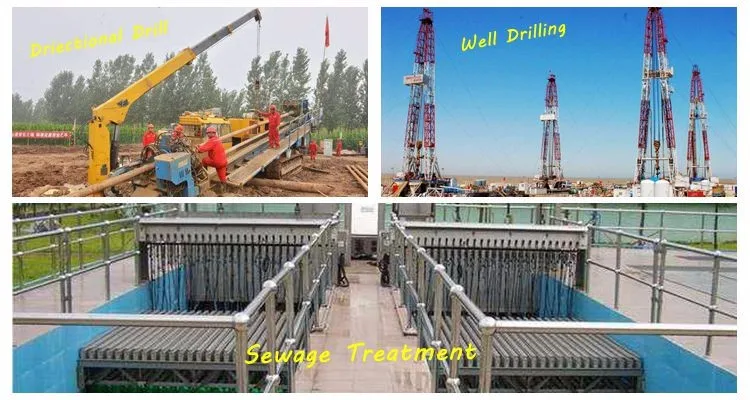

China Drilling Fluid Mud Tank Application

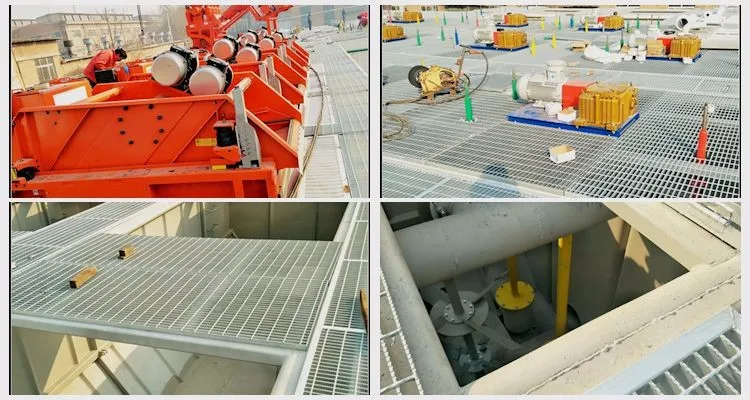

China Drilling Fluid Mud tank Related Equipment

Feature:

1.Processing capacity, the overall structure and processes reasonable match.
2.Equipment layout is compact, fast site assembly.
3.High degree of automation, low labor intensity.
4.Fully in line with HSE drilling system requirements, safe and reliable.
5.According to customer needs, designed for different rigs.
