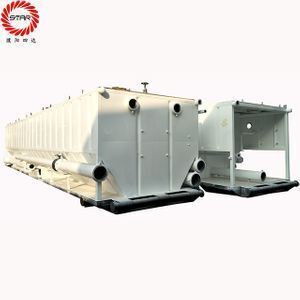

Petroleum Industry Oilfield Well Drilling Rig Part Mud Tank

Supplier: Puyang Star Petroleum Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lillian Zhao
Price: $7575.00 /set
Min. Order: 1 set

Click here to contact

Product details

Diameter(mm):	860028002350;	Certification:	ISO9001;
Warranty:	2 Year;	Features:	Solid Control System Corrugated Mud Tank;
Place of Origin:	Henan China (Mainland);	Supply Ability:	5 Set/Sets per Month;
Delivery Detail:	Within 3 days can be arranged to produce or according to order;	Company:	Puyang Star Petroleum Machinery CO.,LTD;
Brand Name:	Star;	Nature of business:	Factory;
Power(W):	220kW;	Condition:	New;
Voltage:	460V/380V/600v/660v;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Tianjin,Qingdao,Shanghai, Ningbo, Guangzhou,Dalian,;	Company Nature:	Factory;
Usage:	Oilfield Well Drilling;	Heavy steel:	Oil Industry;
Product name:	Mud Tank;	Production Capacity:	10 Sets/month;
Payment Terms:	L/C,D/P,T/T,Western Union,payple,credit card;	Dimension(LWH):	Client's Requirement;
Material:	Carbon Steel;	Packaging Detail:	Mud Tank: 1.Naked into the container or transporter. 2.Transport to the port. 3.Shipping to the destination port by sea.;
Application:	Petroleum Drilling Fluids Cleaning System;	Model Number:	ZG-3;
Weight:	9.8tons;	Color:	White;

Product Description

Mud tank is the necessary equipment and slurry processing equipment supporting the mud circulation system for storing the drilling mud.

Detailed Images

Mud Tank Technical
Mud circulation tank number		5 (Contains 1 conical grit tank)
Single tank dimensions		(Length Width Height )
V-shaped tank		8600×2800×2350
1# 2# 3# Tank		8600×2800×2350
4# Tank		9600×2800 ×2350
Effective volume		About 210m³
Medium pressure cycle line rated pressure		6.4Mpa
Low pressure slurry pipeline rated pressure		1.6Mpa
Rated pressure water pipeline		1.0Mpa
Solids control equipment handling capacity		≥200m³/h
Pump suction pipe diameter		Φ245mm
Suction inlet centerline height		450mm and slurry pump into the center height of the same
Mud Agitator		7.5KW×9 set
Mud gun specifications and quantity		6.4Mpa Three rotating × 7 sets

Mud Tank Application

Mud tank Related Equipment

Feature:

1.Processing capacity, the overall structure and processes reasonable match.
2.Equipment layout is compact, fast site assembly.
3.High degree of automation, low labor intensity.
4.Fully in line with HSE drilling system requirements, safe and reliable.
5.According to customer needs, designed for different rigs.

Want to know more,please be free to contact Lillian----
1.By Trademanager
2.By Following information
Remark: please supply more detail require specification ,that I can back the quotation to you soon.
