ho electric locomotive diesel, high reflective locomotive diesel for miners

Product details
Port:Any Chinese port. 3t diesel locomotive;Parameters:Miners requirement,reference parameters in table;
Dimensions (L x W x H) (mm):2300mmx900mmx1580mm;Supply Ability:10 Piece/Pieces per Month locomotive diesel;
Certificate:MA;ISO9001;Application:Coal mine/metal mine/ railway/transportation;
Brand Name:Kingdomine;Payment:TT;L/C; Westen union;
Horsepower:350HP;Service:OEM service; consultation;
Payment Terms:L/C,T/T,Western Union,MoneyGram,OA;Color:Customized locomotive available;
Place of Origin:Hunan China (Mainland);Material:Welded iron material;
Type:Locomotive diesel;Name:ho electric locomotive diesel, locomotive diesel for miners;
Fuel Type:Diesel;Speed (km/h):35km/h;
Packaging Detail:ho electric locomotive diesel, high reflective locomotive diesel for miners: Standard export package As customer required.;Origin:Xiangtan factory manufacturer,hunan,china;

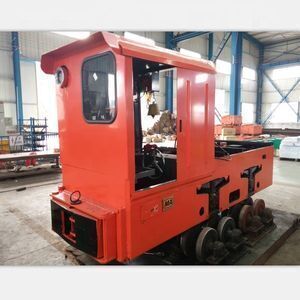

High quality 3 Ton  Locomotive Diesel

Product Description

3T Diesel Locomotive Parameters

S.N.Specifications/ Parameter Value
1Dimension(L×W×H)2300×900×1580mm
2Coupling Height270,320,430mm or Custom Design
3Track Gauge600 mm
4Cohesive Weight3.0 Ton
5Starting Traction5 KN
6Loading capacity  About 15 ton on level rail
7Max. Speed with load11.6 km/h
8Diesel MotorTraction Motor : 1 PC
a)Rated Motor Power11 KW
b)Max Rotate Speed 2200rpm
c)Max. torque64.3 N.m
d)Motor Rated rotate speed 1650 rpm
9Min.Curve Radius5m
10Braking typeMechanical  type
11Braking leverage5.5
12Type of Braking ShoesTread brake
13Braking Distance10m
14Type of Emergency BrakingBy hand braking
15Diameter of Wheel330 mm
16Wheelbase 700mm
17Gear system Forward , backwards ,running gearing setting
Main Products

Professional Solution Provider For Mining Locomotive



Locomotive Type

Model

PRICE (USD)/PC

1.5T trolley

CJY1.5/5, 6,7,9G(B)

  6066--12057

3.5T trolley

CJY3.5/5, 6,7,9G(B)

  8567--14507

    7T trolley

CJY7/6,7,9G(B)

12987--18099

2.5T battery

CTY2.5/5, 6,7,9G(B)

12076--16997

    5T battery

CTY5/5,6,7,9G(B)

22976--26987

    8T battery

CTY8/6,7,9G

27690--30885

2.5T diesel

KT-SQY2.5

  8200--12200

    3T diesel

 KT-SQY3

 8568--12568

   3.5 diesel

KT-SQY3.5

  9000--12223

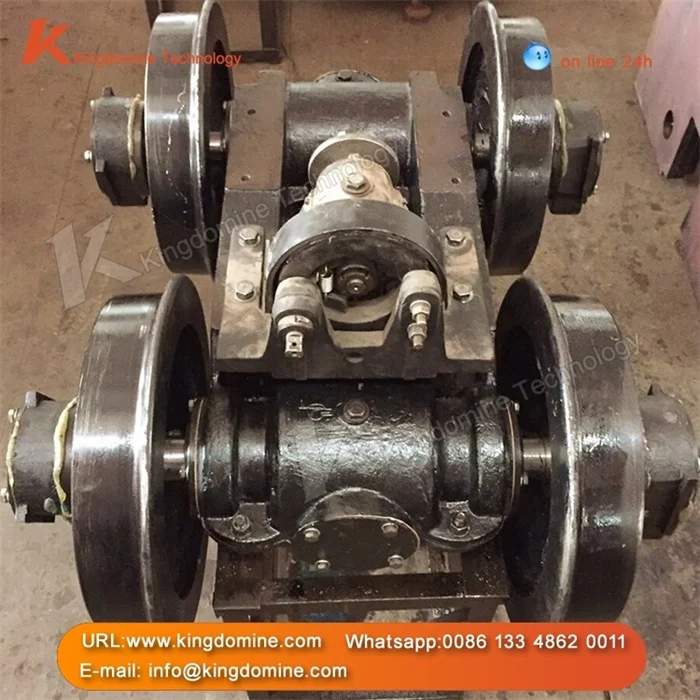

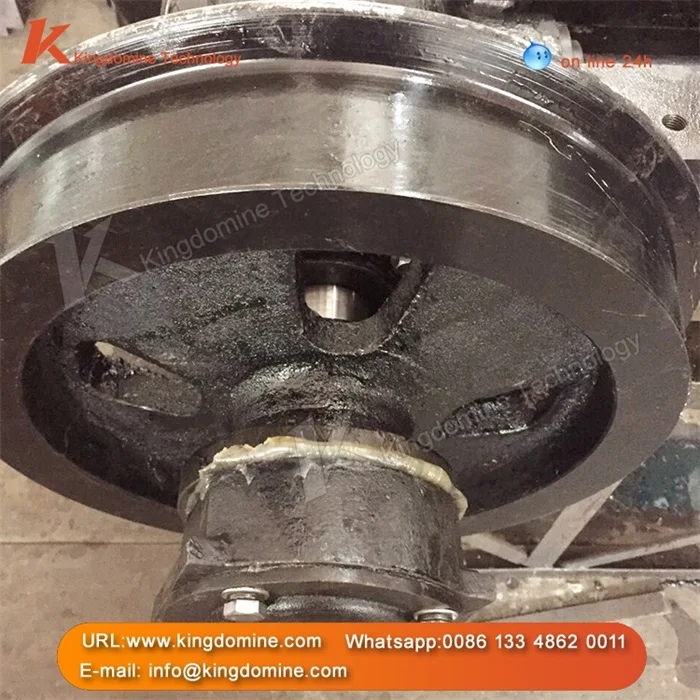

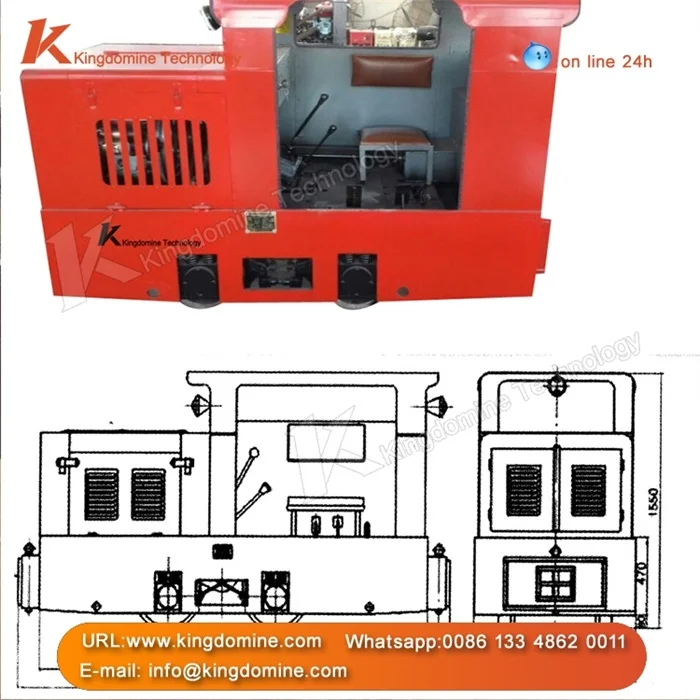

Detailed Images

Detail Images

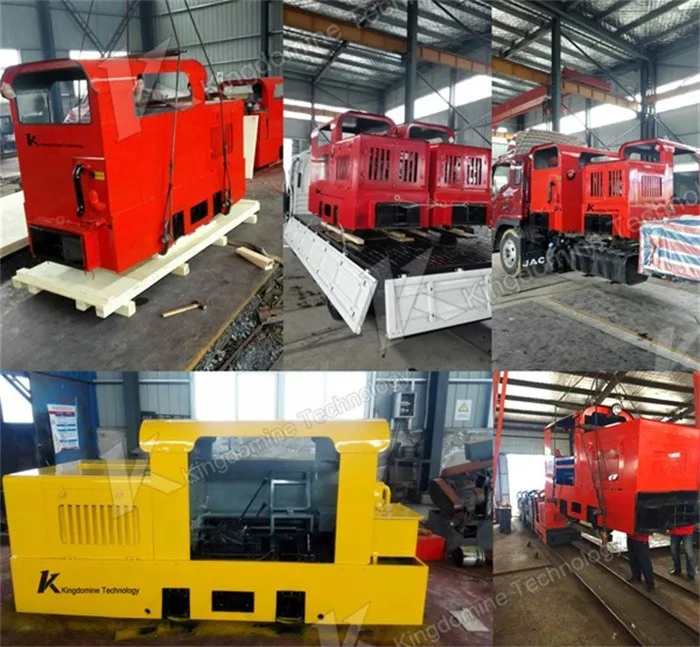

Packaging & Shipping




Production Flow



Certifications



Our Services

Pre-sales Service:

The wide product range enables us to provide our customers with individual machines or complete processing plants.Based on our customers'request and budget, our experts make efficient and reliable solutions, and we produce strictly follow customers' order. What's more, every customer has the chance to visit the working machine in the site before placing the order.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers'plants.Necessary training about machine daily maintenance to local workers is provided also.

Methods of Payment:

 T/T (Telegraphic Transfer) or Western Union or L/C at sight
Handling time for an order:
Within 10 days supplied from stock
Shipping method:
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
Quality Control:
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
c. Free replacement will provide once the failure confirmed caused by our product quality
About Us:
Our factory has been specialized in manufacturing locomotives and spare parts since 1980.
We have advanced technology and equipment.
Our technician has more than 25 year’s professional working experience.
Locomotives are exported throughout the world. Main market: Norway, Turkey, USA,Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
