Economic High Pressure Programmable Dispensing Peristaltic Pump

Supplier: KGC RESOURCES SDN. BHD.
Region: Selangor, Malaysia
Contact: Mr. Patrick Tan
Price: $330.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Port:	Klang;	Payment Terms:	T/T;
Usage:	Fluid to Micro Fluid;	Fuel:	Electric;
Pressure:	Low & High pressure;	Application:	simple infusions to complex pumping programs;
Place of Origin:	Selangor Malaysia;	Model Number:	EQ Series;
Standard or Nonstandard:	Standard;	Supply Ability:	100 Unit/Units per Month;
Structure:	Other;	Packaging Detail:	Carton Box;
Brand Name:	OEM;	Theory:	Peristaltic Pump;
Power:	Pneumatic;

Product Description

EQ0100140

EQ0200010

EQ0300010

EQ0100240

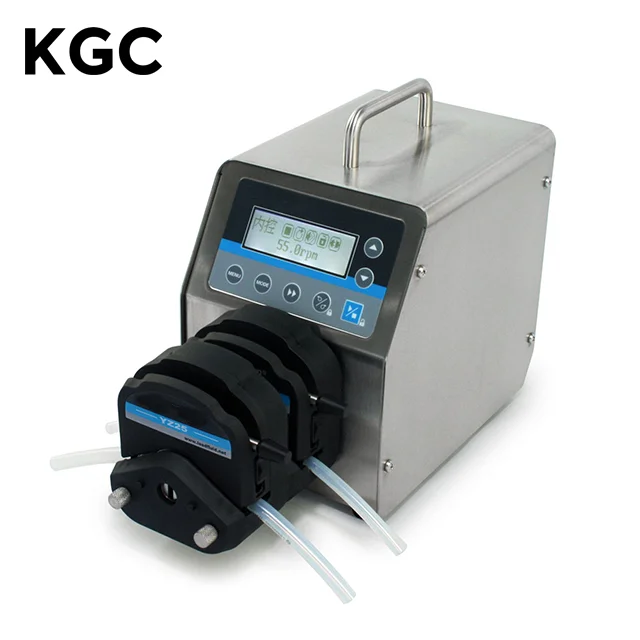

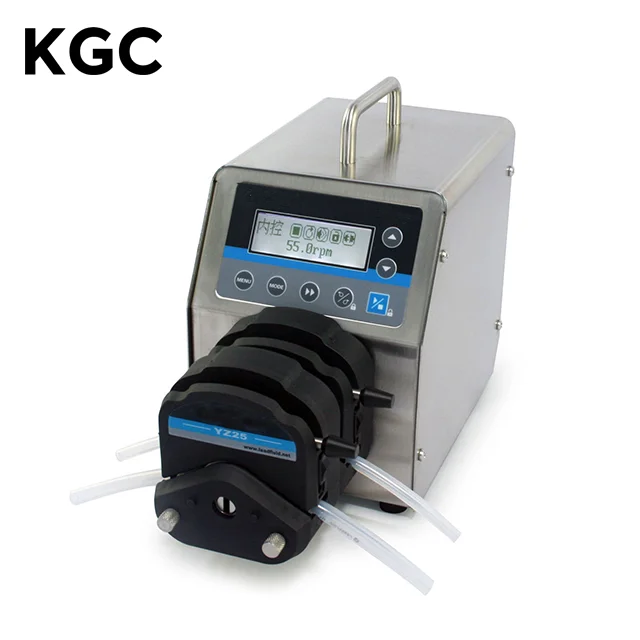

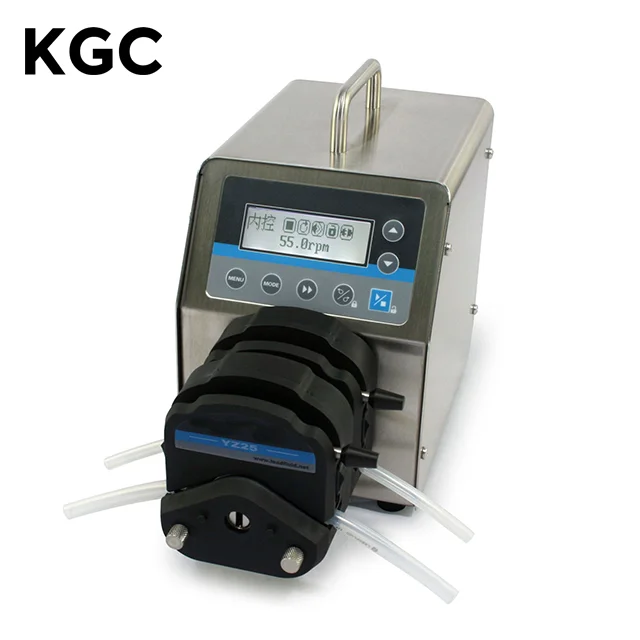

Peristaltic Pump

1. The peristaltic pump is based on alternating compression and relaxation of the hose or tube drawing the contents into the hose or tube, operating in a similar way to our throat and intestines.
2. A rotating shoe or roller passes along the length of the hose or tube totally compressing it and creating a seal between suction & discharge side of the pump, eliminating product slip.
3. Upon restitution of the hose or tube a strong vacuum is formed drawing product into the pump.
4. The medium to be pumped does not come into contact with any moving parts and is totally contained within a robust, heavy-duty hose or a precision extruded tube.
5. This pumping action makes the pump suitable for accurate dosing applications and has a pressure rating up to 16 bar (hose) and 2 bar (tube).
6. The high pressure hose has inner layer of 2-6 reinforcement layers and an outer layer, which allow higher working pressures and generate higher suction lifts than non re-enforced tubing.

Specification

Model	EQ0100140	EQ0200010	EQ0300010	EQ0100240
Flow range	0.00011-1700 mL/min	0.006-1600 mL/min	0.006-2900 mL/min	0.4-13 L/min
Speed range	0.1-150 rpm	0.1-350 rpm	0.1-600 rpm	30-600
Speed resolution (rpm)	0.1-100 rpm, 0.1rpm resolution; 100-150 rpm, 1 rpm resolution	between 0.1-100 rpm, 0.1 rpm resolution; between 100-350 rpm, 1 rpm resolution	between 0.1-100 rpm, 0.1 rpm resolution; between 100-350 rpm, 1 rpm resolution	1 rpm
Speed accuracy	0.5%	0.5%	0.5%	3%
Power supply	AC 220V ± 10% 50Hz/60Hz (standard); AC 110V ± 10% 50Hz/60Hz (optional)	AC 220V ± 10% 50Hz/60Hz (standard); AC 110V ± 10% 50Hz/60Hz (optional)	AC 220V ± 10% 50Hz/60Hz (standard); AC 110V ± 10% 50Hz/60Hz	AC 220V ± 10% 50Hz/60Hz (standard); AC 110V ± 10% 50Hz/60Hz (optional)
Power consumption	< 40W	< 50W	< 60W	< 400W
External control	Input level 5V, 12V (standard),24V(optional). External control analog 0-5V (standard); 0-10V, 4-20mA (optional)	Input level 5V, 12V (standard), 24V (optional)	5V, 12V (standard), 24V (optional)	Input level 5V, 12V (standard), 24V (optional)
Dimensions (L x W x H) (mm)	285 x 150 x 195 mm	226 x 150 x 238 mm	226 x 150 x 238 mm	340 x 235 x 175 mm
Weight	6.5 kg (14.3 lbs)	4.9 kg	5.2 kg	13 kg

Packing & Delivery

Why Choose Us

Our Company

KGC RESOURCES SDN BHD is located in Shah Alam, Malaysia. We are specialized in consulting and equipment integration for scientific and laboratory setup.

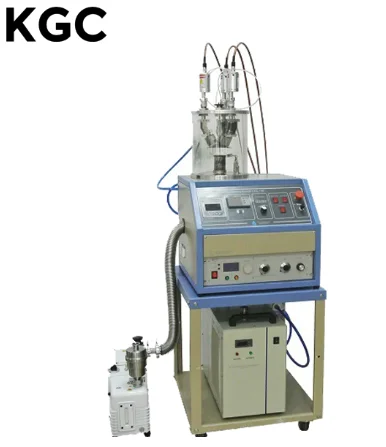

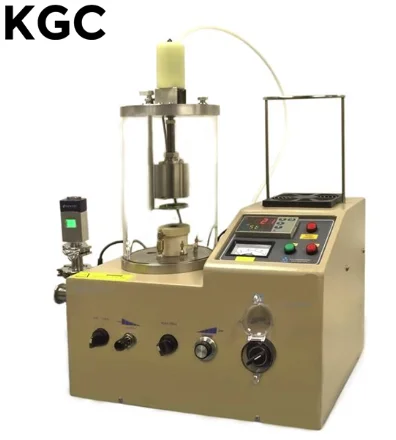

OUR PRODUCTS are ranging from equipment for Advanced Materials Research, Nanotechnology, Solar Cells, Fuel Cell, Lithium-ion Battery, Life Science, Biotechnology, Thin Film Coating and Semiconductor Research. Aside from standard laboratory equipment, WE ALSO PROVIDE custom-made equipment such as In-Line Thin Film Coating, Special Purpose Glove Box, Lithium-ion Battery Production Line & Solar Cell Fabrication Line.

KGC RESOURCES SDN BHD was established in 1997 and has been through high and stable development for more than 20 years. From 2009 onward, we have established our presence in Indonesia and also expanding our business activity throughout South East Asia countries and other parts of the world.
