Factory Direct 1700C Bench-Top Muffle Furnace with Molydenum

Supplier: KGC RESOURCES SDN. BHD.
Region: Selangor, Malaysia
Contact: Mr. Patrick Tan
Price: $2700.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Selangor Malaysia;	Warranty:	One year limited warranty with lifetime support;
Max. Working Temperature:	1700C;	Supply Ability:	100 Unit/Units per Month;
Weight:	80 ~ 100 Kg;	Brand Name:	KGC;
Model Number:	MF-1700 Series;	Port:	Klang;
Voltage:	AC 208V-240V single phase, 50/60 Hz;	Packaging Detail:	Wooden Box;
Certification:	CE Certified;	Type:	Resistance Furnace;
Color:	Can be customized for MOQ of 5 units;	Usage:	Muffle Furnace;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Dimension(LWH):	380 x 410 x 620 mm;	Payment Terms:	T/T;
Delivery Detail:	30-60 Days;	Chamber size:	100x100x100 to 500x500x500 mm;
Power(W):	2.5 KW (Max);	Capacity:	1L - 125L;

Product Description

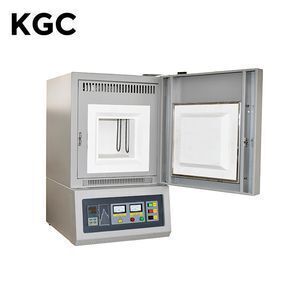

1700C Muffle Furnace

Description:

1700℃ muffle furnace are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick and MoSi2 heating elements with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/ 1oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory

Features of 1700℃ Muffle furnace:

Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
PID automatic control via current limiting phase angle fired the resistor, e.g. SCR (Silicon Controlled Rectifier).
Power control with 50 segments programmable.
Vent port (gas outlet) installed on the top for gas flow.

Color of the furnace door can be customized if MOQ is 5 units.

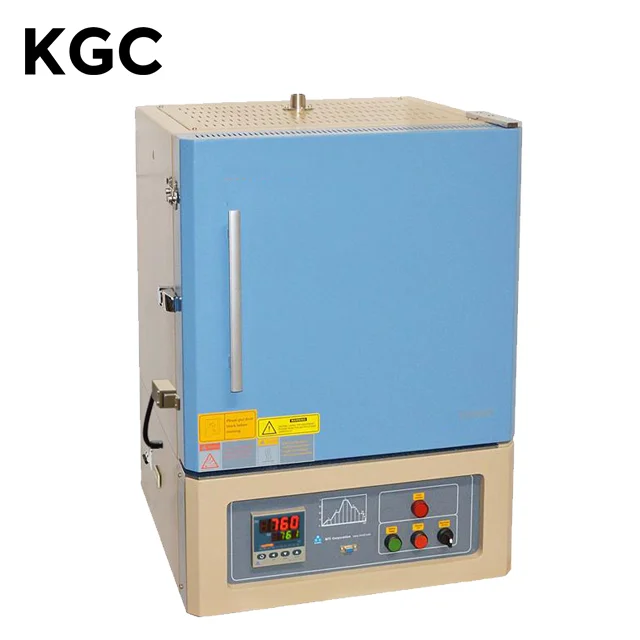

Blue

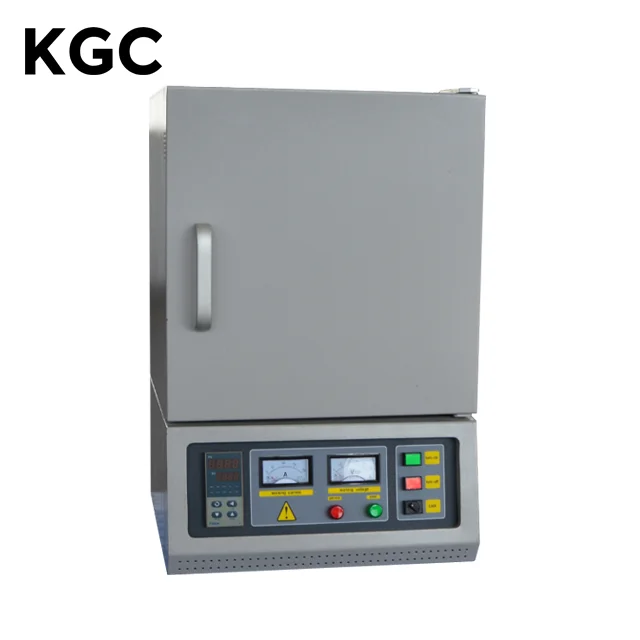

Grey

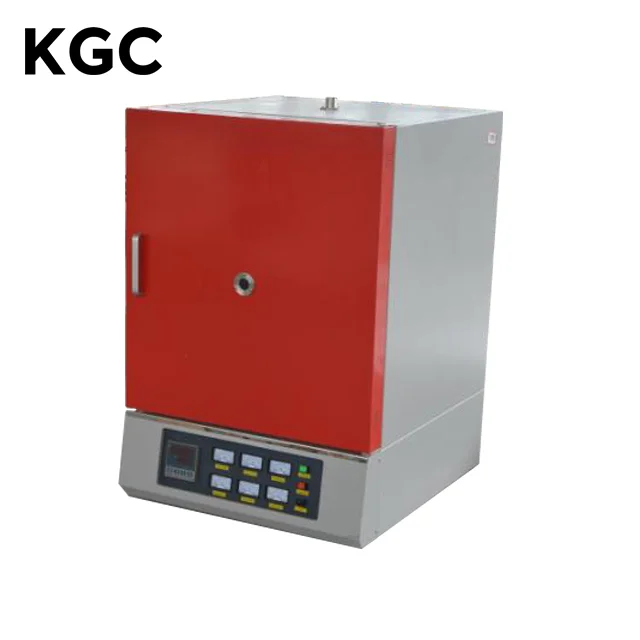

Red

Specification

Model	Volume L	Chamber Size mm	Description
MF-1700-1.8L (AA0120010)	1.8	120 X 120 X 130	1700C Muffle Furnace 1.8Liter
MF-1700-19L (AA0120020)	19	250 X 250 X 300	1700C Muffle Furnace 19Liter
MF-1700-28L (AA0120030)	28	300 X 300 X 300	1700C Muffle Furnace 28Liter
MF-1700-80L (AA0110040)	80	400 X 400 X 500	1700C Muffle Furnace 80Liter
MF-1700-125L (AA0120050)	125	500 X 500 X 500	1700C Muffle Furnace 125Liter

Packing & Delivery

Why Choose Us

Our Company

KGC RESOURCES SDN BHD is located in Shah Alam, Malaysia. We are specialized in consulting and equipment integration for scientific and laboratory setup.

OUR PRODUCTS are ranging from equipment for Advanced Materials Research, Nanotechnology, Solar Cells, Fuel Cell, Lithium-ion Battery, Life Science, Biotechnology, Thin Film Coating and Semiconductor Research. Aside from standard laboratory equipment, WE ALSO PROVIDE custom-made equipment such as In-Line Thin Film Coating, Special Purpose Glove Box, Lithium-ion Battery Production Line & Solar Cell Fabrication Line.

KGC RESOURCES SDN BHD was established in 1997 and has been through high and stable development for more than 20 years. From 2009 onward, we have established our presence in Indonesia and also expanding our business activity throughout South East Asia countries and other parts of the world.
