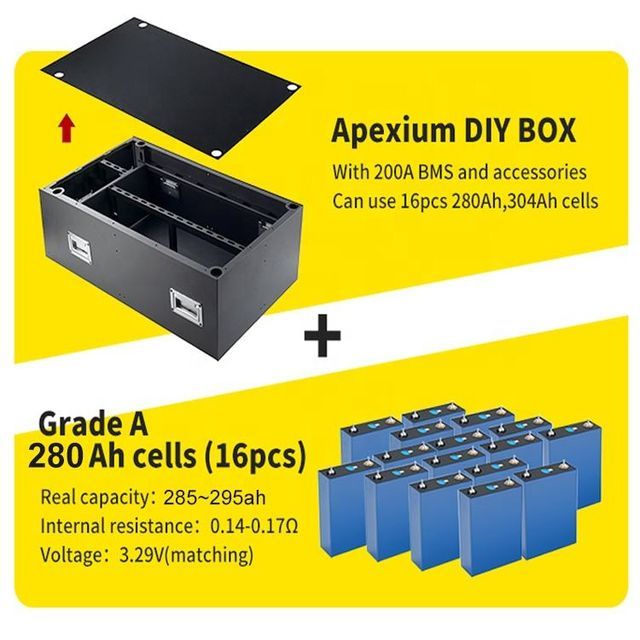

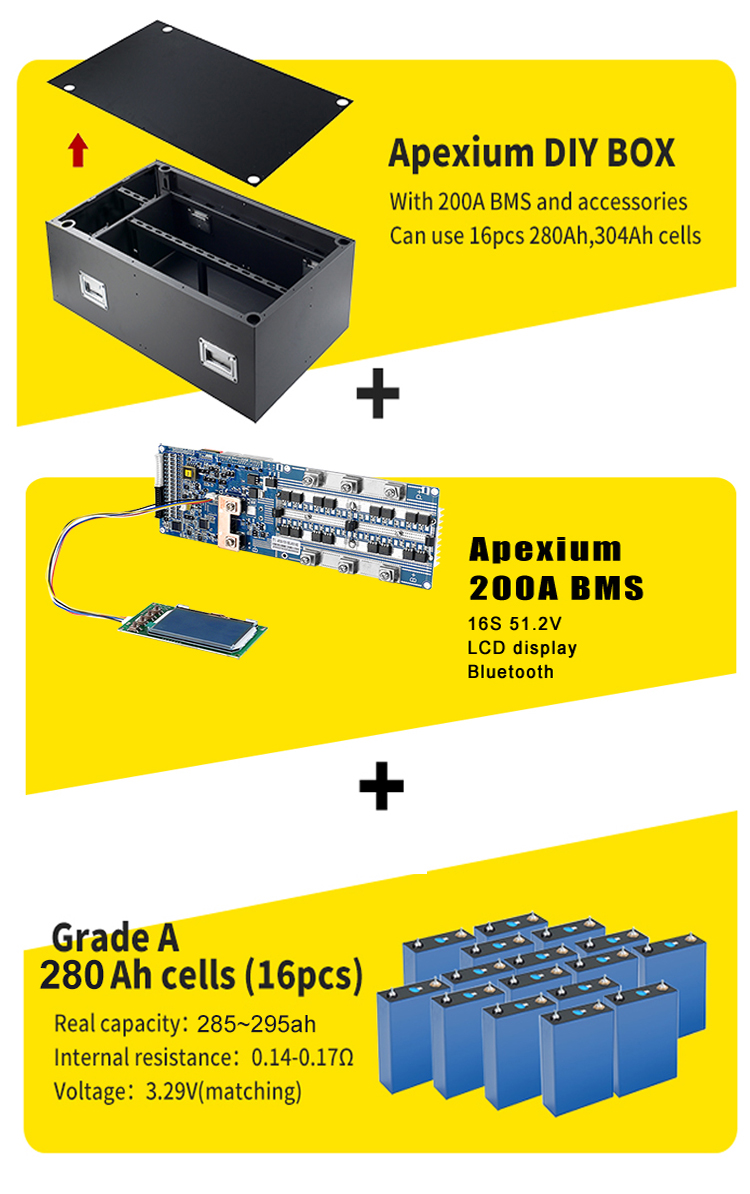

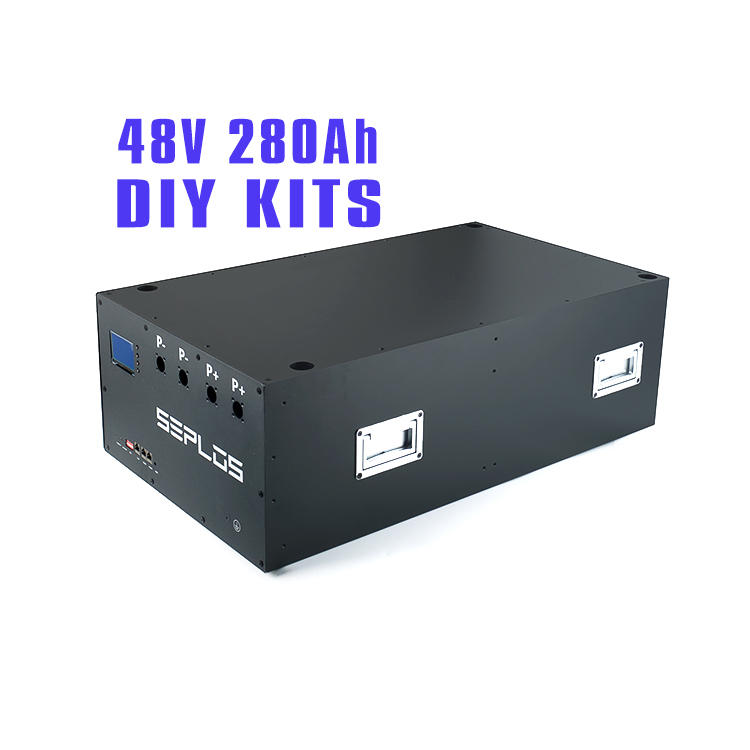

EU US stock ev catl lfp battery 280ah DIY 16S 48V Mason lifepo4 battery box empty Kit with seplos smart bms
-
Supplier: Docan Technology (shenzhen) Co., Ltd. -
Region: Guangdong, China -
Contact: Mr Docan Power -
Price: $479.99 / 2 - 99 pieces
$399.99 / 100 - 999 pieces
$299.99 / 1000 - 4999 pieces
$219.99 / >=5000 pieces -
Min. Order: 2 pieces
Product details
| Supply capacity: | 10000 pieces per month | Packaging Details: | Inner box + outer box is suitable for US EU stock 3.2v 280ah lifepo4 6000 cycles ev 280ah lifepo4 prismatic lf280k battery 280ah 310ah lithium ion battery |
| Origin: | Guangdong, China | Q: | 48v |
| Certification: | CE certification | brand: | SEPLOS |
| Model: | mason | Package preview: | |
| product name: | Lifepo4 battery pack 48V 200Ah Seplos Mason 280 steel DIY BOX 48v | port: | Shenzhen |
| Warranty: | 5 years | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| application: | Solar Home System | Package: | carton |
| model: | Mason 280 with 48V 16S 200A BMS | Dimensions (mm): | 440*750*270mm |
| Battery management system: | Seplos 48V 16S 200A Battery Management System | OEM/Design Manufacturer: | welcome |
| usage: | Lithium iron phosphate battery | Material: | steel, steel |
Docanpower now has enough stock in China/EU/US locations.
Now is the perfect time to order!
Product Description
thing | Data information | ||||||
Basic parameters | MASON-280 | ||||||
Nominal voltage (V) | 51.2V | ||||||
Nominal capacity (Ah) | 280Ah @0.5C discharge current 25±2℃ | ||||||
Nominal power (Wh) | 14.3 kWh | ||||||
Dimensions (mm) | 750*440*251mm | ||||||
Weight (kg) | 112±5KG | ||||||
Discharge cut-off voltage (V) | 41.6V | ||||||
Charging voltage (V) | 57.6V | ||||||
Continuous charge and discharge current (A) | 140A @25±2℃ (recommended) | ||||||
Maximum standard charge and discharge current (A) | 200A @25±2℃ | ||||||
Standard charge and discharge current (A) | 140A @25±2℃ (recommended) | ||||||
Maximum standard charge and discharge current (A) | 200A @25±2℃ | ||||||
Operating temperature | 0～50℃(charging) | ||||||
-10～50℃(discharge) | |||||||
-20～55℃(storage) | |||||||
SOC range | 5%-100% | ||||||
Recommended SOC range | 15-95% | ||||||
Communication Interface | CAN (default) or RS485 | ||||||
humidity | 10% - 85% | ||||||
IP rating | Protection class 20 | ||||||

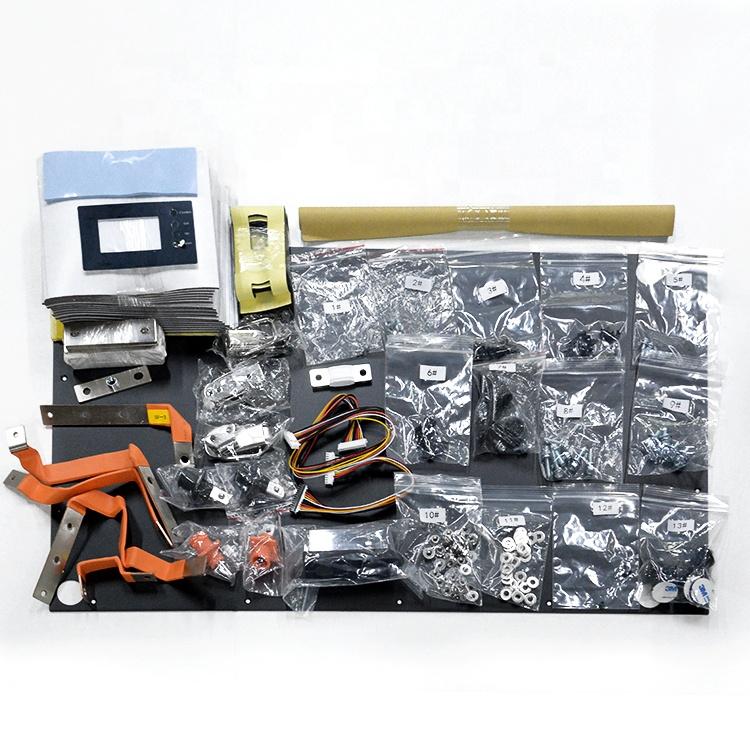

Parts List
* 1 * Battery box (bottom case, front panel, top bracket, front bracket, top cover)
* 1 * 48V 200A 16S SEPLOS battery management system
* 1 * 58V 400A fuse
* 4 * handles
* 2 * PCB board for BMS and battery connection
* 3 * Up and down latches
* 1 * LCD screen
* 1 * LCD Screen Sticker
* 4 * button caps
* 3 * Wires (LCD screen wire, PCB board A and PCB board connector)
* 2 * Battery terminals (P+ terminal and P- terminal)
Screw details:
* 12 * Phillip Hex M4 * 8mm (PCB board fixed)
* 9 * Phillip Hex M5 * 8mm + washer + spring set (ground wire and top bracket fixed)
* 7 * Phillip Hex M6 * 25mm + washer + spring set (fixed by front panel)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set (BMS and LCD screen repair)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan socket plate M4 * 10mm (P+/P- terminal fixed)
* 42 * Hexagan Socket M4 * 10mm (handle and battery box)
* 4 * Phillip Hex M6 * 14mm + washer + spring set (foot fixed)
* 5 * Phillip Hex M8 * 10mm + washer + spring set (P+/P- busbar fixing)
* 8 * Phillip Round M5 * 10mm + Washer
* 1 * Battery box (bottom case, front panel, top bracket, front bracket, top cover)
* 1 * 48V 200A 16S SEPLOS battery management system
* 1 * 58V 400A fuse
* 4 * handles
* 2 * PCB board for BMS and battery connection
* 3 * Up and down latches
* 1 * LCD screen
* 1 * LCD Screen Sticker
* 4 * button caps
* 3 * Wires (LCD screen wire, PCB board A and PCB board connector)
* 2 * Battery terminals (P+ terminal and P- terminal)
Other components include:
* 6 * copper busbars (BMS connection)
* 15 * Aluminum bus bar (battery connection)
* 10 * Epoxy board (between battery and case)
* 26 * EVA tape (between batteries)
* 1 * PC sheet (top cover)
* 6 * copper busbars (BMS connection)
* 15 * Aluminum bus bar (battery connection)
* 10 * Epoxy board (between battery and case)
* 26 * EVA tape (between batteries)
* 1 * PC sheet (top cover)
Screw details:
* 12 * Phillip Hex M4 * 8mm (PCB board fixed)
* 9 * Phillip Hex M5 * 8mm + washer + spring set (ground wire and top bracket fixed)
* 7 * Phillip Hex M6 * 25mm + washer + spring set (fixed by front panel)
* 10 * Phillip Round M3 * 8mm + Washer + Spring Set (BMS and LCD screen repair)
* 12 * Phillip Pan M5 * 10mm (Latch fix)
* 16 * Hexagan socket plate M4 * 10mm (P+/P- terminal fixed)
* 42 * Hexagan Socket M4 * 10mm (handle and battery box)
* 4 * Phillip Hex M6 * 14mm + washer + spring set (foot fixed)
* 5 * Phillip Hex M8 * 10mm + washer + spring set (P+/P- busbar fixing)
* 8 * Phillip Round M5 * 10mm + Washer
In order to make it more convenient for customers and receive goods faster, Docan power has established US and EU stock! Shipping time after shipment is about one week!
Click here to contactYaoyaoGet Best Free Shipping Prices include taxes from EU US.
Click here to contactYaoyaoGet Best Free Shipping Prices include taxes from EU US.

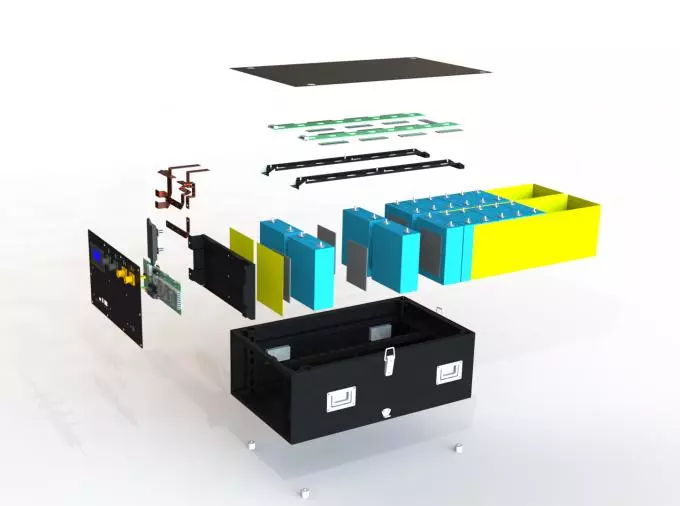

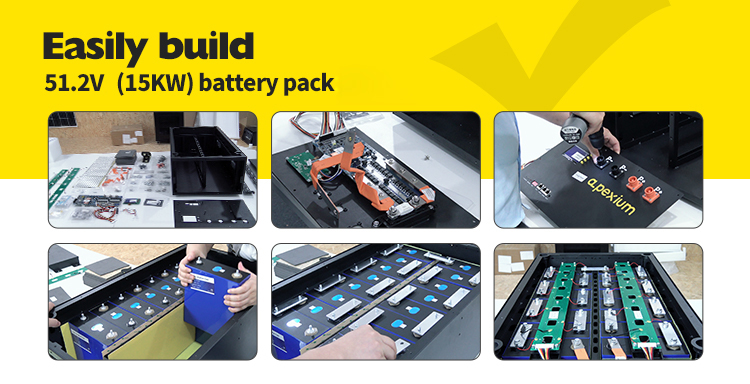

detailed drawing
Compatible Inverter
SEPLOS PUSUNG batteries are pre-programmed with multiple CAN protocols and are compatible with multi-brand inverters. To ensure the battery module works perfectly, it is best to use the following compatible inverters.
Note: Different models of inverters may have different protocols and designs, even of the same brand. For some models, a firmware update is required for perfect communication.

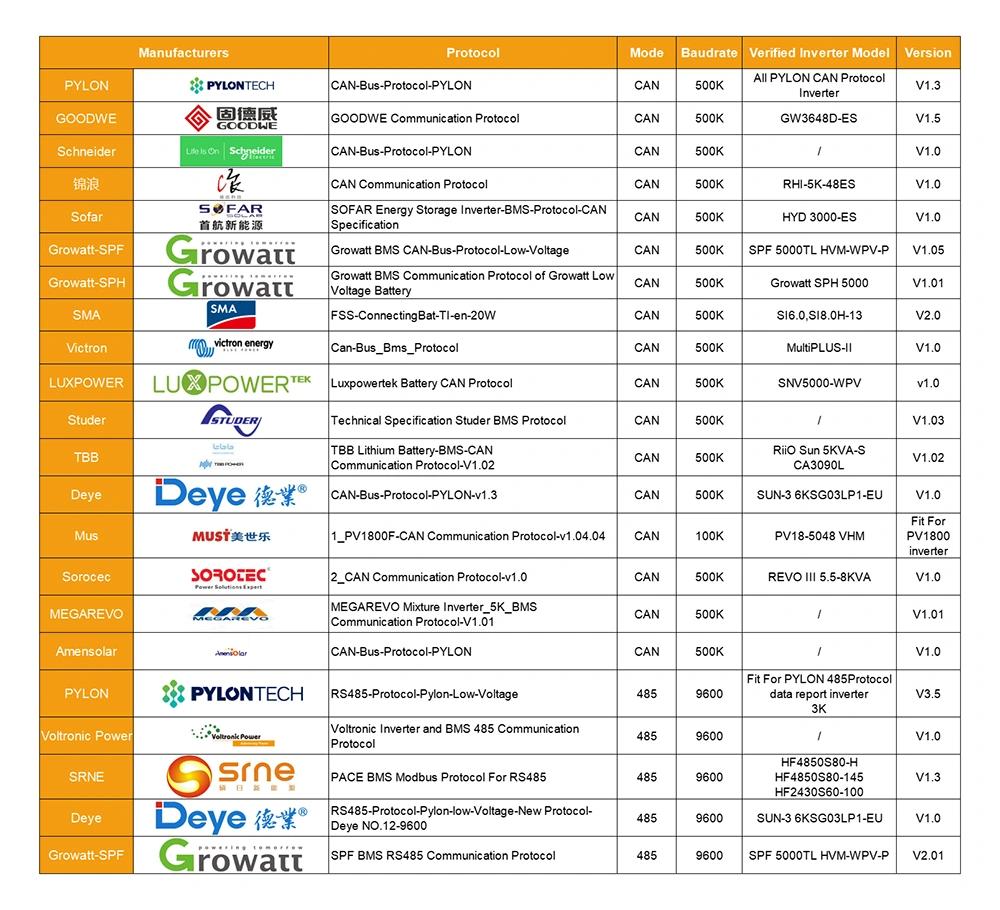

List of pre-programmed CAN protocols:
Goodwe-V1.5
Pylon-V1.3
Growatt-V1.05
Victron CANBUS_PROTOCOL
LUXPOWER_CAN protocol
Sofar_REV5
SMA_EN_10
List of AC inverters (CAN protocol):
✓ Goodwe (choose custom mode, BMS choose default protocol)
✓ Growatt (Guruiwatt inverter comes with CAN and RS485 protocol models, please confirm before purchasing.) (Select "Li" "CAN" "L51"/"Li" "485" "L01")
✓ Victron (BMS selects victron)
✓ Voltronic (Voltronic inverters only provide RS485 protocol. Please confirm with your Cova before purchasing.) (BMS chooses the default protocol. )
✓ Phocos (Phocos inverters are only equipped with RS485 protocol.
SEPLOS PUSUNG batteries are pre-programmed with multiple CAN protocols and are compatible with multi-brand inverters. To ensure the battery module works perfectly, it is best to use the following compatible inverters.
Note: Different models of inverters may have different protocols and designs, even of the same brand. For some models, a firmware update is required for perfect communication.
List of pre-programmed CAN protocols:
Goodwe-V1.5
Pylon-V1.3
Growatt-V1.05
Victron CANBUS_PROTOCOL
LUXPOWER_CAN protocol
Sofar_REV5
SMA_EN_10
List of AC inverters (CAN protocol):
✓ Goodwe (choose custom mode, BMS choose default protocol)
✓ Growatt (Guruiwatt inverter comes with CAN and RS485 protocol models, please confirm before purchasing.) (Select "Li" "CAN" "L51"/"Li" "485" "L01")
✓ Victron (BMS selects victron)
✓ Voltronic (Voltronic inverters only provide RS485 protocol. Please confirm with your Cova before purchasing.) (BMS chooses the default protocol. )
✓ Phocos (Phocos inverters are only equipped with RS485 protocol.
Please confirm with Cova before purchasing. )
Customer Feedback

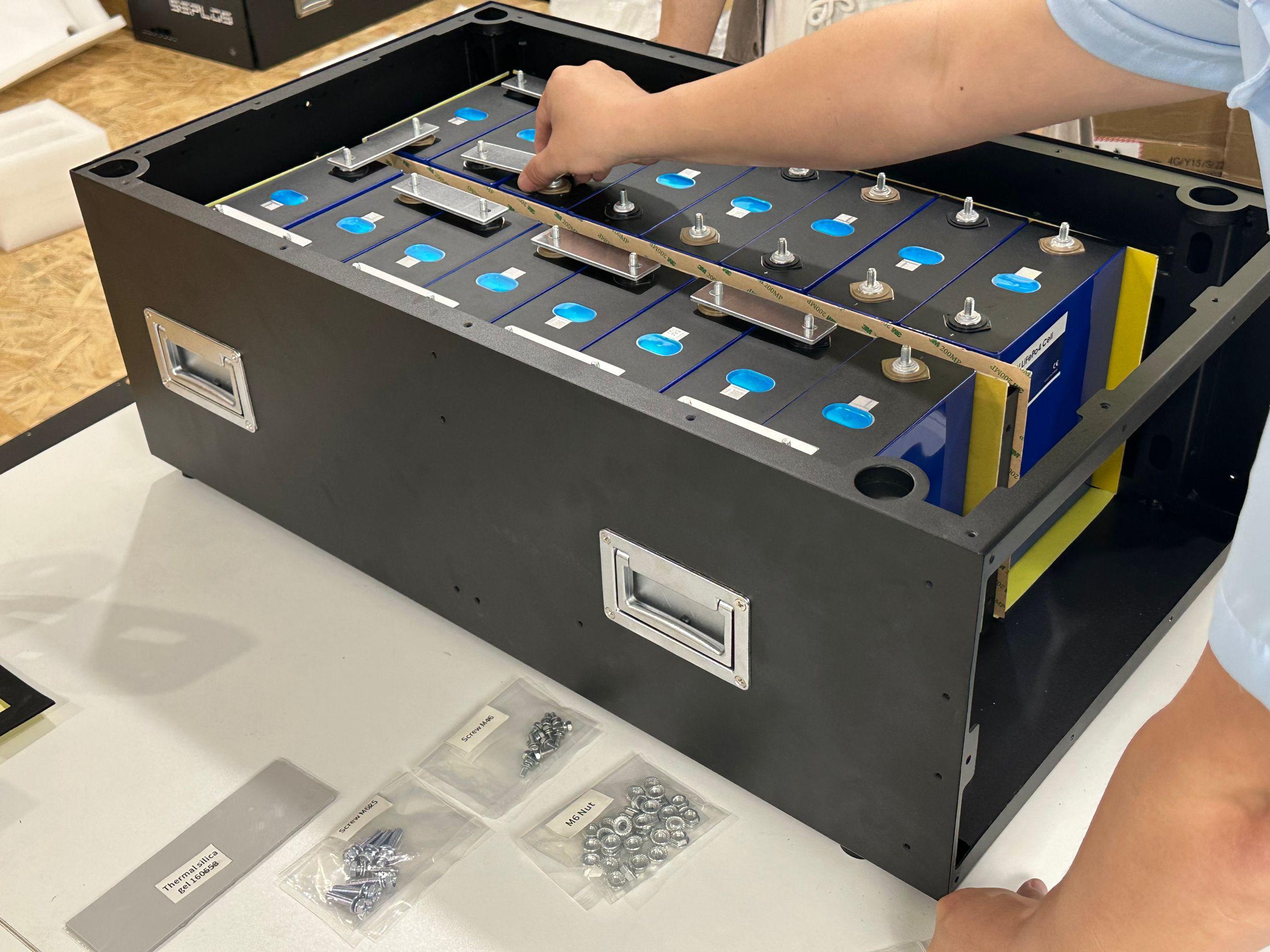

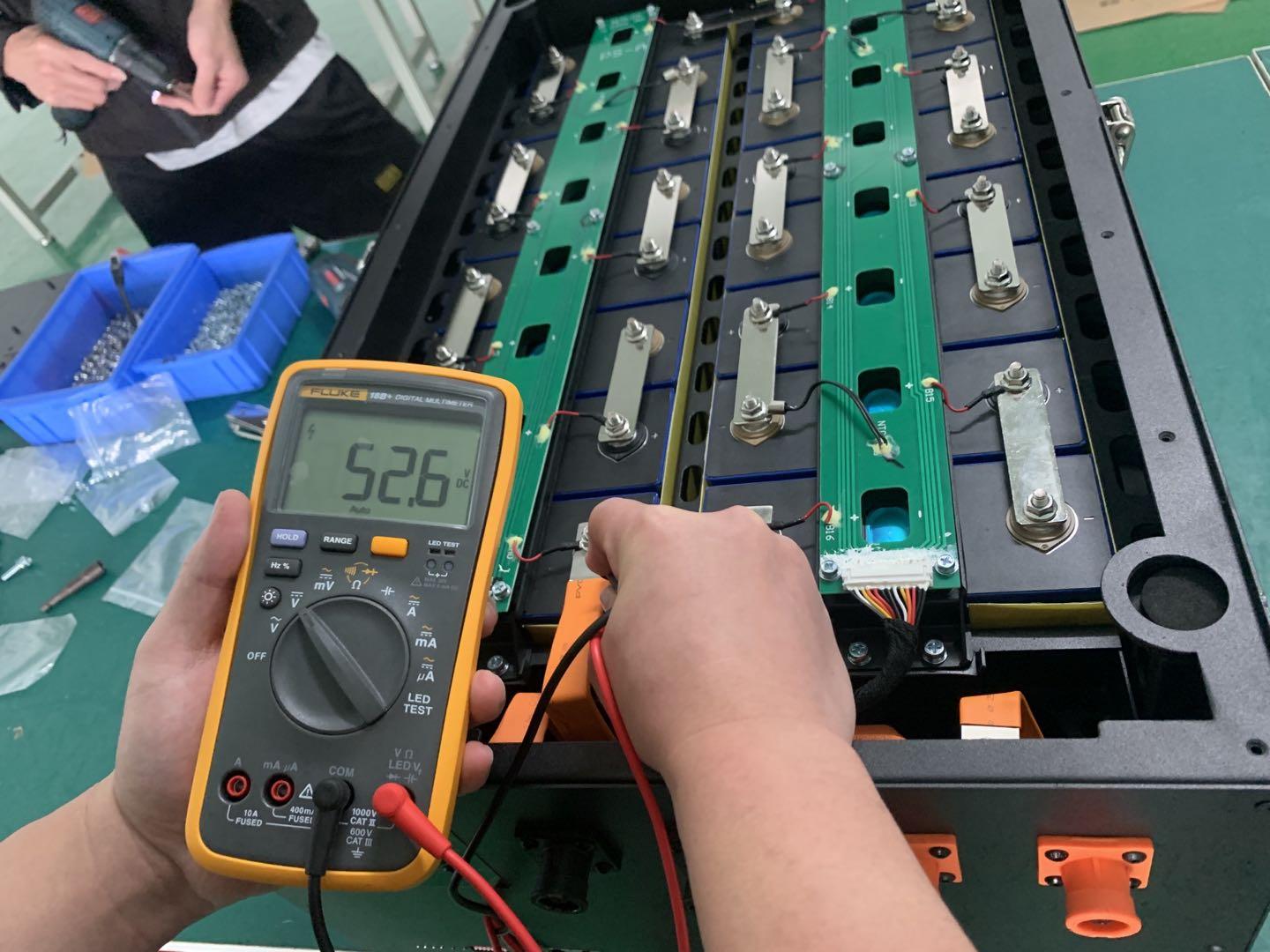

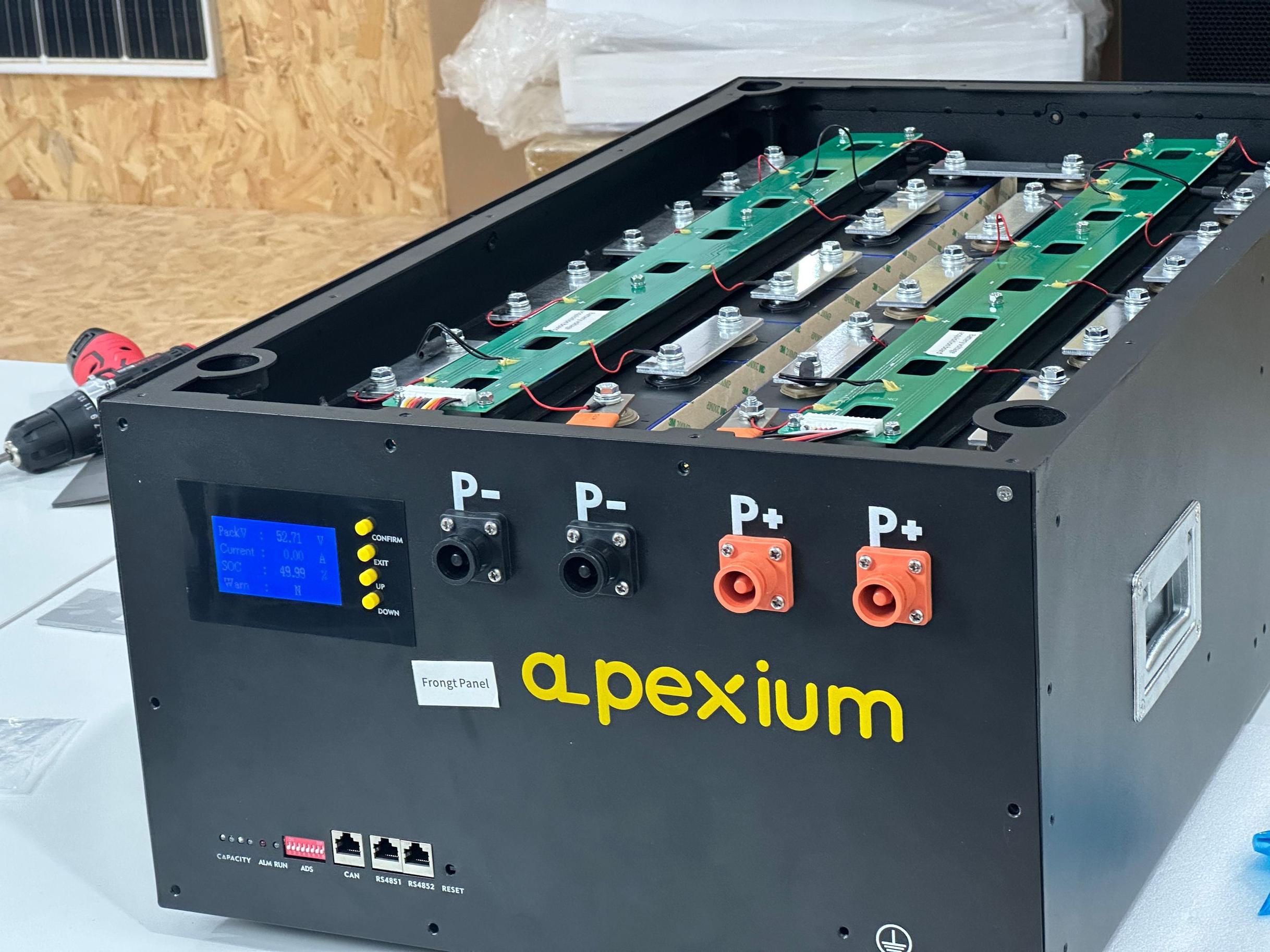

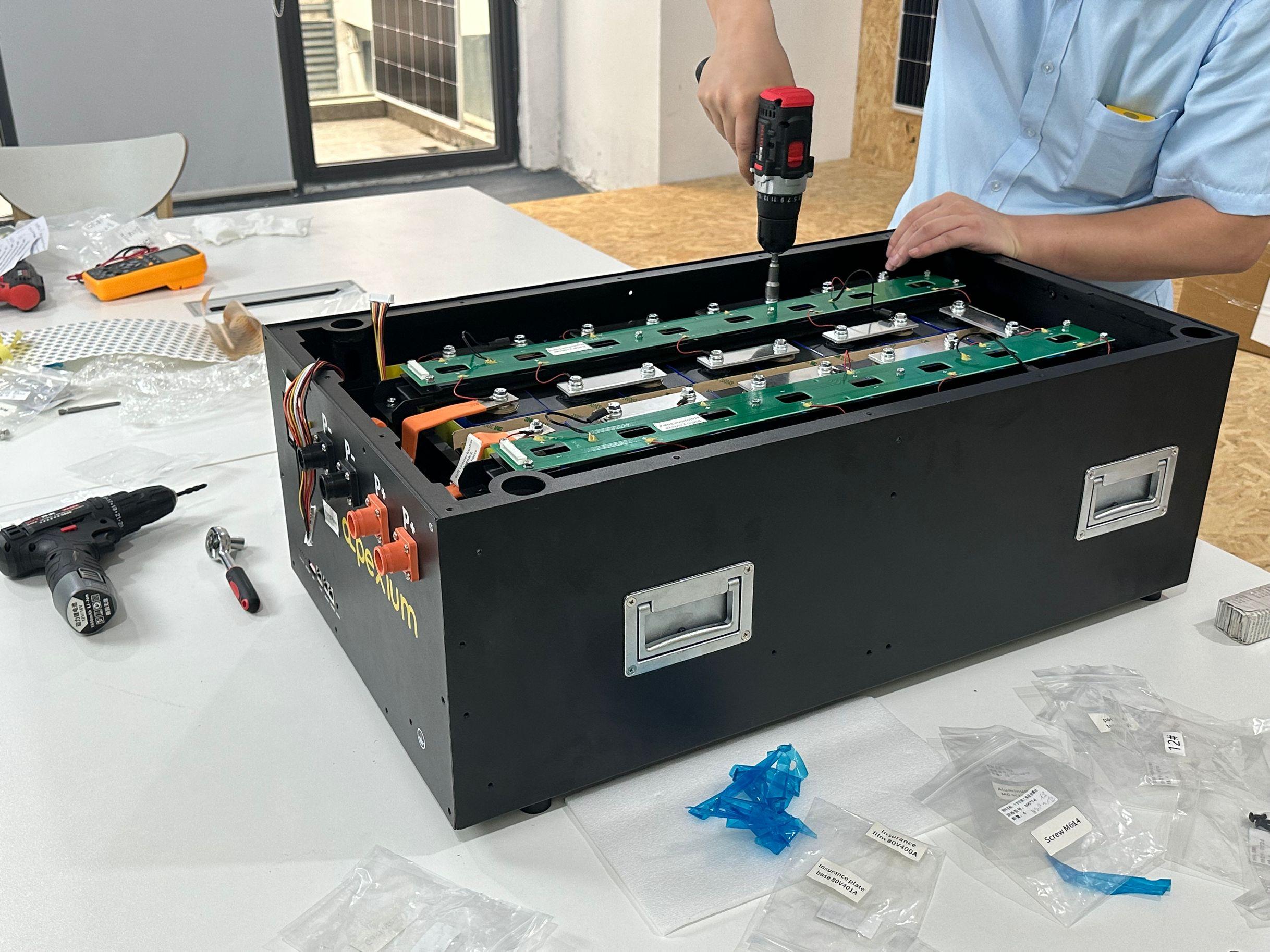

Product Usage
