size: | 165*114.5*76mm | type: | Metal core PCB |
Board size: | 165*114.5*76mm | Optional heating function: | 2 internal, 1 external |
Substrate: | copper | Supply capacity: | 10000 pieces per day |
Origin: | Guangdong, China | application: | little bear |
Smart Apps: | Mobile - IOS/Andriod: Xiaoxiang BMS APP | Copper thickness: | 0.1 mm |
Supported battery types: | 3.2V lithium iron phosphate battery | weight: | 1.33 kg |
Surface treatment: | HASL, immersion gold, flash gold, silver plating, OSP | Concatenation: | Concatenation is not supported |
model: | 8-24S 150Ah, JK B2A24S15P 8-24S 150Ah | minute. Line spacing: | 0.2mm |
port: | Shenzhen | Plate thickness: | 2 cm |
Package preview: | product name: | Docan JK B2A24S15P BMS board | |
minute. Hole size: | 0.2MM | Packaging Details: | boxed |
Continuous current: | 200A | brand: | Jaycon |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | minute. line width: | 0.1mm |

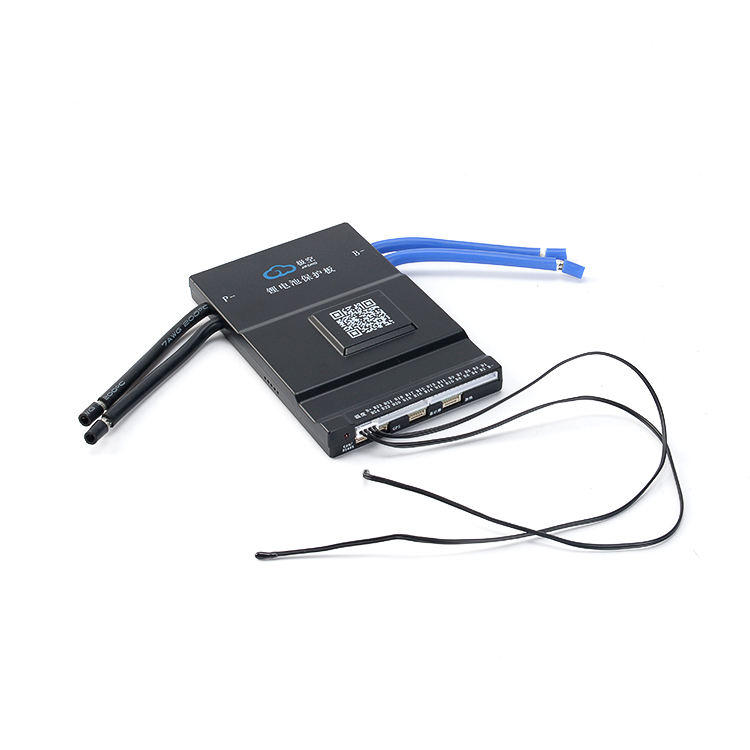

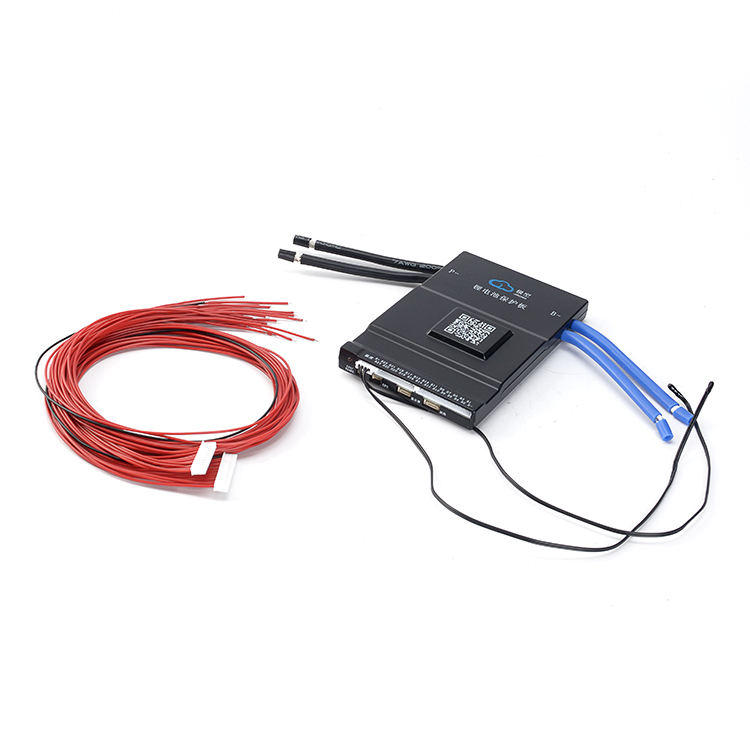

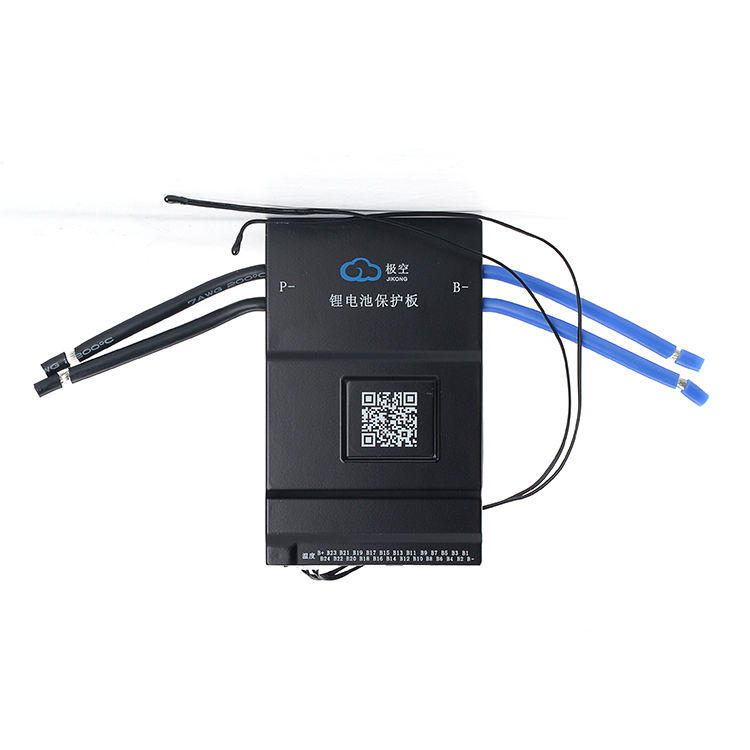

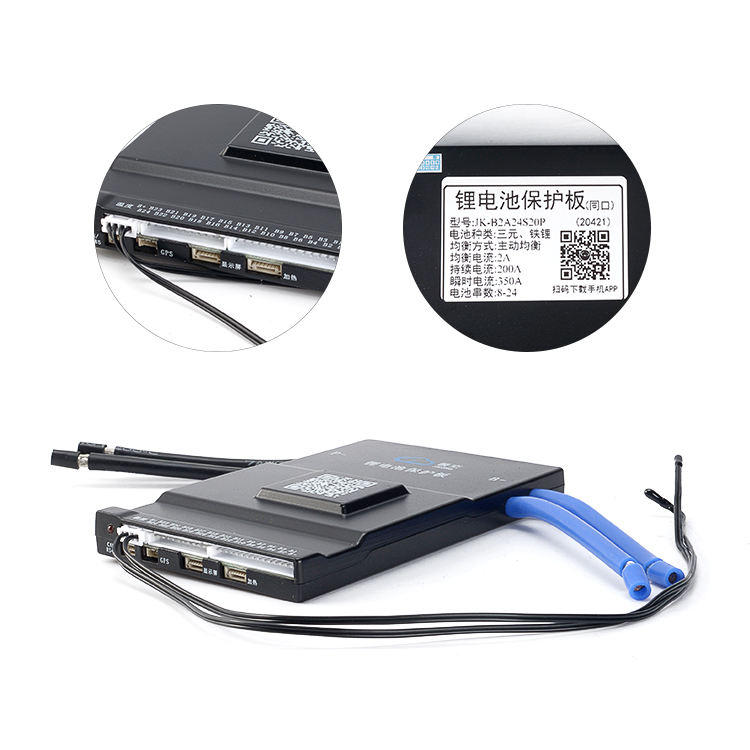

product name | JK B2A24S15P BMS board | |||||||
Model | JK B2A24S15P | |||||||
size | 165*114.5*76mm | |||||||
weight | 1.33 kg | |||||||
Supported battery types | 3.2V lithium iron phosphate battery | |||||||
Voltage | 24V-72V 8S~24S | |||||||
current | 200A | |||||||
smart application | Mobile - IOS/Andriod: Xiaoxiang BMS APP | |||||||
Protect | Overcharge protection/Over-discharge protection/Over-current protection | |||||||
more protection | Temperature protection/short circuit protection/balance function | |||||||
Optional heating function | 2 internal, 1 external | |||||||
balance function | Balanced common port | |||||||
advantage | Intelligent and powerful MOS, imported IC, integrated solution. Equipped with temperature sensor, reserved control switch. | |||||||
regular version | Charge/discharge common port | |||||||
custom made | 3S to 32S different current lithium battery arbitrary PCB | |||||||
Package | Anti-static bag, EVA, bubble bag | |||||||
